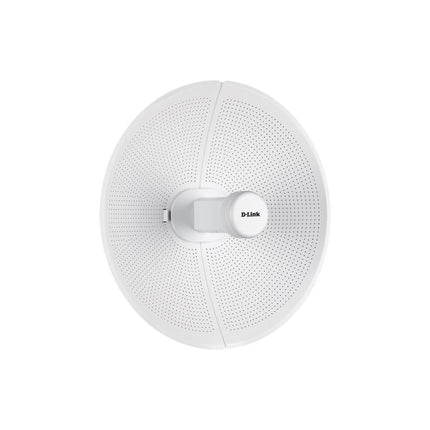

D-Link DAP-3711 Long Range 5km Outdoor WiFi 5 Wireless Bridge with PoE
The D-Link DAP-3711 is a professional-grade long-range wireless bridge designed to deliver high-speed connectivity up to 5 kilometres away. Using WiFi 5 (802.11ac) technology with speeds up to 867 Mbps on the 5GHz band, this outdoor bridge is the perfect solution for extending network coverage to rural areas, construction sites, office branches, and remote locations where traditional cabling is impractical or cost-prohibitive. With its IP66-rated weatherproof housing, 15 dBi directional antenna, and integrated TDMA technology, the DAP-3711 delivers stable, interference-free connectivity even in challenging outdoor environments.
Key Features
-
Long-Range Coverage: Connects wirelessly at distances up to 5 kilometres between two DAP-3711 units with high-speed, stable performance
-
WiFi 5 Speed: Up to 867 Mbps wireless throughput on the 5GHz band for reliable, wired-equivalent connectivity
-
High-Gain Directional Antenna: Built-in 15 dBi antenna effortlessly extends coverage across vast distances
-
TDMA Technology: Time Division Multiple Access eliminates hidden node collisions, maximises airtime efficiency, and cuts interference for consistent performance
-
Weatherproof Design: IP66-rated water-resistant and dust-tight housing protects against rain, dirt, and harsh outdoor conditions
-
8kV Surge Protection: Built-in protection safeguards your network against unexpected power surges and lightning strikes
-
Power over Ethernet: Includes PoE injector for hassle-free installation without additional power lines or cable clutter
-
Built-in Alignment LEDs: Signal strength and alignment indicators make antenna alignment quick and easy, saving installation time and costs
Extend Your Network Where Cable Can't Reach
The DAP-3711 is the essential infrastructure solution for providing reliable outdoor wireless networking. Whether you need to connect remote buildings on a campus, extend Internet access to rural areas, link construction site offices, or bridge transportation hubs, the DAP-3711 delivers fast, stable, long-range wireless coverage that rivals the performance of a wired connection. Its industry-leading core technologies are especially designed for long-distance coverage, bringing high-speed connectivity to previously impossible-to-reach locations.
TDMA Technology Cuts Through Interference
The DAP-3711's transmission capability is augmented by its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3711 is no different. TDMA creates a schedule for the bridge's access point and connected clients to work to. Senders and receivers get their own time slot for transmissions, eliminating hidden node data collisions, maximising airtime efficiency, significantly cutting down interference, and dramatically improving transfer rates. This makes the DAP-3711 a highly scalable solution for point-to-point and point-to-multipoint deployments.
Built Tough for Australian Outdoor Conditions
Form meets function with the DAP-3711's rugged yet unobtrusive design. The sleek white housing blends seamlessly into any outdoor setting without drawing attention. But beneath the refined exterior lies a tough IP66-rated enclosure that fights dust and repels water, protecting the bridge from rain and dirt. With built-in 8kV surge protection, the DAP-3711 withstands unexpected surges such as lightning strikes, enabling reliable deployment in harsh environments and tough Australian weather conditions.
Simple Installation with Power over Ethernet
Power sockets can be tricky to come by, especially in outdoor deployments. The DAP-3711 supports Power over Ethernet (PoE) and includes a 24V PoE injector in the box. This means easy installation and a simple, clean setup with no need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter. The built-in signal strength and alignment LEDs allow you to easily align the antenna with another unit over long distances, saving you specialist installation service costs.
Flexible Deployment Options
The DAP-3711 supports both point-to-point and point-to-multipoint configurations, giving you the flexibility to connect two locations directly or distribute connectivity to multiple remote sites from a central location. Secure your wireless connection with 128-bit AES personal and enterprise wireless encryption (802.11i), ensuring your data stays protected across the wireless link.
Connectivity & Interfaces
-
2 x Gigabit Ethernet (RJ-45) ports: Connect to routers, switches, computers, or other network devices
-
PoE support: IEEE 802.3af/at compliant (24V Passive PoE via included injector)
-
Built-in 15 dBi directional antenna: Internal antenna with 40° horizontal and 15° vertical beamwidth
What's in the Box
- D-Link DAP-3711 Long Range Wireless Bridge
- 24V PoE Injector
- Power Cord
- Mounting Ties
- Quick Start Guide
Full Specifications
Wireless
| Wireless Standard |
IEEE 802.11a/n/ac |
| Frequency Band |
5 GHz |
| Wireless Speed |
Up to 867 Mbps |
| Bandwidth Support |
20/40/80 MHz |
| Maximum Bridging Distance |
Up to 5 km (between 2 × DAP-3711) |
| Antenna Type |
Internal Directional |
| Antenna Gain |
15 dBi |
| Beamwidth |
Horizontal: 40°, Vertical: 15° |
Security
| Wireless Encryption |
802.11i 128-bit AES Personal / Enterprise |
| Firewall |
IP / MAC address filtering |
| VLAN Support |
Yes |
Technology
| Advanced Features |
TDMA, Auto ACK, Intelligent Rate Control, Co-channel Interference Avoidance |
| Configuration |
Auto channel support, transmit power selection, SSID broadcast enabling/disabling |
| System Tools |
Ping, traceroute, NTP, ping watchdog, syslog, spectrum analyzer, throughput testing (iperf) |
Interfaces & Networking
| Ethernet Ports |
2 × 10/100/1000 Mbps Gigabit Ethernet (RJ-45) |
| LAN Configuration |
Static IP, DHCP |
| Firmware Upgrade |
Web-based upgrade |
Power & Environment
| Power Input |
24V Passive PoE (via included injector) |
| Power Consumption |
≤ 15 W |
| Operating Temperature |
-40°C to 65°C |
| Storage Temperature |
-40°C to 85°C |
| Operating Humidity |
0% to 90% (non-condensing) |
| Storage Humidity |
0% to 90% (non-condensing) |
| Protection Rating |
IP66 (water-resistant and dust-tight) |
| Surge Protection |
8 kV ESD Protection |
Physical
| Dimensions |
288 × 88 × 45 mm (11.3 × 3.4 × 1.8 in) |
| Weight |
600 g (1.3 lbs) |
| Colour |
White |
| Certifications |
CE, FCC |
What's in the Box
| Package Contents |
DAP-3711 Wireless Bridge, 24V PoE Injector, Power Cord, Mounting Ties, Quick Start Guide |
Specifications are sourced from the official manufacturer product page and may be updated. Note: Two units are required to create a wireless bridge link. Maximum wireless signal rate derived from IEEE 802.11ac specifications. Actual data throughput will vary based on network conditions, environmental factors, and distance.
