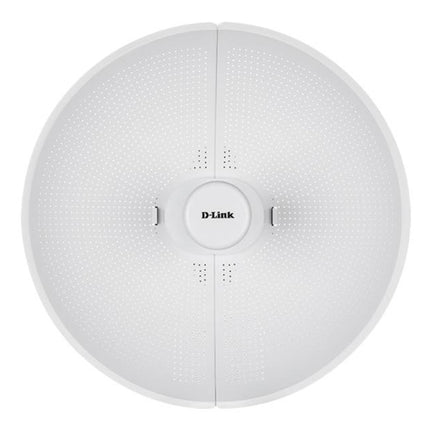

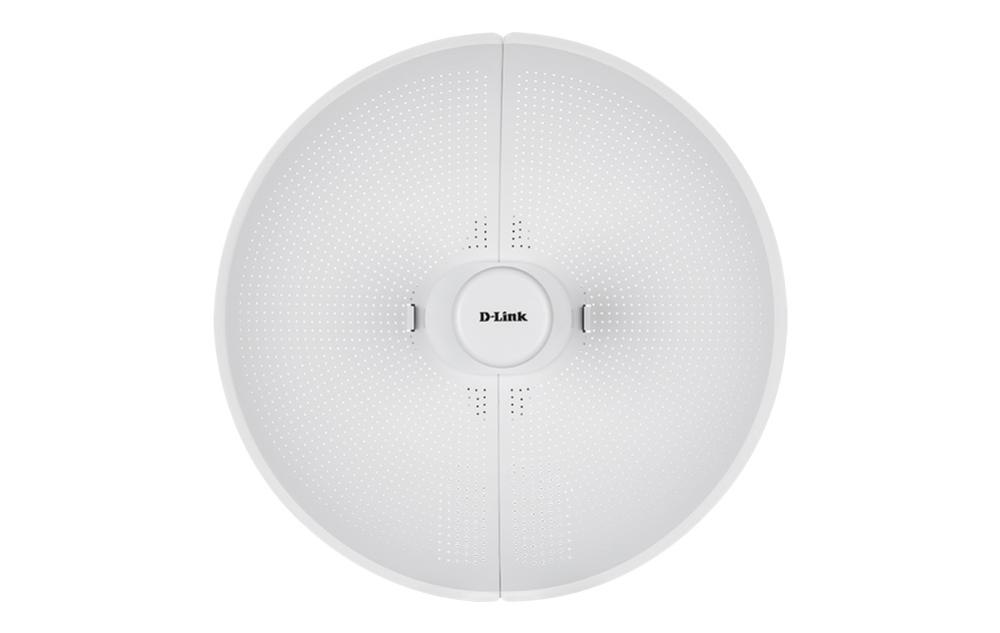

D-Link DAP-3712-2PK Long Range Wireless Bridge 20km Wi-Fi 5 - 2 Pack
The D-Link DAP-3712-2PK is a professional-grade long-range wireless bridge solution designed to deliver high-speed connectivity up to 20 kilometres between sites. Perfect for connecting remote buildings, office branches, construction sites, or rural areas, this 2-pack bundle offers everything you need for point-to-point or point-to-multipoint deployments. Using proven Wi-Fi 5 (802.11ac) technology with speeds up to 867Mbps, the DAP-3712 provides a cost-effective alternative to expensive fibre installations while delivering reliable, weatherproof performance in the toughest Australian conditions.
Why You'll Love the DAP-3712 Long Range Bridge
-
20km Range: High-gain 23 dBi directional dish antennas deliver stable connectivity across vast distances, ideal for rural and remote Australian locations
-
Fast Wi-Fi 5 Speeds: Transfer data at up to 867Mbps on the 5GHz band with minimal interference
-
TDMA Technology: Time Division Multiple Access eliminates data collisions and dramatically improves transfer rates and consistency
-
Weatherproof Design: IP66-rated housing protects against rain, dust, and extreme temperatures from -40°C to 65°C
-
8kV Surge Protection: Built-in protection against lightning strikes and power surges for Australian outdoor deployments
-
Easy Installation: PoE+ powered (injector included), built-in signal strength and alignment LEDs simplify setup
Industrial-Grade Performance for Remote Connectivity
The DAP-3712 features state-of-the-art hardware purpose-built for long-distance wireless networking. The powerful 23 dBi directional dish antenna focuses signal strength to achieve coverage up to 20km between two units. Operating on the less-congested 5GHz frequency band, the bridge delivers consistent performance even in busy RF environments. The integrated Gigabit Ethernet port ensures your network never becomes a bottleneck, supporting data rates up to 1000Mbps.
TDMA Technology for Superior Reliability
Unlike standard wireless bridges, the DAP-3712 uses Time Division Multiple Access (TDMA) to create a transmission schedule between access point and client. This eliminates hidden node collisions, maximises airtime efficiency, significantly reduces interference, and improves the transfer rate - making it perfect for mission-critical business applications across farms, mines, campuses, and industrial sites throughout Australia.
Built Tough for Australian Conditions
Engineered for outdoor deployment in harsh environments, the DAP-3712 is enclosed in a rugged IP66-rated housing that provides complete protection from dust and powerful water jets. Operating temperature range of -40°C to 65°C means it handles extreme heat and cold without missing a beat. The 8kV surge protection safeguards your investment from lightning strikes and electrical surges common in rural Australian areas.
Simple, Cost-Effective Installation
Each DAP-3712 supports Power over Ethernet+ (PoE+) via the included injector, allowing you to power the unit through a single Ethernet cable up to 100 metres away. This eliminates the need for separate power runs and reduces installation costs. Built-in signal strength and alignment LEDs on the unit make it easy to precisely aim the antenna for optimal performance, saving on professional installation services.
Flexible Deployment Options
The DAP-3712 supports multiple operation modes including Access Point, Station, WDS AP, and WDS Station, enabling both point-to-point and point-to-multipoint configurations. Connect two buildings, distribute internet to multiple remote sites, or create a wireless backbone for your network. 128-bit AES encryption ensures your data remains secure across the wireless link.
Perfect For
- Connecting remote buildings and rural properties
- Linking construction sites to head offices
- Farm and agricultural network connectivity
- Mine site communications
- Campus and multi-building networks
- Backup internet connections for business continuity
- Temporary event and festival networks
- Transport hubs and logistics centres
What's in the Box
- 2 × DAP-3712 Long Range Wireless Bridge units
- 2 × Power Injector (PoE+)
- 2 × Power Cord (Australian plug)
- 2 × Mounting Tie Kit
- Quick Start Guide
Full Specifications
Wireless
| Wireless Standard |
IEEE 802.11ac (Wi-Fi 5), 802.11n, 802.11a |
| Frequency Band |
5.180 - 5.825 GHz (5GHz only) |
| Maximum Data Rate |
867 Mbps |
| Maximum Range |
Up to 20 km (between 2 × DAP-3712) |
| Antenna Type |
Built-in 23 dBi directional dish antenna |
| Antenna Beamwidth |
10° (horizontal), 10° (vertical) |
| Maximum Transmit Power |
27 dBm |
| TDMA Technology |
Yes |
Network
| Ethernet Ports |
1 × 10/100/1000 Mbps Gigabit Ethernet (RJ45) |
| Network Standards |
IEEE 802.3, 802.3u, 802.3ab |
| VLAN Support |
Yes |
| IP Configuration |
Static IP, DHCP Client |
Security
| Wireless Encryption |
802.11i 128-bit AES (Personal/Enterprise) |
| Security Modes |
WPA2-PSK, WPA2-Enterprise |
| SSID Broadcast |
Enable/Disable |
Management
| Configuration |
Web-based GUI |
| Management Tools |
Ping, traceroute, NTP, Syslog, spectrum analyzer, throughput testing |
| Operation Modes |
Access Point, Station, WDS AP, WDS Station |
Power & Environment
| Power Input |
PoE+ 48V (IEEE 802.3at) |
| Power Consumption |
≤ 15W |
| Operating Temperature |
-40°C to 65°C |
| Storage Temperature |
-40°C to 85°C |
| Operating Humidity |
0% to 90% (non-condensing) |
| IP Rating |
IP66 (water and dust resistant) |
| Surge Protection |
8kV ESD protection |
Physical
| Dimensions (Each Unit) |
372 × 372 × 241 mm (W × H × D) |
| Weight (Each Unit) |
900 g (0.9 kg) |
| Colour |
White |
| Mounting |
Pole mount (mounting hardware included) |
Certifications
| Standards Compliance |
CE, FCC |
| Warranty |
D-Link Limited Lifetime Warranty (with product registration) |
Specifications are sourced from the official D-Link Australia product page and may be updated. Range will vary depending on environmental conditions, obstructions, and regulatory limits in your region.
