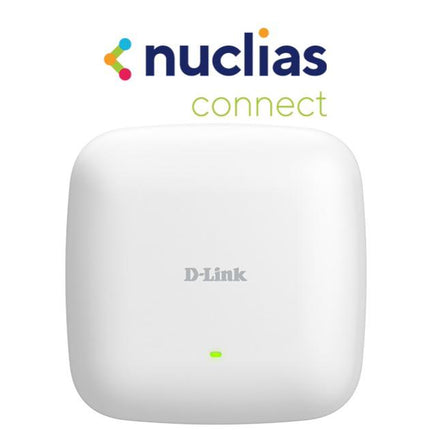

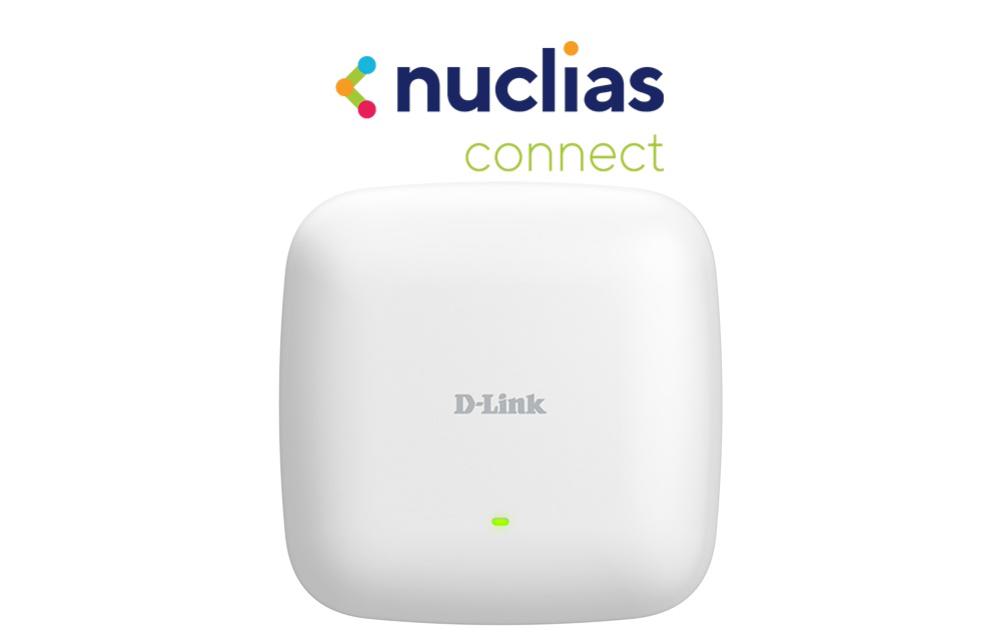

D-Link DAP-X2850 AX3600 Wi-Fi 6 4x4 Dual-Band PoE Access Point
The D-Link DAP-X2850 is a next-generation Wi-Fi 6 access point designed to deliver exceptional wireless performance for businesses of all sizes. With combined speeds up to 3,600 Mbps, 4x4 MU-MIMO technology, and a 2.5 Gigabit Ethernet uplink, this dual-band PoE access point provides the multi-gigabit speeds and interference-free coverage needed in high-density environments like offices, retail stores, hospitality venues, and educational campuses. Managed effortlessly via the free Nuclias Connect platform, the DAP-X2850 is ideal for SMBs, retailers, and managed service providers seeking scalable, centralised network management.
Why Choose the DAP-X2850?
-
Wi-Fi 6 Performance: Delivers up to 3,600 Mbps combined throughput with nearly 4x the capacity of previous Wi-Fi standards
-
4x4 MU-MIMO & Beamforming: Supports more simultaneous connections with optimised signal targeting for superior client experience
-
2.5 Gbps Uplink: Eliminates network bottlenecks with multi-gigabit backhaul to your wired infrastructure
-
PoE Powered: IEEE 802.3at Power over Ethernet support for simple, cable-free installation
-
Free Nuclias Connect Management: Manage up to 1,000 access points via cloud or on-premises software
-
WPA3 Security: Latest wireless encryption standard for enhanced network protection
Next-Generation Wi-Fi 6 Technology
The DAP-X2850 is powered by the latest 802.11ax Wi-Fi 6 standard, offering dramatically improved network efficiency, lower latency, and greater capacity compared to older Wi-Fi generations. With OFDMA and enhanced MU-MIMO, this access point can serve multiple devices simultaneously without sacrificing speed or performance. Perfect for busy workspaces with dozens of connected laptops, smartphones, tablets, and IoT devices.
Optimised for High-Density Environments
The DAP-X2850 features intelligent technologies designed to eliminate congestion and deliver a seamless user experience:
-
Band Steering: Automatically directs capable devices to the faster 5 GHz band
-
Airtime Fairness: Ensures every connected device receives equal air time for balanced performance
-
Load Balancing: Distributes client workloads across multiple access points for optimum resource utilisation
-
Beamforming: Focuses wireless signals toward connected devices for stronger, more reliable connections
Flexible Installation & Deployment
Designed for versatile installation, the DAP-X2850 can be ceiling-mounted, wall-mounted, or placed on a desk. The integrated 802.3at PoE support means power and data are delivered over a single Ethernet cable, reducing clutter and simplifying deployment in locations where power outlets are scarce. Multiple operation modes including Access Point, WDS, WDS with AP, and Wireless Client allow the DAP-X2850 to adapt to diverse network topologies.
Centralised Management with Nuclias Connect
The DAP-X2850 works seamlessly with Nuclias Connect, D-Link's free, software-based network management platform. Whether deployed on-premises or in the cloud, Nuclias Connect provides centralised control, automation, traffic analytics, and scalability for networks ranging from a handful of access points to over 1,000 devices. Manage your entire network remotely via the Nuclias Connect app or desktop software, with features including:
- Role-based admin access for efficient delegation
- Customisable captive portal with industry-standard authentication
- Real-time traffic reporting and analytics
- Batch configuration and firmware updates
Connectivity & Interfaces
- 1 × 2.5 Gbps Ethernet LAN (PoE)
- 1 × 10/100/1000 Mbps Ethernet LAN
- 1 × RJ45 Console Port
- Factory reset button
- Power input (12V/2.5A optional adapter)
What's in the Box
- D-Link DAP-X2850 Access Point
- Quick Installation Guide
- Mounting Kit
- Hexagon Socket Spanner
- Grounding Wire
- Two LAN Port Waterproof Enclosure
Full Specifications
| Model |
DAP-X2850 |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Wireless Speed |
Up to 3,600 Mbps combined |
| Frequency Bands |
2.4 - 2.483 GHz, 5.15 - 5.35 GHz, 5.47 - 5.85 GHz |
| Antennas |
4 × internal (2.4 GHz), 4 × internal (5 GHz) |
| Antenna Gain |
3.5 dBi (2.4 GHz), 5.5 dBi (5 GHz) |
| Maximum Output Power |
28 dBm (2.4 GHz), 25.5 dBm (5 GHz) |
| Ethernet Interfaces |
1 × 2.5 Gbps LAN (PoE), 1 × 10/100/1000 Mbps LAN, 1 × RJ45 Console |
| Security |
WPA/WPA2/WPA3 Personal/Enterprise, WEP 64/128-bit, SSID broadcast disable, MAC address filtering, internal RADIUS server |
| Management |
Nuclias Connect, Web UI (HTTP/SSL), Telnet, SSH |
| PoE Standard |
IEEE 802.3at (PoE+) |
| Power Consumption |
19.44 W |
| Power Supply |
12 V / 2.5 A (optional adapter) or 802.3at PoE |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 65°C (-4°F to 149°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Dimensions |
212.4 × 212.4 × 46.7 mm (8.36 × 8.36 × 1.8 in) |
| Weight |
807.7 g (1.78 lb) |
| Certifications |
CE, FCC, IC, RCM, LVD |
Specifications are sourced from the manufacturer product page and may be updated.
