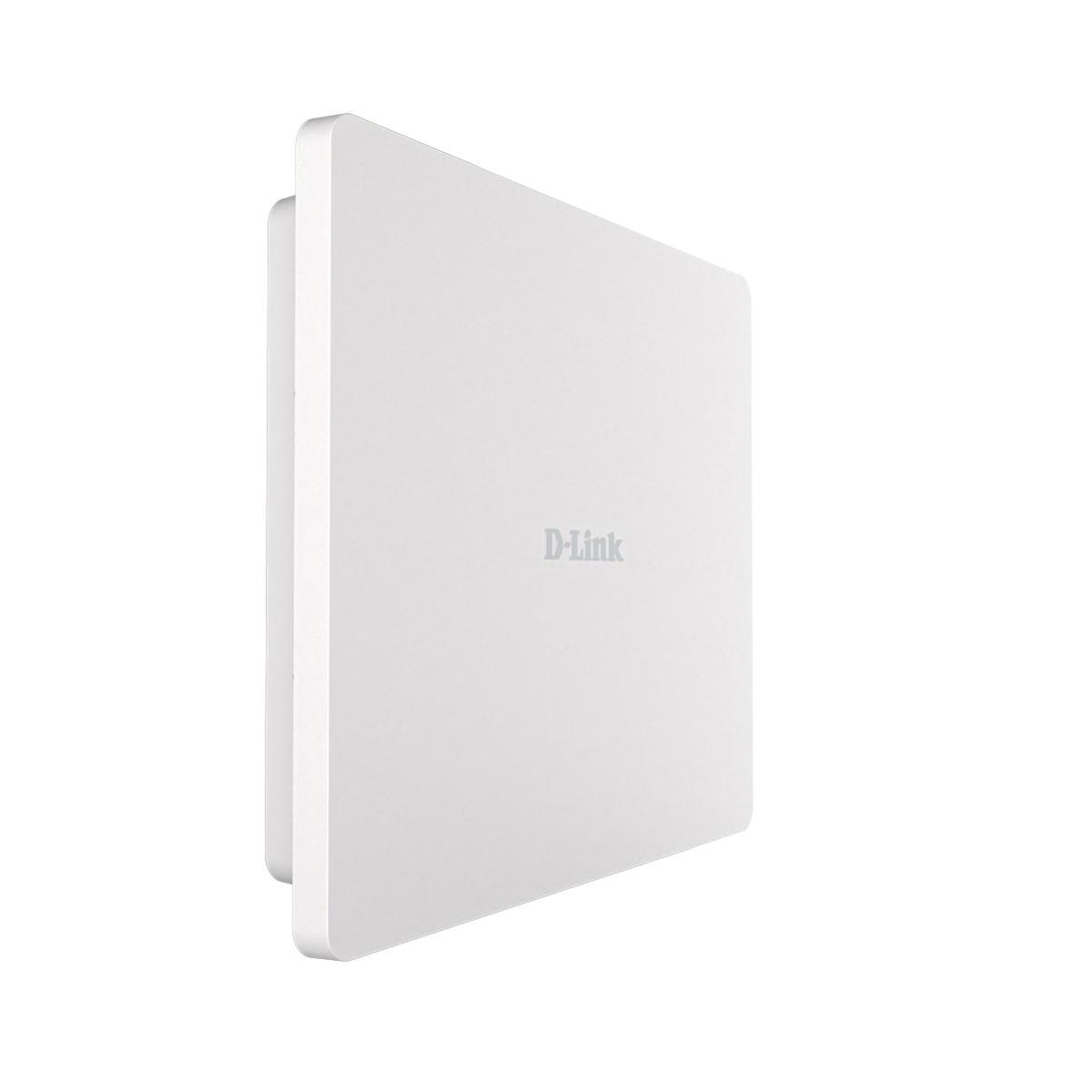

D-Link DAP-X3060OU AX3000 Wi-Fi 6 Outdoor Access Point with PoE
The D-Link DAP-X3060OU delivers enterprise-grade Wi-Fi 6 outdoor connectivity with combined speeds up to 3000 Mbps, designed for demanding outdoor environments. With its IP68 weatherproof housing rated for temperatures from -30°C to 60°C, this rugged access point provides reliable wireless coverage for outdoor spaces including car parks, stadiums, campuses, warehouses, and hospitality venues across Australia.
Key Features
-
Wi-Fi 6 AX3000 Speed: Up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for fast, reliable outdoor connectivity
-
IP68 Weatherproof Design: Dust and water resistant, operates in extreme temperatures from -30°C to 60°C
-
2.5 Gigabit Ethernet Port: Multi-gigabit backhaul eliminates bottlenecks and supports PoE+ (802.3at) for single-cable installation
-
4x4 MU-MIMO & Beamforming: Internal omnidirectional antennas with 2×2.4GHz + 2×5GHz for superior coverage and multiple simultaneous connections
-
Nuclias Connect Management: Free centralized software management for easy deployment, monitoring, and scalability
-
Advanced Security: WPA3 encryption, VLAN support, captive portal, and wireless client isolation for secure outdoor networks
Unmatched Outdoor Performance with Wi-Fi 6
The DAP-X3060OU harnesses the power of 802.11ax Wi-Fi 6 technology to deliver up to four times the capacity of previous Wi-Fi standards. With combined wireless speeds of 3000 Mbps, it ensures stable data transfer and high-quality video streaming even in high-density outdoor environments. OFDMA and MU-MIMO technology allow multiple devices to connect simultaneously without congestion, making it perfect for outdoor hotspots, smart city deployments, and IoT networks.
Extreme Weather Protection
Built for the harshest Australian conditions, the IP68-certified weatherproof housing provides complete protection against dust, rain, heat, snow, and corrosion. The breathable design repels liquid water while allowing heat and humidity to dissipate, ensuring reliable operation in extreme temperatures. Whether facing scorching summer heat or freezing winter conditions, the DAP-X3060OU delivers consistent performance year-round.
Simplified Installation with PoE+
The 2.5 Gigabit Ethernet port with 802.3at PoE+ support allows for single-cable installation, providing both power and multi-gigabit data connectivity. This eliminates the need for nearby power outlets and reduces installation costs, making it ideal for mounting on poles, walls, and other outdoor structures where power access is limited. The included mounting hardware supports wall, pole, and ceiling installation options.
Intelligent Network Management
Band steering automatically directs dual-band devices to the less congested 5 GHz band, while Airtime Fairness and Load Balancing distribute workloads evenly across access points. The DAP-X3060OU can operate in multiple modes including Access Point, WDS (Wireless Distribution System), and WDS with AP to suit various network topologies. Configure up to eight VLANs per band for network segmentation and enhanced security.
Centralized Management with Nuclias Connect
Manage your outdoor wireless network effortlessly with D-Link's free Nuclias Connect software platform. Deploy, configure, monitor, and troubleshoot multiple access points from a single interface, accessible via web browser or mobile app. The platform provides real-time analytics, traffic insights, and automated alerts, enabling proactive network management for businesses of all sizes.
Enterprise-Grade Security
Protect your outdoor network with the latest WPA3 wireless encryption, along with support for WPA/WPA2 for legacy device compatibility. Additional security features include wireless client isolation to prevent direct client-to-client communication, MAC address filtering, rogue AP detection, and a customizable captive portal with industry-standard authentication for guest access management.
Ideal Applications
- Outdoor Wi-Fi hotspots for public spaces, parks, and plazas
- University and school campuses with outdoor study areas
- Stadiums, arenas, and outdoor entertainment venues
- Hotels, resorts, and hospitality outdoor spaces
- Warehouses, distribution centers, and industrial facilities
- Car parks, loading docks, and transportation hubs
- Smart city infrastructure and IoT deployments
- Retail outdoor areas and shopping centers
What's in the Box
- DAP-X3060OU Wi-Fi 6 Outdoor Access Point
- Mounting plate and hardware
- Hexagon socket spanner
- Mount screw (hexagonal hole)
- Quick Installation Guide
- Warranty information
Full Specifications
Wireless
| Wireless Standard |
IEEE 802.11ax/ac/n/a (5 GHz)
IEEE 802.11ax/n/g/b (2.4 GHz) |
| Maximum Speed |
AX3000 (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) |
| Antennas |
2×2.4 GHz + 2×5 GHz internal omnidirectional antennas |
| MIMO Technology |
4×4 MU-MIMO with Beamforming |
| Operating Modes |
Access Point, WDS, WDS with AP, Wireless Client |
| Band Steering |
Yes |
| Airtime Fairness |
Yes |
| Load Balancing |
Yes |
Network Interface
| LAN Port |
1 × 2.5 Gigabit Ethernet (RJ-45) with PoE+ support |
| Power over Ethernet |
IEEE 802.3at PoE+ (powered device) |
Security
| Wireless Encryption |
WPA3, WPA2, WPA, WEP |
| VLAN Support |
Up to 8 VLANs per band |
| Additional Security |
Wireless client isolation, MAC address filtering, SSID broadcast disable, rogue AP detection, wireless broadcast scheduling, RADIUS server support |
| Captive Portal |
Customizable with industry-standard authentication |
Management
| Management Platform |
Nuclias Connect (free software and mobile app)
Web-based interface
Optional Nuclias Hardware Controller (DNH-100) |
| Configuration |
Standalone or centrally managed |
Environmental
| Ingress Protection |
IP68 (water and dust-proof) |
| Operating Temperature |
-30°C to 60°C |
| Housing |
Weatherproof with breathable design for heat and humidity dissipation |
| Certifications |
CE, FCC, UL, IP68, EN60601-1-2 |
Physical
| Dimensions |
277 × 240 × 50 mm (10.91 × 9.45 × 1.97 in) |
| Weight |
1159 g (2.56 lb) |
| Mounting Options |
Wall mount, pole mount, ceiling mount |
| Grounding |
Grounding wire terminal included |
Specifications are sourced from the manufacturer product page and may be updated.
