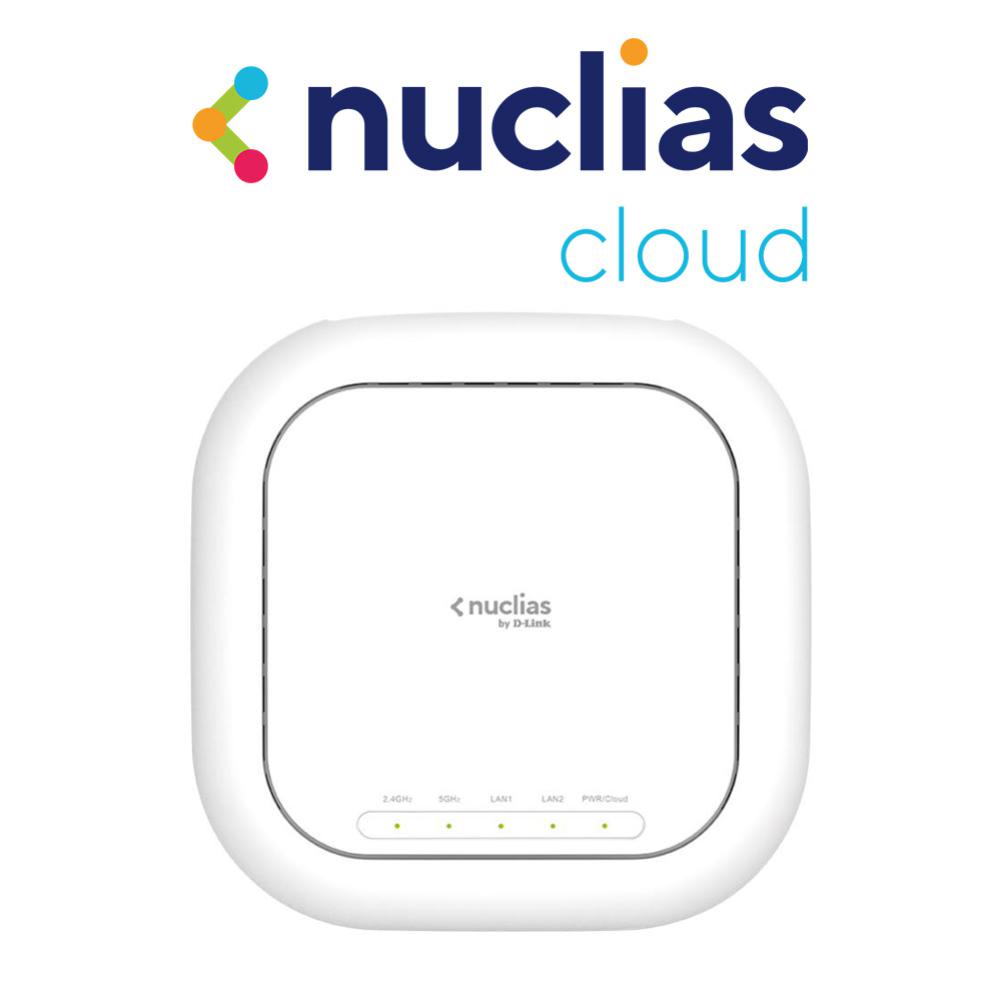

D-Link DBA-X2830P Nuclias AX3600 Wi-Fi 6 Cloud-Managed Access Point
The D-Link DBA-X2830P is a next-generation Wi-Fi 6 (802.11ax) access point designed for enterprise environments, small to medium businesses, retail, hospitality, and managed service providers. With combined dual-band speeds up to 3.6 Gbps (1147 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz), this cloud-managed AP delivers lightning-fast connectivity for bandwidth-intensive applications including data transfer, video streaming, and voice communications even in highly congested environments. It includes a 1-year Nuclias Cloud Management license and features zero-touch provisioning for simplified deployment.
Key Features
-
Wi-Fi 6 Certified: Latest 802.11ax standard with Wi-Fi CERTIFIED 6 seal for guaranteed interoperability and performance
-
4×4 MU-MIMO: Four spatial streams enable simultaneous connections to multiple devices, eliminating congestion and lag
-
Nuclias Cloud Management: Manage your entire network remotely via browser or mobile app from anywhere in the world
-
High-Speed Backhaul: Two Ethernet ports with Link Aggregation support up to 3.5 Gbps backhaul (1× 2.5 Gbps + 1× 1 Gbps)
-
Power over Ethernet: IEEE 802.3at PoE support for clean, simple installation without additional power cables
-
WPA3 Security: Latest encryption standard for enhanced wireless protection
-
Unlimited Scalability: Cloud-based architecture allows easy expansion as your business grows
-
Advanced Wi-Fi 6 Technologies: OFDMA, BSS Colouring, and 1024-QAM deliver up to 25% speed increases and improved efficiency
Cloud-Based Network Management Made Simple
The DBA-X2830P is part of the D-Link Nuclias Cloud Solution, providing complete end-to-end control over your wireless network. The intuitive Nuclias Cloud platform enables you to configure, monitor, and manage multiple access points and sites simultaneously from a centralised dashboard. Features include real-time network statistics, instant alerts, customisable captive portal for guest access, load balancing optimisation, and robust reporting and analytics. SSL-encrypted out-of-band management ensures secure connectivity while minimising bandwidth requirements.
Next-Generation Wi-Fi 6 Performance
Wi-Fi 6 technology transforms network efficiency with 4×4 MU-MIMO supporting four simultaneous spatial streams, enabling the DBA-X2830P to serve multiple users concurrently without slowdowns. OFDMA dramatically increases transmission efficiency by allowing multiple devices to share channels more intelligently, while 1024-QAM packs more data into the same radio waves. BSS Colouring reduces interference in dense environments. The result is stellar wireless performance that handles high user density in conference rooms, classrooms, hotel lobbies, retail spaces, and offices.
Zero-Touch Deployment
The DBA-X2830P is deployed as a pre-managed, zero-configuration access point. Simply power up the device on site, plug it into your network, and remotely configure it through Nuclias Cloud. No need to send experienced technicians for every installation. Network configurations and firmware updates are automatically pushed through the cloud without requiring specialised equipment or personnel onsite, making large-scale deployments faster and more cost-effective.
Flexible Installation Options
With its compact white design and multiple mounting options, the DBA-X2830P fits seamlessly into any environment. It can be ceiling-mounted, wall-mounted, or placed on a desk. The IEEE 802.3at Power over Ethernet support means no extra power lines or nearby outlets required, perfect for installations in areas where power access is limited. The elegant design effortlessly blends into offices, retail spaces, hotels, and educational facilities.
Advanced Security and Network Segmentation
Security comes standard with WPA3 encryption, the latest Wi-Fi security standard offering enhanced protection. The DBA-X2830P supports up to eight VLANs per band, allowing multiple SSIDs to segment users for enhanced network organisation. Wireless client isolation limits direct client-to-client communication for added privacy. Network Access Protection (NAP) enables multiple levels of network access based on user requirements. Additional features include RADIUS authentication, customisable captive portal, and rogue AP detection.
Ideal Use Cases
- Small to medium business offices requiring reliable high-speed wireless
- Retail environments with guest Wi-Fi and point-of-sale connectivity
- Hospitality venues including hotels, resorts, and conference centres
- Educational campuses and classrooms with high device density
- Managed service providers deploying multi-site networks
- Healthcare facilities requiring secure, segmented wireless access
What's in the Box
- D-Link DBA-X2830P Nuclias AX3600 Access Point
- Mounting kit (ceiling and wall mount brackets)
- Quick Installation Guide
- 1-year Nuclias Cloud Management license (included)
Note: Power adapter not included. The device supports IEEE 802.3at PoE or optional 12V/2.5A power adapter (sold separately).
Full Specifications
Wireless
| Wireless Standard |
IEEE 802.11ax (Wi-Fi 6), Wi-Fi CERTIFIED 6, 802.11a/b/g/n/ac Wave 2 |
| Frequency Bands |
Dual-band concurrent: 2.4 GHz and 5 GHz |
| Maximum Wireless Speed |
Combined 3.6 Gbps (2.4 GHz: up to 1147 Mbps / 5 GHz: up to 2402 Mbps) |
| Antennas |
4×4 internal omni-directional antennas (2.4 GHz: 3 dBi / 5 GHz: 4 dBi) |
| MIMO Technology |
4×4 MU-MIMO with 4 spatial streams |
| Maximum Output Power |
2.4 GHz: 20 dBm / 5 GHz: 20 dBm |
Interfaces
| Ethernet Ports |
1× 10/100/1000/2500 Mbps (2.5 Gigabit) Ethernet port
1× 10/100/1000 Mbps Gigabit Ethernet port
Both ports support Link Aggregation (3.5 Gbps total backhaul) |
| Console Port |
1× RJ45 console port |
Standards
| Compliance |
IEEE 802.11a/b/n/g/ac/ax
IEEE 802.3i/u/ab (Ethernet)
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet (PoE) |
Management
| Cloud Management |
D-Link Nuclias Cloud (1-year license included, renewable 1-5 years) |
| Management Access |
Web browser or Nuclias Cloud mobile app (iOS/Android) |
| Provisioning |
Zero-touch deployment, cloud-based auto-configuration |
| Scalability |
Unlimited device and site scalability |
Security
| Encryption |
WPA3 (Enterprise and Personal), WPA2, 802.11i |
| Authentication |
RADIUS, customisable captive portal |
| Network Features |
Up to 8 VLANs per band, wireless client isolation, Network Access Protection (NAP), rogue AP detection, IP and MAC filtering |
| Traffic Encryption |
SSL encrypted cloud management, client traffic terminated locally |
Power
| Power Input |
IEEE 802.3at Power over Ethernet (PoE) on LAN 1
Optional power adapter: 12V DC, 2.5A (not included) |
| Power Consumption |
PoE: 25.1W
Power adapter: 27W |
Physical
| Dimensions |
224.5 × 223.9 × 50 mm (W × D × H) |
| Weight |
935 g (without mount) |
| Colour |
White |
| Mounting Options |
Ceiling mount, wall mount, desktop (horizontal) |
Environment
| Operating Temperature |
0 to 40°C (32 to 104°F) |
| Storage Temperature |
-20 to 65°C (-4 to 149°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| MTBF |
485,000 hours |
Certifications
| Regulatory |
CE Class B, FCC Class B, UL-2043, IC Class B |
| Wi-Fi Certification |
Wi-Fi CERTIFIED 6 |
| IPv6 |
IPv6 Ready |
Specifications are sourced from the official D-Link manufacturer product page and may be updated. Actual wireless data throughput will vary based on network conditions, environmental factors, building materials, volume of network traffic, and other factors.
