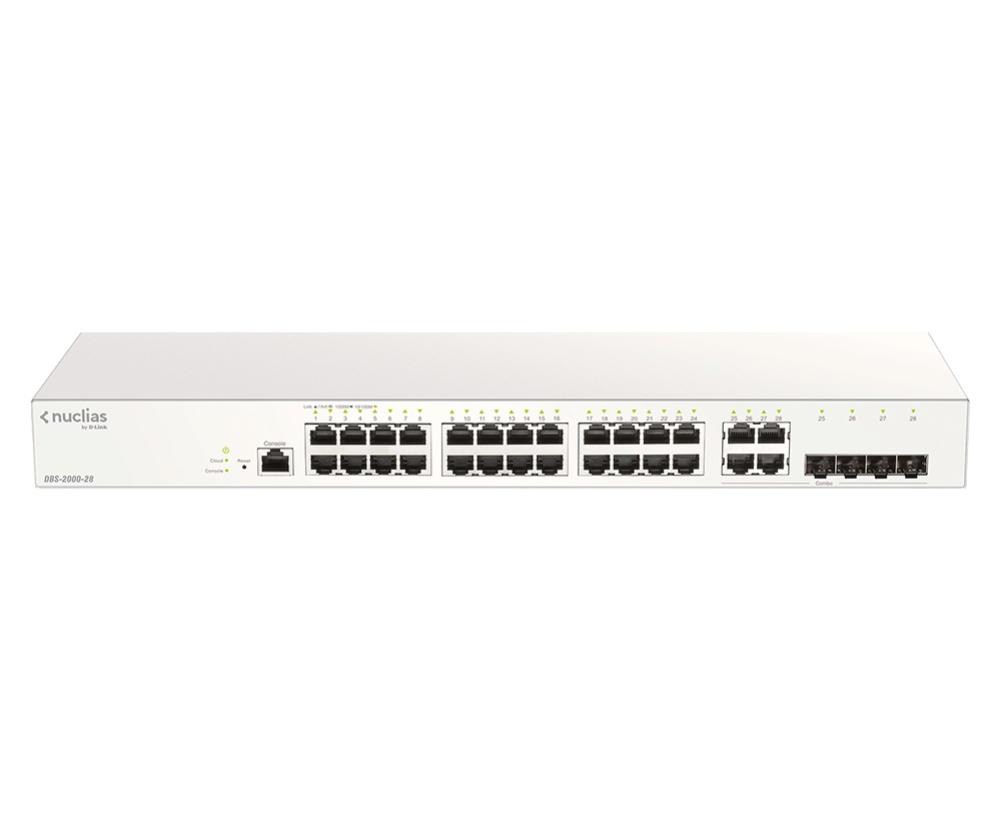

D-Link DBS-2000-28 24-Port Gigabit Nuclias Cloud-Managed Switch
The D-Link DBS-2000-28 is a powerful and flexible Nuclias Cloud-Managed Switch designed for small-to-medium-sized businesses seeking enterprise-grade networking with hassle-free management. With 24 x 10/100/1000 Mbps ports and 4 x combo Gigabit/SFP ports, this 28-port switch delivers 56 Gbps switching capacity and advanced Layer 2 features, all managed remotely via the intuitive Nuclias Cloud platform. Perfect for offices, retail, hospitality, and education environments, the DBS-2000-28 offers zero-touch deployment, 99.9% cloud SLA, and robust security features including WPA/WPA2/WPA3 encryption.
Why You'll Love the D-Link DBS-2000-28
-
Cloud-Based Management: Manage your network from anywhere using the Nuclias Cloud web portal or mobile app with a 1-year license included
-
Zero-Touch Deployment: Pre-configured switches that auto-configure through the cloud, no on-site IT staff required
-
Enterprise-Grade Features: Layer 2 capabilities including VLANs, STP, RSTP, Link Aggregation (802.3ad), and IGMP snooping
-
Advanced Security: End-to-end WPA/WPA2/WPA3 encryption, port security, ACLs, and DHCP server screening
-
Flexible Connectivity: 24 Gigabit Ethernet ports plus 4 combo Gigabit/SFP ports for fiber uplinks
-
Fanless Design: Completely silent operation with 0 dB(A) acoustics, ideal for office environments
-
Energy Efficient: D-Link Green technology with IEEE 802.3az compliance for reduced power consumption
-
Limited Lifetime Warranty: Industry-leading warranty protection when registered
Centralized Cloud Management from Anywhere
The DBS-2000-28 is managed entirely through the Nuclias Cloud platform, giving network administrators an easy way to configure, monitor, and troubleshoot from any location. View real-time port traffic, connection status, and key network statistics through the intuitive dashboard. The cloud connection is backed by a 99.9% Service-Level-Agreement (SLA), and the switch will continue to operate even if cloud connectivity is temporarily lost. Configuration changes can be pushed to single switches or multiple switches simultaneously, making network expansion simple and scalable.
Enterprise Networking Features for SMBs
While easy to deploy, the DBS-2000-28 is equipped with enterprise-grade Layer 2 features including:
-
VLAN Support: Up to 256 static VLAN groups for network segmentation
-
Spanning Tree Protocol: 802.1D STP and 802.1w RSTP support for redundant network paths
-
Link Aggregation: 802.3ad static link aggregation for increased bandwidth
-
IGMP Snooping: Optimized multicast traffic delivery
-
Voice VLAN: Prioritized traffic for VoIP applications
-
Access Control Lists: Up to 768 ACL entries for granular security control
-
LLDP: Link Layer Discovery Protocol for network topology mapping
-
Cable Diagnostics: Quick examination of cable quality and error detection
Robust Security for Business Networks
Security is paramount for business networks. The DBS-2000-28 features SSL-encrypted communication between the switch and cloud, ensuring all management data is secure. Additional security features include port security, static MAC address assignment, RADIUS server authentication, and IP and MAC-based access control lists. All traffic to and from the Nuclias Cloud uses an out-of-band connection with WPA/WPA2/WPA3 encryption, creating a trusted and safe network environment.
Ideal for Multi-Site Deployments
The Nuclias Cloud platform is perfect for businesses with multiple locations. Deploy switches at remote offices, retail stores, or branch locations without needing technical staff on-site. Simply connect the switch, and the Nuclias Cloud automatically configures it based on your settings. Monitor all sites from a single pane of glass, organize networks by location, and generate detailed reports across your entire infrastructure.
Silent, Energy-Efficient Operation
With its fanless design, the DBS-2000-28 operates in complete silence, making it perfect for office environments, classrooms, or any location where noise is a concern. The switch also features D-Link Green technology with IEEE 802.3az Energy-Efficient Ethernet support, reducing power consumption during periods of low network activity.
What's in the Box
- D-Link DBS-2000-28 Cloud-Managed Switch
- Power cord
- Rack-mount kit
- Quick installation guide
- 1-year Nuclias Cloud Management license
Full Specifications
General
| Hardware Version |
A1 |
| Number of Ports |
24 x 10/100/1000 Mbps + 4 x Combo 1000 Mbps/SFP |
| Port Functions |
IEEE 802.3 compliant, IEEE 802.3u/802.3z compliant, IEEE 802.3ab compliant, IEEE 802.3x Flow Control, Manual/auto MDI/MDIX configuration, Half/full-duplex operation, IEEE 802.3az compliant |
Performance
| Switching Capacity |
56 Gbps |
| Maximum Forwarding Rate |
41.7 Mpps |
| MAC Address Table Size |
8K Entries |
| Packet Buffer |
4.1 Mbits |
| Flash Memory |
32 MB |
Layer 2 Features
| VLAN |
Supports 256 static VLAN groups |
| Spanning Tree Protocol |
802.1D STP, 802.1w RSTP |
| Link Aggregation |
802.3ad static |
| IGMP Snooping |
Supported |
| Voice VLAN |
Supported |
| Cable Diagnostics |
Supported |
| LLDP |
Supported |
Security
| Access Control List (ACL) |
Max 768 entries |
| Encryption |
WPA/WPA2/WPA3 end-to-end encryption |
| Port Security |
Supported |
| Static MAC |
Supported |
| DHCP Server Screening |
Supported |
| RADIUS Authentication |
Supported |
Management
| Cloud Management |
D-Link Nuclias Cloud (1-year license included) |
| Cloud SLA |
99.9% Service-Level-Agreement |
| Management Interface |
Web browser and mobile app |
| Zero-Touch Deployment |
Supported |
| Firmware Updates |
Over-the-air via cloud |
Physical
| Dimensions (W x D x H) |
440 x 140 x 44 mm (17.32 x 5.51 x 1.73 inches) |
| Weight |
2.15 kg (4.74 lbs) |
| Ventilation |
Fanless |
| Acoustics |
0 dB(A) |
| Mounting |
Rack-mountable (1U) |
Power & Environment
| Power Input |
100 to 240 V AC, 50/60 Hz (internal power supply) |
| Standby Mode |
6.49 W / 100 V, 6.55 W / 240 V |
| Heat Dissipation |
59.09 BTU/hr |
| Operating Temperature |
-5 to 50°C (23 to 122°F) |
| Storage Temperature |
-20 to 70°C (-4 to 158°F) |
| Operating Humidity |
0% to 95% non-condensing |
| Storage Humidity |
0% to 95% non-condensing |
| MTBF |
992,594 hours |
Compliance
| EMI |
CE, FCC, VCCI, BSMI |
| Safety |
UL, CB, LVD, BSMI, CCC |
Warranty
| Warranty |
Limited Lifetime Warranty (when registered) |
Specifications are sourced from the manufacturer product page and may be updated.
