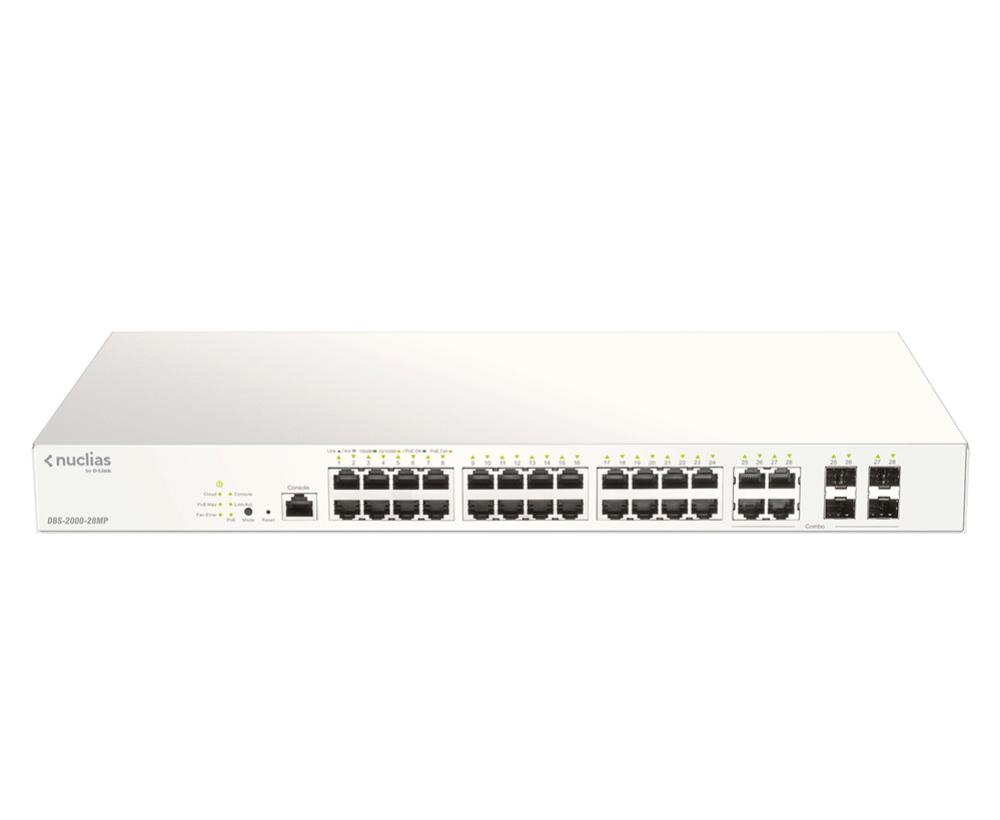

D-Link DBS-2000-28MP 28-Port Nuclias Cloud-Managed Gigabit PoE Switch 370W
The D-Link DBS-2000-28MP is a powerful cloud-managed Gigabit Ethernet switch designed for small to medium-sized businesses that need centralized network management without the complexity. Featuring 24 PoE+ Gigabit Ethernet ports with a generous 370W PoE power budget and 4 combo Gigabit SFP ports, this enterprise-grade switch delivers reliable performance for IP cameras, wireless access points, VoIP phones, and other powered devices. Managed through the intuitive D-Link Nuclias Cloud platform, the DBS-2000-28MP offers zero-touch deployment, remote configuration, and real-time monitoring from anywhere via web browser or mobile app.
Why Choose the D-Link DBS-2000-28MP?
-
Centralized Cloud Management: Manage your entire network remotely from one intuitive dashboard with 1-year Nuclias Cloud license included
-
High-Capacity PoE+: Power up to 24 devices with IEEE 802.3at support and 370W total power budget
-
Zero-Touch Provisioning: Deploy at remote locations without trained on-site staff - configuration is done through the cloud
-
Enterprise Security: SSL encrypted out-of-band management, WPA/WPA2/WPA3 encryption, and comprehensive Layer 2 security features
-
Flexible Uplinks: 4 Gigabit combo SFP/RJ45 ports for fiber or copper high-speed uplinks
-
99.9% Cloud SLA: Guaranteed connectivity with Nuclias Cloud platform; operation continues even if cloud connection fails
Effortless Cloud-Based Network Management
The DBS-2000 series is part of D-Link's complete Nuclias Cloud solution, designed specifically for businesses that want professional-grade networking without the IT overhead. The Nuclias Cloud platform gives you centralized visibility and control over your entire network infrastructure from any web browser or the dedicated mobile app. Deploy switches at multiple sites, push configuration updates to single or multiple devices simultaneously, and monitor live network statistics in real time. The included 1-year Nuclias Cloud Management license gets you started immediately, with flexible renewal options from 1 to 5 years.
Power Your Devices with 370W PoE+ Budget
With 24 PoE+ enabled Gigabit Ethernet ports supporting IEEE 802.3at (30W per port), the DBS-2000-28MP delivers a total 370W PoE power budget to simplify deployments of IP surveillance cameras, wireless access points, smart lighting, access control systems, and VoIP phones. Power your devices using single Ethernet cables without relying on nearby power outlets, making installations faster and more cost-effective. Through the management interface, administrators can remotely reboot PoE devices, monitor real-time power consumption, and even set time-based PoE schedules to turn port power on and off automatically.
Advanced Layer 2 Features and Security
Despite its ease of use, the DBS-2000-28MP is equipped with a complete lineup of enterprise-grade Layer 2 features including VLANs, Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol (LACP), IGMP snooping, Voice VLAN, and port mirroring. Robust security features include Access Control Lists (ACLs), port security, Static MAC, DHCP server screening, and end-to-end WPA/WPA2/WPA3 encryption. All management data between the switch and cloud is secured with SSL encrypted out-of-band connection, keeping your sensitive traffic safe and separate from regular data.
Connectivity and Performance
The DBS-2000-28MP offers a total of 28 Gigabit ports: 24 PoE+ capable 10/100/1000BASE-T ports and 4 combo Gigabit Ethernet/SFP ports that support both copper RJ45 and fiber SFP transceivers for flexible high-speed uplinks. With a 56 Gbps switching capacity, this switch handles demanding network traffic with ease, supporting everything from simple network expansions to complex IP surveillance systems.
Easy Troubleshooting and Maintenance
The DBS-2000-28MP includes helpful diagnostic tools to keep your network running smoothly. Cable Diagnostics enables quick examination of cable quality, cable type recognition, and detection of cable errors. Per-Port Traffic Packet Counters help isolate network problems. Loopback Detection automatically identifies and shuts down ports creating network loops, preventing broadcast storms.
Energy Efficient and Reliable
Featuring D-Link Green energy-saving technology, the DBS-2000-28MP automatically reduces power consumption during low traffic periods without sacrificing performance. The compact 1U rack-mountable design fits standard 19-inch racks, and the switch operates reliably in temperatures from -5°C to 50°C, making it suitable for challenging environments.
What's in the Box
- D-Link DBS-2000-28MP switch
- Power cord
- Power cord retainer
- Rack-mount ears and screws
- Rubber feet
- Quick Installation Guide
Full Specifications
Ports and Connectivity
| Total Ports |
28 ports |
| Gigabit Ethernet PoE+ Ports |
24 × 10/100/1000BASE-T (IEEE 802.3at PoE+) |
| Combo Gigabit Ports |
4 × 1000Mbps RJ45/SFP combo ports |
| PoE Power Budget |
370W total |
| PoE Standard |
IEEE 802.3at (PoE+) |
Performance
| Switching Capacity |
56 Gbps |
| Network Technology |
Gigabit Ethernet (10/100/1000) |
| Switch Type |
Layer 2 Managed |
Management
| Management Type |
Cloud-managed via Nuclias platform |
| Included License |
1-year Nuclias Cloud Management license |
| Cloud SLA |
99.9% uptime guarantee |
| Management Interface |
Web browser and mobile app |
| Zero-Touch Provisioning |
Yes |
Layer 2 Features
| VLAN Support |
Yes (802.1Q) |
| Spanning Tree Protocol |
STP, RSTP (802.1w) |
| Link Aggregation |
LACP (802.3ad static) |
| IGMP Snooping |
Yes |
| Voice VLAN |
Yes |
| Port Mirroring |
Yes |
Security
| Encryption |
WPA/WPA2/WPA3, SSL encrypted management |
| Access Control |
Access Control Lists (ACLs), port security |
| Authentication |
External RADIUS server support |
| Additional Features |
Static MAC, DHCP server screening, IP/MAC-based ACLs |
Diagnostics and Maintenance
| Cable Diagnostics |
Yes |
| Per-Port Traffic Counters |
Yes |
| Loopback Detection |
Yes |
Physical Specifications
| Dimensions (H × W × D) |
44mm × 440mm × 250mm (1.7" × 17.3" × 9.8") |
| Weight |
Approximately 3.94 kg (8.69 lb) |
| Form Factor |
1U rack-mountable (19-inch) |
| Mounting |
Rack-mount ears and rubber feet included |
Power and Environment
| Input Voltage |
100-240V AC, 50/60Hz |
| Operating Temperature |
-5°C to 50°C |
| Energy Efficiency |
D-Link Green technology, IEEE 802.3az Energy Efficient Ethernet |
Standards Compliance
| IEEE Standards |
802.3, 802.3u, 802.3ab, 802.3z, 802.3at (PoE+), 802.3az (EEE), 802.1Q, 802.1w, 802.3ad |
| IPv6 Ready |
Yes |
Specifications are sourced from the manufacturer product page and may be updated.
