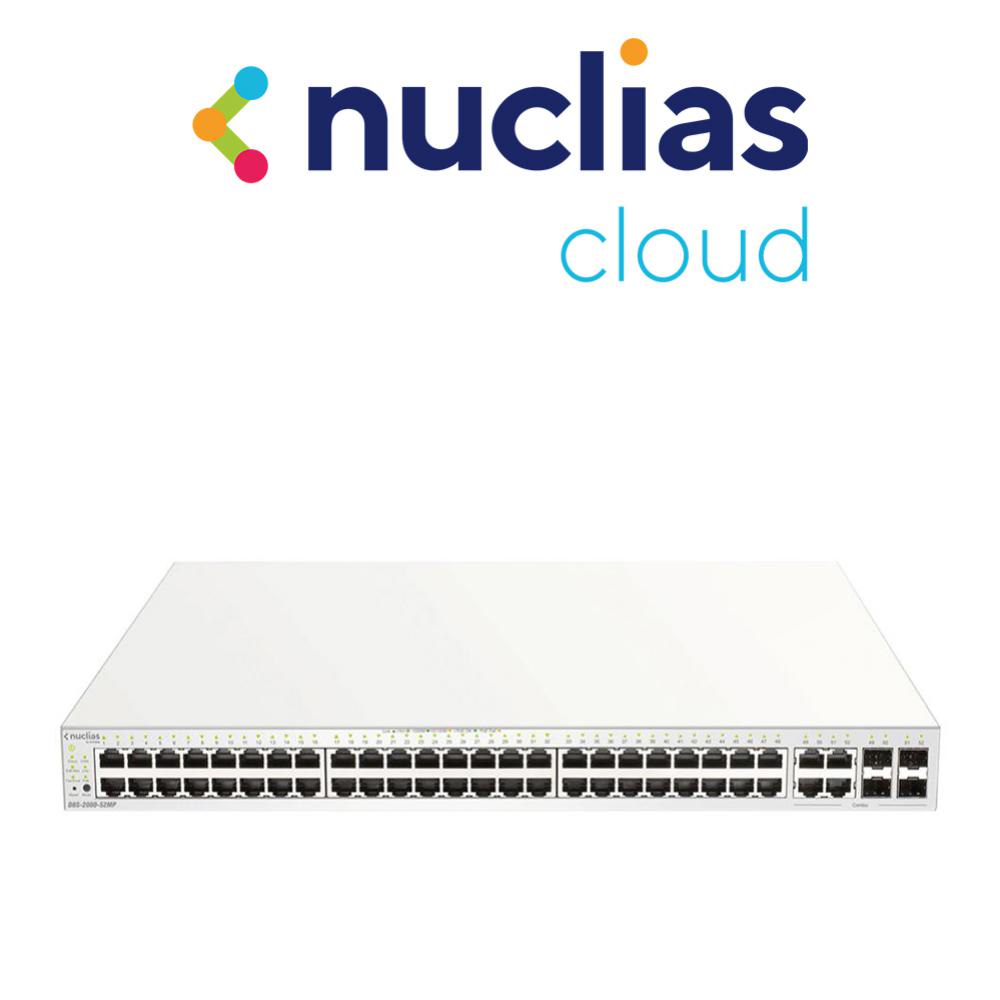

D-Link DBS-2000-52 48-Port Gigabit Nuclias Cloud-Managed Switch
The D-Link DBS-2000-52 is a powerful 52-port Gigabit cloud-managed switch designed for small to medium-sized businesses seeking enterprise-grade performance with simplified management. Featuring 48 x 10/100/1000BASE-T ports and 4 x combo Gigabit/SFP ports, this switch delivers a robust 104 Gbps switching capacity to handle demanding network traffic. Managed entirely through the Nuclias Cloud platform, it offers zero-touch deployment, 99.9% uptime SLA, and secure WPA/WPA2/WPA3 encryption for hassle-free network administration from anywhere.
Key Features
-
Zero-Touch Deployment: Pre-configured and ready to deploy with automatic cloud-based configuration
-
Nuclias Cloud Management: Manage your entire network remotely via web browser or mobile app with a 99.9% SLA
-
High-Speed Connectivity: 48 Gigabit Ethernet ports plus 4 combo SFP ports for flexible uplink options
-
104 Gbps Switching Capacity: Handles high volumes of data traffic efficiently for modern business networks
-
Enterprise Security: Advanced Layer 2 features including VLANs, ACLs, IGMP snooping, and end-to-end WPA3 encryption
-
Energy Efficient: D-Link Green technology with IEEE 802.3az EEE support reduces power consumption
Cloud-Managed Simplicity
Part of the Nuclias Cloud solution, the DBS-2000-52 transforms network management by eliminating complex configurations. The intuitive Nuclias Cloud Web Portal enables administrators to manage Layer 2 features such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation from any compatible PC or tablet. With a guaranteed 99.9% Service-Level-Agreement, your network remains operational even if cloud connectivity fails, ensuring business continuity.
Advanced Layer 2 Switching
Equipped with comprehensive Layer 2 capabilities, this switch includes IGMP snooping for efficient multicast management, Voice VLAN for VoIP prioritization, and Spanning Tree Protocols (STP and RSTP) for network redundancy. Security features include Access Control Lists (ACLs), port security, and DHCP Server Screening to protect against unauthorized access and network threats.
Network Diagnostics and Monitoring
The DBS-2000-52 features Cable Diagnostics and Per-Port Traffic Packet Counters to help network administrators quickly identify and resolve network problems. Cable diagnostics enable examination of cable quality, recognition of cable type, and detection of errors, while per-port traffic counters help isolate connectivity issues efficiently.
Flexible Connectivity Options
-
48 x 10/100/1000BASE-T ports for Gigabit Ethernet connections
-
4 x combo Gigabit/SFP ports for fiber uplinks or additional copper connections
-
Auto-negotiation and Auto-MDI/MDIX on all copper ports
-
Flow control: IEEE 802.3x for full-duplex operation
Ideal for Growing Businesses
Perfect for businesses requiring reliable network infrastructure for conference rooms, offices, and distributed sites, the DBS-2000-52 supports applications including IP telephony, IP surveillance, wireless access points, and high-bandwidth data transfer. The switch's scalable architecture allows unlimited expansion as your business grows, with centralized management across multiple locations.
What's in the Box
- D-Link DBS-2000-52 switch
- Power cord
- Rack-mount kit
- Quick Installation Guide
- 1-year complimentary Nuclias Cloud license
Full Specifications
Hardware
| Ports |
48 x 10/100/1000BASE-T, 4 x combo Gigabit/SFP |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.38 Mpps |
| MAC Address Table |
16,000 entries |
Management
| Management Interface |
Nuclias Cloud Web Portal, mobile app |
| Cloud License |
1-year included, renewal options 1-5 years |
| SLA |
99.9% uptime guarantee |
| Zero-Touch Provisioning |
Yes |
Layer 2 Features
| VLANs |
802.1Q Tagged VLAN, up to 4096 VLAN IDs |
| Spanning Tree |
802.1w RSTP, 802.1D STP |
| Link Aggregation |
802.3ad static |
| IGMP Snooping |
IGMP v1/v2/v3 |
| Voice VLAN |
Auto Voice VLAN |
Security
| Encryption |
WPA/WPA2/WPA3, SSL encrypted cloud connection |
| Access Control |
ACLs, port security, static MAC |
| Authentication |
RADIUS support |
| DHCP Protection |
DHCP Server Screening |
Power & Environment
| Power Input |
100-240V AC, 50/60 Hz internal power supply |
| Power Consumption |
35W maximum |
| Heat Dissipation |
118.92 BTU/hr |
| Operating Temperature |
0°C to 50°C |
| Energy Efficiency |
IEEE 802.3az EEE, D-Link Green technology |
| Acoustics |
Fanless (0 dB) |
Physical
| Dimensions |
440 x 250 x 44 mm (17.3 x 9.8 x 1.7 in) |
| Weight |
3.46 kg (7.63 lbs) |
| Mounting |
19-inch rack-mountable (1U) |
Standards & Certifications
| IEEE Standards |
802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T |
| Certifications |
FCC, CE, RoHS compliant |
| MTBF |
400,667 hours |
Specifications are sourced from the manufacturer product page and may be updated.
