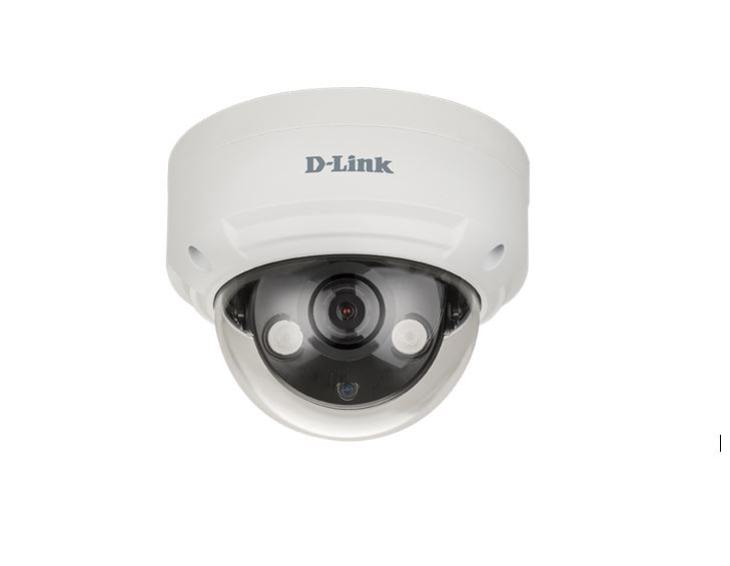

D-Link Vigilance DCS-4605EV 5MP Outdoor Dome Camera with Night Vision & PoE
The D-Link DCS-4605EV Vigilance 5-Megapixel Outdoor Dome Camera is a professional surveillance solution designed for small, medium, and large enterprises. With a high-sensitivity 1/2.9" 5-megapixel progressive CMOS sensor, H.265 video compression, and 20-metre IR night vision, this camera delivers superior video quality 24/7. Its IP66 weatherproof and IK10 vandal-proof housing ensures reliable performance in the harshest conditions, while PoE support simplifies installation with single-cable deployment.
Crystal-Clear 5-Megapixel Video Quality
Capture every detail with 5-megapixel resolution (2560 × 1920) that ensures crisp, high-definition surveillance footage. The camera's advanced 1/2.9" progressive scan CMOS sensor delivers low-noise video with excellent low-light performance. Wide Dynamic Range (WDR) image enhancement improves image quality in challenging lighting conditions, ensuring subjects are clearly visible even when backlit or in bright areas. The camera supports H.265, H.264, and MJPEG codecs for efficient bandwidth management and flexible recording options.
24/7 Surveillance with 20m IR Night Vision
Monitor your property day and night with confidence. The DCS-4605EV features a built-in IR-cut removable filter that automatically adjusts to lighting conditions. Built-in IR LED illuminators provide surveillance coverage up to 20 metres in complete darkness, with minimum illumination requirements of just 0.01 lux in colour mode and 0 lux with IR LEDs active. The camera captures usable footage even in the most challenging low-light environments.
Rugged Weatherproof & Vandal-Proof Design
Built to withstand the elements and potential tampering, the DCS-4605EV boasts IP66 certification for complete protection from dust and water ingress. The IK10 vandal-proof housing ensures the camera continues recording even when intruders attempt sabotage. This combination makes it ideal for outdoor surveillance applications in any climate, from retail premises and warehouses to car parks and building perimeters.
Key Features
-
5-Megapixel Resolution: 2560 × 1920 pixel video for exceptional detail and clarity
-
20m Night Vision: Built-in IR LED illuminators for round-the-clock surveillance
-
H.265 Compression: Efficient bandwidth usage without compromising image quality
-
Wide Dynamic Range: Enhanced imaging in high-contrast lighting conditions
-
IP66 & IK10 Rated: Weatherproof and vandal-proof for reliable outdoor use
-
PoE Support: 802.3af-compliant Power over Ethernet for simple single-cable installation
-
Motion Detection: Event-triggered recording and email alerts with snapshots
-
MicroSD Card Slot: Local storage support for backup recording
Flexible Lens & Wide Viewing Angle
The camera is equipped with a 2.8mm fixed focal length lens with an F2.0 aperture for excellent light gathering. This provides a generous field of view with 87° horizontal, 65° vertical, and 110° diagonal viewing angles, ideal for monitoring wide areas such as retail floors, forecourts, and building entrances. 10× digital zoom allows you to focus on specific areas of interest, while the adjustable mounting bracket permits vertical tilt from 30° to 90° and horizontal rotation from -120° to 120°.
Power over Ethernet for Easy Installation
Save time and reduce installation costs with 802.3af-compliant PoE. Power and data are delivered over a single standard Ethernet cable, eliminating the need for separate power cabling and reducing installation complexity. Alternatively, the camera can be powered by an optional 12V DC, 1.5A adapter (not included) for installations where PoE is not available.
Advanced Event Management & Remote Access
The DCS-4605EV offers sophisticated event management capabilities. Configure motion detection zones, set up email notifications with snapshots, and schedule recordings based on time or events. The camera can be accessed remotely from any computer or mobile device via a web browser, and is compatible with D-ViewCam management software (included) for centralised control of up to 32 cameras. Features include privacy masking to block sensitive areas, digital pan/tilt/zoom, and multicast streaming for efficient network usage.
Ideal for Australian Businesses
Perfect for retail stores, offices, warehouses, schools, car parks, building perimeters, and any location requiring professional-grade outdoor surveillance. The DCS-4605EV is suitable for commercial, industrial, and institutional applications across Australia, with support for integration into existing network infrastructures using 10/100 Ethernet.
What's in the Box
- DCS-4605EV Camera
- Cable Waterproofing Connector
- Rubber Power Connector Plug
- Mounting Kit
- CD-ROM with software and user manual
Full Specifications
Camera
| Image Sensor |
1/2.9" 5-megapixel progressive CMOS sensor |
| Resolution |
2560 × 1920 (5 megapixels) |
| Lens Type |
Fixed |
| Focal Length |
2.8 mm |
| Aperture |
F2.0 |
| Angle of View (H/V/D) |
87° / 65° / 110° |
| Digital Zoom |
10× |
| Minimum Object Distance |
0.5 metre |
| Minimum Illumination |
0.01 lux (colour), 0.008 lux (B/W), 0 lux (IR-LED on) |
| IR LED Range |
20 metres |
| IR-Cut Filter |
Built-in Infrared-Cut Removable (ICR) Filter |
Video
| Video Compression |
H.265, H.264, MJPEG |
| Streaming Profiles |
3 separate profiles for simultaneous streaming and recording |
| Image Features |
Configurable size, quality, frame rate, bit rate; Motion detection; Privacy masking |
| WDR |
Yes, Wide Dynamic Range image enhancement |
| 3D Noise Reduction |
Yes |
Network
| Ethernet |
10/100 Base-T Fast Ethernet (RJ-45) |
| Power over Ethernet |
802.3af compliant |
| Protocols |
TCP/IP, HTTP, HTTPS, IPv4, IPv6, and other Internet/Intranet protocols |
| Remote Access |
Web browser (Internet Explorer, Firefox, Chrome) |
| Management Software |
D-ViewCam (included, supports up to 32-64 cameras) |
| Multicast Streaming |
Yes |
| Bonjour Support |
Yes |
Storage & Recording
| Local Storage |
MicroSD card slot (up to 256GB, v3.01 compatible) |
| Recording Triggers |
Motion detection, scheduled, manual, time-based events |
| Alerts |
Email notifications with snapshots |
Physical & Environmental
| Housing |
IP66 weatherproof, IK10 vandal-proof |
| Mounting Adjustment |
Vertical: 30° to 90°; Horizontal: -120° to 120° (non-motorised) |
| Dimensions |
Height: 164.7 mm |
| Weight |
365 g |
| Operating Temperature |
Outdoor use rated |
Power
| Input |
802.3af PoE or 12V DC, 1.5A (adapter not included) |
Certifications
| Compliance |
CE, CE LVD, FCC, RCM |
Warranty
| Manufacturer Warranty |
5 years limited warranty |
Specifications are sourced from the manufacturer product page and may be updated.
