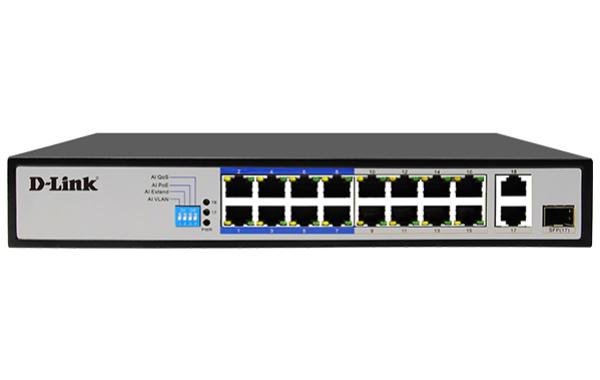

D-Link DES-1018MP 18-Port Fast Ethernet PoE Switch with 246W Budget
The D-Link DES-1018MP is an 18-port unmanaged PoE switch designed to deliver reliable power and connectivity to PoE-capable devices such as wireless access points, IP cameras, and IP phones. With 16 Fast Ethernet PoE ports and 2 Gigabit uplink ports, this plug-and-play switch offers a total PoE budget of 246.4W and supports IEEE 802.3af standard, supplying up to 15.4W per port. Perfect for small businesses, schools, and surveillance installations, the DES-1018MP simplifies network deployment while reducing cable clutter and eliminating the need for separate power adapters.
Key Features
-
16 PoE Ports: IEEE 802.3af compliant, delivering up to 15.4W per port with a 246.4W total power budget
-
2 Gigabit Combo Uplink Ports: 1000BASE-T/SFP combo ports for high-speed uplinks and network expansion
-
Enhanced Surge Protection: 2kV surge protection on all PoE ports safeguards connected devices from lightning and power surges
-
Energy Efficient: IEEE 802.3az EEE support and smart fan technology reduce power consumption and operating costs
-
Plug-and-Play Installation: Unmanaged design requires no configuration for hassle-free setup
-
Desktop or Rackmount: Flexible installation options with included rackmount brackets
Power Over Ethernet for Seamless Deployment
The DES-1018MP features 16 IEEE 802.3af PoE ports, each capable of delivering up to 15.4 watts of power alongside data connectivity. With a generous total PoE budget of 246.4W, you can power all 16 ports simultaneously, making it ideal for environments with multiple PoE devices. PoE eliminates the need for separate power adapters, reducing cable clutter and enabling installation of devices in locations far from power outlets, such as ceilings or outdoor areas.
Reliable Connectivity and Network Expansion
Two Gigabit combo uplink ports (RJ45/SFP) provide high-speed connections to your core network or other switches, offering bandwidth and redundancy for voice, video, and data applications. The switch supports Auto MDI/MDI-X crossover on all ports, eliminating the need for crossover cables, and Auto-Negotiation intelligently adjusts speed (10/100 Mbps) for optimal performance and compatibility.
Surge Protection and Energy Efficiency
All PoE ports are equipped with 2kV surge protection, shielding your network infrastructure from damage caused by lightning strikes and power surges. This is especially important when powering outdoor PoE devices like security cameras and wireless access points. The switch also supports IEEE 802.3az Energy Efficient Ethernet (EEE), automatically putting unused ports to sleep to save energy, and features a smart fan that adjusts speed based on temperature, reducing power consumption and noise.
Simple Plug-and-Play Setup
As an unmanaged switch, the DES-1018MP requires no configuration or software installation. Simply connect your devices and the network is ready to go. LED indicators for activity, link, power, and PoE status provide at-a-glance monitoring of your network. The compact design allows for desktop placement or 19-inch rackmount installation, making it suitable for server rooms, network closets, or office desktops.
What's in the Box
- D-Link DES-1018MP 18-Port PoE Switch
- Power cord
- Rackmount brackets
- Quick installation guide
Full Specifications
| Device Interfaces |
16 × 10/100 Mbps PoE ports, 2 × Gigabit combo (1000BASE-T/SFP) uplink ports |
| PoE Standard |
IEEE 802.3af |
| PoE Power Budget |
246.4W total |
| Power per PoE Port |
Up to 15.4W |
| Switching Fabric |
7.2 Gbps |
| Packet Forwarding Rate |
5.36 Mpps |
| MAC Address Table |
8,000 entries |
| Surge Protection |
2kV (PoE ports only) |
| Standards |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z, IEEE 802.3af PoE, IEEE 802.3x Flow Control, IEEE 802.3az EEE |
| LED Indicators |
Per unit: Power; Per port: Activity/Link and Speed; Per PoE port: Power fail/OK |
| Cooling |
Smart fan (adjusts speed based on temperature) |
| Dimensions (W × D × H) |
280 × 210 × 44 mm |
| Weight |
2.15 kg |
| Power Consumption |
Maximum with full PoE load: 246.4W |
| Certifications |
FCC Class A, CE, CCC, RoHS, VCCI, BSMI, C-Tick |
| Warranty |
Limited Lifetime Warranty |
Specifications are sourced from the manufacturer product page and may be updated.
