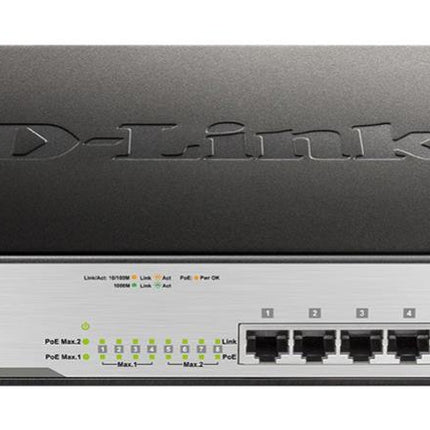

D-Link DGS-1008P 8-Port Gigabit PoE+ Unmanaged Desktop Switch
The D-Link DGS-1008P is an 8-port Gigabit unmanaged desktop switch designed for home offices, small businesses, and enterprises needing reliable Power over Ethernet connectivity. With four IEEE 802.3at PoE+ ports delivering up to 30W per port and a 60W total power budget, this switch makes it easy to power and connect IP cameras, wireless access points, VoIP phones, and other PoE devices without the need for separate power adapters. The remaining four Gigabit Ethernet ports provide high-speed connectivity for computers, printers, NAS devices, and more.
Key Features
-
8 Gigabit Ethernet Ports: Four PoE+ ports (ports 1-4) and four standard Gigabit ports for flexible network expansion
-
60W PoE+ Power Budget: Supply up to 30W per PoE port to power demanding devices like PTZ cameras and Wi-Fi 6 access points
-
16 Gbps Switching Fabric: Wire-speed performance ensures smooth data transfer with no bottlenecks
-
Plug & Play Installation: Unmanaged design requires no configuration - simply connect and start using immediately
-
Fanless Silent Operation: Ideal for noise-sensitive environments like offices, meeting rooms, and workstations
-
Energy-Efficient Technology: IEEE 802.3az EEE, link status detection, and cable length detection reduce power consumption
Perfect for Multiple Applications
The DGS-1008P is ideal for SOHO and small-to-medium business environments where you need to expand your network with PoE connectivity. Power wireless access points in hard-to-reach locations, deploy IP surveillance cameras without nearby power outlets, connect VoIP phones across your office, or add network-attached storage and printers. The compact metal housing ensures durability while the desktop form factor fits easily on desks, shelves, or mounted on walls.
Smart Power Management
D-Link Green technology automatically adjusts power consumption based on network activity. Link status detection powers down ports when no device is connected, while cable length detection adjusts power output based on cable length, reducing energy waste. The switch also features IEEE 802.1p Quality of Service (QoS) support to prioritize time-sensitive traffic like video streaming and VoIP calls for optimal performance.
Universal Connectivity
-
4 × Gigabit PoE+ Ports (Ports 1-4): IEEE 802.3at compliant, up to 30W per port
-
4 × Gigabit Ethernet Ports (Ports 5-8): Standard 10/100/1000 Mbps connectivity
-
Auto MDI/MDI-X: All ports support automatic crossover, eliminating the need for special cables
-
Auto-Negotiation: Automatically detects and adjusts to optimal speed (10/100/1000 Mbps)
What's in the Box
- 1 × DGS-1008P 8-Port Gigabit PoE Switch
- 1 × 48V/1.25A Power Adapter with Power Cord
- 1 × Wall Mounting Kit (Rubber Feet, Anchors & Screws)
- 1 × Quick Installation Guide
Full Specifications
Hardware
| Total Ports |
8 × 10/100/1000BASE-T Gigabit Ethernet |
| PoE Ports |
4 × PoE+ ports (Ports 1-4) |
| PoE Standard |
IEEE 802.3at (PoE+) / IEEE 802.3af (PoE) |
| PoE Power Budget |
60W total (up to 30W per port) |
| Switching Capacity |
16 Gbps |
| MAC Address Table |
8,000 entries |
| Packet Buffer |
192 KB |
Performance
| Transmission Method |
Store-and-forward |
| Packet Forwarding Rate (Gigabit) |
1,488,000 pps per port |
| Packet Forwarding Rate (Fast Ethernet) |
148,800 pps per port |
| Packet Forwarding Rate (Ethernet) |
14,880 pps per port |
Standards & Features
| Networking Standards |
IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet) |
| PoE Standards |
IEEE 802.3af, IEEE 802.3at |
| Quality of Service |
IEEE 802.1p QoS priority queuing |
| Auto MDI/MDI-X |
Yes, all ports |
| Auto-Negotiation |
Yes, 10/100/1000 Mbps |
Physical & Environmental
| Dimensions (W × D × H) |
190 mm × 120 mm × 38 mm |
| Weight |
Approx. 1.48 kg (3.27 lb) |
| Housing |
Metal desktop enclosure |
| Cooling |
Fanless (silent operation) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
0% to 95% (non-condensing) |
Power
| Power Input |
100-240V AC, 50/60 Hz (via external adapter) |
| DC Output |
48V DC / 1.25A (60W) |
| Power Consumption (Standby) |
2.1W (AC input) |
| Power Consumption (Max, PoE Off) |
6.2W (AC input) |
| Power Consumption (Max, PoE On) |
63.2W (AC input) |
LED Indicators
| Per Port LEDs |
Link/Activity, Speed, PoE Status |
| Device LEDs |
Power, PoE Max |
Certifications & Warranty
| Certifications |
FCC Class B, CE Class B, VCCI Class B, cUL LVD, ICES-003 Class B, NDAA Compliant |
| Warranty |
D-Link Limited Lifetime Warranty (after product registration) |
Specifications are sourced from the manufacturer product page and may be updated.
