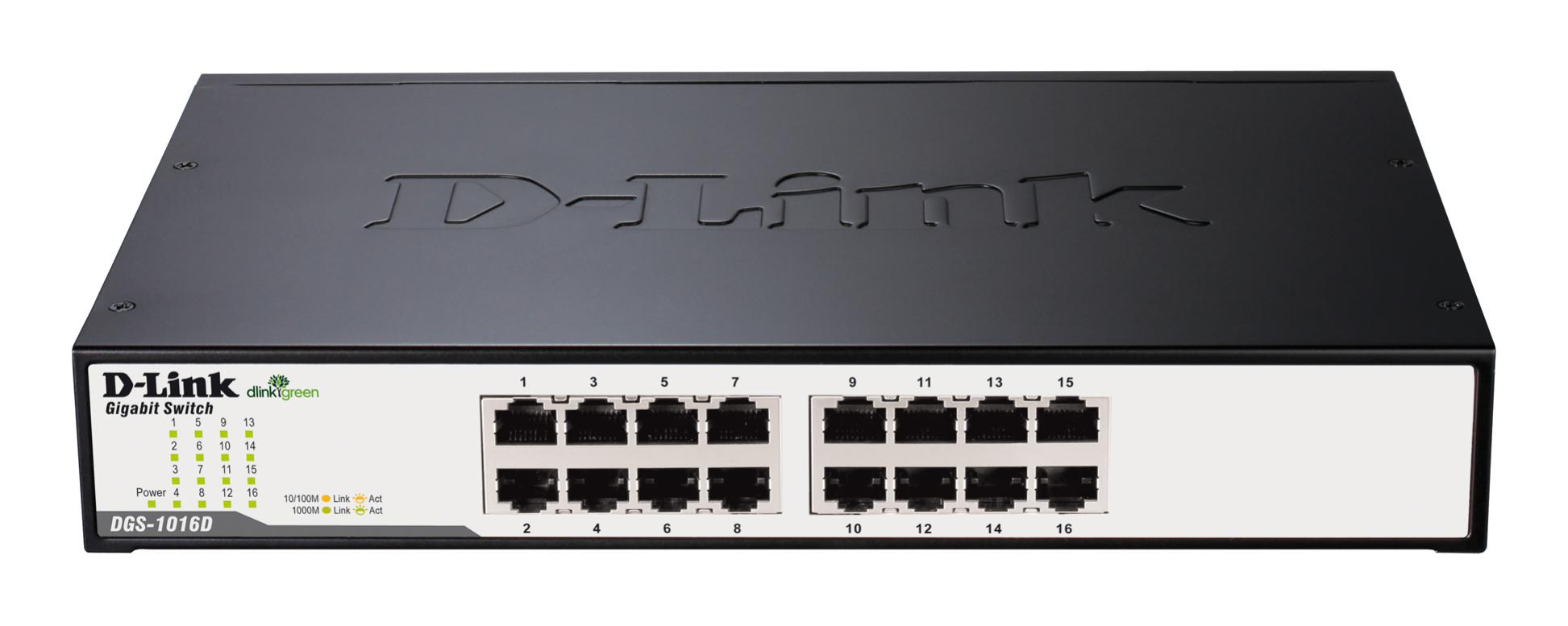

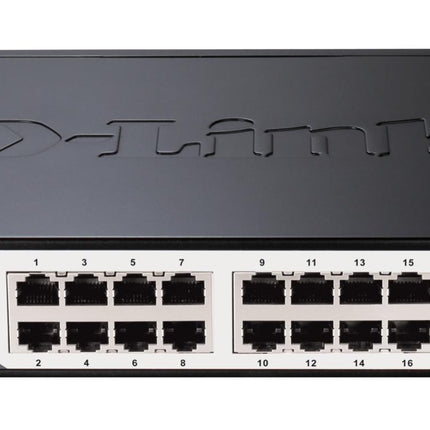

D-Link DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch
The D-Link DGS-1016D 16-Port Gigabit Unmanaged Switch delivers an economical, high-performance networking solution for SOHO and small-to-medium businesses looking to upgrade to Gigabit Ethernet speeds. With 16 x 10/100/1000 Mbps ports, this plug-and-play switch provides fast, reliable connectivity for file transfers, media streaming, and everyday network tasks. Featuring fanless, silent operation and energy-saving D-Link Green technology, the DGS-1016D is ideal for noise-sensitive environments while helping reduce power consumption and running costs.
Key Features
-
16 Gigabit Ethernet Ports: All ports support 10/100/1000 Mbps for fast file transfers and smooth media streaming
-
Plug-and-Play Installation: No configuration required - simply connect and go
-
Fanless, Silent Design: Zero noise operation with durable metal housing for improved heat dissipation
-
D-Link Green Technology: Automatically powers down unused ports and adjusts power based on cable length to save energy
-
Quality of Service (QoS): IEEE 802.1p support prioritises time-sensitive traffic like video and voice
-
Desktop or Rackmount: Compact 1RU design fits on a desk or mounts in a standard 19-inch rack
High-Speed Gigabit Performance
The DGS-1016D brings Gigabit speed to every port, providing up to 2000 Mbps per port in full-duplex mode. Each port auto-negotiates 10/100/1000 Mbps speeds, making it compatible with legacy Fast Ethernet devices while delivering the full performance of modern Gigabit equipment. The switch features store-and-forward switching, a 32 Gbps switching fabric, and an 8K MAC address table for scalable, high-throughput networking even in demanding environments.
Energy-Efficient & Eco-Friendly
Built with IEEE 802.3az Energy-Efficient Ethernet (EEE), the DGS-1016D conserves energy by automatically reducing power consumption when data activity is low or when ports have no link. It also detects cable length and optimises power usage accordingly, cutting energy costs without sacrificing performance. The switch is RoHS-compliant and uses recyclable packaging, making it an environmentally responsible choice for any business network.
Advanced Network Features
The DGS-1016D includes a front-panel 3-pin DIP switch for real-time toggling of Energy-Efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control. These features help improve network reliability, mitigate broadcast storms, and reduce packet loss when buffers are full. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables, and diagnostic LEDs (Power, Link/Activity, Speed) provide instant visibility into port status and network health.
Versatile Installation
The compact, durable metal housing makes the DGS-1016D suitable for desktop placement, wall mounting, or rackmounting in a standard 19-inch rack (1RU height). Its fanless design ensures silent operation, making it perfect for offices, classrooms, retail spaces, and creative studios where noise must be kept to a minimum.
Reliable Connectivity for Growing Networks
Whether you're upgrading network infrastructure, connecting workstations, or linking printers and servers, the DGS-1016D provides a cost-effective, scalable solution. It supports 9216-byte jumbo frames for improved performance with large data transfers, and its IEEE 802.3x flow control minimises dropped packets during high-traffic periods. D-Link backs the DGS-1016D with a Limited Lifetime Warranty (where applicable), ensuring long-term reliability and peace of mind.
What's in the Box
- D-Link DGS-1016D 16-Port Gigabit Switch
- Power adapter
- Rackmount kit
- Quick installation guide
Full Specifications
General
| Ports |
16 × 10/100/1000 Mbps Gigabit Ethernet |
| Standards |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.1p QoS, IEEE 802.3x Flow Control, IEEE 802.3az EEE |
| Switching Method |
Store-and-Forward |
| Switching Fabric |
32 Gbps |
| MAC Address Table |
8K entries |
| Packet Buffer |
512 KB per device |
| Jumbo Frame Support |
9216 bytes |
Performance & Features
| Quality of Service |
IEEE 802.1p (4 priority queues) |
| Flow Control |
IEEE 802.3x (full-duplex), back pressure (half-duplex) |
| Auto-MDI/MDI-X |
Yes, all ports |
| Cable Diagnostics |
Yes |
| DIP Switch Controls |
EEE, Flow Control, Port Isolation, Storm Control |
Physical & Power
| Dimensions (W × D × H) |
280 mm × 180 mm × 44 mm |
| Weight |
1.65 kg |
| Cooling |
Fanless (silent operation) |
| Housing |
Metal |
| Mounting |
Desktop, wall-mount, rackmount (1RU) |
| Power Supply |
Internal universal PSU, 100-240 V AC, 50-60 Hz |
| Power Consumption |
Standby: 3.8 W, Maximum: 11.7 W |
| LED Indicators |
Power (per unit), Link/Activity/Speed (per port) |
Environmental
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% non-condensing |
| Certifications |
FCC Class A, CE Class A, RoHS compliant |
Warranty
| Warranty |
Limited Lifetime (region-dependent, registration may be required) |
Specifications are sourced from the manufacturer product page and may be updated.
