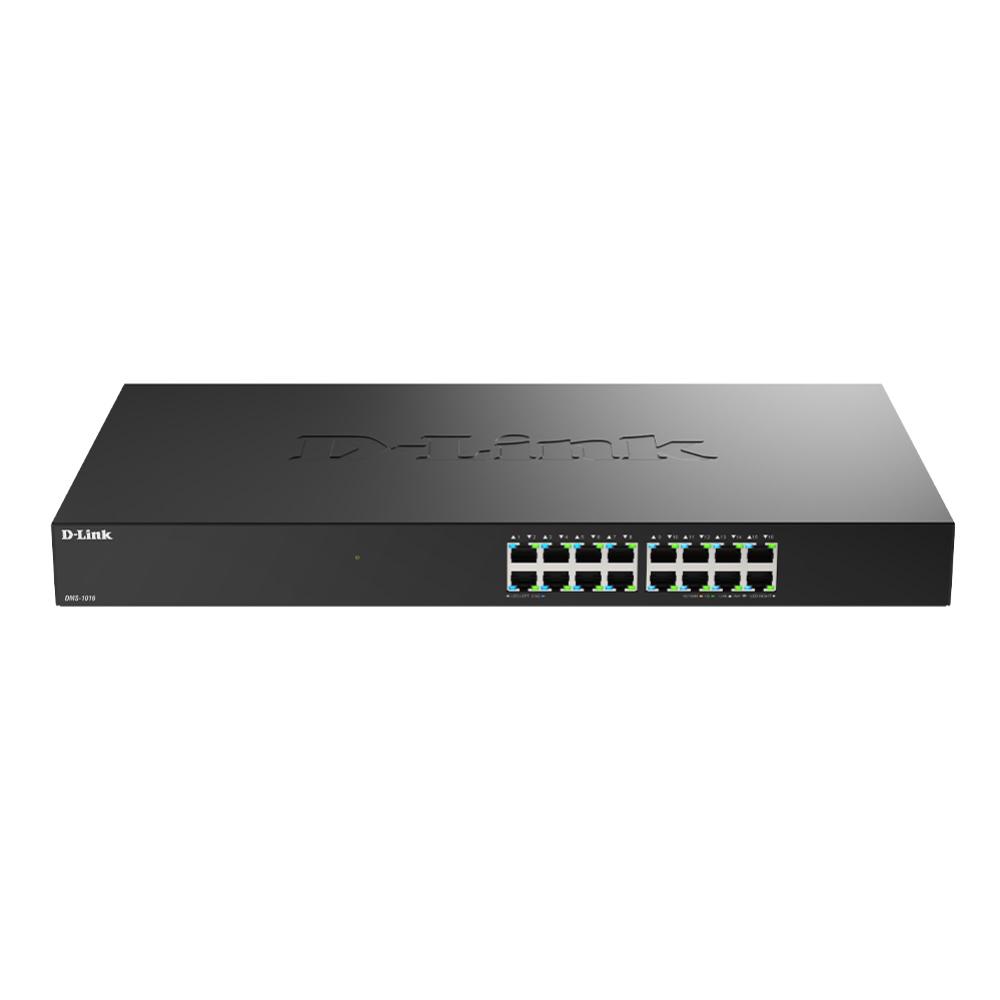

D-Link DGS-1016D 16-Port Gigabit Unmanaged Switch with Fanless Design
The D-Link DGS-1016D 16-Port Gigabit Unmanaged Switch delivers high-speed Gigabit Ethernet connectivity across all 16 ports in a compact, plug-and-play design. Perfect for SOHO and small to medium businesses, this economical switch offers 32Gbps switching capacity with energy-efficient technology that reduces power consumption without sacrificing performance. The fanless metal housing ensures silent operation while providing superior heat dissipation, making it ideal for office environments, creative workgroups, and home networks.
Key Features
-
16 Gigabit Ethernet Ports: Auto-sensing 10/100/1000Mbps connectivity for all your network devices
-
32Gbps Switching Capacity: Non-blocking architecture delivers full wire-speed performance for maximum throughput
-
Energy-Efficient Technology: IEEE 802.3az EEE support automatically reduces power on idle ports and adjusts for cable length
-
Silent Fanless Design: Durable metal case with passive cooling for noise-free operation in any environment
-
Plug-and-Play Installation: No configuration required with auto-MDI/MDI-X crossover on all ports
-
Desktop or Rackmount: Compact 1RU design fits standard 19-inch racks or desktop placement
High-Speed Gigabit Connectivity
Experience blazing-fast network speeds with 16 auto-sensing Gigabit Ethernet ports that support 10/100/1000Mbps connections. Whether you're transferring large files, streaming media, or running bandwidth-intensive applications like CAD, CGI, or multimedia editing, the DGS-1016D provides the performance you need. Each port automatically negotiates speed and duplex mode, ensuring compatibility with legacy Fast Ethernet devices while delivering full Gigabit speeds to modern equipment.
Advanced Network Management
The DGS-1016D incorporates intelligent features to optimise network performance. IEEE 802.1p Quality of Service (QoS) with 4 priority queues ensures time-sensitive traffic like VoIP calls and video streams receive priority handling. Flow Control (IEEE 802.3x) prevents packet loss during heavy traffic periods, while Storm Control and Port Isolation protect your network from broadcast storms and malicious software threats. Support for 9,600-byte jumbo frames improves throughput for large file transfers.
Energy-Saving Green Technology
D-Link Green Ethernet technology makes the DGS-1016D an environmentally responsible choice. The switch automatically detects link status and powers down unused ports, saving substantial energy when connected devices are shut down. Cable length detection adjusts power output based on the actual cable length connected to each port, using only the power required. These features can reduce energy consumption by up to 73% when devices are powered off and up to 61% in typical usage patterns, all without affecting network performance.
Easy Installation & Diagnostics
Setup is completely hassle-free with true plug-and-play operation requiring no software or configuration. Auto-MDI/MDI-X crossover support on all ports eliminates the need for crossover cables when connecting to other switches or hubs. Diagnostic LEDs on each port display power, link status, activity, and speed at a glance, while the built-in cable diagnostics function helps you quickly identify and troubleshoot cable-related issues across your network.
Versatile Desktop & Rack Design
The compact 1U rackmountable design (281.9mm x 180.3mm x 44.5mm) fits easily into standard 19-inch equipment racks, conserving valuable rack space in server rooms and data centres. Alternatively, use the included rubber feet for desktop or wall-mount installation in offices, retail environments, or creative studios. The durable metal construction and fanless design ensure reliable, silent operation in any deployment scenario.
What's in the Box
- D-Link DGS-1016D 16-Port Gigabit Switch
- AC Power Cord
- Rubber Feet (4)
- Rackmount Kit
- Quick Installation Guide
Full Specifications
Hardware
| Ports |
16 × 10/100/1000Mbps Gigabit Ethernet (RJ-45) |
| Switching Capacity |
32Gbps |
| MAC Address Table |
8,000 entries |
| Packet Buffer Memory |
512KB |
| Transmission Method |
Store-and-Forward |
Performance
| Jumbo Frame Support |
Up to 9,600 bytes |
| Flow Control |
IEEE 802.3x (full-duplex), back pressure (half-duplex) |
| QoS |
IEEE 802.1p (4 priority queues, strict mode) |
| Storm Control |
Yes |
| Port Isolation |
Yes |
Standards & Protocols
| IEEE Standards |
802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3x Flow Control, 802.1p QoS, 802.3az EEE |
| Auto-MDI/MDI-X |
All ports |
| Cable Diagnostics |
Yes |
Power & Environment
| Power Input |
Internal power supply, 100-240V AC, 50/60Hz |
| Power Consumption (Max) |
11.7 Watts |
| Power Consumption (Standby) |
3.8 Watts |
| Energy-Efficient Ethernet |
IEEE 802.3az |
| Cooling |
Fanless (passive cooling) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% (non-condensing) |
Physical Specifications
| Dimensions (W × D × H) |
281.9mm × 180.3mm × 44.5mm (11.1" × 7.1" × 1.75") |
| Weight |
1.35kg (2.97 lbs) |
| Housing |
Metal case |
| Form Factor |
Desktop or 1U rackmountable |
| LED Indicators |
Per unit: Power; Per port: Link/Activity, Speed |
Certifications & Compliance
| Compliance |
RoHS, Energy Star, CEC, MEPS |
| Warranty |
Limited Lifetime (registration required) |
Specifications are sourced from the manufacturer product page and may be updated.
