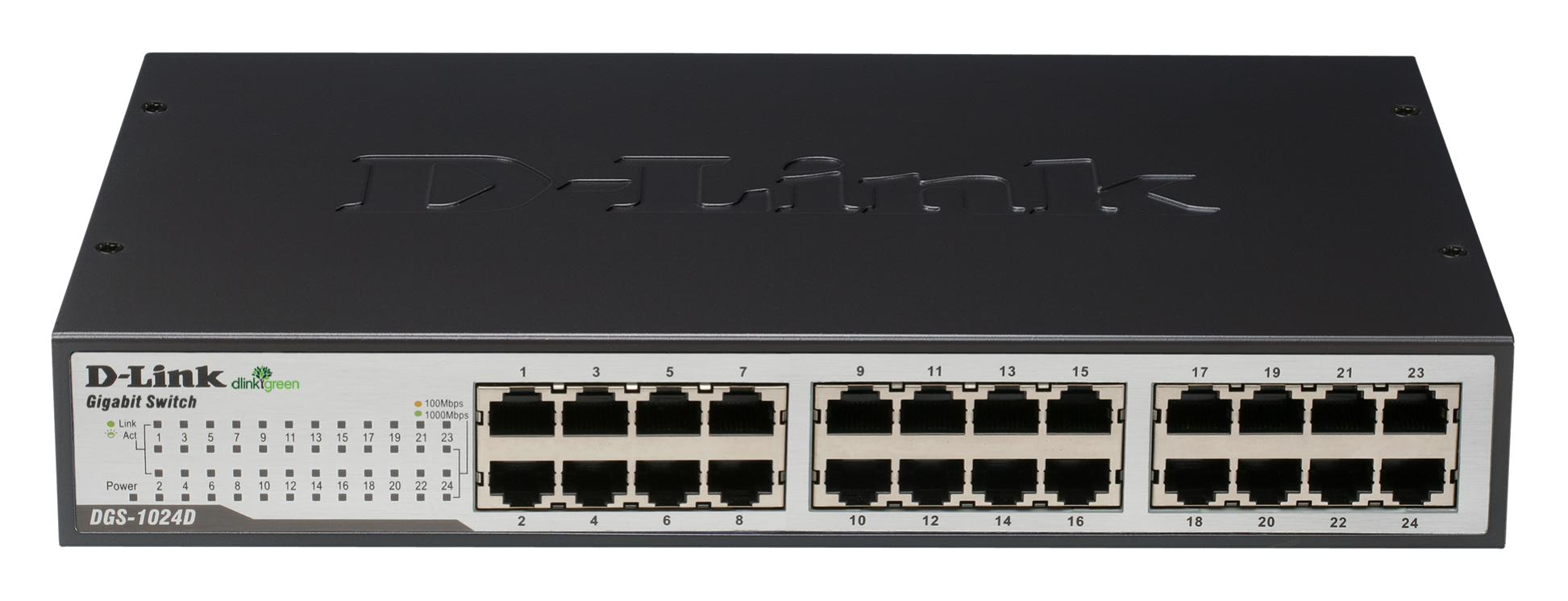

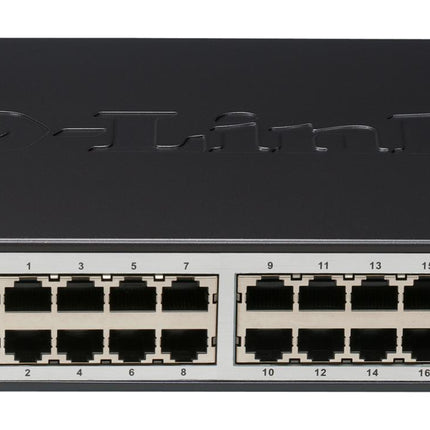

D-Link DGS-1024D 24-Port Gigabit Unmanaged Switch with Fanless Design
The D-Link DGS-1024D 24-Port Gigabit Unmanaged Switch delivers an economical, high-performance networking solution for SOHO and small to medium businesses in Australia. With 24 Gigabit Ethernet ports providing speeds up to 1000 Mbps per port, this plug-and-play switch makes upgrading your network infrastructure simple and hassle-free. Its fanless design ensures silent operation, while energy-efficient technology automatically reduces power consumption, making it ideal for office environments, conference rooms, and workgroups requiring reliable, high-speed connectivity.
Why Choose the DGS-1024D for Your Business Network?
This unmanaged Gigabit switch is purpose-built for businesses that need fast, dependable network expansion without complex configuration. The DGS-1024D supports automatic speed negotiation on all ports, seamlessly handling 10/100/1000 Mbps devices. Its compact metal housing and rackmount or desktop-ready design provide installation flexibility, while LED indicators per port offer instant visibility of link status and activity. Perfect for connecting computers, printers, IP cameras, NAS devices, and servers across your Australian office or home network.
Key Features
-
24 Gigabit Ethernet Ports: Connect up to 24 devices with full 10/100/1000 Mbps auto-negotiation on every port for maximum compatibility
-
Plug-and-Play Installation: Unmanaged design means no configuration required - simply connect and go
-
Fanless Silent Operation: Zero noise output with efficient heat dissipation for quiet office and home environments
-
Energy-Efficient Technology: IEEE 802.3az EEE support automatically powers down unused ports and adjusts power based on cable length
-
Flow Control & Storm Control: Advanced features reduce packet loss during high-traffic periods and protect against broadcast storms
-
Desktop or Rackmount: Versatile 1U metal housing fits standard 19-inch racks or sits on desktop with included mounting options
-
Auto MDI/MDI-X: Eliminates need for crossover cables when connecting to other switches or hubs
-
48 Gbps Switching Capacity: Non-blocking architecture ensures full wire-speed performance across all ports simultaneously
High-Speed Gigabit Connectivity for Every Device
The DGS-1024D brings true Gigabit speeds to all 24 ports, making it perfect for bandwidth-intensive applications like large file transfers, CAD workflows, multimedia streaming, and cloud backup. Whether your network includes legacy 10/100 Mbps devices or modern Gigabit equipment, each port automatically detects and adjusts to the optimal speed, ensuring seamless compatibility across your entire infrastructure. Ideal for small business networks, home offices, educational institutions, and retail environments across Australia.
Advanced Network Management Features
Despite its unmanaged simplicity, the DGS-1024D includes intelligent features accessible via front-panel DIP switches. Enable Port Isolation to segment traffic between ports 1-23 while maintaining communication with port 24 - perfect for guest networks or security applications. Activate Storm Control to limit broadcast traffic and prevent network slowdowns caused by malware or misconfigured devices. Flow Control (IEEE 802.3x) ensures reliable data transmission during peak usage by managing packet flow and reducing retransmissions.
Energy Savings with D-Link Green Technology
The DGS-1024D incorporates D-Link Green Ethernet technology to deliver substantial energy savings without sacrificing performance. Link status detection automatically powers down ports when no device is connected or when connected computers are shut down. Cable length detection intelligently adjusts power output based on the length of connected Ethernet cables. Energy-Efficient Ethernet (IEEE 802.3az) dynamically reduces power consumption during periods of low data activity. These features combined deliver measurable cost savings on electricity bills while supporting RoHS compliance and environmental responsibility.
Robust Build Quality for Reliable Performance
Built with a durable metal case, the DGS-1024D is engineered for longevity in demanding business environments. The fanless thermal design provides superior heat dissipation while maintaining completely silent operation - no distracting noise in offices, studios, or meeting rooms. Diagnostic LEDs on each port display link status, activity, and speed at a glance for easy network monitoring and troubleshooting. The compact dimensions (280 × 180 × 44 mm) and lightweight construction (1.65 kg) make installation straightforward whether desktop-mounted or rack-mounted in a standard 19-inch equipment cabinet.
Versatile Installation Options
The switch's versatile design supports multiple mounting configurations to suit your workspace. Install it in a standard 19-inch rack using the included mounting brackets for professional server room deployment, place it on a desktop for easy access, or wall-mount it to save valuable workspace. The universal 100-240V AC power supply (50/60Hz) ensures compatibility with Australian power standards without the need for external adapters.
Perfect for Australian Businesses and Home Networks
Whether you're upgrading a small office network, expanding a home lab, connecting multiple IP security cameras, or building out a retail point-of-sale system, the DGS-1024D provides the performance and reliability you need. Common use cases include:
- Small business office networks connecting workstations, printers, and servers
- Home office setups requiring multiple high-speed wired connections for remote work
- IP camera surveillance systems with up to 24 cameras requiring PoE injectors
- Retail environments connecting POS terminals, inventory scanners, and back-office systems
- Educational classrooms and computer labs requiring reliable student connectivity
- Media production studios transferring large video and graphics files
What's in the Box
- D-Link DGS-1024D 24-Port Gigabit Unmanaged Switch
- Power cord (Australian standard)
- Rackmount brackets and screws
- Quick Installation Guide
Full Specifications
Hardware
| Number of Ports |
24 × 10/100/1000 Mbps Gigabit Ethernet (RJ-45) |
| Switch Type |
Unmanaged |
| MAC Address Table |
8,000 entries |
| Switching Capacity |
48 Gbps |
| Forwarding Rate |
35.7 Mpps (wire-speed) |
| Transmission Method |
Store-and-forward |
| Packet Buffer Memory |
512 KB |
| Jumbo Frame Support |
9,600 bytes |
Standards & Protocols
| IEEE Standards |
802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3x Flow Control, 802.1p QoS (4 queues), 802.3az Energy-Efficient Ethernet (EEE) |
| Data Transfer Rates |
10/100/1000 Mbps auto-negotiation per port |
| Duplex Mode |
Half-duplex and full-duplex |
| Auto MDI/MDI-X |
Yes, all ports |
Features
| Flow Control |
IEEE 802.3x for full-duplex operation |
| Port Isolation |
Configurable via DIP switch (ports 1-23 isolated, communicate with port 24) |
| Storm Control |
Broadcast storm protection (128 kbps threshold) |
| Energy-Efficient Ethernet |
IEEE 802.3az EEE with enable/disable via DIP switch |
| Link Status Detection |
Automatic power-down of unused ports |
| Cable Length Detection |
Power adjustment based on cable length |
LEDs & Indicators
| Per Device |
Power LED |
| Per Port |
Link/Activity LED, Speed LED (Orange: 10/100 Mbps, Green: 1000 Mbps) |
| DIP Switch |
3-pin front panel for EEE, Flow Control, Port Isolation, Storm Control |
Power
| Input Voltage |
100-240V AC, 50/60 Hz |
| Power Supply |
Internal universal power supply |
| Maximum Power Consumption |
19.1 Watts (typical), 26.7 Watts (maximum) |
| MTBF |
784,286 hours |
| Acoustics |
0 dB (fanless silent operation) |
Physical Specifications
| Dimensions (W × D × H) |
280 × 180 × 44 mm (11.1 × 7.1 × 1.75 inches) |
| Weight |
1.65 kg (3.64 lbs) - device only |
| Housing |
Metal case with fanless design |
| Mounting |
Desktop, wall-mount, or 19-inch rackmount (1U) |
Environmental
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-10°C to 55°C (14°F to 131°F) |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Compliance |
RoHS compliant, recyclable packaging |
Certifications & Emissions
| Safety |
CSA, NRTL/C |
| Emissions |
FCC Class A, CE Class A, VCCI Class A |
| NDAA/TAA |
Compliant (follows sourcing standards for public sector projects) |
Warranty
| Warranty Period |
D-Link Limited Lifetime Warranty (registration required) |
Specifications are sourced from the manufacturer product page and may be updated.
