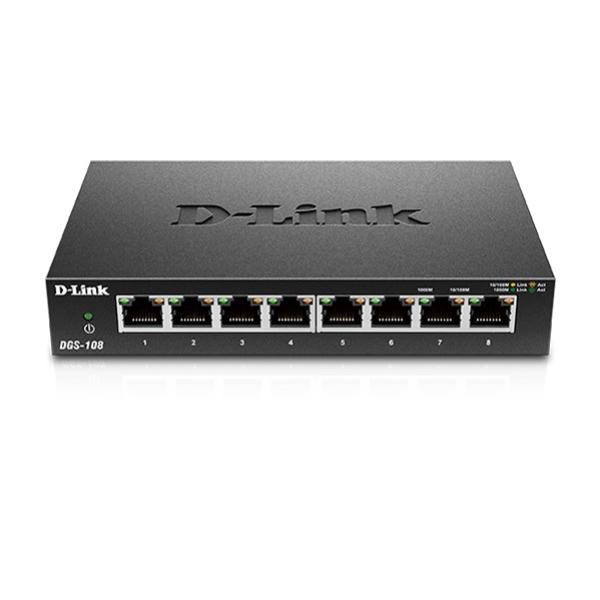

D-Link DGS-108 8-Port Gigabit Unmanaged Desktop Switch
The D-Link DGS-108 is a silent, metal-cased 8-port Gigabit Ethernet switch that adds instant, lag-free wired connectivity to any home, office, or workspace. With 16 Gbps switching fabric, QoS traffic prioritization, and Green Ethernet power savings, this plug-and-play switch supports a wide range of applications from 4K streaming and online gaming to VoIP phones and smart home hubs with zero configuration required.
Why You'll Love the DGS-108
-
8 Auto-Negotiating Gigabit Ports: Full/half-duplex operation with speeds up to 2 Gbps per port (1 Gbps up + 1 Gbps down) connects PCs, consoles, NAS, printers, cameras, and mesh nodes to a non-blocking switching engine
-
Plug-and-Play Simplicity: Zero setup required - auto MDI/MDIX removes crossover-cable guesswork and handles Cat5e, Cat6, and Cat6A UTP cables up to 100 m
-
Silent Fanless Operation: All-steel metal chassis dissipates heat naturally for whisper-quiet operation in bedrooms, studios, and offices
-
Smart QoS Prioritization: 802.1p traffic classes keep voice, video, and gaming packets smooth even when the network is busy
-
Energy-Efficient Design: IEEE 802.3az Energy-Efficient Ethernet cuts power usage up to 80% by throttling idle ports and detecting cable length
-
Desktop or Wall-Mount Flexibility: Rubber feet and keyhole slots allow you to place the switch exactly where space permits
Ideal for Home, Office, and Small Business Networks
The DGS-108 offers an economical way for home offices and small to medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. With data transfer speeds up to 2000 Mbps, it's perfect for fast file transfers, smooth media streaming, and lag-free gaming. Connect up to eight devices and enjoy reliable, high-speed wired networking without wireless interference.
Smart Traffic Management
The switch features IEEE 802.1p Quality of Service (QoS), which organizes and prioritizes time-sensitive and important data for efficient delivery, ensuring smooth streaming media, VoIP calling, and online gaming. When IGMP snooping is enabled, the DGS-108 efficiently streams 4K/8K video to multiple devices without flooding the entire network.
Green Technology That Saves Energy and Money
Built with the environment in mind, the DGS-108 supports IEEE 802.3az Energy-Efficient Ethernet (EEE), which automatically detects when connected computers are shut down or when there's no Ethernet traffic and powers down idle ports. The switch also saves energy by detecting cable length and using only the necessary power. These features drastically reduce power consumption and heat dissipation, extending product life and delivering substantial cost savings. The switch is compliant with Energy Star Level V, CEC, and MEPS regulations.
Durable Metal Construction
The sturdy metal housing ensures the DGS-108 can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components. The compact, fanless design means the switch can be placed virtually anywhere and operates silently. Additional features include built-in surge and ESD protection (±4 kV) and a Kensington Security Slot on the rear panel where users can fasten the unit to a table or desk.
Advanced Features
-
Jumbo Frame Support (9 KB): Boosts throughput for large backups and multimedia transfers between NAS and PCs
-
Cable Diagnostics Function: LED display provides instant awareness of cable conditions and connection status
-
8000 Entry MAC Address Table: Allows for effective communication between devices on the network
-
Store-and-Forward Technology: Ensures integrity and reliability of each transmission
What's in the Box
- DGS-108 8-Port Gigabit Unmanaged Desktop Switch
- External power adapter (5V DC, 1A)
- Quick Installation Guide
Full Specifications
Hardware
| Ports |
8 × 10/100/1000 Mbps Gigabit Ethernet (RJ-45) |
| Switching Fabric |
16 Gbps |
| MAC Address Table |
8000 entries |
| Form Factor |
Desktop, wall-mountable |
| Casing |
Metal housing |
Standards & Protocols
| IEEE Standards |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Auto MDI/MDIX |
Yes, all ports |
| Switching Method |
Store-and-forward |
| Jumbo Frames |
Up to 9 KB |
Performance
| Data Transfer Rate |
Up to 2000 Mbps per port (1 Gbps up + 1 Gbps down, full-duplex) |
| Network Technology |
10/100/1000Base-T |
| Cable Support |
Cat5e, Cat6, Cat6A UTP (up to 100 m) |
| IGMP Snooping |
Yes |
Power & Environment
| Power Input |
External 5V DC, 1A adapter (included) |
| Power Consumption (Maximum) |
4.62 W (AC input), 3.05 W (DC input) |
| Power Consumption (Standby) |
0.4 W |
| Energy Efficiency |
IEEE 802.3az EEE (up to 80% power savings on idle ports) |
| Cooling |
Fanless (silent operation) |
| Operating Temperature |
0 to 40°C (32 to 104°F) |
| Storage Temperature |
-10 to 70°C (14 to 158°F) |
| Operating Humidity |
0% to 95% non-condensing |
Physical
| Dimensions (W × D × H) |
198 mm × 114 mm × 30 mm (7.8" × 4.5" × 1.2") |
| Weight |
440 g (0.97 lb) |
| Mounting Options |
Desktop (rubber feet included), wall-mount (keyhole slots) |
| Security Slot |
Kensington Security Slot |
Certifications & Compliance
| Emissions |
FCC Class B, CE Class B, ICES-003 Class B, VCCI Class B |
| Safety |
cUL, CB, LVD |
| Environmental |
RoHS compliant, Energy Star Level V, CEC, MEPS |
| NDAA Compliant |
Yes |
Warranty & Support
| Warranty |
D-Link Limited Lifetime Warranty (after registration) |
| Technical Support |
US-based support available |
What's in the Box
| Package Contents |
DGS-108 Switch, External Power Adapter (5V DC, 1A), Quick Installation Guide |
Specifications are sourced from the manufacturer product page and may be updated. All references to speed are for comparison purposes only.
