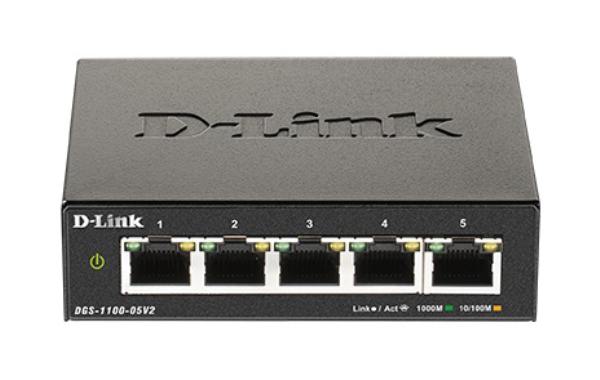

D-Link DGS-1100-05V2 5-Port Gigabit Smart Managed Desktop Switch
The D-Link DGS-1100-05V2 is a compact 5-port Gigabit smart managed switch designed for small to medium-sized businesses that need reliable network performance without the complexity of enterprise solutions. With Layer 2 management features, 10 Gbps switching capacity, and energy-efficient operation consuming just 3.42W, this fanless desktop switch delivers professional-grade networking in a silent, space-saving design. Perfect for small offices, retail, surveillance networks, and home offices requiring advanced VLAN, QoS, and security features.
Key Features
-
5 Gigabit Ethernet Ports: All ports support 10/100/1000 Mbps auto-negotiation for fast, reliable connectivity
-
Smart Managed Performance: Web-based interface for comprehensive Layer 2 management including VLANs, QoS, and bandwidth control
-
Energy Efficient Design: IEEE 802.3az compliant with D-Link Green technology, consuming only 3.42W of power
-
Silent Fanless Operation: Compact metal housing with fanless design for quiet, reliable operation in any environment
-
Advanced Security Features: Includes IGMP Snooping, Static MAC, Storm Control, and Port Security
-
Easy Network Troubleshooting: Built-in Loopback Detection and Cable Diagnostics tools
-
Flexible Installation: Supports desktop and wall-mount placement options
-
Lifetime Limited Warranty: Backed by D-Link's industry-leading warranty protection
Professional Network Management Made Easy
The DGS-1100-05V2 offers two convenient management options: the free D-Link Network Assistant (DNA) utility for quick discovery and setup of switches on your network, and a comprehensive web-based management interface accessible from any browser. Configure 802.1Q VLANs to segment network traffic, implement Quality of Service (QoS) with 4 queues per port to prioritize latency-sensitive applications, and use bandwidth control to ensure critical traffic always gets the resources it needs.
Perfect for IP Surveillance & Business Networks
With Surveillance VLAN support, the DGS-1100-05V2 is ideal for IP camera deployments, ensuring video traffic maintains quality without compromising other network data. The switch supports static trunk (link aggregation) for increased bandwidth and redundancy, Spanning Tree Protocol (STP) to prevent network loops, and handles jumbo frames up to 9216 bytes for efficient large file transfers. The IGMP Snooping feature optimizes multicast traffic by forwarding packets only to interested recipients, perfect for streaming and IPTV applications.
Energy Savings That Add Up
D-Link Green technology automatically monitors link status and reduces power consumption when ports are inactive or have low traffic. Combined with IEEE 802.3az Energy Efficient Ethernet (EEE) compliance, this switch helps reduce operating costs and cooling requirements. The fanless design not only eliminates noise but also extends product lifespan by reducing mechanical failure points.
Network Diagnostics & Reliability
The DGS-1100-05V2 includes powerful troubleshooting features: Loopback Detection automatically identifies and shuts down ports with loop issues, while Cable Diagnostics quickly examines copper cable quality, recognizes cable types, and detects errors. These tools help network administrators quickly identify and resolve connectivity problems, minimizing downtime.
What's in the Box
- DGS-1100-05V2 5-Port Gigabit Smart Managed Switch
- External power adapter
- Mounting screws for wall installation
- Quick Installation Guide
- Warranty card
Full Specifications
Hardware
| Number of Ports |
5 × 10/100/1000BASE-T Gigabit Ethernet ports |
| Port Standards |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
| Auto-Negotiation |
All ports support auto-negotiation |
| Duplex Mode |
Half-duplex at 10/100 Mbps, full-duplex at 1000 Mbps |
| Auto MDI/MDIX |
Yes, on all ports |
| Switching Capacity |
10 Gbps |
| Maximum Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
2K entries |
| Jumbo Frame Support |
Up to 9216 bytes |
Management Features
| Management Type |
Smart Managed (Layer 2) |
| Management Interface |
Web-based GUI, D-Link Network Assistant (DNA) utility |
| VLAN Support |
Port-based VLAN, 802.1Q tagged VLAN, Surveillance VLAN, Voice VLAN, Management VLAN (up to 32 static VLAN groups, max 4094 VIDs) |
| Spanning Tree Protocol |
Yes |
| Link Aggregation |
Static Trunk (1 group, up to 4 ports) |
| Port Mirroring |
One-to-One, Many-to-One |
| Flow Control |
IEEE 802.3x Flow Control (full-duplex mode) |
| IGMP Snooping |
IGMP v1/v2 (supports 128 groups) |
Quality of Service
| QoS |
802.1p priority, 4 queues per port |
| Queue Handling |
Strict priority, Weighted Round Robin (WRR) |
| DSCP Support |
DSCP-based QoS (up to 32 entries) |
| Bandwidth Control |
Port-based (Ingress/Egress, minimum granularity 8 Kb/s) |
Security Features
| Static MAC |
Yes |
| Storm Control |
Broadcast, multicast, and unknown unicast |
| Port Security |
Yes |
| Access Control Lists (ACL) |
Yes |
| D-Link Safeguard Engine |
Yes |
| Traffic Segmentation |
Yes |
| Loopback Detection |
Yes, with automatic port shutdown |
| Cable Diagnostics |
Yes |
Power & Environment
| Power Consumption |
3.42 W (maximum) |
| Power Source |
External power adapter (included) |
| Energy Standards |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Green Technology |
D-Link Green with link status detection |
| Cooling |
Fanless design (passive cooling) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
0% to 90% RH (non-condensing) |
| Storage Humidity |
0% to 95% RH (non-condensing) |
Physical Specifications
| Dimensions (W × D × H) |
100.5 mm × 82 mm × 28 mm (3.96" × 3.23" × 1.10") |
| Weight |
230 g (8.11 oz) |
| Housing |
Metal desktop/wall-mount chassis |
| Mounting Options |
Desktop with rubber feet, wall-mount with included screws |
| LED Indicators |
Per-port link/activity, power |
Compliance & Standards
| EMI Certifications |
CE, FCC Class B, VCCI, RCM, BSMI, CCC |
| Environmental Compliance |
RoHS 10 compliant |
| NDAA Compliance |
Yes |
| TAA Compliance |
Yes |
| Country of Origin |
Taiwan |
| Warranty |
Lifetime Limited Warranty |
Specifications are sourced from the manufacturer product page and may be updated.
