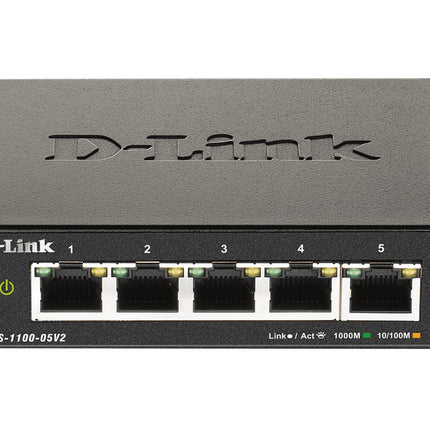

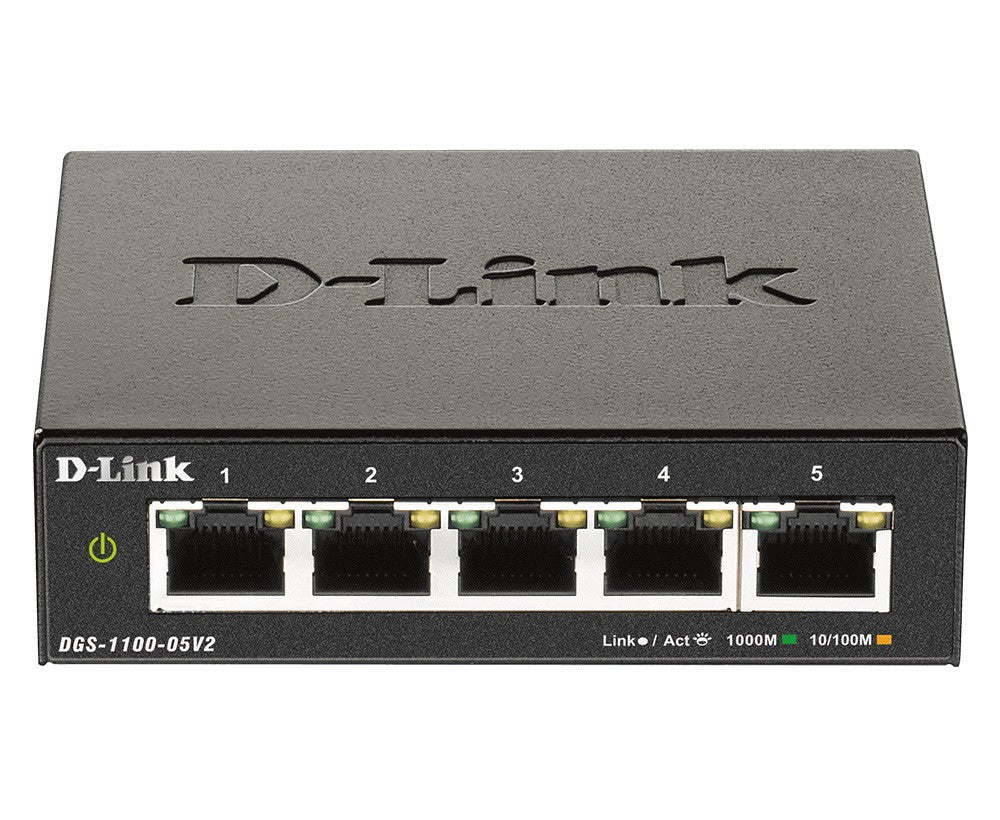

D-Link DGS-1100-05V2 5-Port Gigabit Smart Managed Switch with VLANs
The D-Link DGS-1100-05V2 is a compact 5-port Gigabit Smart Managed Switch designed to deliver affordable, enterprise-grade network management for small to medium-sized businesses, home offices, and IP surveillance deployments. With 10 Gbps switching capacity, advanced Layer 2 management features, and energy-efficient operation, this fanless desktop switch provides reliable, high-speed connectivity for workstations, servers, IP cameras, VoIP phones, and wireless access points. Perfect for Australian businesses looking to upgrade network performance without breaking the budget.
Key Features
-
5 Gigabit Ethernet Ports: All ports support 10/100/1000 Mbps with auto-negotiation and auto MDI/MDIX for seamless plug-and-play connectivity
-
Smart Layer 2 Management: Web-based interface for configuring VLANs, QoS, bandwidth control, link aggregation, and IGMP snooping
-
Advanced Traffic Optimization: 802.1Q VLAN support (up to 32 groups), 802.1p QoS with 4 priority queues, and bandwidth control to prioritize critical applications like VoIP and video conferencing
-
Enhanced Security Features: Static MAC filtering, Storm Control, Access Control Lists (ACL), and Loopback Detection to prevent unauthorized access and network loops
-
Energy-Efficient & Silent Operation: Fanless design with IEEE 802.3az Energy Efficient Ethernet (EEE) and D-Link Green technology to reduce power consumption during low network activity
-
Easy Deployment & Management: Free D-Link Network Assistant (DNA) utility for quick device discovery and setup, plus web-based GUI for remote management
-
Cable Diagnostics & Troubleshooting: Built-in tools to quickly identify cable quality, type, and errors for faster problem resolution
-
Flexible Mounting Options: Supports desktop or wall-mount installation with compact metal housing for durability
Perfect for Australian Businesses
The DGS-1100-05V2 is ideal for small office networks, retail environments, surveillance systems, and home offices requiring managed switch capabilities. With Surveillance VLAN support, you can dedicate bandwidth for IP cameras to ensure uninterrupted video recording and monitoring. Voice VLAN ensures crystal-clear VoIP calls by prioritizing voice traffic over data. The switch's 10 Gbps switching fabric and 7.44 Mpps forwarding rate handle demanding workloads with ease, while the fanless design ensures quiet operation in any office or classroom.
Smart Management Made Simple
Configure and monitor your network with the intuitive web-based management interface, accessible from any browser on your network. The D-Link Network Assistant utility automatically discovers all D-Link Smart Managed Switches on your Layer 2 network, making initial setup quick and easy. Manage VLANs, configure port mirroring, set bandwidth limits, and upgrade firmware remotely. The switch also integrates with D-View 7 Network Management System for centralized control of multiple devices.
Energy Savings & Environmental Benefits
With IEEE 802.3az EEE compliance and D-Link Green technology, the DGS-1100-05V2 automatically detects link status and cable length, reducing power consumption on idle or low-traffic ports. This not only lowers your electricity bills but also extends the switch's lifespan and reduces heat generation. The fanless design eliminates moving parts for silent, reliable operation ideal for offices, libraries, and classrooms.
Universal Connectivity
- 5 × 10/100/1000BASE-T Gigabit Ethernet ports with RJ-45 connectors
- Auto MDI/MDIX support eliminates the need for crossover cables
- Supports Jumbo Frames up to 9216 bytes for efficient large file transfers
- IEEE 802.3x Flow Control for full-duplex operation
What's in the Box
- D-Link DGS-1100-05V2 Gigabit Smart Managed Switch
- 5V DC power adapter (region-specific)
- Wall-mounting kit
- Quick Installation Guide
- Warranty card
Full Specifications
Hardware
| Model |
DGS-1100-05V2 |
| Number of Ports |
5 × 10/100/1000BASE-T Gigabit Ethernet |
| Switching Capacity |
10 Gbps |
| Maximum Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
2K entries |
| Form Factor |
Desktop / Wall-mountable |
| Cooling |
Fanless (silent operation) |
Layer 2 Features
| VLAN Support |
Port-based VLAN, 802.1Q tagged VLAN (up to 32 groups, max 4094 VIDs), Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN |
| Link Aggregation |
Static Trunk (1 group) |
| Spanning Tree Protocol |
802.1D STP, 802.1w RSTP, 802.1s MSTP |
| IGMP Snooping |
IGMP v1/v2 (supports up to 128 groups) |
| Port Mirroring |
One-to-One, Many-to-One |
| Jumbo Frame Support |
Up to 9216 bytes |
| Flow Control |
IEEE 802.3x (full-duplex mode) |
| Loopback Detection |
Yes |
| Cable Diagnostics |
Yes |
Quality of Service (QoS)
| QoS Support |
802.1p priority queues (4 queues per port) |
| Queue Handling |
Strict Priority, Weighted Round Robin (WRR) |
| Bandwidth Control |
Port-based (Ingress/Egress, minimum granularity 8 Kb/s) |
| DSCP Support |
Yes (up to 32 entries) |
Security
| Access Control |
Static MAC filtering, Port Security |
| Storm Control |
Broadcast, Multicast, Unknown Unicast |
| Traffic Segmentation |
Yes |
| D-Link Safeguard Engine |
Yes |
Management
| Management Interface |
Web-based GUI, D-Link Network Assistant (DNA) utility |
| Network Management |
D-View 7 compatible (license included for 25 nodes) |
| SNMP |
SNMP v1/v2c/v3 |
| Firmware Upgrade |
HTTP, TFTP |
Standards Compliance
| IEEE Standards |
IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.3x (Flow Control), IEEE 802.1D/w/s (Spanning Tree), IEEE 802.1Q (VLAN Tagging), IEEE 802.1p (QoS) |
| Environmental Compliance |
RoHS 10 compliant |
Power & Environment
| Power Input |
5V DC, 1A (external power adapter included) |
| Power Consumption |
Maximum 4.5W (typical operation varies based on load) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% (non-condensing) |
| Storage Humidity |
5% to 95% (non-condensing) |
Physical Specifications
| Dimensions (W × D × H) |
100.5 mm × 82 mm × 28 mm |
| Weight |
0.23 kg (230 g) |
| Housing |
Metal (compact desktop design) |
| Mounting |
Desktop or wall-mount |
Warranty & Support
| Warranty |
Limited Lifetime Warranty (when purchased from authorized reseller; varies by region) |
| Support |
Next Business Day (NBD) hardware replacement (in supported regions) |
| NDAA Compliance |
Yes |
Specifications are sourced from the manufacturer product page and may be updated.
