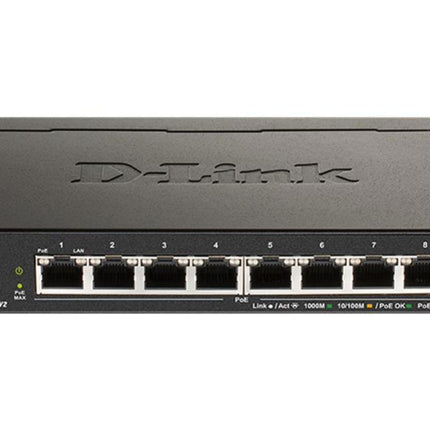

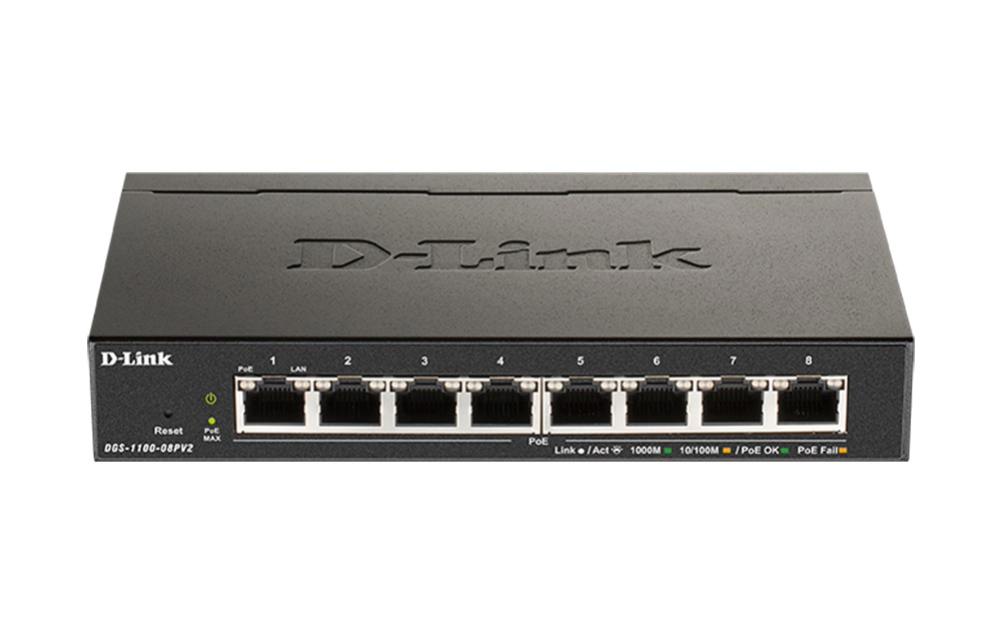

D-Link DGS-1100-08PV2 8-Port Gigabit PoE+ Smart Managed Switch
The D-Link DGS-1100-08PV2 is a powerful 8-port Gigabit smart managed PoE+ switch designed for small to medium-sized businesses and enterprise networks. With 64W total PoE budget and up to 30W per port, this switch simplifies the installation of IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices without the need for separate power adapters. Combining advanced Layer 2 management features with an intuitive web-based interface and the free D-Link Network Assistant utility, the DGS-1100-08PV2 delivers reliable, flexible, and energy-efficient networking for surveillance deployments, VoIP systems, and business networks.
Why Choose the DGS-1100-08PV2?
-
8 Gigabit PoE+ Ports: All ports support IEEE 802.3af/802.3at PoE+ with up to 30W per port and a 64W total PoE budget, ideal for powering IP cameras, access points, and VoIP phones.
-
Smart Managed Features: Web-based interface and D-Link Network Assistant for easy setup, VLAN segmentation, QoS, bandwidth control, and advanced traffic management.
-
Surveillance Optimized: Dedicated Surveillance VLAN prioritizes video traffic for smooth, uninterrupted streams. PD-Alive feature automatically reboots unresponsive PoE devices.
-
Energy Efficient & Silent: IEEE 802.3az Energy Efficient Ethernet and D-Link Green technology reduce power consumption automatically. Fanless design for quiet, reliable operation.
-
Robust Security: Advanced security features including 802.1X authentication, DHCP Snooping, Static MAC, Storm Control, and IGMP Snooping.
-
Lifetime Warranty: NDAA compliant with lifetime warranty after D-Link registration, ensuring long-term reliability and support.
Perfect for IP Surveillance and VoIP
The DGS-1100-08PV2 is ideal for IP surveillance installations and VoIP deployments. The Surveillance VLAN feature gives video traffic a dedicated VLAN and higher priority, separating surveillance traffic from the rest of the network to ensure security and video quality. The PD-Alive feature actively monitors connected PoE devices and automatically resets unresponsive cameras or access points, keeping your network running 24/7 without manual intervention. Bandwidth Control allows you to reserve bandwidth on a per-port basis for critical applications like video streaming and voice calls.
Smart Layer 2 Management Made Easy
Manage your network effortlessly with the intuitive web-based management interface or the free D-Link Network Assistant (DNA) utility. DNA automatically discovers all D-Link switches on the same network segment, making initial setup quick and easy. Configure VLANs for traffic segmentation, set up Quality of Service (QoS) to prioritize critical traffic, and use IGMP Snooping to optimize multicast traffic for video surveillance and IPTV applications. The switch also includes advanced diagnostic tools like Loopback Detection and Cable Diagnostics to quickly identify and resolve network issues.
Energy Saving and Reliable Operation
Built with D-Link Green technology, the DGS-1100-08PV2 saves power automatically by monitoring link status and reducing power consumption when ports are inactive or network traffic is low. Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), the switch helps small and medium-sized businesses reduce operating costs and cooling requirements. The fanless design ensures silent operation, making it perfect for office environments, classrooms, and retail spaces. The compact desktop form factor allows flexible placement on desks or wall-mounting.
Advanced Security Features
Protect your network with powerful security features including 802.1Q VLAN for traffic segmentation, Access Control Lists (ACLs), 802.1X authentication, and DHCP Snooping. The Static MAC feature lets you create a MAC whitelist for specific ports, limiting network access to authorized devices only. Storm Control monitors and blocks excessive broadcast, multicast, or unknown unicast traffic that could flood your network. With D-Link's Safeguard Engine, the switch is protected against traffic flooding caused by virus attacks or malicious activity.
Versatile Business Applications
-
Small to Medium Businesses: Connect and power IP cameras, wireless access points, VoIP phones, access control systems, and PoE lighting efficiently.
-
IP Surveillance: Deploy high-performance surveillance networks with Surveillance VLAN, PD-Alive, and dedicated power for up to 8 PoE cameras.
-
Retail and Hospitality: Power point-of-sale systems, digital signage, guest Wi-Fi access points, and security cameras from a single switch.
-
Educational Facilities: Ideal for classrooms with PoE-powered projectors, interactive whiteboards, wireless access points, and IP intercoms.
-
Home Office: Expand your home network with high-speed Gigabit connectivity and power for access points, VoIP phones, and smart devices.
What's in the Box
- DGS-1100-08PV2 8-Port Gigabit PoE+ Smart Managed Switch
- External power adapter
- Quick Installation Guide
- Ethernet cable
- Wall-mounting kit
Full Specifications
| Model |
DGS-1100-08PV2 |
| Ports |
8 × 10/100/1000Base-T Gigabit Ethernet (PoE+) |
| PoE Standard |
IEEE 802.3af/802.3at (PoE+) |
| PoE Budget |
64W total |
| PoE Power per Port |
Up to 30W |
| Switching Capacity |
16 Gbps |
| Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
8K entries |
| Jumbo Frames |
Up to 9216 bytes |
| VLAN Support |
Port-based VLAN, 802.1Q VLAN (up to 32 groups, 4094 VIDs), Surveillance VLAN, Voice VLAN, Management VLAN |
| QoS |
IEEE 802.1p, 4 queues per port, Strict Priority, Weighted Round Robin |
| IGMP Snooping |
IGMP v1/v2, supports 128 groups |
| Link Aggregation |
Static Trunk (2 groups) |
| Security Features |
802.1X authentication, DHCP Snooping, Static MAC, Storm Control, Access Control Lists, Port Security, Traffic Segmentation |
| Management |
Web-based GUI, D-Link Network Assistant (DNA), SNMP v1/v2c/v3, Telnet, HTTPS |
| Diagnostics |
Loopback Detection, Cable Diagnostics, Port Mirroring |
| Green Technology |
IEEE 802.3az EEE, Link Status Detection, Time-Based PoE |
| Standards Compliance |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3az EEE, IEEE 802.3af PoE, IEEE 802.3at PoE+ |
| Power Consumption |
Maximum 77.9W (with PoE) |
| Power Input |
External AC adapter (100-240V AC, 50/60Hz) |
| Dimensions (W × D × H) |
171 × 97.8 × 28.6 mm (6.7" × 3.9" × 1.1") |
| Weight |
430 g (0.95 lbs) |
| Form Factor |
Desktop/Wall-mountable |
| Cooling |
Fanless |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Certifications |
FCC Class B, CE Class B, VCCI Class B, BSMI, cUL, CE LVD, CB, NDAA/TAA Compliant |
| Warranty |
Lifetime (after D-Link registration) |
Specifications are sourced from the manufacturer product page and may be updated.
