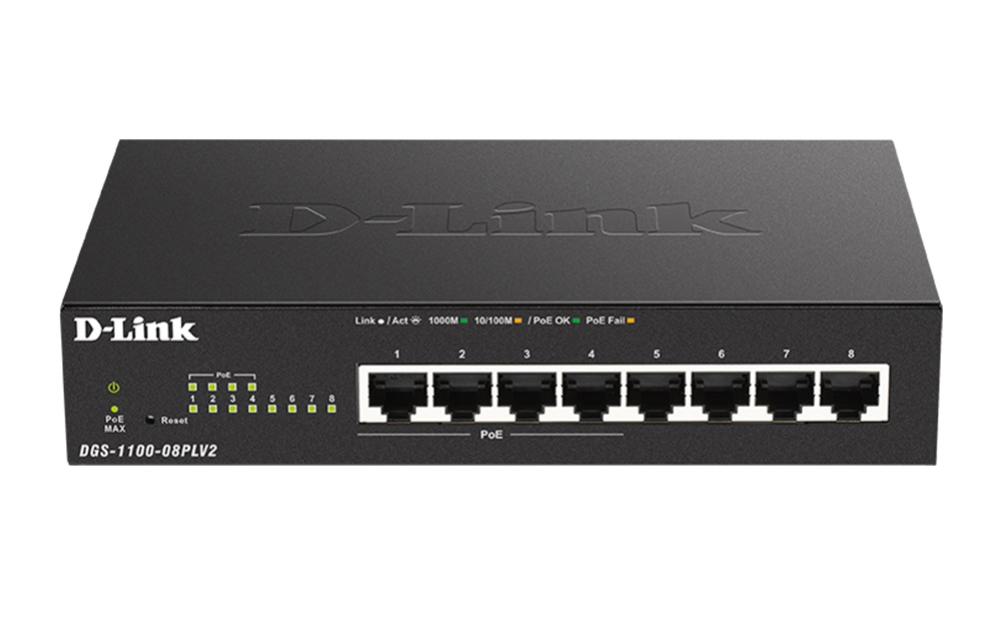

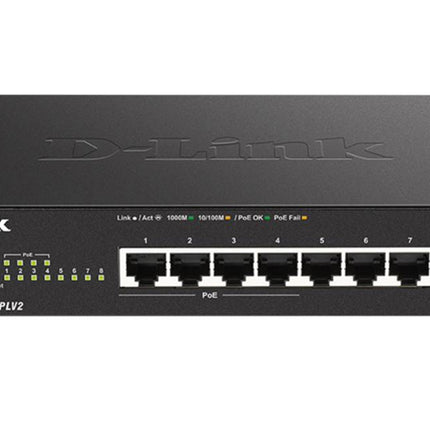

D-Link DGS-1100-08PV2 8-Port Gigabit Smart Managed PoE+ Switch
The D-Link DGS-1100-08PV2 is a powerful smart managed switch designed for small to medium-sized businesses requiring reliable networking with Power over Ethernet capabilities. Featuring 8 Gigabit Ethernet ports with full PoE+ support (64W total budget), this compact desktop switch simplifies the deployment of IP cameras, wireless access points, VoIP phones, and other powered devices without the need for separate power adapters. With advanced Layer 2 management features, energy-efficient operation, and a fanless design for silent performance, the DGS-1100-08PV2 delivers enterprise-grade functionality at an affordable price point for Australian businesses.
Key Features
-
8 Gigabit PoE+ Ports: All 8 ports support IEEE 802.3at PoE+ standard with up to 30W per port and a total PoE budget of 64W, ideal for powering IP cameras, access points, and VoIP phones
-
Smart Managed Functionality: Web-based interface and D-Link Network Assistant (DNA) utility provide intuitive management of VLANs, QoS, bandwidth control, and security features
-
Advanced Security: VLAN segmentation, IGMP snooping, Static MAC filtering, Storm Control, and 802.1X authentication protect your network from unauthorized access
-
Energy Efficient Design: D-Link Green technology with IEEE 802.3az EEE compliance, link status detection, and automatic power adjustment reduce operating costs
-
Surveillance Optimized: Surveillance VLAN prioritizes video traffic, while PD-Alive feature automatically reboots unresponsive PoE devices to maintain uptime
-
Fanless & Compact: Silent operation in a compact desktop form factor (171mm × 97.8mm × 28.6mm) perfect for office environments
Perfect for Australian Small Businesses
Whether you're setting up a new office network, expanding an IP surveillance system, or upgrading to VoIP communications, the DGS-1100-08PV2 provides the perfect balance of performance, management, and value. The switch's NDAA/TAA compliance makes it suitable for government and enterprise deployments, while the D-Link Lifetime Warranty (after registration) ensures long-term reliability for your investment.
Smart Management Made Easy
Configure and monitor your network with ease using the intuitive web-based management interface or the free D-Link Network Assistant (DNA) utility. Quickly discover all connected devices, manage port-level settings, configure VLANs for traffic segmentation, set up QoS for priority applications, and control PoE power delivery on a per-port basis. Advanced features like Loopback Detection and Cable Diagnostics help identify and resolve network issues quickly.
Power Over Ethernet Simplicity
Eliminate the need for separate power supplies and outlets with full PoE+ support on all 8 ports. Each port delivers up to 30 watts of power compliant with IEEE 802.3af/at standards, with a total power budget of 64W across the switch. Deploy wireless access points in ceiling spaces, install IP cameras in remote locations, or connect VoIP phones at every desk without worrying about nearby power outlets. Smart PoE management features allow remote device reboots and time-based PoE scheduling to optimize power usage.
IP Surveillance Excellence
Purpose-built for surveillance applications, the DGS-1100-08PV2 features Surveillance VLAN to give video traffic dedicated bandwidth and higher priority, ensuring smooth, uninterrupted streams. The PD-Alive feature monitors connected PoE devices like IP cameras and automatically reboots unresponsive units, eliminating the need for manual intervention and ensuring 24/7 surveillance uptime.
Energy Savings That Add Up
Cut your power consumption and operating costs with D-Link Green technology. The switch features IEEE 802.3az Energy Efficient Ethernet compliance, automatically reducing power when ports are idle or operating at low utilization. Link Status detection powers down unused ports, while intelligent cable length detection adjusts transmission power for shorter cables. The fanless design not only ensures silent operation but also reduces energy consumption and extends the product lifespan.
Connectivity & Performance
-
8 x 10/100/1000BASE-T Gigabit Ethernet ports with Auto MDI/MDIX and Auto-negotiation
-
16 Gbps switching capacity with 11.9 Mpps maximum forwarding rate
-
Jumbo frame support up to 9216 bytes for improved large file transfer performance
-
IEEE 802.3x Flow Control for full-duplex operation prevents packet loss
What's in the Box
- D-Link DGS-1100-08PV2 8-Port Gigabit Smart Managed PoE+ Switch
- External power adapter
- Rubber feet for desktop placement
- Wall mount kit
- Quick Installation Guide
- Warranty card
Full Specifications
Hardware
| Number of Ports |
8 × 10/100/1000BASE-T Gigabit Ethernet (all PoE+) |
| Form Factor |
Desktop |
| Dimensions |
171mm (W) × 97.8mm (D) × 28.6mm (H) |
| Weight |
430g (0.43 kg) |
| Cooling |
Fanless (silent operation) |
| Mounting |
Desktop or wall mount |
Performance
| Switching Capacity |
16 Gbps |
| Maximum Forwarding Rate |
11.9 Mpps (million packets per second) |
| MAC Address Table |
8K entries |
| Jumbo Frame Support |
Up to 9216 bytes |
| Buffer Memory |
192 KB per device |
Power over Ethernet
| PoE Standards |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| PoE Ports |
All 8 ports (ports 1-8) |
| Power per Port |
Up to 30W (PoE+) |
| Total PoE Power Budget |
64W |
| PoE Management |
Remote reboot, power priority, time-based PoE |
Layer 2 Features
| VLANs |
Port-based VLAN, 802.1Q tagged VLAN (up to 32 groups, max 4094 VIDs), Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN |
| Spanning Tree Protocol |
STP, RSTP, MSTP |
| Link Aggregation |
Static Trunk (2 groups) |
| IGMP Snooping |
IGMP v1/v2 (supports 128 groups) |
| Port Mirroring |
One-to-One, Many-to-One |
| Flow Control |
IEEE 802.3x Flow Control, HOL Blocking Prevention |
Quality of Service
| QoS Type |
IEEE 802.1p priority queues |
| Number of Queues |
4 queues per port |
| Queue Scheduling |
Strict priority, Weighted Round Robin (WRR) |
| Bandwidth Control |
Port-based ingress/egress (minimum granularity 8 Kbps) |
| DSCP |
Up to 32 entries |
Security Features
| Access Control |
Static MAC address binding, Port security, Traffic segmentation |
| Storm Control |
Broadcast, Multicast, Unknown Unicast |
| Authentication |
RADIUS, TACACS+ support |
| DHCP |
DHCP Snooping, DHCP Relay |
| Network Protection |
Loopback Detection, Cable Diagnostics |
Management
| Management Interface |
Web-based GUI, D-Link Network Assistant (DNA) utility, CLI, Telnet, SNMPv1/v2c/v3 |
| Network Management |
D-View 7 (license for 25 nodes included), Nuclias Connect (optional) |
| Firmware Upgrade |
TFTP, HTTP |
| Configuration Backup |
TFTP, HTTP |
| LED Indicators |
Per-port Link/Activity/Speed, Power, PoE Max |
Standards Compliance
| IEEE Standards |
802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3af PoE, 802.3at PoE+, 802.3x Flow Control, 802.3az Energy Efficient Ethernet (EEE), 802.1D STP, 802.1w RSTP, 802.1s MSTP, 802.1p QoS, 802.1Q VLAN |
| Regulatory |
NDAA/TAA compliant, FCC Class B, CE Class B, VCCI Class B, BSMI, cUL, CE LVD, CB |
Power & Environment
| Power Input |
External power adapter (100-240V AC, 50/60Hz) |
| Power Consumption |
Maximum 77.9W (with full PoE load) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% (non-condensing) |
| Storage Humidity |
5% to 95% (non-condensing) |
Warranty
| Warranty Period |
D-Link Lifetime Warranty (after product registration) |
Specifications are sourced from the manufacturer product page and may be updated.
