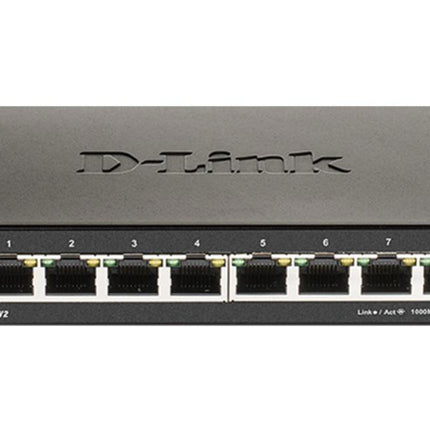

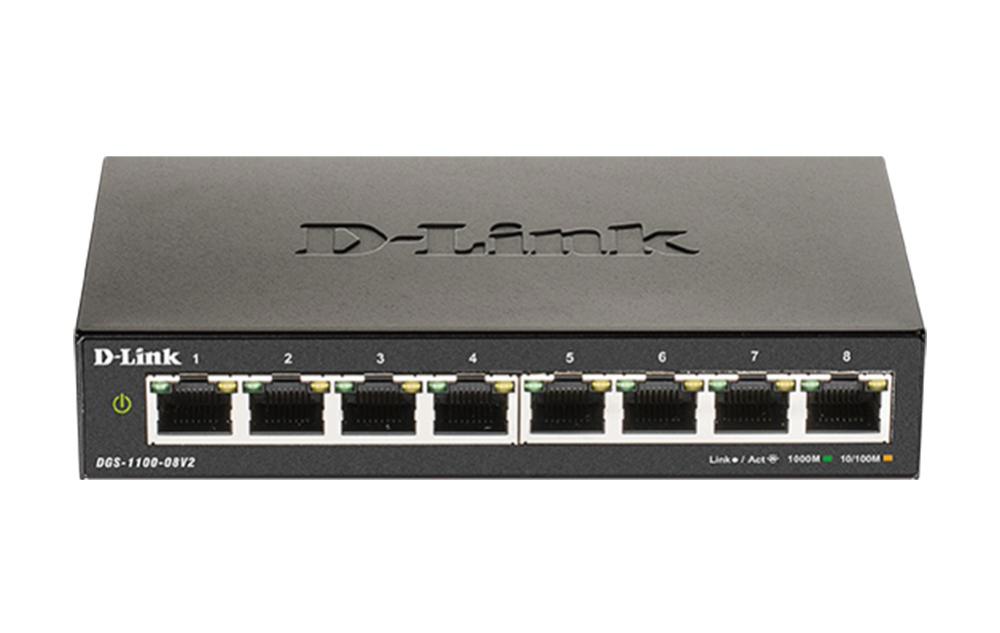

D-Link DGS-1100-08V2 8-Port Gigabit Smart Managed Switch
The D-Link DGS-1100-08V2 is a powerful 8-port Gigabit Smart Managed Switch designed to meet the networking demands of small to medium-sized businesses, IT professionals, and advanced home users. With Layer 2 management features, VLAN support, and energy-saving D-Link Green technology, this switch delivers reliable, high-speed performance with intuitive web-based management. Ideal for IP surveillance, VoIP, and general business networking applications, the DGS-1100-08V2 combines affordability, flexibility, and robust security in a compact, fanless design.
Key Features
-
8 Gigabit Ethernet Ports: All 8 ports support 10/100/1000 Mbps auto-negotiation for fast, reliable connections across your network
-
16 Gbps Switching Capacity: High-performance switching with 11.9 Mpps forwarding rate ensures smooth data transfer and low latency
-
Smart Layer 2 Management: Comprehensive features including VLANs, Spanning Tree Protocol (STP), link aggregation, IGMP snooping, QoS, and port mirroring for advanced traffic control and network segmentation
-
Fanless Silent Operation: Compact desktop design with fanless cooling for quiet, energy-efficient operation in noise-sensitive environments
-
Web-Based Interface: Intuitive web UI simplifies configuration and network management without the need for complex command-line access
-
Energy Efficient Design: IEEE 802.3az Energy Efficient Ethernet (EEE) compliant, with D-Link Green technology for automatic power saving based on link status and cable length
-
Advanced Diagnostics: Loopback Detection and Cable Diagnostics help administrators quickly identify and resolve network issues
-
Surveillance VLAN Support: Prioritizes video traffic for IP surveillance deployments, ensuring smooth and uninterrupted streams for security cameras
-
Free Management Software: Compatible with D-Link Network Assistant (DNA) for device discovery and D-View 7 Network Management System for centralized monitoring and control
-
Lifetime Warranty: Backed by D-Link's Limited Lifetime Warranty after product registration, ensuring long-term reliability and peace of mind
Smart Managed Networking Made Easy
The DGS-1100-08V2 offers advanced Layer 2 features that give network administrators full control over traffic management and security. With support for 802.1Q tagged VLANs, you can segment your network into multiple virtual LANs to improve security and reduce congestion. The switch supports Quality of Service (QoS) with 4 queues per port and 802.1p prioritization, ensuring that critical applications like VoIP and video conferencing receive the bandwidth they need. Link aggregation (Static Trunk) allows you to combine multiple ports to increase bandwidth and provide redundancy for mission-critical connections.
Ideal for IP Surveillance and Business Networks
Designed with IP surveillance in mind, the DGS-1100-08V2 features Surveillance VLAN functionality to prioritize video traffic and ensure smooth, uninterrupted streams from IP cameras. The PD-Alive feature automatically detects and reboots unresponsive PoE devices (when used with compatible PoE models), maintaining network reliability around the clock. Whether you're managing a small office network, deploying security cameras, or connecting VoIP phones and wireless access points, this switch provides the performance and features you need.
Energy Efficient and Environmentally Friendly
The DGS-1100-08V2 incorporates D-Link Green technology to reduce power consumption without sacrificing performance. The switch is IEEE 802.3az Energy Efficient Ethernet (EEE) compliant, automatically adjusting power usage when port utilization is low. Link Status Detection powers down inactive ports to save energy, while the fanless design eliminates noise and further reduces power consumption. This makes the DGS-1100-08V2 an ideal choice for businesses looking to lower operating costs and reduce their environmental footprint.
Comprehensive Management and Diagnostics
Management is simple with the intuitive web-based user interface, which provides easy access to all switch features and settings from any connected PC. The switch is also compatible with D-Link Network Assistant (DNA), a free utility that displays all connected devices and simplifies initial configuration. For larger deployments, the D-View 7 Network Management System (free with license for 25 nodes) offers centralized control and enhanced reporting. Built-in Loopback Detection and Cable Diagnostics tools help administrators quickly identify and resolve network problems, minimizing downtime.
Robust Security Features
Protect your network with powerful security features including IGMP snooping to control multicast traffic, Static MAC address filtering to prevent unauthorized access, and Storm Control to protect against broadcast storms. The switch also supports 802.1X port-based authentication and port security features to ensure only authorized devices can access your network.
What's in the Box
- D-Link DGS-1100-08V2 8-Port Gigabit Smart Managed Switch
- External power adapter
- Rubber feet
- Quick installation guide
- Warranty information
Full Specifications
Hardware
| Ports |
8 × 10/100/1000BASE-T Gigabit Ethernet ports |
| Form Factor |
Desktop, compact design |
| Switching Capacity |
16 Gbps |
| Maximum Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
4K entries |
| Jumbo Frame Support |
Up to 9216 bytes |
| Cooling |
Fanless (silent operation) |
| Dimensions (W × D × H) |
145 × 82 × 28 mm |
| Weight |
340 g |
Performance
| Standards Compliance |
IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet) |
| Auto-Negotiation |
Yes |
| Duplex Mode |
Half/Full-duplex (half at 10/100 Mbps, full at 1000 Mbps) |
| Auto MDI/MDIX |
Yes |
| Flow Control |
IEEE 802.3x Flow Control (full-duplex mode) |
Layer 2 Features
| VLAN Support |
Port-based VLAN, 802.1Q tagged VLAN, Surveillance VLAN, Voice VLAN, Management VLAN, VLAN Group (32 static VLAN groups, max 4094 VIDs) |
| Spanning Tree Protocol |
STP, supports 802.1D |
| Link Aggregation |
Static Trunk (2 groups) |
| IGMP Snooping |
IGMP v1/v2 Snooping (supports 128 groups) |
| Quality of Service |
802.1p QoS, 4 queues per port, queue handling |
| Port Mirroring |
One-to-One, Many-to-One |
| Loopback Detection |
Yes |
| Cable Diagnostics |
Yes |
Security
| Access Control |
Static MAC address filtering |
| Storm Control |
Yes |
| IGMP Snooping |
Yes |
Management
| Management Interface |
Web-based GUI |
| Configuration |
HTTP, HTTPS |
| Compatible Software |
D-Link Network Assistant (DNA), D-View 7 Network Management System |
| SNMP |
Yes |
| Statistics |
Tx Ok, Tx Error, Rx Ok, Rx Error |
Power & Environment
| Power Input |
External power adapter (included) |
| Power Consumption |
Maximum 6.24 W |
| Energy Efficiency |
IEEE 802.3az EEE, D-Link Green technology (Link Status Detection, cable length detection) |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
Compliance & Warranty
| Certifications |
FCC Class A, CE, NDAA/TAA sourcing standards compliant |
| Warranty |
Limited Lifetime Warranty (after registration) |
Specifications are sourced from the manufacturer product page and may be updated.
