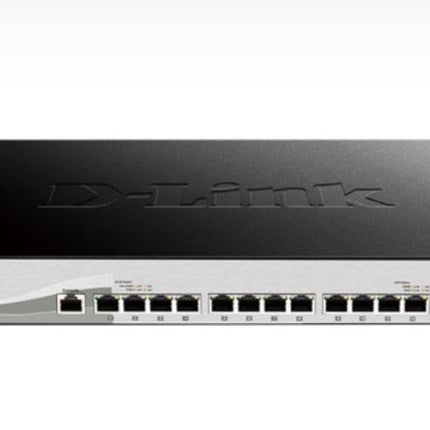

D-Link DGS-1100-16V2 16-Port Gigabit Smart Managed Switch
The D-Link DGS-1100-16V2 is a high-performance 16-port Gigabit smart managed switch designed for small and medium-sized businesses that demand robust networking with advanced traffic management. Featuring 16 x 10/100/1000BASE-T ports, this switch delivers reliable Gigabit connectivity for computers, servers, IP cameras, VoIP phones, and network storage devices. With web-based management, VLAN support, QoS, and energy-efficient fanless operation, the DGS-1100-16V2 is ideal for expanding your office network, deploying IP surveillance systems, or ensuring smooth VoIP communications.
Key Features
-
16 Gigabit Ethernet Ports: Connect a wide range of devices with high-speed 10/100/1000 Mbps connectivity
-
Smart Managed Functionality: Easy web-based interface for VLAN configuration, bandwidth control, QoS, and IGMP snooping
-
Advanced Traffic Management: Prioritise latency-sensitive traffic like VoIP and video with QoS and bandwidth control
-
VLAN Support: Segregate network traffic for surveillance, voice, and data to enhance security and performance
-
Fanless Design: Silent operation with zero noise, perfect for offices, classrooms, and noise-sensitive environments
-
Energy-Efficient: IEEE 802.3az Energy Efficient Ethernet (EEE) reduces power consumption and operating costs
-
Desktop or Rackmount: Flexible installation with included 19-inch rackmount brackets
-
Lifetime Warranty: D-Link Lifetime Warranty after product registration
Smart Management Made Simple
The DGS-1100-16V2 features an intuitive web-based management interface that gives network administrators full control over Layer 2 features, including VLANs, Spanning Tree Protocol (STP), and link aggregation. The switch also supports D-Link Network Assistant (DNA) for easy device discovery and first-time configuration, plus optional Nuclias Connect cloud management for centralized control of up to 1,500 devices. With features like loopback detection, cable diagnostics, and port mirroring, troubleshooting and network maintenance are fast and efficient.
Optimised for IP Surveillance & VoIP
Perfect for businesses deploying IP surveillance cameras or VoIP phone systems, the DGS-1100-16V2 supports Auto Surveillance VLAN and Voice VLAN for automatic traffic segregation and prioritisation. IGMP snooping ensures multicast traffic (such as video streams) is delivered only to devices that need it, reducing network congestion and ensuring high-quality real-time video and voice transmission.
Energy-Efficient & Silent Operation
Designed with D-Link Green technology, the DGS-1100-16V2 automatically reduces power consumption when ports are inactive or when cable lengths are shorter. The fanless design ensures completely silent operation, making it ideal for office environments, schools, libraries, and retail spaces. This energy-saving approach also extends the lifespan of the switch and reduces your electricity bills.
Flexible Installation Options
The compact 11-inch desktop form factor allows the DGS-1100-16V2 to sit neatly on a desk or shelf, while the included rackmount brackets enable easy installation in a standard 19-inch network rack. With its 1U height and lightweight design, this switch fits seamlessly into any network infrastructure.
NDAA Compliant
The DGS-1100-16V2 follows NDAA sourcing standards, making it suitable for government, education, and enterprise projects that require strict regulatory compliance.
What's in the Box
- D-Link DGS-1100-16V2 Switch
- Power adapter (100-240V AC)
- Rackmount brackets
- Quick installation guide
Full Specifications
Hardware
| Model |
DGS-1100-16V2 |
| Hardware Version |
Ax/B1 |
| Number of Ports |
16 x 10/100/1000BASE-T (Gigabit Ethernet) |
| Mounting Options |
Desktop or 19-inch rackmount (brackets included), 1U height |
| Dimensions |
280 x 180 x 44 mm |
| Weight |
1.27 kg |
Performance
| Switching Capacity |
32 Gbps |
| Maximum Forwarding Rate |
23.81 Mpps |
| MAC Address Table |
8,000 entries |
| Packet Buffer |
512 Kbits |
| Flash Memory |
8 MB |
Standards & Functions
| Standards |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Auto MDI/MDIX |
Yes |
| Jumbo Frames |
Up to 9,216 bytes |
Layer 2 Features
| VLAN Support |
Port-based VLAN, 802.1Q tagged VLAN, Auto Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN (supports 128 static VLAN groups, max 4094 VIDs) |
| Spanning Tree Protocol |
802.1D STP, 802.1w RSTP |
| Link Aggregation |
802.3ad (max 8 groups per device, 8 ports per group) |
| IGMP Snooping |
V1/V2/V3 awareness, supports 128 groups, IGMP Snooping Querier |
| QoS |
802.1p, 4 queues per port, Strict or Weighted Round Robin (WRR) |
| Port Mirroring |
One-to-One, Many-to-One |
| Loopback Detection |
Yes |
| Cable Diagnostics |
Yes |
| LLDP |
Yes |
Management
| Management Interface |
Web-based GUI (supports IPv4/IPv6), D-Link Network Assistant Utility (DNA), Nuclias Connect (optional cloud management) |
| SNMP |
v1/v2/v3, SNMP Trap |
| DHCP Client |
Yes |
| IPv6 Support |
IPv4/IPv6 Dual Stack |
Security
| Security Features |
D-Link Safeguard, Traffic Segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS Attack Prevention, SSL |
| Bandwidth Control |
Ingress: 8 Kbps, Egress: 64 Kbps |
Power & Environment
| Power Input |
100-240V AC, 50/60 Hz (external adapter) |
| Typical Power Consumption |
7.96 W |
| Maximum Power Consumption |
9.31 W |
| Heat Dissipation |
31.77 BTU/hr |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to 70°C |
| Operating Humidity |
0% to 95% non-condensing |
| Noise Level |
0 dB(A) (fanless) |
| MTBF |
2,827,541 hours |
Certifications
| Compliance |
NDAA compliant, FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC, cUL, CE LVD, CB |
| Warranty |
D-Link Lifetime Warranty (after registration) |
Specifications are sourced from the manufacturer product page and may be updated.
