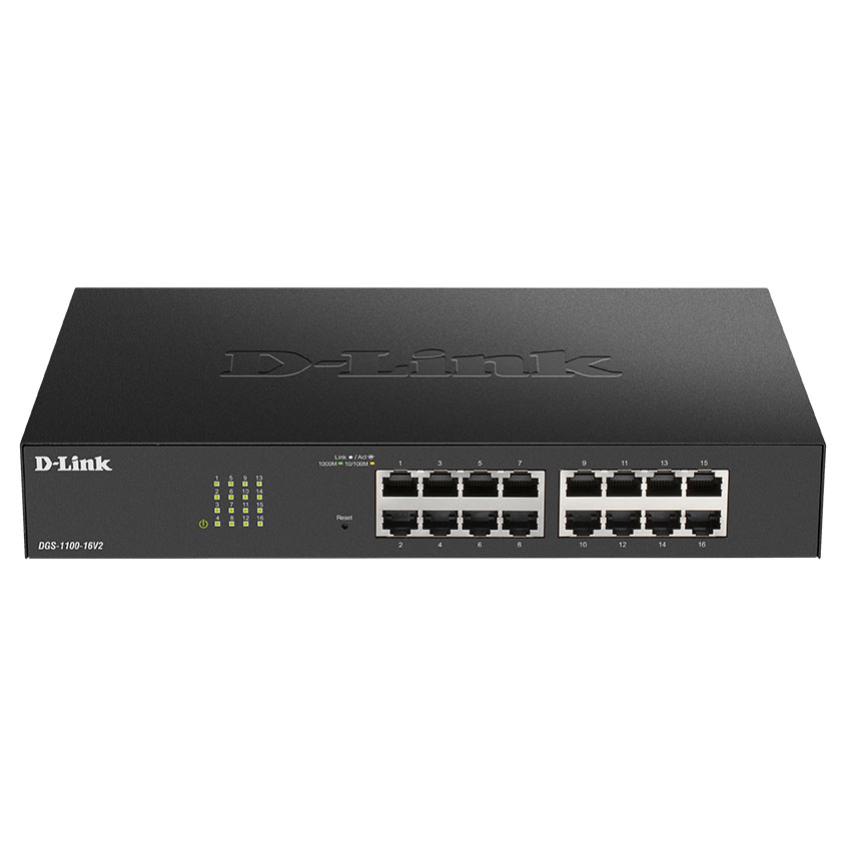

D-Link DGS-1100-16V2 16-Port Gigabit Smart Managed Switch with VLANs
The D-Link DGS-1100-16V2 is a powerful yet affordable smart managed switch designed for small to medium-sized businesses that demand reliable, high-speed networking with advanced management capabilities. Featuring 16 Gigabit Ethernet ports with a 32 Gbps switching capacity and 23.81 Mpps forwarding rate, this switch delivers exceptional performance for bandwidth-intensive applications including IP surveillance, VoIP, video conferencing, and office networking. With comprehensive Layer 2 management features, VLAN support, QoS, and energy-efficient operation, the DGS-1100-16V2 provides enterprise-level functionality without the complexity or cost.
Key Features
-
16 Gigabit Ports: Connect workstations, servers, cameras, and network devices with full 10/100/1000 Mbps auto-negotiation on all ports
-
Smart Managed Functionality: Web-based interface for easy configuration of VLANs, QoS, bandwidth control, and advanced Layer 2 features
-
Fanless Silent Operation: Zero-noise design ideal for offices, libraries, classrooms, and noise-sensitive environments
-
Energy Efficient: IEEE 802.3az EEE compliant with D-Link Green technology for automatic power saving when ports are idle or have low traffic
-
VLAN Support: Segregate network traffic with 802.1Q tagged VLANs, Voice VLAN, and Auto Surveillance VLAN for enhanced security and performance
-
Quality of Service (QoS): Prioritise latency-sensitive traffic like voice and video to ensure smooth, uninterrupted communication
Advanced Traffic Management
The DGS-1100-16V2 is packed with traffic optimisation features to keep your network running smoothly. Bandwidth Control ensures critical applications always get the bandwidth they need, while IGMP Snooping intelligently manages multicast traffic to reduce network congestion. 802.1p Quality of Service prioritises time-sensitive data such as VoIP calls and video streams, and Storm Control protects against broadcast storms that can bring your network to a halt.
Security and Network Segmentation
Protect your network with advanced security features including Static MAC address binding, Port-based VLANs, and Traffic Segmentation. The switch supports 802.1X authentication and DoS attack prevention to safeguard against unauthorised access and malicious traffic. Create up to 128 VLAN groups to isolate surveillance cameras, guest networks, VoIP phones, and corporate data for enhanced security and performance.
Perfect for IP Surveillance and VoIP
The Auto Surveillance VLAN feature automatically groups IP cameras into a separate high-priority VLAN, ensuring real-time video quality even during peak network usage. Similarly, Voice VLAN provides quality transmission for VoIP devices, making the DGS-1100-16V2 an ideal choice for businesses deploying security systems or unified communications.
Easy Deployment and Management
Get up and running quickly with the intuitive web-based GUI accessible from any browser on your network. D-Link Network Assistant (DNA) utility automatically discovers all D-Link devices on your network for streamlined initial setup and configuration. Advanced features include Cable Diagnostics for troubleshooting, Loopback Detection to prevent network loops, and Port Mirroring for traffic analysis. Optional integration with Nuclias Connect provides centralised cloud or on-premises management for up to 1,500 devices.
Energy Efficient and Eco-Friendly
D-Link Green technology enables the DGS-1100-16V2 to save energy without sacrificing performance. IEEE 802.3az Energy Efficient Ethernet automatically reduces power consumption during periods of low traffic. Link Status Detection powers down unused ports, and the fanless design eliminates cooling requirements for silent, energy-efficient operation that reduces both your power bills and carbon footprint.
Flexible Installation
The compact design supports both desktop placement and 19-inch rack mounting (1U height, mounting brackets included). With its 11-inch width, the switch fits perfectly in small server rooms, wiring closets, or under-desk installations.
Universal Connectivity
- 16 × 10/100/1000BASE-T Gigabit Ethernet ports with Auto MDI/MDIX
- Supports IEEE 802.3, 802.3u, 802.3ab, and 802.3x Flow Control
- Half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)
- Jumbo frames up to 10,000 bytes for enhanced throughput
What's in the Box
- D-Link DGS-1100-16V2 Switch
- 19-inch rack mounting brackets
- Power cable
- Quick Installation Guide
Full Specifications
Hardware
| Model |
DGS-1100-16V2 |
| Hardware Version |
Ax |
| Number of Ports |
16 × 10/100/1000BASE-T Gigabit Ethernet |
| Mounting Options |
Desktop or 19-inch rack mount (mounting brackets included), 1U height |
| Form Factor |
11-inch desktop/rackmount |
Performance
| Switching Capacity |
32 Gbps |
| Maximum Forwarding Rate |
23.81 Mpps |
| MAC Address Table |
8,000 entries |
| Packet Buffer Memory |
1 MB |
| Jumbo Frame Support |
Up to 10,000 bytes |
Layer 2 Features
| VLAN |
Port-based VLAN, 802.1Q tagged VLAN, Auto Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN (supports 128 static VLAN groups, max 4094 VIDs) |
| Spanning Tree Protocol |
802.1D STP, 802.1w RSTP |
| Link Aggregation |
802.3ad LACP (support max 8 groups per device and 8 ports per group) |
| IGMP Snooping |
IGMP Snooping V1/V2/V3 awareness (supports 128 groups), IGMP Snooping Querier |
| Quality of Service |
802.1p CoS, 4 queues, Strict Priority Queue (SPQ), Weighted Round Robin (WRR), Two Rate Three Color Marker (trTCM) |
| Port Mirroring |
One-to-One, Many-to-One |
| Flow Control |
802.3x Flow Control |
Security
| Security Features |
SSL, Static MAC, Broadcast/Multicast/Unicast Storm Control, Traffic Segmentation, D-Link Safeguard Engine, DoS Attack Prevention |
| Access Control |
Port-based Bandwidth Control, Rate Limiting |
Management
| Management Interface |
Web-based GUI, SNMP (v1/v2c/v3), Telnet, TFTP, SNTP |
| Management Tools |
D-Link Network Assistant (DNA), Nuclias Connect (optional), LLDP, Cable Diagnostics, Loopback Detection |
| IPv6 Support |
IPv4/IPv6 Dual Stack, IPv6 Neighbor Discovery |
Standards and Protocols
| IEEE Standards |
IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet) |
| Auto-Negotiation |
Yes, all ports |
| Auto MDI/MDIX |
Yes, all ports |
Power and Environment
| Power Input |
AC 100-240V, 50/60Hz (internal power supply) |
| Power Consumption |
Maximum 14W |
| Energy Efficiency |
IEEE 802.3az EEE compliant, Link Status Detection, LED Shut-Off, Port Shut-Off, System Hibernation |
| Fan Design |
Fanless (silent operation, 0 dB) |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to 70°C |
| Operating Humidity |
0% to 95% non-condensing |
| RoHS Compliance |
Yes (RoHS 6 compliant) |
What's in the Box
| Package Contents |
DGS-1100-16V2 Switch, 19-inch rack mounting brackets, Power cable, Quick Installation Guide |
| Warranty |
Limited Lifetime Warranty (registration required, USA only; check local D-Link authorized reseller for regional warranty) |
Specifications are sourced from the manufacturer product page and may be updated.
