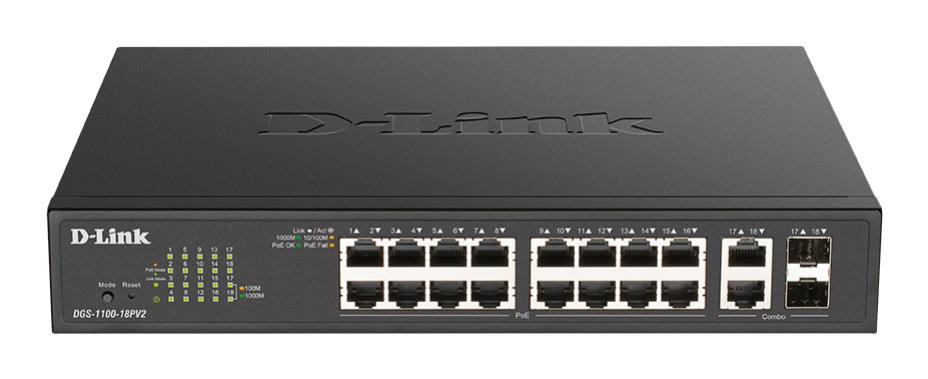

D-Link DGS-1100-18PV2 18-Port Gigabit Smart Managed PoE+ Switch with 130W Power Budget
The D-Link DGS-1100-18PV2 is a high-performance 18-port Gigabit Smart Managed PoE+ Switch designed for small to medium-sized businesses requiring reliable network connectivity and power delivery for IP cameras, wireless access points, and VoIP phones. With 16 PoE+ Gigabit ports delivering up to 30W per port and a 130W total power budget, plus 2 Combo RJ45/SFP uplink ports, this switch combines flexibility, energy efficiency, and advanced Layer 2 management features to keep your network running smoothly.
Key Features
-
16 PoE+ Gigabit Ports: Power and connect IP cameras, wireless APs, and VoIP phones with IEEE 802.3af/at support, up to 30W per port
-
130W PoE Power Budget: Eliminate the need for separate power supplies and simplify deployment in remote locations
-
2 Combo RJ45/SFP Uplink Ports: Flexible high-speed fiber or copper uplinks for network expansion and redundancy
-
Smart Layer 2 Management: Intuitive web-based interface with VLAN support, QoS, IGMP Snooping, and Link Aggregation
-
Surveillance VLAN: Dedicated VLAN for IP surveillance with higher priority to ensure smooth video streaming
-
PD-Alive Auto Recovery: Automatically reboots unresponsive PoE devices to minimize downtime
-
Energy Efficient Design: IEEE 802.3az EEE compliant with D-Link Green technology and fanless operation for silent, eco-friendly performance
-
Easy Deployment: D-Link Network Assistant (DNA) utility for fast discovery and configuration
Perfect for IP Surveillance & VoIP Deployments
The DGS-1100-18PV2 is ideal for businesses deploying IP surveillance systems and unified communications. The switch supports Surveillance VLAN to segregate video traffic from the rest of your network, giving video streams higher priority and dedicated bandwidth. Combined with the PD-Alive feature, the switch can automatically detect and reboot unresponsive PoE devices like cameras, ensuring round-the-clock surveillance without manual intervention.
Advanced Traffic Management & Security
Packed with traffic optimization features, the DGS-1100-18PV2 includes Quality of Service (QoS) for prioritizing latency-sensitive traffic such as voice and video, IGMP Snooping to reduce multicast traffic, and 802.1Q VLAN support for network segmentation and enhanced security. Port-based and Auto Voice VLANs make setup quick and efficient, while Loopback Detection and Cable Diagnostics help troubleshoot network issues in seconds.
Energy Savings Without Compromise
D-Link Green technology helps your business save on operating costs. The switch is compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), which reduces power consumption during periods of low network activity. Link Status Detection automatically powers down inactive ports, and Time-Based PoE allows you to schedule PoE power delivery to devices only when needed. The fanless design ensures silent operation and longer product life, making it perfect for office environments.
Flexible Management Options
Manage your network your way with the DGS-1100-18PV2. The switch supports an intuitive web-based management interface, the D-Link Network Assistant (DNA) for discovery and configuration, and D-View 8 for centralized management of multiple devices. Optional integration with Nuclias Connect provides cloud-based management, remote monitoring, and enhanced reporting for multi-site deployments.
Rack-Mountable & Desktop Ready
With its compact 1U form factor and included mounting brackets, the DGS-1100-18PV2 can be installed in a standard 19-inch rack or placed on a desktop, offering flexibility to suit any workspace.
What's in the Box
- D-Link DGS-1100-18PV2 Switch
- Power Cord
- Rack Mount Kit
- Quick Installation Guide
Full Specifications
Hardware
| Total Ports |
18 ports |
| Gigabit PoE+ Ports |
16 × 10/100/1000BASE-T with PoE+ (IEEE 802.3af/at) |
| Combo Uplink Ports |
2 × Gigabit RJ45/SFP Combo |
| PoE Power Budget |
130W total |
| PoE Power per Port |
Up to 30W per port |
| Switching Capacity |
36 Gbps |
| Forwarding Rate |
26.78 Mpps |
| Jumbo Frame Support |
Up to 9216 bytes |
| MAC Address Table |
8K entries |
Management Features
| Management Type |
Smart Managed (Layer 2) |
| Management Interface |
Web-based GUI, D-Link Network Assistant (DNA), CLI, SNMP, D-View 8, Nuclias Connect |
| VLAN Support |
802.1Q VLAN (up to 256 VLANs), Port-based VLAN, Auto Voice VLAN, Surveillance VLAN |
| Quality of Service |
802.1p priority queues, Weighted Round Robin (WRR), Strict Priority |
| Link Aggregation |
802.3ad LACP, Static Trunk (up to 8 groups, 8 ports per group) |
| Spanning Tree Protocol |
STP, RSTP, MSTP |
| IGMP Snooping |
IGMP v1, v2, v3 |
| Security |
802.1X Port-based Authentication, ACL, DHCP Snooping, IP-MAC-Port Binding, Storm Control |
| Diagnostics |
Cable Diagnostics, Loopback Detection, PD-Alive |
Power & Environment
| Input Voltage |
100 to 240 VAC, 50/60 Hz |
| Maximum Power Consumption |
173W (with full PoE load) |
| Operating Temperature |
-5 to 50°C (23 to 122°F) |
| Storage Temperature |
-40 to 70°C (-40 to 158°F) |
| Operating Humidity |
0% to 95% non-condensing |
| Ventilation |
Fanless design |
| Energy Efficiency |
IEEE 802.3az EEE, D-Link Green Technology, Time-Based PoE |
Physical Specifications
| Dimensions (W × D × H) |
280 × 230 × 44 mm (11.02 × 9.05 × 1.73 inches) |
| Weight |
2.1 kg (4.63 lbs) |
| Form Factor |
1U, 19-inch rack-mountable or desktop |
| Mounting Options |
Rack mount kit included |
Standards & Certifications
| Standards Compliance |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3az EEE, IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, IEEE 802.1Q VLAN, IEEE 802.1p QoS, IEEE 802.3ad LACP, IEEE 802.1X Authentication |
| Certifications |
FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC, cUL, UL, CB, RoHS |
Warranty
| Warranty |
Limited Lifetime Warranty (after product registration with D-Link) |
Specifications are sourced from the manufacturer product page and may be updated.
