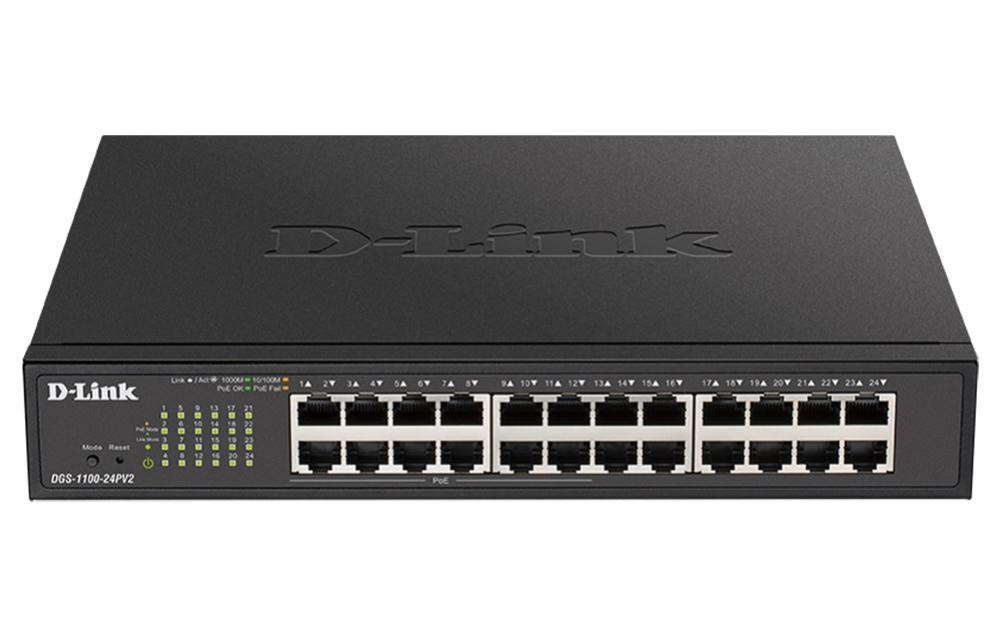

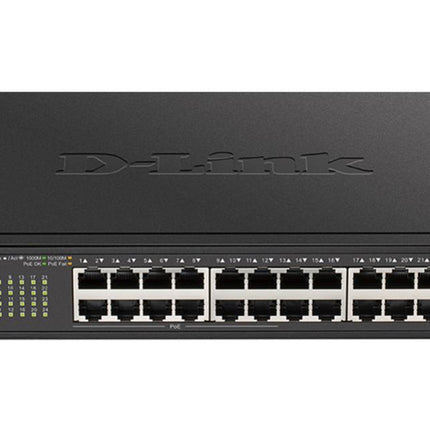

D-Link DGS-1100-24PV2 24-Port Gigabit PoE+ Smart Managed Switch
The D-Link DGS-1100-24PV2 is a powerful 24-port Gigabit Smart Managed Switch designed for small to medium-sized businesses that demand reliable network performance and simplified management. With 12 PoE+ ports delivering up to 30W per port and a 100W total PoE power budget, this switch is ideal for powering IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices without the need for separate power adapters. Featuring 48 Gbps switching capacity, advanced Layer 2 management, and a fanless design for silent operation, the DGS-1100-24PV2 provides a cost-effective, energy-efficient networking solution for surveillance systems, office networks, and growing business environments.
Key Features
-
24 Gigabit Ethernet Ports: 12 standard 10/100/1000Base-T ports plus 12 PoE+ ports for maximum flexibility and high-speed connectivity
-
PoE+ Support: Ports 1-12 support IEEE 802.3af/at PoE+ with up to 30W per port and 100W total power budget for powering IP cameras, access points, and VoIP phones
-
Smart Layer 2 Management: Web-based GUI, D-Link Network Assistant (DNA) utility, and D-View 7 support for intuitive network configuration and monitoring
-
Advanced Traffic Management: VLAN support, QoS, bandwidth control, and IGMP snooping ensure optimal performance for latency-sensitive applications like surveillance and VoIP
-
Fanless Design: Silent operation with no moving parts, perfect for noise-sensitive environments like offices and classrooms
-
Energy Efficient: IEEE 802.3az Energy Efficient Ethernet (EEE) compliant with D-Link Green technology for automatic power saving
-
Surveillance Features: Auto Surveillance VLAN prioritizes video traffic, ideal for IP surveillance deployments with cameras and NVRs
-
Troubleshooting Tools: Loopback Detection, Cable Diagnostics, and PD Alive feature for automatic device recovery and simplified maintenance
-
Flexible Installation: Desktop or rackmount options with included rack kit for 1U installation
-
NDAA Compliant: Meets sourcing standards for public sector and enterprise projects
-
Lifetime Warranty: D-Link Lifetime Warranty after registration for long-term peace of mind
Power Over Ethernet for Simplified Deployment
The DGS-1100-24PV2 provides Power over Ethernet (PoE+) on ports 1 through 12, complying with IEEE 802.3af and 802.3at standards. This allows you to power compatible devices such as IP cameras, wireless access points, VoIP phones, and access control systems directly through the Ethernet cable, eliminating the need for separate power adapters and reducing installation complexity. With up to 30W per port and a 100W total power budget, you have the flexibility to deploy a mix of low and high-powered devices across your network. The switch's management interface allows remote control of PoE functions, including the ability to reboot devices remotely and configure time-based PoE scheduling.
Advanced Layer 2 Management Features
The DGS-1100-24PV2 is packed with smart Layer 2 management capabilities that provide enterprise-level features in an affordable package. VLAN support (802.1Q tagged, port-based, surveillance, voice, and management VLANs) allows you to segment your network for enhanced security and traffic isolation. Quality of Service (QoS) prioritizes latency-sensitive traffic such as VoIP calls and video streams to ensure smooth, uninterrupted communication. IGMP Snooping intelligently manages multicast traffic, sending it only where needed and significantly reducing network congestion. Additional features include Spanning Tree Protocol (STP/RSTP), Link Aggregation (802.3ad), port mirroring, and storm control for comprehensive network optimization and resilience.
Surveillance-Ready for IP Camera Deployments
Designed with IP surveillance in mind, the DGS-1100-24PV2 features Auto Surveillance VLAN that automatically places compatible cameras in a dedicated high-priority VLAN, ensuring smooth video transmission even on busy networks. The PD Alive feature actively monitors connected PoE devices and automatically reboots unresponsive cameras or access points, minimizing downtime and eliminating the need for manual intervention. Bandwidth Control allows administrators to reserve bandwidth on a per-port basis, guaranteeing sufficient capacity for high-resolution video streams. These surveillance-optimized features make the DGS-1100-24PV2 an ideal choice for small to medium-sized security installations.
Easy Management and Deployment
The DGS-1100-24PV2 offers multiple management options to suit your preferences and technical requirements. The intuitive web-based interface provides a user-friendly GUI accessible from any browser, allowing administrators to configure and monitor the switch down to the port level. The free D-Link Network Assistant (DNA) utility automatically discovers all D-Link switches on your network and enables quick initial setup and mass configuration. For advanced users, the switch supports D-View 7 Network Management System (free license for 25 nodes included) and Command Line Interface (CLI) through Telnet for scripted management and automation.
Energy Efficient and Environmentally Friendly
The DGS-1100-24PV2 incorporates D-Link Green technology to reduce power consumption without sacrificing performance. Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), the switch intelligently reduces power usage when port utilization is low or when no link is detected. Link Status detection automatically puts unused ports into sleep mode, while Time-Based PoE allows administrators to schedule when PoE power is available on each port, further reducing energy waste. The fanless design not only provides silent operation but also eliminates the power consumption and maintenance associated with cooling fans, making this switch ideal for deployment in offices, classrooms, retail environments, and other noise-sensitive locations.
Troubleshooting and Network Diagnostics
The DGS-1100-24PV2 includes powerful diagnostic tools to help network administrators quickly identify and resolve network issues. Loopback Detection automatically identifies and shuts down ports that create network loops, preventing broadcast storms and network instability. Cable Diagnostics allows administrators to test the quality of copper cables, identify cable faults, and determine cable length without the need for external test equipment. The PD Alive feature monitors the health of connected PoE devices and can automatically reboot unresponsive devices, ensuring maximum uptime for critical infrastructure like IP cameras and access points. Real-time port statistics and monitoring provide visibility into network performance, bandwidth utilization, and error rates.
What's in the Box
- D-Link DGS-1100-24PV2 Switch
- Quick Installation Guide
- 19-inch rack mount kit
- Power cord (region-specific)
- Power cord retainer
- 4 rubber feet for desktop installation
Full Specifications
Hardware
| Model |
DGS-1100-24PV2 |
| Hardware Version |
A1 |
| Form Factor |
11-inch desktop / 19-inch rack mount, 1U height |
| Total Ports |
24 × 10/100/1000Base-T Gigabit Ethernet |
| PoE+ Ports |
12 ports (Ports 1-12) |
| Dimensions (W × D × H) |
280 mm × 230 mm × 44 mm (11.02 × 9.05 × 1.73 inches) |
| Weight |
2.2 kg (4.85 lbs) |
Performance
| Switching Capacity |
48 Gbps |
| Maximum Forwarding Rate |
35.71 Mpps |
| MAC Address Table Size |
8K entries |
| Packet Buffer |
4.1 MB |
| Flash Memory |
16 MB |
| Jumbo Frame Support |
Up to 10,000 bytes |
Power over Ethernet
| PoE Standard |
IEEE 802.3af/at (PoE/PoE+) |
| PoE Capable Ports |
Ports 1-12 |
| Maximum Power per Port |
30W (IEEE 802.3at) |
| Total PoE Power Budget |
100W |
Management
| Management Interface |
Web-based GUI, D-Link Network Assistant (DNA), D-View 7, CLI (Telnet), Nuclias Connect |
| VLAN Support |
Port-based VLAN, 802.1Q tagged VLAN, Auto Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN, VLAN Group |
| Maximum VLAN Groups |
128 static VLAN groups |
| Maximum VIDs |
4094 |
| QoS |
802.1p priority queues, DSCP-based QoS |
| IGMP Snooping |
v1/v2/v3 with up to 128 groups |
| Spanning Tree Protocol |
802.1D STP, 802.1w RSTP |
| Link Aggregation |
802.3ad LACP (up to 8 groups, 8 ports per group) |
| Port Mirroring |
One-to-one, many-to-one |
Security
| Security Features |
Static MAC, Storm Control, IGMP Snooping, Loopback Detection, Cable Diagnostics, LLDP |
| Access Control |
MAC address filtering |
Network Standards and Protocols
| Ethernet Standards |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X |
| PoE Standards |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Energy Efficiency |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Flow Control |
IEEE 802.3x Flow Control (full-duplex mode) |
| Duplex Mode |
Half/full-duplex at 10/100 Mbps, full-duplex at 1000 Mbps |
| Auto-Negotiation |
Yes |
| Auto MDI/MDIX |
Yes (automatic crossover detection) |
Power and Environment
| Input Voltage |
100-240V AC, 50-60Hz |
| Maximum Power Consumption |
19.5W (without PoE load) |
| Maximum Power Consumption with PoE |
119.5W (with full PoE load) |
| Heat Dissipation |
107.5 BTU/h (max) |
| Cooling |
Fanless (passive cooling) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| MTBF |
255,003 hours |
Certifications and Compliance
| EMI |
FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC |
| Safety |
cUL, CE LVD, CB, BSMI, CCC |
| NDAA Compliance |
Yes |
Warranty
| Warranty |
Lifetime warranty (after registration with D-Link) |
Specifications are sourced from the manufacturer product page and may be updated.
