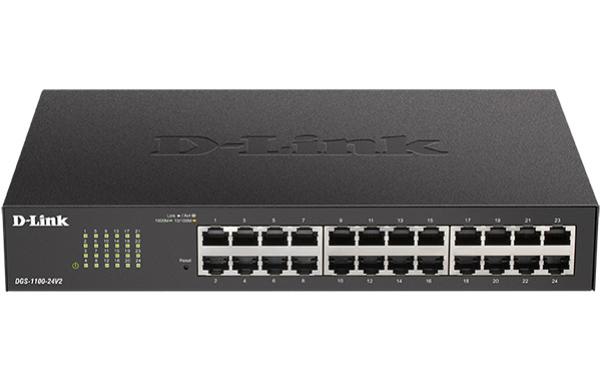

D-Link DGS-1100-24V2 24-Port Gigabit Smart Managed Switch with VLAN
The D-Link DGS-1100-24V2 is a powerful 24-port Gigabit smart managed switch designed for small to medium-sized businesses requiring reliable, high-performance network infrastructure. With 48 Gbps switching capacity and 35.71 Mpps forwarding rate, this fanless switch delivers fast, silent operation while providing advanced Layer 2 management features including VLANs, QoS, bandwidth control, and IGMP snooping. Perfect for surveillance systems, VoIP deployments, and enterprise networks, it offers flexible desktop or rackmount installation.
Key Features
-
24 Gigabit Ethernet Ports: High-speed 10/100/1000 Mbps connectivity for all your network devices
-
Smart Layer 2 Management: VLAN support, Spanning Tree Protocol, link aggregation, and port mirroring
-
Advanced Traffic Control: Bandwidth control, QoS, IGMP snooping, and storm control for optimized performance
-
Surveillance & Voice VLAN: Dedicated VLANs for IP cameras and VoIP phones ensure priority traffic delivery
-
Fanless Silent Operation: Zero noise with energy-efficient D-Link Green technology and IEEE 802.3az EEE compliance
-
Easy Management: Intuitive web-based interface plus D-Link Network Assistant utility for quick setup
High-Performance Gigabit Switching
The DGS-1100-24V2 delivers wire-speed Gigabit performance across all 24 ports with a total switching capacity of 48 Gbps. With support for jumbo frames up to 9216 bytes and auto MDI/MDIX on every port, this switch ensures maximum throughput and eliminates the need for crossover cables. The store-and-forward switching architecture guarantees error-free packet transmission.
Advanced Network Management
Take control of your network with comprehensive Layer 2 management features. Create up to 128 VLAN groups to segment traffic for enhanced security and performance. The switch supports 802.1Q tagged VLANs, port-based VLANs, Auto Surveillance VLAN, and Voice VLAN, making it ideal for converged networks running video surveillance and VoIP alongside data traffic. Link aggregation allows you to bundle up to 8 ports per group for increased bandwidth and redundancy.
Optimized for Surveillance & VoIP
The Auto Surveillance VLAN feature automatically detects IP cameras and assigns them to a dedicated high-priority VLAN, ensuring smooth video streaming without network congestion. Similarly, Voice VLAN prioritizes VoIP traffic for crystal-clear call quality. Combined with IEEE 802.1p Quality of Service, your latency-sensitive applications always get the bandwidth they need.
Built-in Diagnostic Tools
Troubleshooting is simple with Loopback Detection that automatically identifies and shuts down ports creating network loops, and Cable Diagnostics that tests copper cable quality, recognizes cable types, and detects wiring errors. These features help network administrators quickly identify and resolve connectivity issues.
Energy-Efficient & Silent Design
Save energy and reduce operating costs with D-Link Green technology. The switch automatically reduces power consumption when ports are idle or when no link is detected. Compliance with IEEE 802.3az Energy Efficient Ethernet further cuts power usage during low traffic periods. The fanless design ensures completely silent operation while extending product lifespan.
Flexible Installation & Management
The DGS-1100-24V2 supports both desktop and 19-inch rackmount installation with included mounting brackets. Manage the switch via the intuitive web-based interface accessible from any browser, or use the free D-Link Network Assistant (DNA) utility that automatically discovers all D-Link smart switches on your network for streamlined configuration and firmware updates.
Enterprise-Grade Security
Protect your network with advanced security features including Static MAC address filtering to create port-level whitelists, Storm Control to prevent broadcast floods, and 802.1X port-based authentication. IGMP Snooping intelligently manages multicast traffic, sending it only to ports that need it and reducing overall network congestion.
What's in the Box
- D-Link DGS-1100-24V2 Switch
- Rackmount brackets
- Power cord
- Quick installation guide
Full Specifications
Hardware
| Number of Ports |
24 × 10/100/1000Base-T Gigabit Ethernet |
| Port Standards |
IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet) |
| Switching Capacity |
48 Gbps |
| Maximum Forwarding Rate |
35.71 Mpps |
| Switching Method |
Store-and-forward |
| MAC Address Table |
8,000 entries |
| Jumbo Frame Support |
Up to 9,216 bytes |
Layer 2 Features
| VLAN Support |
Port-based, 802.1Q tagged, Auto Surveillance, Voice, Management, Asymmetric VLAN (up to 128 groups) |
| Spanning Tree Protocol |
802.1D STP, 802.1w RSTP |
| Link Aggregation |
802.3ad (max 8 groups, 8 ports per group) |
| IGMP Snooping |
V1/V2/V3 awareness, supports 128 groups, IGMP Querier |
| Port Mirroring |
One-to-one, many-to-one |
| Flow Control |
802.3x flow control (full-duplex mode) |
| LLDP |
Supported |
Quality of Service
| QoS |
IEEE 802.1p priority queues, 4 priority queues |
| Bandwidth Control |
Per-port ingress/egress rate limiting |
| Storm Control |
Broadcast, multicast, unknown unicast |
Security
| Access Control |
Static MAC address filtering |
| Network Security |
Storm control, loopback detection |
Management
| Management Interface |
Web-based GUI, D-Link Network Assistant (DNA) utility |
| Network Management |
Nuclias Connect (optional cloud/on-premises platform) |
| Diagnostic Tools |
Loopback detection, cable diagnostics, port statistics |
Power & Environment
| Power Input |
100-240V AC, 50/60 Hz |
| Typical Power Consumption |
10.37W |
| Maximum Power Consumption |
13.94W |
| Heat Dissipation |
47.57 BTU/hr |
| Fan Design |
Fanless (silent operation) |
| Noise Level |
0 dB(A) |
| Energy Efficiency |
IEEE 802.3az EEE compliant, D-Link Green technology |
Physical Specifications
| Dimensions (W × D × H) |
280 × 180 × 44 mm |
| Weight |
1.47 kg |
| Mounting |
Desktop or 19-inch rackmount (1U height, brackets included) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
Certifications
| Compliance |
CE, FCC, RoHS |
| MTBF |
2,406,109 hours |
Specifications are sourced from the manufacturer product page and may be updated.
