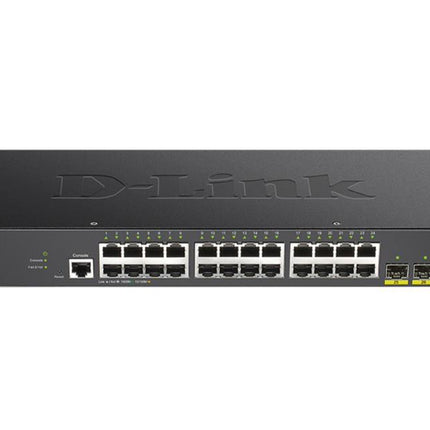

D-Link DGS-1210-28 28-Port Gigabit Smart Managed Switch with 4 SFP Ports
The D-Link DGS-1210-28 is a powerful 28-port Gigabit Smart Managed Switch designed for small to medium-sized businesses seeking enterprise-grade performance without the enterprise price tag. With 24 x 10/100/1000BASE-T ports and 4 x Gigabit SFP combo ports, this fanless switch delivers 56 Gbps switching capacity and advanced Layer 2+ features including static routing, VLAN support, and comprehensive security controls. Perfect for expanding business networks, supporting IP surveillance systems, VoIP deployments, and high-performance data connections.
Key Features
-
28 Total Ports: 24 Gigabit Ethernet ports plus 4 SFP combo ports for flexible copper or fiber connectivity
-
Smart Managed Features: Layer 2+ functionality with static routing, IGMP snooping, port mirroring, Spanning Tree Protocol, and LACP link aggregation
-
Energy Efficient Design: Fanless operation for silent running, D-Link Green 3.0 technology, and IEEE 802.3az Energy Efficient Ethernet compliance
-
Surveillance Mode: Automatically detects ONVIF-compliant IP cameras and segments them into a dedicated surveillance VLAN
-
Easy Management: Web-based GUI, SmartConsole utility, CLI via Telnet, SNMP support, and compatible with D-Link Nuclias Connect
-
Advanced Security: Access Control Lists (ACL), 802.1X authentication, ARP spoofing prevention, D-Link Safeguard Engine, and DHCP snooping
Perfect for Business Networks
The DGS-1210-28 is ideal for businesses needing reliable, high-speed connectivity for workstations, servers, IP cameras, wireless access points, and VoIP phones. The Auto Surveillance VLAN feature streamlines IP camera deployments by automatically detecting and configuring ONVIF devices, while Auto Voice VLAN prioritizes VoIP traffic for crystal-clear call quality. With 56 Gbps non-blocking switching capacity and 41.7 Mpps forwarding rate, this switch handles demanding network traffic with ease.
Flexible Connectivity Options
The four SFP combo ports provide versatile uplink options, supporting both copper Gigabit connections and fiber optic SFP transceivers for longer distance connections or high-speed links to core switches. The switch supports jumbo frames up to 10,000 bytes for improved throughput in storage and backup applications.
Energy Saving Technology
Equipped with D-Link Green 3.0 technology, the DGS-1210-28 intelligently reduces power consumption based on link status, cable length detection, port activity, and time-based scheduling. The fanless design ensures completely silent operation while extending the switch's lifespan, making it perfect for office environments where noise is a concern.
Network Security & Quality of Service
Comprehensive security features include 802.1X port-based authentication with RADIUS server support, IP-MAC-Port Binding with up to 512 entries, and ARP spoofing prevention to protect against man-in-the-middle attacks. The D-Link Safeguard Engine protects against traffic flooding from virus attacks. Advanced QoS with 802.1p priority queuing ensures time-sensitive traffic like voice and video receives priority treatment.
Easy Network Management
Multiple management options make the DGS-1210-28 simple to deploy and maintain. The intuitive web-based GUI is available in 11 languages, while the SmartConsole utility allows easy discovery and management of multiple D-Link switches on your network. For advanced users, full CLI access via Telnet provides granular control. The switch also supports SNMP v1/v2c/v3 for integration with network management systems.
Diagnostic & Maintenance Tools
Built-in cable diagnostics help identify cable faults and quality issues, while loopback detection automatically identifies and shuts down ports creating network loops. Port mirroring allows traffic analysis for troubleshooting, and RMON support provides detailed statistics for network monitoring.
What's in the Box
- D-Link DGS-1210-28 28-Port Gigabit Smart Managed Switch
- Power cord
- Rack mounting kit
- Quick installation guide
- Warranty card
Full Specifications
Hardware
| Device Type |
Smart Managed Switch |
| Ports |
24 x 10/100/1000BASE-T RJ-45 ports
4 x Gigabit SFP combo ports |
| Total Ports |
28 |
| Console Port |
No |
Performance
| Switching Capacity |
56 Gbps |
| Packet Forwarding Rate |
41.7 Mpps (64-byte packets) |
| MAC Address Table |
16,000 entries |
| Packet Buffer |
1.5 MB |
| Jumbo Frame Support |
Up to 10,000 bytes |
Layer 2 Features
| VLANs |
802.1Q, up to 256 VLAN groups, 4094 VLAN IDs |
| Spanning Tree |
802.1D STP, 802.1w RSTP |
| Link Aggregation |
802.3ad LACP |
| IGMP Snooping |
IGMP v1/v2, 256 multicast groups |
| Port Mirroring |
One-to-one, many-to-one (Tx/Rx/Both) |
| Flow Control |
802.3x |
Layer 2+ Features
| Static Routing |
Yes |
| Inter-VLAN Routing |
Yes |
Quality of Service
| QoS |
802.1p priority, 4 queues per port |
| Queue Scheduling |
Strict priority, Weighted Round Robin (WRR) |
| CoS Based On |
802.1p, DSCP |
Security
| Access Control Lists |
MAC/IP-based ACLs, up to 50 profiles |
| Port Security |
Up to 64 MAC addresses per port |
| 802.1X Authentication |
Port-based with RADIUS |
| Storm Control |
Broadcast/multicast/unicast |
| DHCP Snooping |
Yes |
| ARP Spoofing Prevention |
Up to 64 entries |
| IP-MAC-Port Binding |
Up to 512 entries (Smart Binding) |
| D-Link Safeguard Engine |
Yes |
| SSL/SSH |
SSL v1/v2/v3, SSH v2 |
Special Features
| Auto Surveillance VLAN |
ONVIF camera auto-detection |
| Auto Voice VLAN |
VoIP device auto-detection |
| Loopback Detection |
Yes |
| Cable Diagnostics |
Yes |
| Traffic Segmentation |
Yes |
Management
| Management Interface |
Web-based GUI (11 languages)
SmartConsole utility
CLI via Telnet
SNMP v1/v2c/v3 |
| Cloud Management |
D-Link Nuclias Connect compatible |
| SNMP |
v1, v2c, v3 |
| RMON |
v1 (4 groups) |
| Syslog |
Yes, 500 log entries |
| TFTP |
Yes (firmware/config upload/download) |
| DHCP Client |
Yes |
| SNTP |
Yes |
| IPv6 Support |
IPv4/IPv6 dual stack management |
Standards Compliance
| IEEE Standards |
802.3 10BASE-T Ethernet
802.3u 100BASE-TX Fast Ethernet
802.3ab 1000BASE-T Gigabit Ethernet
802.3z 1000BASE-X Gigabit Ethernet
802.3x Flow Control
802.3az Energy Efficient Ethernet
802.1D Spanning Tree Protocol
802.1w Rapid Spanning Tree
802.1Q VLAN Tagging
802.1p Priority Queueing
802.1X Port Authentication |
Physical & Environmental
| Dimensions (W x D x H) |
440 x 210 x 44 mm (17.3 x 8.3 x 1.7 inches) |
| Weight |
2.9 kg (6.4 lbs) |
| Mounting |
19-inch rack-mountable (1U), desktop |
| Cooling |
Fanless (silent operation) |
| Power Input |
100-240 VAC, 50/60 Hz, internal power supply |
| Power Consumption |
17.84 W maximum, 6.42 W standby |
| Heat Dissipation |
76.6 BTU/hr maximum |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
LED Indicators
| LEDs |
Power (per device)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity (per SFP port) |
Certifications
| EMI |
FCC Class A, CE Class A, VCCI Class A, BSMI, CCC, C-Tick |
| Safety |
cUL, CE (LVD) |
Warranty
| Warranty Period |
Limited Lifetime Warranty (as long as original customer owns the product or 5 years after product discontinuance, whichever occurs first) |
| MTBF |
360,844 hours |
Specifications are sourced from the manufacturer product page and may be updated.
