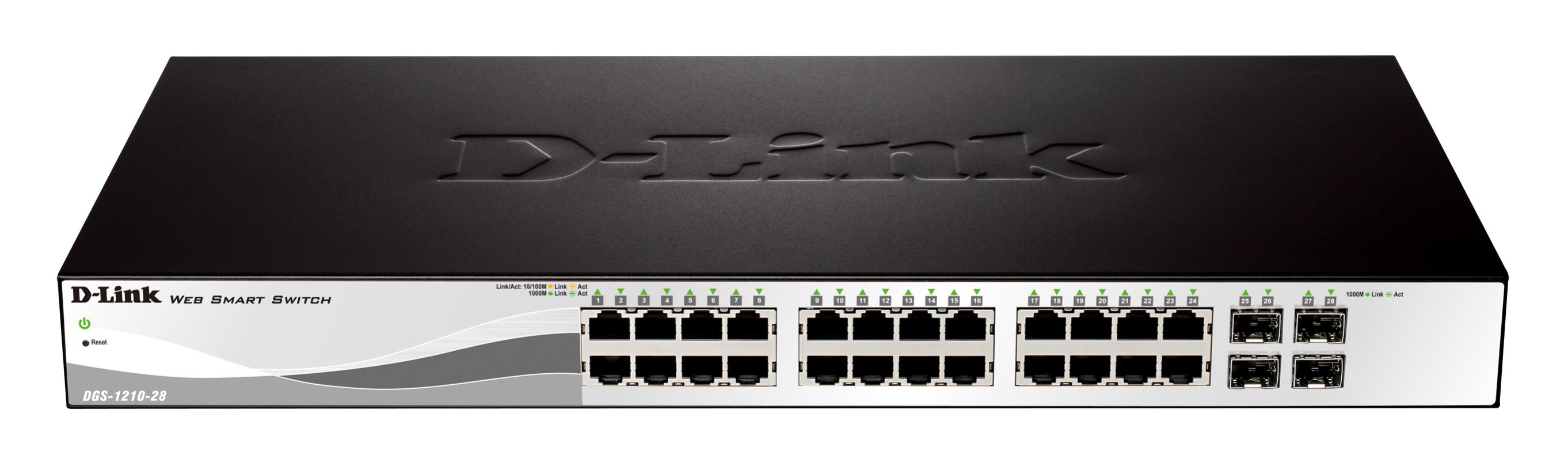

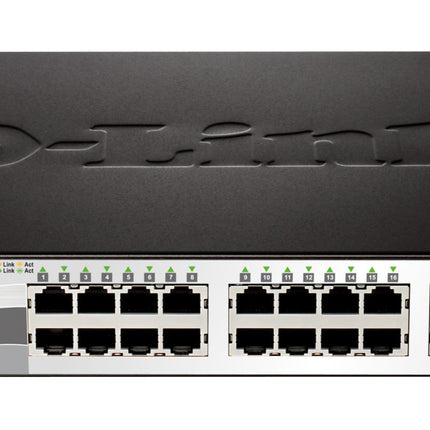

D-Link DGS-1210-28 28-Port Gigabit Smart Managed Switch with SFP Ports
The D-Link DGS-1210-28 is a cost-efficient Gigabit Smart Managed Switch designed for small to medium-sized businesses seeking advanced network management, robust security, and reliable connectivity. With 24 Gigabit Ethernet ports and 4 Gigabit SFP combo ports, this fanless switch delivers versatile, high-performance networking for office environments, IP surveillance systems, and VoIP deployments. Featuring Layer 2+ capabilities including VLANs, static routing, QoS, and multiple spanning tree protocols, the DGS-1210-28 provides enterprise-grade features at an SMB-friendly price point.
Key Features
-
28 Total Gigabit Ports: 24 × 10/100/1000BASE-T RJ-45 ports plus 4 × Gigabit RJ45/SFP combo ports for flexible copper or fiber uplinks
-
Layer 2+ Smart Management: Advanced L2 switching features with L2+ static routing for inter-VLAN communication
-
Surveillance Mode: Optional management interface that auto-detects ONVIF cameras and places them in a dedicated surveillance VLAN for streamlined IP camera deployments
-
Auto Voice VLAN: Automatically detects and segments VoIP traffic for enhanced Quality of Service and security
-
D-Link Green 3.0 Technology: Energy-efficient operation with IEEE 802.3az compliance, cable length detection, and time-based power saving profiles
-
Fanless Design: Silent operation ideal for noise-sensitive environments
-
NDAA/TAA Compliant: Meets strict regulatory standards for government and high-security enterprise projects
-
Lifetime Warranty: D-Link Lifetime Protection after product registration
Advanced Layer 2 and Security Features
The DGS-1210-28 comes equipped with a comprehensive lineup of Layer 2 features including IGMP snooping, port mirroring, Spanning Tree Protocol (STP/RSTP), and Link Aggregation Control Protocol (LACP). The switch supports up to 16,000 MAC address entries and a 56 Gbit/s switching capacity for high-performance data transfers. Security is enhanced with D-Link Safeguard Engine protection against traffic flooding, 802.1X port-based authentication, Access Control Lists (ACLs), ARP Spoofing Prevention, and DHCP Server Screening to block rogue DHCP packets.
Flexible Management Options
Multiple management interfaces make deployment and configuration simple. Access the switch via an intuitive multi-language web-based GUI (supporting 10+ languages including English, Chinese, French, German, Italian, Japanese, Portuguese, Russian, and Spanish), Compact CLI through Telnet, or SNMP v1/v2c/v3. The switch also supports D-Link Network Assistant (DNA) utility for discovering and managing multiple D-Link Smart Switches within the same network segment, and optional Nuclias Connect cloud management for centralized control of up to 1,500 devices.
Energy Efficiency and Cable Diagnostics
Reduce operational costs with D-Link Green 3.0 technology. The switch automatically adjusts power consumption based on link status and cable length, and supports advanced power-saving modes including port shutoff, LED shutoff, and system hibernation based on custom time profiles. Built-in cable diagnostics and loopback detection features help administrators quickly identify and resolve network issues, minimizing downtime.
Perfect for Surveillance and VoIP
The DGS-1210-28's Auto Surveillance VLAN technology is ideal for IP camera deployments, automatically consolidating data and surveillance video transmission through a single switch and ensuring quality real-time video without compromising conventional network traffic. Auto Voice VLAN detects VoIP devices and assigns them to a high-priority VLAN, guaranteeing call quality and security for business phone systems.
What's in the Box
- D-Link DGS-1210-28 Switch
- Power Cable
- Rack Mount Kit
- Quick Installation Guide
- Warranty Card
Full Specifications
Hardware
| Total Ports |
28 Gigabit ports (24 × 10/100/1000BASE-T + 4 × Gigabit RJ45/SFP combo ports) |
| Switching Capacity |
56 Gbit/s |
| MAC Address Table |
16,000 entries |
| Packet Buffer |
4 Mbit |
| Jumbo Frame Support |
9 KB |
Layer 2 Features
| VLANs |
802.1Q Tag-based VLANs (up to 4,094 VLANs), Port-based VLANs, Auto Surveillance VLAN, Auto Voice VLAN |
| Spanning Tree |
802.1D STP, 802.1w RSTP |
| Link Aggregation |
802.3ad LACP (up to 14 groups, 8 ports per group) |
| IGMP Snooping |
IGMP v1/v2, supports 256 IGMP groups, IGMP Snooping Querier |
| Port Mirroring |
One-to-One, Many-to-One, supports Tx/Rx/Both |
| Flow Control |
IEEE 802.3x Flow Control, HOL Blocking Prevention |
| Quality of Service |
802.1p priority queues, DSCP, 4 hardware queues |
Layer 3 Features
| Static Routing |
IPv4 static routing for inter-VLAN communication (up to 32 static routes) |
Security
| Access Control Lists |
Up to 50 ACL profiles, 240 rules shared by profiles (MAC, IPv4, 802.1p, DSCP, Ethertype) |
| Port Security |
Up to 64 MAC addresses per port |
| Authentication |
802.1X port-based authentication, RADIUS client support |
| Storm Control |
Broadcast/Multicast/Unicast storm control |
| Additional Security |
D-Link Safeguard Engine, DHCP Server Screening, ARP Spoofing Prevention (up to 64 entries), Smart Binding (up to 512 IP-MAC-Port binding entries), SSL v1/v2/v3 |
Management
| Management Interface |
Multi-language Web-based GUI, Compact CLI via Telnet, TFTP Client, SNMP v1/v2c/v3, SmartConsole Utility, D-Link Network Assistant (DNA) |
| Supported Languages |
English, Simplified Chinese, Traditional Chinese, French, German, Italian, Japanese, Portuguese, Russian, Spanish |
| Monitoring |
RMON v1, System Log (up to 500 entries), Port Statistics, Cable Diagnostics, Loopback Detection |
| Configuration |
BootP/DHCP Client, DHCP Auto Configuration, SNTP, IPv4/IPv6 Dual Stack |
Power and Environment
| Power Input |
100-240 VAC, 50/60 Hz internal power supply |
| Maximum Power Consumption |
16.81 W |
| Energy Efficiency |
IEEE 802.3az Energy Efficient Ethernet, D-Link Green 3.0 (cable length detection, port shutoff, LED shutoff, system hibernation mode) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Cooling |
Fanless (silent operation) |
| MTBF |
1,089,000 hours |
Physical
| Dimensions (W × D × H) |
440 mm × 210 mm × 44 mm (17.3" × 8.3" × 1.7") |
| Weight |
2.9 kg (6.4 lbs) |
| Form Factor |
19-inch rack-mountable (1U) |
| LED Indicators |
Power, Link/Activity/Speed per port |
Standards and Certifications
| IEEE Standards |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet |
| Compliance |
FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI, NDAA/TAA Compliant |
Warranty
| Warranty Period |
D-Link Lifetime Warranty (after product registration) |
What's in the Box
| Package Contents |
DGS-1210-28 Switch, Power Cable, Rack Mount Kit, Quick Installation Guide, Warranty Card |
Specifications are sourced from the manufacturer product page and may be updated.
