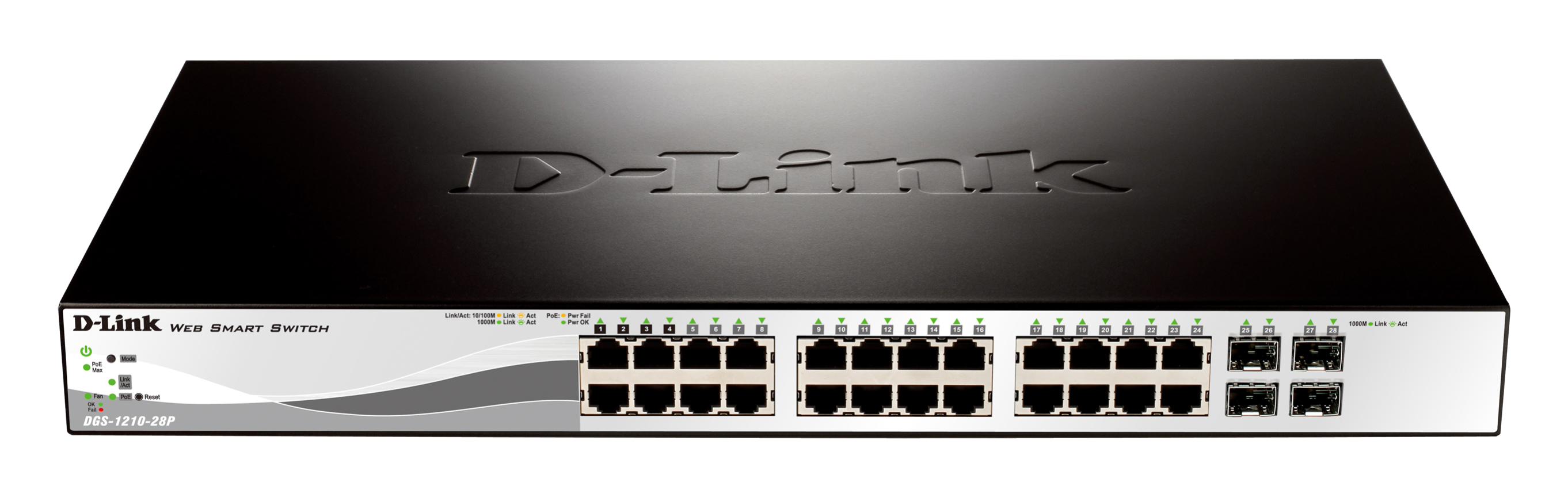

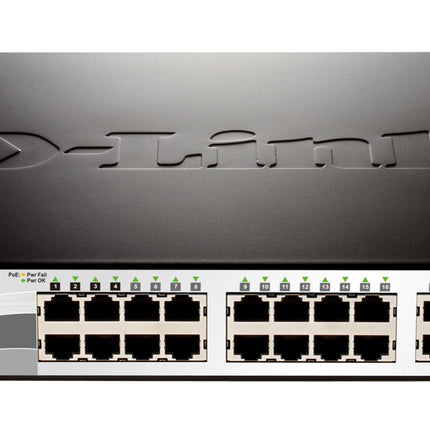

D-Link DGS-1210-28 28-Port Gigabit Smart Managed Switch
The D-Link DGS-1210-28 is a powerful and energy-efficient 28-port Gigabit Smart Managed Switch designed for small to medium-sized business networks. With 24 x 10/100/1000BASE-T Gigabit Ethernet ports and 4 x Gigabit RJ45/SFP combo ports, this switch delivers high-speed connectivity with advanced Layer 2 management features and robust security. Equipped with D-Link Green 3.0 technology and a fanless design, the DGS-1210-28 provides quiet, reliable operation while reducing energy consumption and extending hardware lifetime.
Key Features
-
28 Gigabit Ports: 24 x 10/100/1000BASE-T RJ45 ports plus 4 x Gigabit RJ45/SFP combo ports for flexible uplink connectivity
-
Advanced Layer 2 Management: IGMP Snooping, Port Mirroring, Rapid Spanning Tree Protocol, and Link Aggregation Control Protocol (LACP)
-
Enhanced Security: 802.1X authentication, Access Control Lists (ACL), D-Link Safeguard Engine, and ARP Spoofing Prevention
-
Auto Voice & Surveillance VLAN: Automatically identifies and prioritises VoIP and IP camera traffic for optimal performance
-
Fanless Design: Silent operation ideal for noise-sensitive environments such as offices and classrooms
-
D-Link Green 3.0 Technology: Energy Efficient Ethernet (IEEE 802.3az), cable length detection, and port standby modes reduce power consumption
Professional Network Management
The DGS-1210-28 offers multiple management interfaces to suit your network requirements. Configure and monitor your network via the intuitive web-based GUI (available in 11 languages), SmartConsole utility for easy device discovery, or Compact CLI through Telnet for advanced administration. The switch supports SNMP v1/v2c/v3 and is compatible with D-View 7 network management software for centralised monitoring and control of your entire infrastructure.
Voice and Video Optimisation
Built for modern unified communications, the DGS-1210-28 features Auto Voice VLAN to automatically detect and segment VoIP traffic, ensuring crystal-clear call quality with dedicated QoS prioritisation. The innovative Surveillance Mode detects ONVIF-compatible IP cameras and places them on a separate high-priority VLAN, consolidating data and video transmission through a single switch while maintaining real-time video quality. A dedicated surveillance Web UI simplifies camera network management.
Robust Security Features
Protect your network with enterprise-grade security tools. The D-Link Safeguard Engine defends against traffic flooding from virus attacks, while 802.1X port-based authentication verifies users through external RADIUS servers. Additional protections include ARP Spoofing Prevention to block man-in-the-middle attacks, DHCP Server Screening to prevent rogue DHCP servers, and IP-MAC-Port Binding (up to 512 entries) to lock down network access at the port level.
Energy Efficiency
D-Link Green 3.0 technology makes the DGS-1210-28 one of the most energy-efficient switches in its class. IEEE 802.3az Energy Efficient Ethernet automatically reduces power during low traffic periods. The switch detects cable length and adjusts power accordingly, and supports advanced power-saving profiles including port shutoff, LED shutoff, and system hibernation mode based on custom schedules – perfect for reducing energy costs during off-hours.
Layer 2 Switching Performance
-
Switching Capacity: 56 Gbit/s
-
MAC Address Table: 16,000 entries
-
Jumbo Frames: Supports up to 10,000 bytes
-
Flow Control: IEEE 802.3x flow control for reliable server connections
-
Link Aggregation: Up to 14 groups per device, 8 ports per group
-
Spanning Tree: 802.1D STP and 802.1w RSTP for network redundancy
Connectivity
- 24 x 10/100/1000BASE-T Gigabit Ethernet ports (Auto-MDI/MDIX)
- 4 x Gigabit RJ45/SFP combo ports for fibre or copper uplinks
- Console port for direct CLI access
- Supports multimode and singlemode SFP transceivers (sold separately)
What's in the Box
- D-Link DGS-1210-28 28-Port Gigabit Smart Managed Switch
- Power cord
- Rack-mount brackets and screws
- Rubber feet (4)
- Quick installation guide
Full Specifications
Hardware
| Ports |
24 x 10/100/1000BASE-T Gigabit RJ45
4 x Gigabit RJ45/SFP combo ports |
| Total Ports |
28 |
| Console Port |
Yes (RJ-45) |
| LED Indicators |
Power, Link/Activity/Speed per port, Link/Activity per SFP port |
Performance
| Switching Capacity |
56 Gbit/s |
| MAC Address Table |
16,000 entries |
| Packet Buffer |
1 MB |
| Jumbo Frame |
Up to 10,000 bytes |
Layer 2 Features
| IGMP Snooping |
IGMP v1/v2, supports 256 groups |
| VLAN |
802.1Q VLAN, up to 4096 VLAN IDs |
| Spanning Tree |
802.1D STP, 802.1w RSTP |
| Link Aggregation |
802.3ad LACP, max 14 groups/8 ports per group |
| Port Mirroring |
One-to-One, Many-to-One (TX/RX/Both) |
| Flow Control |
IEEE 802.3x |
Security
| Access Control List |
Max 50 profiles, 200 rules |
| Port Security |
Up to 64 MAC addresses per port |
| 802.1X Authentication |
Port-based, RADIUS support |
| Storm Control |
Broadcast/Multicast/Unicast |
| D-Link Safeguard Engine |
Yes |
| ARP Spoofing Prevention |
Yes, max 64 entries |
| DHCP Server Screening |
Yes |
| IP-MAC-Port Binding |
512 entries |
| SSL/TLS |
v1/v2/v3 |
Management
| Management Interface |
Web-based GUI (11 languages), SmartConsole utility, Compact CLI via Telnet |
| SNMP |
v1, v2c, v3 |
| Supported Languages |
English, Simplified Chinese, Traditional Chinese, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Korean |
| System Log |
500 entries |
| RMON |
v1 |
| IPv6 Support |
IPv4/IPv6 Dual Stack |
| Other Protocols |
BootP/DHCP Client, SNTP, ICMPv6, LLDP, LLDP-MED |
Power & Environment
| Power Input |
100-240 VAC, 50/60 Hz |
| Power Consumption (Max) |
16.81 W |
| Power Consumption (Idle) |
6.42 W |
| Heat Dissipation (Max) |
57.36 BTU/hr |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
Physical
| Dimensions (W × D × H) |
440 mm × 210 mm × 44 mm |
| Weight |
2.9 kg |
| Cooling |
Fanless (passive cooling) |
| Mounting |
19-inch rack-mount (brackets included), desktop with rubber feet |
Standards & Compliance
| IEEE Standards |
802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z Gigabit SX/LX, 802.3x Flow Control, 802.3az Energy Efficient Ethernet, 802.1D STP, 802.1w RSTP, 802.1Q VLAN, 802.1p Priority Queuing, 802.1X Port Authentication, 802.3ad LACP |
| Certifications |
FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI |
Warranty
| Warranty |
Limited Lifetime Warranty (as long as the original customer owns the product or 5 years after product discontinuance, whichever occurs first) |
What's in the Box
| Package Contents |
DGS-1210-28 switch, power cord, rack-mount brackets and screws, rubber feet (4), quick installation guide |
Specifications are sourced from the manufacturer product page and may be updated.
