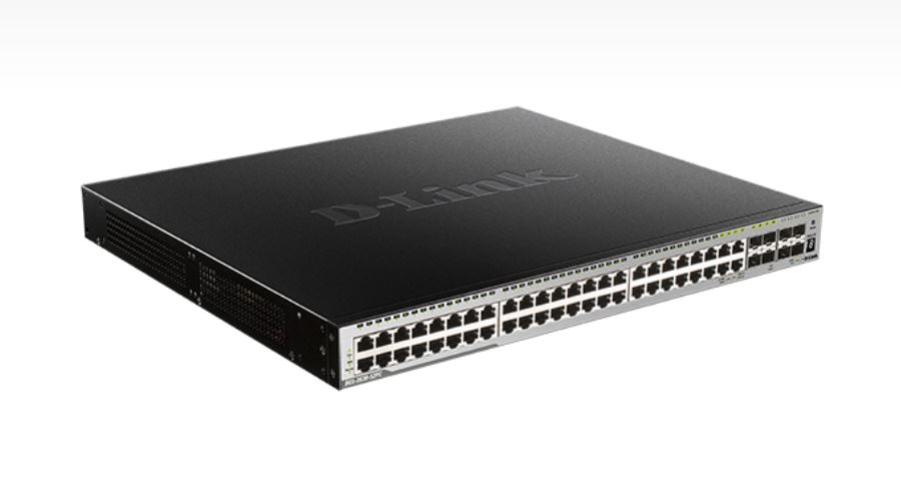

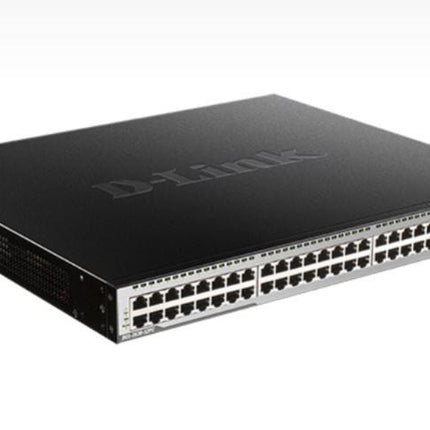

D-Link DGS-1210-52MP 52-Port Gigabit Smart Managed PoE Switch with 370W Power Budget
The D-Link DGS-1210-52MP is a powerful 52-port Gigabit Smart Managed PoE switch designed for small to medium-sized businesses requiring advanced networking capabilities. Featuring 48 x 10/100/1000BASE-T PoE ports and 4 x Gigabit SFP combo ports, this switch delivers a 370W PoE power budget to support IP cameras, VoIP phones, wireless access points, and other powered devices. With Layer 2+ switching, advanced security features, and optional surveillance mode, the DGS-1210-52MP is the ideal solution for expanding your business network infrastructure.
Key Features
-
48 PoE-Enabled Gigabit Ports: IEEE 802.3af/at compliant with up to 30W per port for powering IP cameras, access points, and VoIP phones
-
370W Total PoE Budget: Ample power to support multiple PoE devices across your network
-
4 SFP Combo Ports: Flexible fibre-optic connectivity for extended reach and high-speed uplinks
-
Layer 2+ Switching with Static Routing: Advanced inter-VLAN routing for efficient network segmentation
-
Auto Surveillance Mode: Industry-leading technology that automatically detects ONVIF cameras and places them in a dedicated VLAN
-
Time-Based PoE: Schedule PoE power delivery to match operational needs and reduce energy costs
Advanced Network Management
The DGS-1210-52MP offers versatile management options to suit any IT environment. Choose between Standard Mode for traditional network management or Surveillance Mode for simplified IP camera deployment and monitoring. The switch supports Web-based GUI, Compact CLI via Telnet, SNMP, and the D-Link Network Assistant Utility for easy network discovery and configuration. With support for D-View 7.0 network management software, administrators can centrally manage multiple switches and monitor critical network characteristics.
Power Over Ethernet for Simplified Deployment
Eliminate the need for separate power supplies with comprehensive PoE+ support across all 48 copper ports. The switch delivers up to 30W per port on ports 1-8 (802.3at) and 15.4W per port on ports 9-48 (802.3af), making it perfect for high-power devices like PTZ cameras and modern Wi-Fi 6 access points. The intuitive management interface allows administrators to remotely reboot PoE devices, monitor power consumption per port, and configure time-based PoE schedules to reduce energy waste during off-hours.
Optimised for IP Surveillance Networks
The DGS-1210-52MP features D-Link's exclusive Auto Surveillance VLAN (ASV) technology, which automatically detects compatible ONVIF cameras and places them in a dedicated surveillance VLAN. This consolidates data and video traffic through a single switch, eliminating the need for dedicated surveillance hardware. The optional Surveillance Mode Web UI provides instant visibility of your security topology, making it easy to manage large IP camera deployments. Combined with Auto Voice VLAN for VoIP traffic prioritisation, this switch is the perfect solution for converged voice, video, and data networks.
Comprehensive Layer 2 Features
Built for performance and reliability, the DGS-1210-52MP includes a complete suite of Layer 2 networking features:
-
IGMP Snooping: Optimises multicast traffic for IPTV and video streaming applications
-
Port Mirroring: Copy traffic from one or more ports for network diagnostics and monitoring
-
Spanning Tree Protocol (STP/RSTP/MSTP): Prevents network loops and ensures redundancy
-
Link Aggregation (LACP): Combine multiple ports for increased bandwidth and failover protection (up to 26 groups with 8 ports per group)
-
802.3x Flow Control: Ensures reliable data transfer at 2000 Mbps full duplex per port
-
Jumbo Frames: Support for frames up to 10,000 bytes for improved throughput
Robust Security and Network Protection
Protect your network from threats and unauthorised access with advanced security features including D-Link Safeguard Engine, which shields the CPU from broadcast, multicast, and unicast flooding caused by virus attacks. The switch supports 802.1X port-based authentication with external RADIUS servers, Access Control Lists (ACLs) for traffic filtering, ARP Spoofing Prevention to block fake ARP messages, and DHCP Server Screening to prevent rogue DHCP servers. Additional features include Port Security (up to 64 MAC addresses per port), IP-MAC-Port Binding, and comprehensive IPv6 management support.
Energy-Efficient Green Technology
Save on operating costs without compromising performance thanks to D-Link Green 3.0 technology. The switch complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standard and automatically reduces power consumption when ports are inactive or during low traffic periods. The intelligent smart fan design dynamically adjusts fan speed based on temperature, reducing noise and energy consumption while extending the device's lifespan. Cable length detection automatically adjusts power output based on the length of connected cables.
Network Diagnostics and Maintenance
-
Loopback Detection: Automatically detects and shuts down ports when network loops are detected
-
Cable Diagnostics: Test cable quality and quickly identify wiring faults (open, short, impedance mismatch)
-
System Event Log: Comprehensive logging for troubleshooting and compliance
-
Dual Firmware Images: Upload and test new firmware without risk, switch between configurations
Ideal Applications
-
IP Surveillance Systems: Power and connect up to 48 IP cameras with dedicated surveillance VLAN for optimal video quality
-
VoIP Deployments: Prioritised voice traffic with Auto Voice VLAN ensures crystal-clear call quality
-
Wireless Network Expansion: Deploy Wi-Fi 6 access points with PoE+ power throughout your facility
-
SMB Network Core: Reliable Layer 2+ switching with static routing for network segmentation
-
Campus Networks: Connect classrooms, offices, and labs with high-speed Gigabit connectivity
What's in the Box
- D-Link DGS-1210-52MP 52-Port Gigabit Smart Managed PoE Switch
- Rack-mount kit (included for 1U installation)
- Power cable
- Quick installation guide
- Warranty card
Full Specifications
Hardware
| Device Type |
52-Port Gigabit Smart Managed PoE Switch |
| Form Factor |
1U Rack-mountable (19-inch) |
| Ports |
48 x 10/100/1000BASE-T PoE ports, 4 x Gigabit SFP/RJ45 combo ports |
| PoE Standard |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| PoE Power Budget |
370W total |
| PoE per Port |
Ports 1-8: up to 30W (802.3at), Ports 9-48: up to 15.4W (802.3af) |
| MAC Address Table |
16,384 entries |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.38 Mpps |
| Jumbo Frame Support |
Up to 10,000 bytes |
Layer 2 Features
| VLANs |
802.1Q VLAN, up to 4,096 VLAN IDs, 256 active VLANs |
| Spanning Tree |
802.1D STP, 802.1W RSTP, 802.1s MSTP |
| Link Aggregation |
802.3ad LACP (up to 26 groups, 8 ports per group) |
| IGMP Snooping |
IGMPv1/v2/v3, up to 256 multicast groups |
| Port Mirroring |
One-to-one, many-to-one |
| Flow Control |
802.3x, HOL blocking prevention |
| Voice VLAN |
Auto Voice VLAN with OUI detection |
| Surveillance VLAN |
Auto Surveillance VLAN (ONVIF camera detection) |
Layer 3 Features
| Static Routing |
IPv4/IPv6 static routing |
| IP Interfaces |
Multiple IP interfaces for inter-VLAN routing |
| IPv6 Support |
IPv6 Neighbor Discovery (ND), IPv6 management |
Security Features
| Authentication |
802.1X port-based/host-based, RADIUS, TACACS+ |
| Access Control |
MAC-based, IP-based, time-based ACLs |
| Port Security |
Up to 64 MAC addresses per port |
| ARP Protection |
ARP Spoofing Prevention |
| DHCP Security |
DHCP Server Screening, DHCP Snooping |
| Storm Control |
Broadcast, multicast, unicast storm control |
| CPU Protection |
D-Link Safeguard Engine |
| IP-MAC Binding |
Smart IP-MAC-Port Binding (IMPB) |
Quality of Service
| QoS Queues |
8 priority queues per port |
| QoS Classification |
802.1p CoS, DSCP, IP precedence |
| Scheduling |
Strict Priority, Weighted Round Robin (WRR) |
| Bandwidth Control |
Per-port ingress/egress rate limiting |
Management
| Management Interfaces |
Web-based GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3 |
| Management Tools |
D-Link Network Assistant, D-View 7.0 (optional) |
| Configuration |
Dual firmware images, dual configuration files |
| Diagnostics |
Cable Diagnostics, Loopback Detection, Port Mirroring |
| Monitoring |
RMON, sFlow, System log, LLDP, LLDP-MED |
| Firmware Upgrade |
TFTP, HTTP, D-Link Network Assistant |
Physical Specifications
| Dimensions (W x D x H) |
440 x 430 x 44 mm (17.32 x 16.9 x 1.73 inches) |
| Weight |
5.78 kg (12.74 lbs) |
| Cooling |
Smart fan (temperature-controlled) |
| LED Indicators |
Link/Activity/Speed per port, PoE status per port, System, Power |
Power
| Input Voltage |
100-240V AC, 50/60 Hz |
| Maximum Power Consumption |
483.1W (with full PoE load) |
| Power Consumption (Idle) |
Approx. 50-60W (without PoE devices) |
Environmental
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
Standards & Compliance
| Ethernet Standards |
IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z Gigabit SFP |
| PoE Standards |
IEEE 802.3af, 802.3at |
| Network Standards |
IEEE 802.1D STP, 802.1w RSTP, 802.1s MSTP, 802.1Q VLAN, 802.1p QoS, 802.3ad LACP, 802.3x Flow Control, 802.3az EEE, 802.1X Authentication |
| Certifications |
FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, cUL, CE (LVD), CCC |
| NDAA/TAA Compliance |
Yes (meets government sourcing requirements) |
| MTBF |
318,616 hours |
Warranty
| Warranty Period |
Limited Lifetime Warranty (with product registration) |
| Support |
24/7 technical support, advance hardware replacement |
Specifications are sourced from the manufacturer product page and may be updated.
