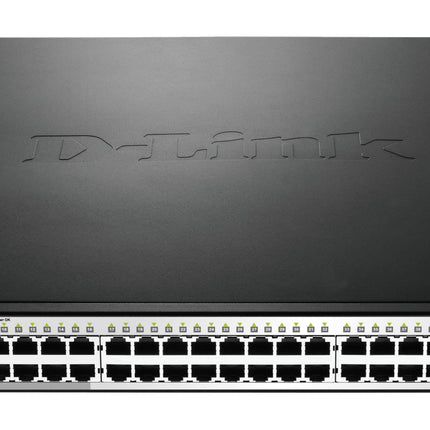

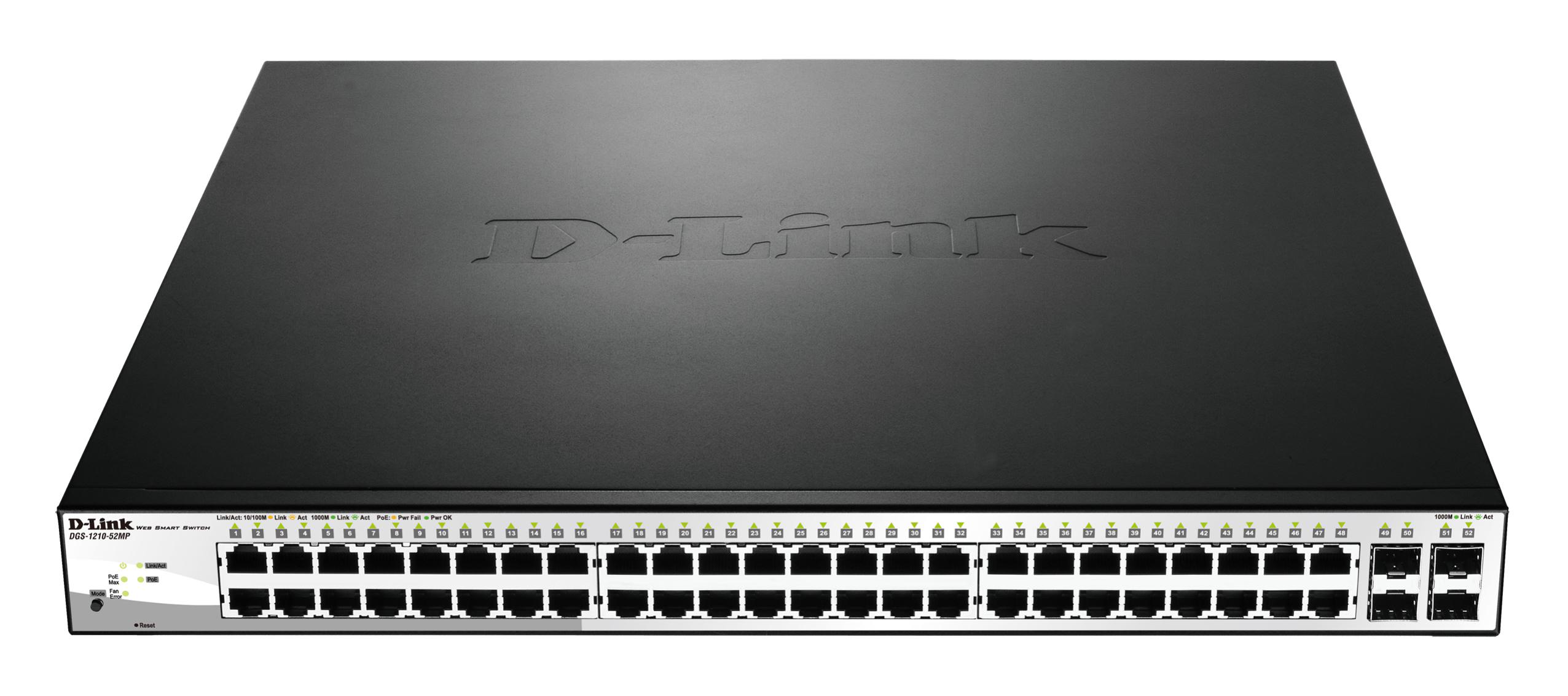

D-Link DGS-1210-52MP 52-Port Gigabit Smart Managed PoE+ Switch with 370W Power Budget
The D-Link DGS-1210-52MP is a high-performance 52-port Gigabit Smart Managed PoE+ switch designed for small to medium-sized businesses, surveillance systems, and enterprise networks. With 48 10/100/1000BASE-T PoE+ ports delivering a powerful 370W PoE budget and 4 Gigabit SFP combo ports for flexible fiber uplinks, this switch provides exceptional flexibility for powering IP cameras, wireless access points, VoIP phones, and other PoE devices while delivering advanced Layer 2+ network management capabilities.
Key Features
-
48 PoE+ Gigabit Ports: 370W total power budget supporting IEEE 802.3af and 802.3at standards for powering multiple devices
-
4 Gigabit SFP Combo Ports: Flexible uplink options using RJ45 or SFP fiber transceivers
-
Layer 2+ Management: Advanced features including static routing, VLANs, IGMP snooping, and LACP
-
Surveillance Mode: ONVIF-compatible with Auto Surveillance VLAN and PD Alive for automated camera detection and management
-
Time-Based PoE: Schedule PoE power on/off for individual ports to save energy
-
D-Link Green 3.0 Technology: Energy-efficient operation with smart fan control and IEEE 802.3az compliance
-
Comprehensive Security: ACL, 802.1X authentication, ARP Spoofing Prevention, and D-Link Safeguard Engine
-
Multiple Management Options: Web UI, CLI, SNMP, D-Link Network Assistant, and Nuclias Connect cloud management
Powerful PoE+ for Modern Networks
The DGS-1210-52MP delivers 370 watts of PoE power across all 48 PoE+ ports, supporting both IEEE 802.3af (15.4W per port) and IEEE 802.3at (30W per port) standards. This makes it perfect for powering high-density deployments of IP surveillance cameras, wireless access points, VoIP phones, access control systems, and IoT devices. The switch's intelligent PoE management allows administrators to remotely reboot powered devices and configure time-based PoE schedules to reduce energy costs during off-hours.
Advanced Layer 2+ Features
Equipped with comprehensive Layer 2+ switching capabilities, the DGS-1210-52MP supports static routing for inter-VLAN communication, eliminating the need for external routers in many scenarios. Advanced features include IGMP snooping for efficient multicast traffic management, Spanning Tree Protocol (STP) for network redundancy, Link Aggregation (LACP) for increased bandwidth, QoS (Quality of Service) for traffic prioritization, and flexible VLAN configurations for network segmentation.
Surveillance Mode for Security Systems
The DGS-1210-52MP features a dedicated Surveillance Mode with ONVIF support, making it ideal for IP surveillance deployments. The switch automatically detects compatible ONVIF cameras and places them in a surveillance VLAN, simplifying setup and management. The Auto Voice VLAN feature automatically segments VoIP traffic, while the PD Alive feature monitors connected PoE devices and automatically reboots unresponsive equipment, ensuring continuous surveillance operation without manual intervention.
Enterprise-Grade Security
Security is paramount with features including 802.1X port-based authentication via external RADIUS servers, comprehensive Access Control Lists (ACL) for traffic filtering, ARP Spoofing Prevention to protect against man-in-the-middle attacks, DHCP Server Screening to block rogue DHCP servers, and the D-Link Safeguard Engine that protects against broadcast, multicast, and unicast flooding attacks.
Flexible Connectivity and Management
With 48 Gigabit copper ports and 4 Gigabit SFP combo ports, the switch offers flexible connectivity options for copper and fiber connections. The combo ports support both RJ45 and SFP transceivers for multimode or singlemode fiber uplinks. Management is simplified through a multilingual web interface, compact CLI, SNMPv1/v2c/v3, D-Link Network Assistant for automatic device discovery, D-View 7.0 network management system, and optional Nuclias Connect cloud-based management.
Energy Efficiency
The DGS-1210-52MP incorporates D-Link Green 3.0 technology, featuring IEEE 802.3az Energy Efficient Ethernet compliance that automatically reduces power consumption during low traffic periods. The switch includes intelligent features like cable length detection to reduce power on shorter cables, port shutoff and standby modes, LED shutoff options, and a smart fan design that powers on only when needed based on temperature thresholds, reducing energy costs without sacrificing performance.
What's in the Box
- D-Link DGS-1210-52MP 52-Port Gigabit Smart Managed PoE+ Switch
- Power cord
- Rack mount kit
- Quick installation guide
- Warranty card
Full Specifications
Hardware
| Total Ports |
52 ports |
| Gigabit PoE+ Ports |
48 × 10/100/1000BASE-T PoE+ (IEEE 802.3af/802.3at) |
| SFP Combo Ports |
4 × Gigabit RJ45/SFP combo ports |
| PoE Power Budget |
370W total |
| PoE Standards |
IEEE 802.3af (15.4W per port), IEEE 802.3at (30W per port) |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.38 Mpps |
| MAC Address Table |
16,000 entries |
| Jumbo Frames |
Up to 10KB |
Layer 2 Features
| VLAN |
4K VLAN groups, Port-based, 802.1Q tag-based |
| Spanning Tree |
STP, RSTP, MSTP |
| Link Aggregation |
LACP (IEEE 802.3ad), static trunking |
| IGMP Snooping |
IGMPv1/v2/v3, 256 multicast groups |
| Port Mirroring |
Many-to-one port mirroring |
| QoS |
802.1p priority queues, DSCP, bandwidth control |
| Flow Control |
IEEE 802.3x flow control |
Layer 3 Features
| Static Routing |
IPv4/IPv6 static routes, up to 32 static routes |
| IPv6 |
IPv6 management, MLD snooping v1/v2 |
Security
| Authentication |
802.1X port-based, RADIUS |
| Access Control |
MAC/IP/IPv6 ACL, port security |
| Attack Prevention |
D-Link Safeguard Engine, ARP Spoofing Prevention, DHCP Server Screening |
| Storm Control |
Broadcast/multicast/unicast storm control |
| DHCP |
DHCP Server Screening, DHCP snooping |
Management
| Management Interface |
Web UI (multilingual), CLI (Telnet/SSH), SNMPv1/v2c/v3 |
| Management Software |
D-Link Network Assistant, D-View 7.0, Nuclias Connect (optional) |
| Configuration |
Dual image, dual configuration files |
| Monitoring |
Port statistics, system log, RMON |
| Cable Diagnostics |
Yes |
| Loopback Detection |
Port and VLAN-based |
Special Features
| Surveillance Mode |
ONVIF camera detection, Auto Surveillance VLAN, PD Alive |
| Voice VLAN |
Auto Voice VLAN for VoIP traffic prioritization |
| Time-Based PoE |
Schedule PoE power on/off by port or system |
| Green Technology |
IEEE 802.3az EEE, cable length detection, port shutoff, smart fan |
Physical Specifications
| Dimensions (W × D × H) |
440 × 430 × 44 mm (17.32 × 16.9 × 1.73 inches) |
| Weight |
5.78 kg (12.74 lbs) |
| Cooling |
Smart temperature-controlled fan |
| Rack Mountable |
19-inch rackmount, 1U height |
Power
| Input Voltage |
100-240V AC, 50-60 Hz |
| Maximum Power Consumption |
483.1W (including PoE budget) |
| PoE Power Budget |
370W |
Environmental
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
Standards & Certifications
| Standards Compliance |
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3az, 802.1D, 802.1w, 802.1s, 802.1Q, 802.1p, 802.1X, 802.3ad |
| Certifications |
FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI |
| NDAA/TAA Compliant |
Yes |
Warranty
| Warranty Period |
Limited Lifetime Warranty (after product registration with D-Link) |
Specifications are sourced from the manufacturer product page and may be updated.
