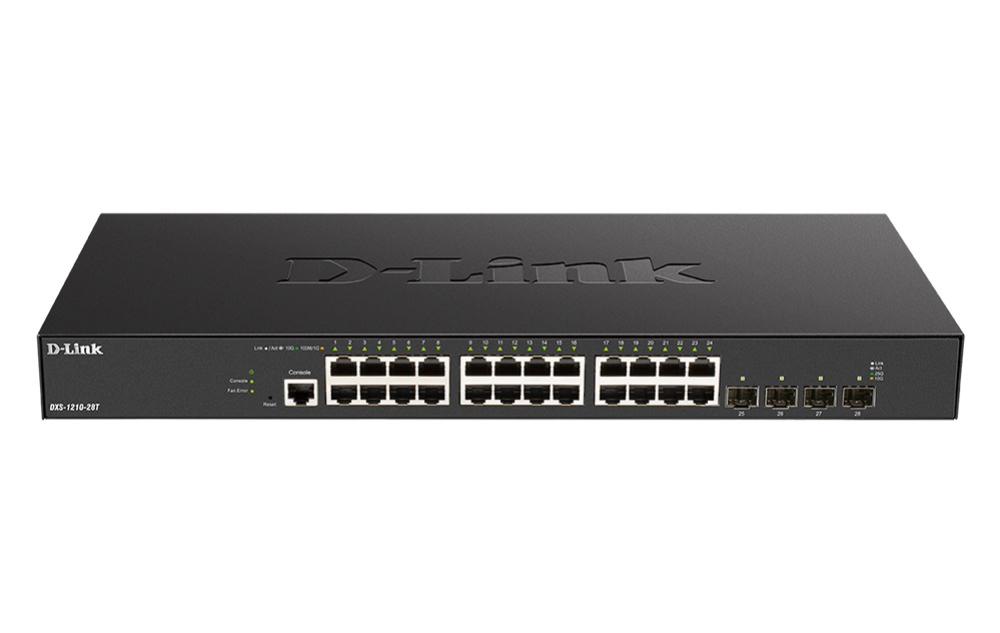

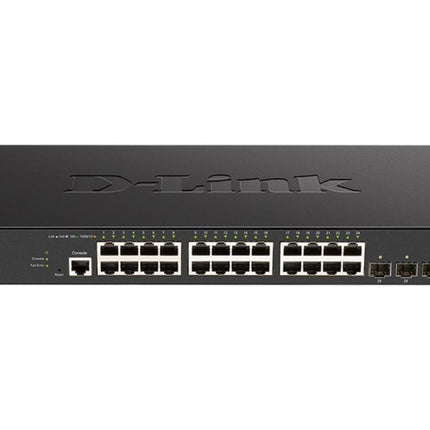

D-Link DGS-1250-28X 28-Port Gigabit Smart Managed Switch with 10 Gigabit Uplinks
The D-Link DGS-1250-28X is a high-performance smart managed switch designed for enterprise access and small-to-medium business networks. Featuring 24 Gigabit Ethernet ports and 4 x 10G SFP+ uplink ports, this rackmount switch delivers scalable network infrastructure with advanced Layer 2 and Layer 3 Lite features, making it ideal for businesses requiring robust connectivity, VoIP deployment, IP surveillance systems, and high-speed data transfers.
Key Features
-
24 x 10/100/1000BASE-T Gigabit Ports: High-speed connectivity for computers, servers, IP cameras, wireless access points, and network devices
-
4 x 10G SFP+ Uplink Ports: Flexible fiber optic uplinks using multimode or single-mode SFP transceivers for scalable network expansion
-
128 Gbps Switching Capacity: High-performance throughput with 95.23 Mpps forwarding rate for demanding network environments
-
Layer 3 Lite Static Routing: Enables inter-VLAN routing and network segmentation for increased efficiency
-
6kV Surge Protection: Built-in surge protection on all Gigabit Ethernet ports safeguards against electrical surges and lightning strikes
-
Dual Image & Configuration: Reduces downtime with dual software images and configuration files for seamless updates and troubleshooting
Advanced Management and Security
The DGS-1250-28X provides comprehensive management options including a full Command Line Interface (CLI) via dedicated console port, intuitive web-based GUI with 11 web languages, and SNMP support for remote network management. Advanced security features include 802.1X authentication, Access Control Lists (ACL) at Layer 2/3/4, ARP spoofing prevention, IP-MAC-Port Binding (IMPB), DHCP server screening, and D-Link's Safeguard Engine to protect against malicious traffic flooding and denial-of-service attacks.
Enterprise-Grade Layer 2 & Layer 3 Features
Equipped with a complete lineup of Layer 2 switching features including IGMP snooping, port mirroring, Link Aggregation Control Protocol (LACP) supporting up to 8 groups, and Spanning Tree Protocol (STP/RSTP/MSTP) for network redundancy and loop prevention. Layer 3 Lite capabilities provide IPv4/IPv6 static routing, IP interfaces, and IPv6 Neighbor Discovery for efficient network segmentation and communication between VLANs.
Quality of Service & Traffic Management
The switch supports 802.1p Quality of Service (QoS), DSCP marking, and bandwidth control to prioritize critical network traffic. Auto Voice VLAN automatically detects and segments VoIP traffic for enhanced security and quality, while Surveillance Mode with ONVIF support streamlines IP camera deployment by automatically identifying and prioritizing video traffic in dedicated VLANs.
Network Maintenance & Diagnostics
-
Loopback Detection: Automatically detects and shuts down switching loops to prevent network disruption
-
Cable Diagnostics: Quickly identifies cable quality issues and errors for swift troubleshooting
-
D-Link Network Assistant (DNA): Free utility for discovering and managing multiple D-Link switches within the same network segment
-
IEEE 802.3x Flow Control: Enables fast, reliable data transfers when connecting servers directly to the switch
Energy Efficiency
Compliant with IEEE 802.3az Energy-Efficient Ethernet (EEE) standards, the DGS-1250-28X features a smart 5-speed fan that automatically adjusts for optimal cooling while minimizing power consumption and noise. The switch intelligently adjusts power usage based on cable length and link status, reducing energy costs without sacrificing performance.
Ideal Applications
- Small-to-medium business network infrastructure
- Enterprise network access and aggregation
- IP surveillance systems with multiple cameras
- VoIP phone deployments
- High-bandwidth server connectivity
- Wireless access point management
- Network segmentation for security and efficiency
What's in the Box
- D-Link DGS-1250-28X Switch
- Power cord
- Rackmount kit
- Console cable (RJ-45)
- Quick installation guide
- Warranty card
Full Specifications
Hardware Specifications
| Device Type |
Smart Managed Switch |
| Ports |
24 x 10/100/1000BASE-T Gigabit Ethernet, 4 x 10G SFP+ uplinks |
| Console Port |
RJ-45 for CLI management |
| Form Factor |
19-inch rackmount |
| Dimensions (W × D × H) |
440 mm × 140 mm × 44 mm |
| Weight |
3.86 kg |
Performance
| Switching Capacity |
128 Gbps |
| Forwarding Rate |
95.23 Mpps |
| MAC Address Table |
16,000 entries |
| Jumbo Frames |
Supported |
Layer 2 Features
| VLANs |
802.1Q VLAN, Private VLAN, Voice VLAN, up to 4,094 VLAN IDs |
| Spanning Tree |
STP, RSTP, MSTP |
| Link Aggregation |
LACP, supports 8 groups with up to 8 ports per group |
| Port Mirroring |
Yes, many-to-one |
| IGMP Snooping |
IGMP v1/v2/v3, MLD v1/v2 |
| Flow Control |
IEEE 802.3x |
Layer 3 Features
| Static Routing |
IPv4/IPv6 static routing (Lite L3) |
| IP Interfaces |
Yes |
| IPv6 Support |
IPv6 Neighbor Discovery, IPv6 management |
Quality of Service
| QoS Levels |
802.1p priority queues, DSCP |
| Bandwidth Control |
Per-port ingress/egress rate limiting |
| Auto Voice VLAN |
Yes, OUI-based VoIP detection |
| Surveillance Mode |
Yes, ONVIF camera detection and VLAN assignment |
Security Features
| Access Control Lists |
L2/L3/L4 ACL |
| Authentication |
802.1X port-based, RADIUS support |
| Port Security |
Up to 64 MAC addresses per port |
| IP-MAC-Port Binding |
Yes (IMPB) |
| ARP Spoofing Prevention |
Yes |
| DHCP Screening |
DHCP server screening |
| Storm Control |
Broadcast, multicast, unicast |
| Safeguard Engine |
Yes |
| Surge Protection |
6kV on all Gigabit Ethernet ports |
Management
| Management Interfaces |
Web GUI (11 languages), CLI (console port), SNMP v1/v2c/v3, Telnet, RMON |
| Configuration |
Dual software images, dual configuration files |
| D-Link Network Assistant |
Yes (DNA utility) |
| Cable Diagnostics |
Yes |
| Loopback Detection |
Yes |
| LLDP/LLDP-MED |
Supported |
Standards Compliance
| IEEE Standards |
802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3ae 10GBASE-X, 802.3x Flow Control, 802.3az EEE, 802.1D STP, 802.1w RSTP, 802.1s MSTP, 802.1Q VLAN, 802.1p QoS, 802.1X Authentication |
| Certifications |
CE, FCC, BSMI, CCC, RoHS, VCCI, C-Tick |
Power & Environment
| Power Input |
100-240V AC, 50/60Hz, internal power supply |
| Power Consumption |
Maximum 39.6W |
| Fan |
Smart 5-speed fan with auto-adjustment |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
Warranty
| Warranty |
D-Link Limited Lifetime Warranty |
Specifications are sourced from the manufacturer product page and may be updated.
