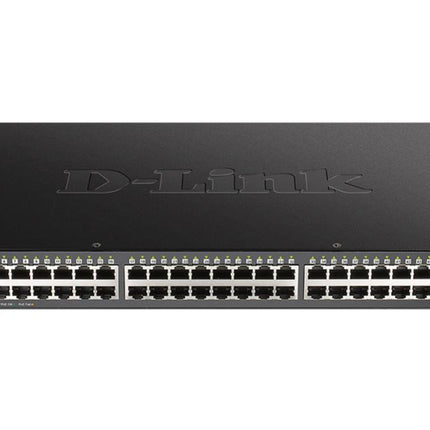

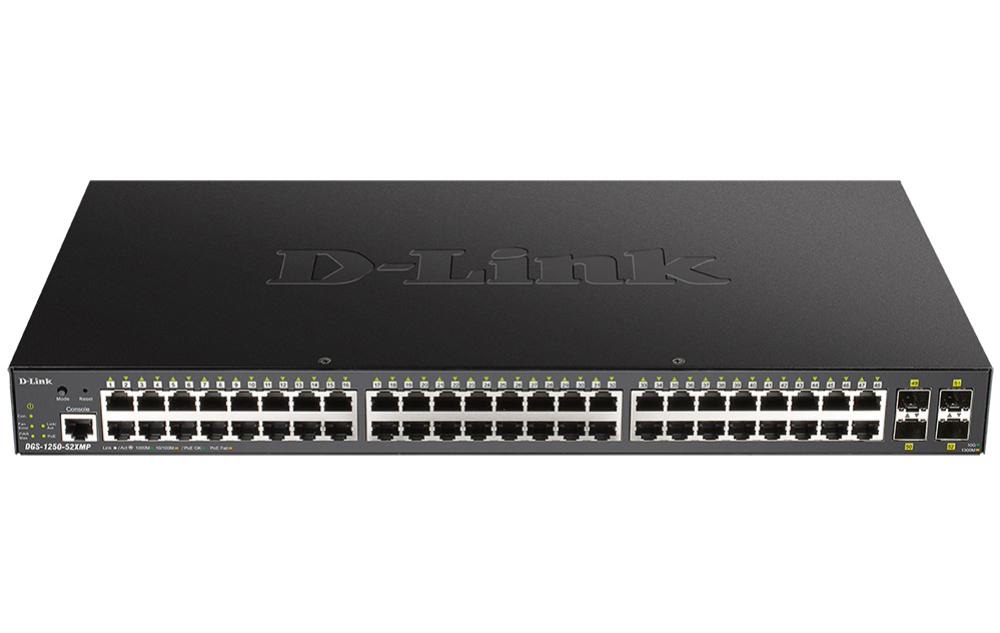

D-Link DGS-1250 Series Smart Managed Gigabit Switch with 10G Uplinks
The D-Link DGS-1250 Series Smart Managed Switches deliver enterprise-grade performance for growing businesses and network professionals. Designed as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution, these switches combine high port density, 10G SFP+ uplinks, and advanced Layer 2 and Layer 3 Lite features to meet the demands of modern networks. Available in 24 or 48 Gigabit ports with 4 x 10G SFP+ uplinks, the series offers flexible configurations including PoE+ models with up to 370W PoE power budget for powering IP cameras, wireless access points, and VoIP phones.
Key Features
-
High-Speed Connectivity: 24 or 48 x 10/100/1000BASE-T ports plus 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers
-
Advanced Management: Console Port with full CLI, multiple management interfaces, 11 web languages, and QoS enablement
-
Layer 3 Lite Routing: IP interfaces, IPv6 Neighbor Discovery, IGMP/MLD Snooping, LLDP, and IPv4/IPv6 static routing capabilities
-
Enhanced Reliability: Dual Image and Dual Configuration functionality for easy maintenance without network downtime
-
Robust Security: Access Control Lists, 802.1X authentication, IMPB, ARP Snooping Prevention, and D-Link Safeguard Engine
-
PoE+ Power (select models): IEEE 802.3af/at support with up to 370W PoE power budget
Smart Network Management for Business
The series provides Advanced Layer-2 with Lite Layer-3 features, making it ideal for businesses that need more control than unmanaged switches but want to avoid the complexity of fully managed Layer 3 solutions. The intuitive web-based GUI makes configuration straightforward, while full CLI access through the console port enables advanced users and IT professionals to configure remotely without internet connectivity. The included D-Link Network Assistant (DNA) utility allows admins to discover and manage multiple switches within the same network segment, streamlining deployment and ongoing maintenance.
Surveillance and Voice Optimisation
Perfect for unified networks handling video surveillance and VoIP communications, the DGS-1250 Series includes Auto Voice VLAN and Surveillance Mode. Auto-Voice and Auto-Surveillance VLAN features automatically identify and prioritise voice and video traffic. D-Link's exclusive Surveillance Mode provides a Web UI designed for video surveillance with an instant snapshot of your topology, simplifying management for security-focused deployments.
Quality of Service and Traffic Control
The series supports 802.11p Quality of Service to deliver data based on priority and traffic type, plus Bandwidth Control to reduce unwanted broadcast traffic. Combined with IGMP Snooping, Port Mirroring, and Link Aggregation (LACP), network administrators gain fine-grained control over traffic flow and performance, ensuring business-critical applications receive the bandwidth they need.
Security and Network Protection
Security is paramount in business networks. The series includes Access Control List and DHCP Server Screening that only allows legitimate DHCP Server IP addresses on specific ports. Additional protection comes from 802.1X port-based authentication, ARP Inspection, DHCP Snooping, and the D-Link Safeguard Engine which guards against malicious traffic flooding. Port security supports up to 64 MAC addresses per port, providing granular access control.
Power over Ethernet (PoE+ Models)
PoE models simplify deployment with IP cameras, VoIP phones, Wireless Access Points, and other powered devices. Using the switch's management interface, administrators can remotely reboot cameras or access points from anywhere on the network, reducing the need for on-site visits and improving operational efficiency.
Built for Reliability
The DGS-1250 Series is engineered for continuous operation in demanding environments. These switches can withstand temperatures between -5 to 50°C, making them suitable for challenging installations. Backed by D-Link Limited Lifetime Warranty, the series also includes dual software images and configuration files to minimise downtime during firmware updates.
Universal Connectivity
- 24 or 48 x 10/100/1000BASE-T Gigabit Ethernet ports
- 4 x 10G SFP+ uplink ports (multimode/single-mode compatible)
- Console port with full CLI support
- RJ-45 management interfaces
- Built-in 6kV surge protection on Ethernet ports
Models Available
-
DGS-1250-28X: 24 Gigabit ports + 4 x 10G SFP+ uplinks
-
DGS-1250-28XMP: 24 Gigabit PoE+ ports (370W) + 4 x 10G SFP+ uplinks
-
DGS-1250-52X: 48 Gigabit ports + 4 x 10G SFP+ uplinks
-
DGS-1250-52XMP: 48 Gigabit PoE+ ports (370W) + 4 x 10G SFP+ uplinks
-
DGS-1250-52XP: 48 Gigabit PoE+ ports (375W) + 4 x 10G SFP+ uplinks
What's in the Box
- DGS-1250 Series Smart Managed Switch
- Power cord
- Rack-mounting kit
- Console cable
- Quick Installation Guide
Full Specifications
Hardware
| Port Configuration (28X/28XMP) |
24 x 10/100/1000BASE-T + 4 x 10G SFP+ |
| Port Configuration (52X/52XMP) |
48 x 10/100/1000BASE-T + 4 x 10G SFP+ |
| Port Configuration (52XP) |
48 x 10/100/1000BASE-T PoE + 4 x 10G SFP+ |
| MAC Address Table |
16K entries (28-port) / 32K entries (52-port) |
| Console Port |
Yes, with full CLI support |
Layer 2 Features
| VLANs |
Up to 4094 static VLAN groups |
| IGMP Snooping |
IGMP v1/v2/v3, up to 256 groups |
| Link Aggregation |
802.3ad LACP, max 8 groups, 8 ports per group |
| Spanning Tree |
STP, RSTP, MSTP |
| Port Mirroring |
Supported |
Layer 3 Lite Features
| Static Routing |
IPv4/IPv6 static routing |
| IP Interfaces |
Supported |
| IPv6 |
Neighbor Discovery (ND) |
| LLDP |
LLDP and LLDP-MED |
Security
| Authentication |
802.1X port-based authentication |
| Access Control |
ACL, IMPB, Port Security (64 MAC/port) |
| Protection Features |
ARP Snooping Prevention, DHCP Snooping, Safeguard Engine |
| Surge Protection |
6kV on all Ethernet ports |
Quality of Service
| QoS |
802.1p priority queuing |
| Bandwidth Control |
Yes |
| Auto Voice VLAN |
Yes |
| Auto Surveillance VLAN |
Yes, with dedicated Web UI |
Power over Ethernet (PoE Models)
| PoE Standard |
IEEE 802.3af/at (PoE+) |
| PoE Power Budget (28XMP/52XMP) |
370W |
| PoE Power Budget (52XP) |
375W |
| PoE Management |
Remote reboot, per-port control |
Management
| Management Interfaces |
Web GUI, CLI (Console Port), SNMP |
| Web Languages |
11 languages |
| Firmware |
Dual Image & Dual Configuration |
| Utility |
D-Link Network Assistant (DNA) |
Physical Specifications
| Dimensions (28X) |
440 x 210 x 44 mm (L x W x H) |
| Dimensions (28XMP) |
440 x 250 x 44 mm (L x W x H) |
| Dimensions (52X) |
440 x 210 x 44 mm (L x W x H) |
| Dimensions (52XMP) |
440 x 430 x 44 mm (L x W x H) |
| Weight (28XMP) |
3.46 kg |
| Weight (52X) |
3.01 kg |
| Weight (52XMP) |
3.85 kg |
| Mounting |
Rack-mountable (1U) |
Power & Environment
| Power Input |
100 to 240 VAC |
| Operating Temperature |
-5 to 50°C (23 to 122°F) |
| Storage Temperature |
-20 to 70°C (-4 to 158°F) |
| Operating Humidity |
0% to 95% relative humidity |
| Acoustics (52X) |
Max 50.7 dB(A) |
| Acoustics (28XMP) |
Max 50.8 dB(A), Min 42.0 dB(A) |
Certifications & Warranty
| Safety |
CB, UL, BSMI, CCC |
| EMI |
CE Class A, VCCI Class A, FCC Class A, IC, BSMI |
| Warranty |
D-Link Limited Lifetime Warranty |
| Support |
Next Business Day hardware replacement available |
Specifications are sourced from the manufacturer product page and may be updated.
