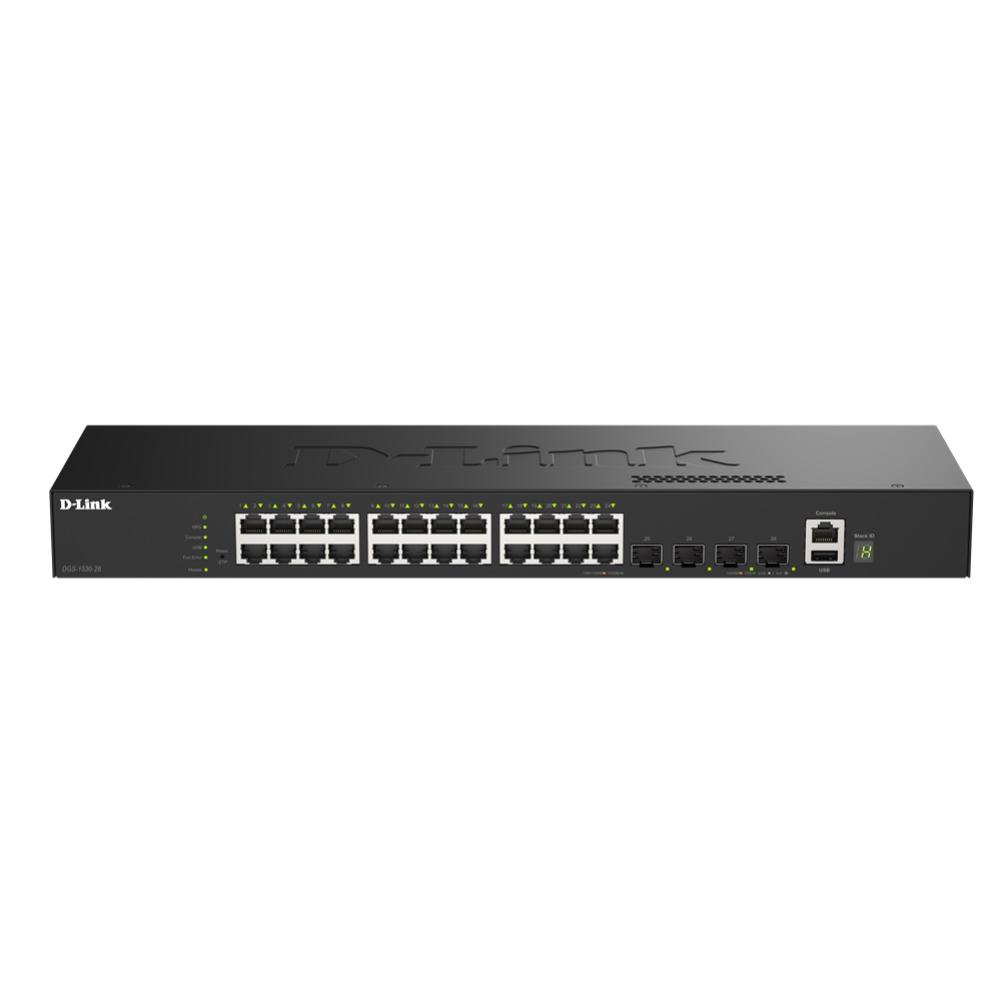

D-Link DGS-1510-28X 28-Port Stackable Smart Gigabit Switch with 10G SFP+
The D-Link DGS-1510-28X is a high-performance Layer 2+ stackable smart managed switch designed for small to medium-sized business networks requiring scalable 10G connectivity and advanced management features. With 24 Gigabit Ethernet ports and 4 x 10G SFP+ uplink ports, this switch delivers exceptional bandwidth and flexibility for connecting servers, storage systems, IP cameras, wireless access points, and network infrastructure. Perfect for SMB core environments, surveillance systems, educational institutions, and expanding enterprise networks.
Key Features
-
24 Gigabit Ethernet Ports: 10/100/1000BASE-T RJ-45 ports with auto-negotiation and Auto MDI/MDIX for flexible connections
-
4 x 10G SFP+ Ports: High-speed 10 Gigabit uplinks for stacking, fiber connectivity, and low-latency connections to servers and core networks
-
Physical Stacking: Stack up to 6 units (288 Gigabit ports) in fault-tolerant ring or linear topology using Direct Attach Cables or SFP+ transceivers
-
Virtual Stacking: Manage up to 32 devices via Single IP Management (SIM) for simplified network administration
-
Layer 2+ Management: Advanced features including static routing, MSTP, VLANs, LACP link aggregation, and inter-VLAN routing
-
Switching Capacity: 92 Gbit/s (336 Gbps in some configurations) with 68.45 Mpps throughput for wire-speed performance
-
Energy Efficient: D-Link Green 3.0 technology saves up to 73% energy with smart fan control and IEEE 802.3az EEE support
-
Comprehensive Security: D-Link Safeguard Engine, 802.1X authentication, ACLs, ARP Spoofing Prevention, and DHCP Server Screening
Advanced Management and Control
The DGS-1510-28X offers multiple management interfaces to suit your workflow. Access advanced configuration via Industry Standard CLI, Serial Console Port, or the intuitive Web-based UI. The switch supports SNMP for centralized network management, making it ideal for IT administrators managing multiple locations. Features like Auto Surveillance VLAN (ASV) and Auto Voice VLAN automatically prioritize video surveillance and VoIP traffic for optimal performance without manual configuration.
Stacking and Scalability
Create a high-bandwidth physical stack using the 10G SFP+ ports in either linear or ring topology. Stack up to 6 switches for a total of 288 Gigabit ports with simplified management as a single logical unit. Alternatively, use D-Link Single IP Management (SIM) to virtually stack up to 32 devices over Ethernet, eliminating the need for dedicated stacking cables and removing distance limitations. Mix any DGS-1510 series models in a single stack for ultimate deployment flexibility.
Enhanced Security Features
Protect your network with robust security features designed for enterprise environments. The D-Link Safeguard Engine defends against denial-of-service attacks from broadcast, multicast, and unicast flooding. 802.1X port-based authentication integrates with external RADIUS servers, while Access Control Lists (ACLs) filter traffic based on MAC addresses, IP addresses, and ports. ARP Spoofing Prevention blocks fake ARP messages that could compromise network integrity, and DHCP Server Screening prevents rogue DHCP servers from unauthorized IP assignment.
Optimized for Surveillance and VoIP
The DGS-1510-28X excels in IP surveillance deployments with Auto Surveillance VLAN (ASV) technology that automatically identifies and prioritizes video traffic from IP cameras. This ensures real-time video quality without compromising conventional network data. Auto Voice VLAN automatically places VoIP traffic into dedicated VLANs with higher priority, guaranteeing crystal-clear call quality and security for business communications. ONVIF support provides seamless integration with surveillance systems.
Energy Efficiency
Reduce operational costs with D-Link Green 3.0 technology. The switch features a smart fan that adjusts speed based on temperature and only activates when needed, significantly reducing noise and power consumption. With advanced silicon technology, the DGS-1510-28X saves up to 73% energy compared to conventional switches. IEEE 802.3az Energy Efficient Ethernet (EEE) further reduces power during periods of low data activity without compromising performance.
Layer 2 and Layer 3 Capabilities
Equipped with comprehensive Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree Protocol (STP/RSTP/MSTP), and Link Layer Discovery Protocol (LLDP). The switch supports static routing with 512 routes, enabling efficient inter-VLAN routing and reducing the load on your core router. Segment your network into workgroups and enable direct communication across VLANs without performance degradation.
What's in the Box
- D-Link DGS-1510-28X Switch
- Power Cord
- Rackmount Kit
- Console Cable
- Quick Installation Guide
Full Specifications
General
| Model |
DGS-1510-28X |
| Device Type |
Layer 2+ Smart Managed Stackable Switch |
| Form Factor |
19-inch Rackmount, 1U |
Ports and Interfaces
| 10/100/1000BASE-T Ports |
24 ports with Auto MDI/MDIX |
| 10G SFP+ Ports |
4 ports |
| Console Port |
RJ-45 |
Performance
| Switching Capacity |
92 Gbit/s |
| Throughput |
68.45 Mpps |
| MAC Address Table |
16,000 entries |
| Jumbo Frames |
Supported |
| Static Routes |
512 |
Stacking
| Physical Stacking |
Up to 6 units (288 Gigabit ports) |
| Stacking Topology |
Linear or Ring (Fault-Tolerant) |
| Virtual Stacking (SIM) |
Up to 32 devices via Single IP Management |
Layer 2 Features
| VLAN |
4094 VLAN groups, Port-based, 802.1Q, GVRP |
| Spanning Tree |
STP, RSTP, MSTP |
| Link Aggregation |
LACP (IEEE 802.3ad) |
| IGMP Snooping |
IGMP v1/v2/v3 |
| Port Mirroring |
Supported |
| Flow Control |
IEEE 802.3x |
Layer 3 Features
| Static Routing |
IPv4 static routes (512 entries) |
| Inter-VLAN Routing |
Supported |
Security
| Authentication |
802.1X port-based, RADIUS, MAC-based, Web-based |
| Access Control Lists |
MAC/IP-based ACLs |
| D-Link Safeguard Engine |
Protection against DoS attacks |
| ARP Spoofing Prevention |
Yes |
| DHCP Server Screening |
Yes |
| IP-MAC-Port Binding |
Supported |
Quality of Service
| QoS |
802.1p priority queues, DSCP |
| Auto Surveillance VLAN |
Automatic prioritization for IP cameras |
| Auto Voice VLAN |
Automatic prioritization for VoIP |
Management
| Web-based GUI |
Yes |
| CLI |
Industry Standard CLI via Console/Telnet |
| SNMP |
v1, v2c, v3 |
| Network Assistant |
D-Link Network Assistant (DNA) |
| Network Management |
D-View 7/8 compatible |
| LLDP/LLDP-MED |
Supported |
Standards Compliance
| Ethernet Standards |
IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3ae 10 GbE |
| Flow Control |
IEEE 802.3x |
| Energy Efficient Ethernet |
IEEE 802.3az |
| IPv6 |
IPv6 Ready Logo Phase 2, IPv4/v6 Dual Stack |
Physical Specifications
| Dimensions |
440 x 210 x 44 mm (17.3 x 8.3 x 1.7 inches) |
| Weight |
2.0 kg (4.4 lbs) |
| Mounting |
19-inch rack, 1U, or desktop |
Power and Environment
| Power Input |
100-240V AC, 50/60 Hz |
| Power Consumption (Idle) |
13.6W typical |
| Power Consumption (Maximum) |
22-24W |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Fan |
Smart fan with temperature-based speed control |
| Noise Level |
42-44 dBA at 1 meter (operating) |
Certifications
| Safety |
cUL, CB |
| EMI |
CE, FCC, C-Tick, VCCI, BSMI, CCC |
| Compliance |
NDAA Compliant, IPv6 Ready Logo Phase 2 |
Warranty
| Warranty |
Limited Lifetime Warranty (after registration) |
| Next Business Day Replacement |
Available |
Specifications are sourced from the manufacturer product page and may be updated.
