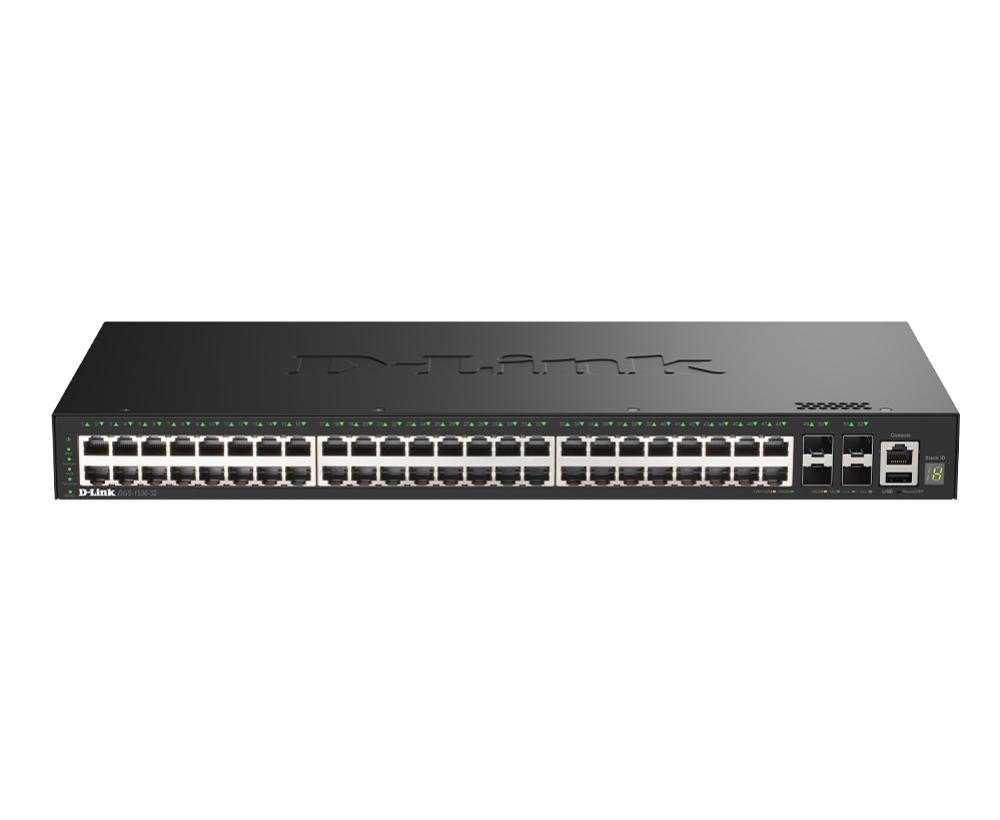

D-Link DGS-1510-52X 52-Port Gigabit Stackable Smart Managed Switch
The D-Link DGS-1510-52X is a next-generation stackable smart managed switch designed for small to medium-sized business networks requiring Layer 3 management, scalable 10G connectivity, and advanced stacking capabilities. With 48 Gigabit Ethernet ports and 4 x 10GbE SFP+ ports, this switch delivers enterprise-class performance for connecting computers, servers, IP cameras, wireless access points, VoIP phones, and network storage devices in high-demand environments.
Why Choose the DGS-1510-52X?
-
48 Gigabit Ethernet Ports: High-speed 10/100/1000BASE-T connectivity for seamless data transfer across large networks
-
4 x 10GbE SFP+ Uplink Ports: High-speed fiber connectivity for core networking, uplinks, and physical stacking
-
Physical & Virtual Stacking: Stack up to 6 units physically or 32 units via D-Link Single IP Management (SIM) for scalable, unified network control
-
Layer 3 Lite Routing: IPv4/IPv6 static routing and inter-VLAN routing reduce load on routers and improve network efficiency
-
Advanced Layer 2 Features: IGMP snooping, port mirroring, Spanning Tree Protocol (STP/RSTP/MSTP), and Link Aggregation (LACP)
-
Surveillance Mode with ONVIF Support: Automatically detects IP cameras and segments them into a dedicated Auto Surveillance VLAN for efficient video traffic management
-
Comprehensive Security: 802.1X authentication, Access Control Lists (ACL), ARP Spoofing Prevention, and D-Link Safeguard Engine protect against traffic flooding and malicious attacks
-
Energy Efficient: D-Link Green 3.0 technology with IEEE 802.3az EEE, smart fan control, and port power-saving modes reduce energy consumption by up to 73%
High-Speed 10G Connectivity
The DGS-1510-52X features four 10-Gigabit SFP+ ports that eliminate network bottlenecks and provide low-latency connections for network servers, storage systems, and core network uplinks. These ports can be used for physical stacking with Direct Attach Cables (DACs) or fiber transceivers, or as high-speed uplinks to backbone infrastructure. With a total switching capacity of 176 Gbps, this switch maintains wire-speed performance even under heavy network loads.
Flexible Stacking for Scalability
Depending on linear or fault-tolerant ring topology implementation, users can stack up to 6 units physically using one or two 10-Gigabit SFP+ ports, creating a unified system with 288 Gigabit ports. Virtual stacking via D-Link Single IP Management (SIM) allows up to 32 units to be managed from a single IP address, simplifying network administration and reducing deployment time. Mix and match any DGS-1510 series models within a stack for maximum flexibility.
Surveillance & VoIP Optimization
The DGS-1510-52X supports Auto Surveillance VLAN and Auto Voice VLAN, making it ideal for IP surveillance and VoIP deployments. Auto Surveillance VLAN automatically detects ONVIF-compatible IP cameras and places them in a dedicated surveillance VLAN, ensuring quality video transmission in real time without compromising regular network traffic. Auto Voice VLAN automatically identifies and segments VoIP traffic for enhanced security and Quality of Service (QoS).
Enterprise-Grade Management
Accessible via intuitive web-based UI, industry-standard CLI, or serial console, the DGS-1510-52X offers complete control over VLANs, Quality of Service (QoS), static routing, multiple spanning tree protocols, link aggregation, and bandwidth management. Network maintenance features include Loopback Detection, Cable Diagnostics, and SNMP support for integration with third-party network management systems like D-View 8.
Robust Security Features
Protect your network with advanced security measures including 802.1X port-based authentication via RADIUS servers, multi-layer Access Control Lists (ACL) for MAC/IP address filtering, ARP Spoofing Prevention, DHCP Server Screening, and D-Link's proprietary Safeguard Engine that shields against traffic flooding from broadcast, multicast, and unicast attacks. IPv6 Ready Logo Phase 2 certified for seamless integration into next-generation networks.
Ideal Applications
-
Small to Medium Business Networks: Reliable core and edge switching for growing enterprises
-
IP Surveillance Systems: Dedicated surveillance mode for managing IP cameras and video traffic
-
VoIP Deployments: Auto Voice VLAN and QoS for high-quality VoIP communications
-
Educational Institutions: Scalable connectivity for classrooms, labs, and administrative offices
-
Retail & Hospitality: Fast, reliable networking for point-of-sale systems, wireless access points, and guest Wi-Fi
-
Smart Buildings: High-performance backbone for building management systems and IoT devices
What's in the Box
- DGS-1510-52X 52-Port Gigabit Stackable Smart Managed Switch
- Power cord
- Rack-mounting kit
- Console cable
- Quick installation guide
- Warranty card
Full Specifications
General
| Model |
DGS-1510-52X |
| Hardware Version |
A2 |
| Form Factor |
19-inch Rack-mountable (1U) |
Ports & Interfaces
| 10/100/1000BASE-T Gigabit Ethernet Ports |
48 |
| 10G SFP+ Ports |
4 |
| Console Port |
1 x RJ-45 |
Standards Compliance
| IEEE Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ae 10GbE, IEEE 802.3x Flow Control |
| Network Cables |
UTP Cat. 5/5e/6 (100 m max.) |
Performance
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
130.95 Mpps |
| MAC Address Table |
16,000 entries |
| Packet Buffer |
12 Mbit |
| Jumbo Frame Support |
Up to 9,216 bytes |
Layer 2 Features
| VLANs |
4,094 VLAN groups, IEEE 802.1Q VLAN tagging, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN |
| Spanning Tree |
STP, RSTP, MSTP (IEEE 802.1D, 802.1w, 802.1s) |
| Link Aggregation |
IEEE 802.3ad LACP, up to 32 groups, 8 ports per group |
| Port Mirroring |
Up to 4 mirroring groups, many-to-one |
| IGMP Snooping |
IGMP v1/v2/v3, up to 1,024 multicast groups |
| MLD Snooping |
MLD v1/v2 |
Layer 3 Features
| Static Routing |
IPv4/IPv6 static routing, up to 256 routes |
| Inter-VLAN Routing |
Yes, up to 256 routing interfaces |
| ARP Table |
Up to 2,048 entries |
Quality of Service (QoS)
| Priority Queues |
8 queues per port |
| Scheduling |
Strict Priority, Weighted Round Robin (WRR), Hybrid |
| Traffic Classification |
802.1p priority, DSCP, IP Precedence |
| Bandwidth Control |
Ingress/Egress rate limiting per port |
Security
| Authentication |
802.1X port-based authentication, RADIUS, TACACS+ |
| Access Control Lists |
MAC-based ACL, IP-based ACL, IPv6-based ACL |
| Port Security |
MAC address binding, up to 64 MAC addresses per port |
| Storm Control |
Broadcast, Multicast, Unknown Unicast |
| Other Security Features |
ARP Spoofing Prevention, DHCP Server Screening, IP-MAC-Port Binding (IMPB), D-Link Safeguard Engine |
Management
| Management Interface |
Web-based UI, CLI (Telnet/SSH), Console (RS-232), SNMP v1/v2c/v3 |
| SNMP MIBs |
MIB-II (RFC 1213), Bridge MIB (RFC 1493), RMON MIB (RFC 1757, 2819, 2021, 3273) |
| Configuration |
TFTP, HTTP, HTTPS |
| Firmware Upgrade |
TFTP, HTTP, multiple firmware images supported |
| Diagnostics |
Cable diagnostics, Loopback detection, Ping, Traceroute |
| Centralized Management |
D-View 8, D-Link Single IP Management (SIM) for up to 32 units |
Stacking
| Physical Stacking |
Up to 6 units via 10G SFP+ ports (linear or ring topology) |
| Virtual Stacking (SIM) |
Up to 32 units managed from single IP address |
| Stacking Bandwidth |
20 Gbps full-duplex per stack link |
Physical & Environment
| Dimensions |
440 x 250 x 44 mm (17.36 x 9.84 x 1.73 inches) |
| Weight |
2.40 kg (5.3 lbs) |
| Power Input |
AC 100-240V, 50/60 Hz |
| Power Consumption (Max) |
40.6 W |
| Power Consumption (Standby) |
28.9 W |
| Heat Dissipation |
138.787 BTU/hr |
| Fan Quantity |
2 x Smart Fans (auto-adjusting) |
| Acoustic Noise |
45.8 dB(A) |
| Operating Temperature |
-5°C to 50°C (23°F to 122°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Operating Humidity |
0% to 95% non-condensing |
| Storage Humidity |
0% to 95% non-condensing |
Certifications & Compliance
| Safety |
cUL, CB |
| EMI |
CE, FCC Class A, C-Tick, VCCI, BSMI, CCC |
| IPv6 |
IPv6 Ready Logo Phase 2 Certified |
| NDAA Compliance |
Yes |
Warranty
| Warranty Period |
Limited Lifetime Warranty (after product registration) |
| Next Business Day Replacement |
Available (subject to terms and conditions) |
Specifications are sourced from the manufacturer product page and may be updated.
