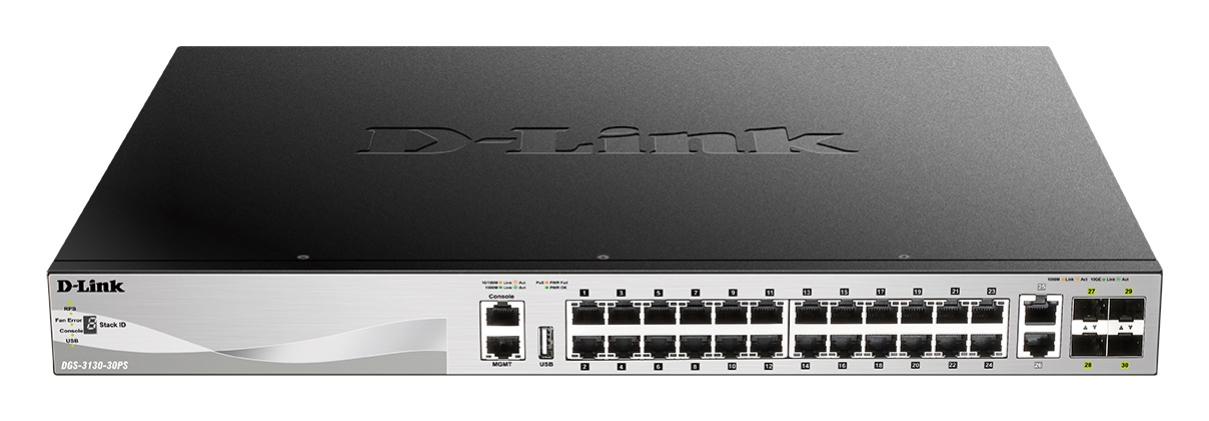

D-Link DGS-3130-30PS 30-Port Layer 3 Stackable Managed PoE Switch
The D-Link DGS-3130-30PS is a powerful Lite Layer 3 stackable managed switch designed for enterprise and metro Ethernet access networks. With 24 Gigabit PoE+ ports, 2 x 10GBASE-T ports, and 4 x 10G SFP+ uplink ports, this switch delivers high-performance connectivity with a 370W PoE budget (expandable to 740W with optional redundant power supply). Perfect for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices while delivering enterprise-grade security and reliability.
Key Features
-
24 Gigabit PoE+ Ports: IEEE 802.3af/at compliant, delivering up to 30W per port for seamless device deployment
-
370W PoE Power Budget: Expandable to 740W with optional DPS-700 redundant power supply for maximum device support
-
10 Gigabit Uplinks: 2 x 10GBASE-T and 4 x 10G SFP+ ports provide high-speed backbone connectivity
-
Stackable Design: Stack up to 9 units with 80 Gbps stacking bandwidth for flexible network expansion
-
Layer 3 Routing: Static routing, RIP/RIPng, and OSPFv2/v3 for advanced traffic management
-
6kV Surge Protection: Built-in protection on all Gigabit Ethernet ports without external hardware
-
Redundant Power Support: Dual power inputs and external redundant power supply support for maximum uptime
-
Ethernet Ring Protection: G.8032 ERPS with sub-50ms recovery time for network resilience
Enterprise-Grade Power over Ethernet
The DGS-3130-30PS features 24 PoE+ ports supporting IEEE 802.3af and IEEE 802.3at standards, providing up to 30W per port. With a default power budget of 370W (expandable to 740W), you can power IP surveillance cameras, wireless access points, VoIP phones, and access control systems directly through Ethernet cables. This eliminates the need for separate power supplies, reducing installation costs and cable clutter while enabling deployment in remote locations.
High-Speed 10 Gigabit Connectivity
Six 10 Gigabit uplink ports deliver the bandwidth your growing network demands. The switch includes 2 x 10GBASE-T copper ports and 4 x 10G SFP+ fiber ports, providing flexible uplink options for long-distance fiber connections or high-speed copper links to core switches and servers. With 168 Gbps switching capacity and 125 Mpps forwarding rate, the DGS-3130-30PS handles demanding traffic loads with ease.
Flexible Stacking for Network Growth
Physical stacking allows you to connect up to 9 units using the 10G SFP+ ports, delivering 80 Gbps of stacking bandwidth per switch. This creates a single manageable unit with up to 324 ports, simplifying network management while providing the scalability your business needs. Stack different DGS-3130 models together to customize your network configuration.
Advanced Layer 3 Routing and QoS
Move beyond basic Layer 2 switching with comprehensive Layer 3 routing features including static routing, RIP/RIPng, and OSPFv2/v3 dynamic routing protocols. These features enable the switch to intelligently route traffic and optimize network efficiency. Rich QoS/CoS features prioritize critical applications like VoIP, video conferencing, IPTV, and IP surveillance, ensuring smooth performance even under heavy network load.
Maximum Network Reliability
Built for mission-critical environments, the DGS-3130-30PS includes multiple redundancy features. Dual power inputs and support for an external redundant power supply ensure continuous operation. G.8032 Ethernet Ring Protection Switching (ERPS) delivers recovery times under 50ms in ring topologies. Additional reliability features include 802.1D/w/s Spanning Tree Protocols, Loopback Detection, and Broadcast Storm Control.
Comprehensive Security Features
Protect your network with advanced security mechanisms including 802.1X port-based authentication, Web-based Access Control (WAC), and MAC-based Access Control. The switch supports multi-layer Access Control Lists (ACL), IP-MAC-Port Binding (IMPB) with DHCP Snooping, and Microsoft Network Access Protection (NAP). Built-in 6kV surge protection on all Gigabit Ethernet ports safeguards equipment from electrical surges and lightning strikes.
Intelligent Management Options
Manage your network with a multilingual web-based GUI, industry-standard CLI via Telnet, or SNMP. The built-in USB 2.0 port enables convenient storage of configuration files, firmware images, and syslog files. The Smart Fan automatically adjusts speed based on temperature to maintain optimal operating conditions while minimizing noise.
Ideal Applications
-
IP Surveillance Networks: Power and connect multiple high-resolution PoE cameras with advanced QoS for smooth video streaming
-
Wireless Infrastructure: Deploy and power enterprise Wi-Fi access points throughout your facility
-
Enterprise Access Layer: Provide secure, high-speed connectivity to end users with Layer 3 capabilities
-
Metro Ethernet Applications: Reliable carrier-grade features for service provider deployments
-
VoIP and Unified Communications: Priority handling ensures crystal-clear voice quality
What's in the Box
- D-Link DGS-3130-30PS Switch
- AC Power Cord
- Console Cable (RJ-45 to RS-232)
- Rack Mounting Kit (Brackets and Screws)
- Quick Installation Guide
Full Specifications
Hardware
| Total Ports |
30 ports: 24 x Gigabit PoE+, 2 x 10GBASE-T, 4 x 10G SFP+ |
| PoE Ports |
24 x 10/100/1000BASE-T PoE+ (IEEE 802.3af/at) |
| 10 Gigabit Ports |
2 x 10GBASE-T, 4 x 10G SFP+ |
| PoE Power Budget |
370W (expandable to 740W with DPS-700 RPS) |
| Maximum Power per Port |
30W (IEEE 802.3at) |
| Console Port |
1 x RJ-45 serial console |
| Management Port |
1 x 10/100/1000BASE-T out-of-band |
| USB Port |
1 x USB 2.0 Type A |
Performance
| Switching Capacity |
168 Gbps |
| Packet Forwarding Rate |
125 Mpps |
| Packet Buffer Memory |
2 MB |
| Jumbo Frame Support |
Yes, up to 9KB |
| MAC Address Table |
16,000 entries |
Layer 2 Features
| VLANs |
802.1Q tag-based, up to 4094 VLANs |
| Spanning Tree |
802.1D STP, 802.1w RSTP, 802.1s MSTP |
| Link Aggregation |
802.3ad LACP, up to 32 groups |
| IGMP Snooping |
IGMPv1/v2/v3, MLD v1/v2 |
| Ring Protection |
G.8032 ERPS (sub-50ms recovery) |
| Port Mirroring |
Many-to-one |
| Flow Control |
IEEE 802.3x |
Layer 3 Features
| IP Interfaces |
Up to 128 |
| Routing Protocols |
Static routing, RIP v1/v2, RIPng, OSPFv2, OSPFv3 |
| VRRP |
Supported |
| IPv6 |
IPv6 neighbor discovery, DHCPv6 |
Quality of Service
| Priority Queues |
8 hardware queues per port |
| QoS Classification |
802.1p CoS, DSCP, IP Precedence |
| Scheduling |
Strict Priority, WRR, Hybrid |
| Bandwidth Control |
Ingress/egress rate limiting per port |
Security
| Authentication |
802.1X, Web-based Access Control, MAC-based Access Control, RADIUS, TACACS+ |
| Access Control Lists |
MAC-based, IPv4/IPv6 ACL, packet content filtering |
| DHCP Snooping |
Yes |
| IP-MAC-Port Binding |
IMPB supported |
| Storm Control |
Broadcast, multicast, unknown unicast |
| Surge Protection |
6kV built-in on all GE ports |
| Microsoft NAP |
Network Access Protection support |
Management
| Web Interface |
Multilingual web-based GUI |
| Command Line |
CLI via Telnet, SSH, Serial Console |
| SNMP |
SNMPv1/v2c/v3 |
| RMON |
Groups 1, 2, 3, 9 |
| Firmware Upgrade |
TFTP, HTTP, USB |
| Configuration Backup |
Upload/download via TFTP, USB |
| Cable Diagnostics |
Yes |
| Loopback Detection |
Yes |
Stacking
| Maximum Units |
9 units (DGS-3130-30 series) |
| Stacking Bandwidth |
80 Gbps per device |
| Stacking Ports |
Via 10G SFP+ ports |
| Management |
Single IP management |
Power and Environment
| AC Input |
100-240V AC, 50/60 Hz |
| Power Consumption |
Maximum with PoE load |
| Redundant Power |
Dual power inputs, optional DPS-700 RPS |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Fan |
Smart fan (speed adjusts with temperature) |
| Noise Level |
41.1 dB (min) to 54 dB (max) |
| MTBF |
409,054 hours |
Physical Specifications
| Dimensions (W x D x H) |
440 x 350 x 44 mm (17.3 x 13.8 x 1.7 inches) |
| Weight |
4.66 kg (10.27 lbs) |
| Rack Mount |
1U 19-inch rack-mountable |
| LED Indicators |
Power, system, PoE, link/activity per port |
Standards Compliance
| Ethernet Standards |
IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3an 10GBASE-T, 802.3ae 10G SFP+ |
| PoE Standards |
IEEE 802.3af PoE, 802.3at PoE+ |
| EMI/Safety |
FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC, CB, cUL |
Warranty
| Warranty Period |
Limited Lifetime Warranty |
| Support |
Next Business Day service included |
Specifications are sourced from the manufacturer product page and may be updated.
