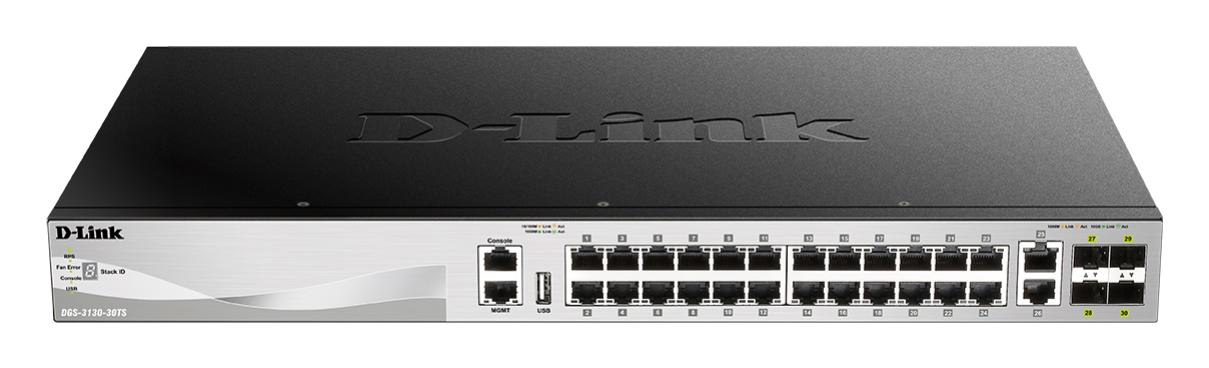

D-Link DGS-3130-30TS 30-Port Layer 3 Stackable Managed Gigabit Switch
The D-Link DGS-3130-30TS is a powerful Lite Layer 3 stackable managed switch designed for enterprise and metro Ethernet access networks. With 24 Gigabit Ethernet ports, 2 x 10GBASE-T ports, and 4 x 10G SFP+ uplink ports, this switch delivers high-performance connectivity with 168 Gbps switching capacity and 125 Mpps packet forwarding. Perfect for businesses requiring scalable, secure, and reliable network infrastructure with advanced Layer 3 routing capabilities.
Key Features
-
30 Total Ports: 24 x 10/100/1000BASE-T Gigabit Ethernet ports, 2 x 10GBASE-T ports, and 4 x 10G SFP+ uplink ports for flexible high-speed connectivity
-
Stackable Design: Stack up to 9 units with 80 Gbps stacking bandwidth for seamless network expansion and up to 324 ports maximum
-
Layer 3 Routing: Advanced routing protocols including RIP/RIPng and OSPFv2/v3 for dynamic network mapping and efficient traffic management
-
Enhanced Security: 802.1X authentication, IP-MAC-Port Binding, DHCP Snooping, ACLs, and Microsoft NAP support
-
Built-in 6kV Surge Protection: All Gigabit Ethernet ports protected against electrical surges without external protection
-
Redundant Power Supply: Dual power input support with optional DPS-500 for continuous operation and maximum uptime
High-Performance 10 Gigabit Uplinks
The DGS-3130-30TS features six 10 Gigabit uplink ports (2 x 10GBASE-T copper and 4 x 10G SFP+ fiber) to eliminate network bottlenecks and provide the bandwidth your growing business needs. Connect to core switches at 10G speeds over copper or reach greater distances with fiber optic cabling. With 168 Gbps switching capacity, this switch handles demanding workloads including IP surveillance, VoIP, IPTV, and video conferencing with ease.
Flexible Stacking for Seamless Expansion
Deploy up to 9 units in a single stack with 80 Gbps per device stacking bandwidth, providing up to 324 Gigabit ports managed as a single entity. The DGS-3130-30TS uses a stacking cost of 1 per unit, making it ideal for organizations that need agile expansion without sacrificing network reliability. Stack over fiber for long-distance connectivity or use copper for shorter runs.
Advanced Layer 3 Routing & Traffic Management
Go beyond basic switching with Lite Layer 3 features including:
-
Dynamic Routing: RIP/RIPng and OSPFv2/v3 protocols dynamically map your network for optimal data paths
-
Static Routing & VRRP: Up to 128 IP interfaces with Virtual Router Redundancy Protocol for high availability
-
Multi-Layer QoS/CoS: Prioritize critical services like VoIP, video conferences, IPTV, and IP surveillance
-
Traffic Shaping: Guarantee bandwidth for essential services even during peak network usage
-
IGMP/MLD Snooping: Efficient multicast traffic handling for IPTV and streaming applications
-
ISM VLAN: Send multicast streams in dedicated VLANs to save bandwidth and enhance security
Enterprise-Grade Security & Reliability
Protect your network with comprehensive security features designed for enterprise environments:
-
Authentication: 802.1X, Web-based Access Control (WAC), and MAC-based Access Control
-
IP-MAC-Port Binding (IMPB): Enhanced user access control with DHCP Snooping integration
-
Access Control Lists (ACLs): Multi-layer and packet content filtering
-
Storm Control: Broadcast, multicast, and unicast storm protection
-
Microsoft NAP Support: Network Access Protection for compliance enforcement
-
Spanning Tree Protocols: 802.1D/w/s STP, RSTP, and MSTP to prevent network loops
-
Ethernet Ring Protection Switching (ERPS): G.8032 support with less than 50ms recovery time
-
Loopback Detection: Automatic detection and prevention of network loops
Energy Efficiency & Smart Fan Control
The DGS-3130-30TS incorporates D-Link Green technology with intelligent power management. The smart fan self-adjusts based on operating temperature to maintain optimal performance while minimizing noise (33.5 dB minimum, 52.5 dB maximum). Power-saving features automatically detect link status and cable length to reduce energy consumption.
Flexible Management Options
Manage your network your way with multiple management interfaces:
-
Industry-Standard CLI: Full command-line interface for advanced configuration
-
Intuitive Web-Based GUI: Easy-to-use web interface for quick setup and monitoring
-
D-Link Network Assistant (DNA): Simplified network discovery and management utility
-
SNMP Support: Centralized management integration with network management systems
-
USB 2.0 Port: Boot images, upload configurations, and save syslog files directly to USB storage
-
Out-of-Band Management: Dedicated console port for emergency access
What's in the Box
- DGS-3130-30TS 30-Port Layer 3 Stackable Managed Switch
- Power cord
- Power cord retainer set
- Four rubber feet with adhesive backing
- Rack mount kit
- Console cable
- Quick Installation Guide
- Warranty information
Full Specifications
Port Configuration
| Gigabit Ethernet Ports |
24 x 10/100/1000BASE-T RJ-45 ports |
| 10 Gigabit Copper Ports |
2 x 10GBASE-T RJ-45 ports |
| 10 Gigabit Fiber Ports |
4 x 10G SFP+ ports |
| Total Ports |
30 ports |
| Console Port |
1 x RJ-45 console port |
| USB Port |
1 x USB 2.0 Type A port |
Performance
| Switching Capacity |
168 Gbps |
| Packet Forwarding Rate |
125 Mpps (64-byte packets) |
| Packet Buffer Memory |
2 MB |
| Jumbo Frame Support |
Up to 9,216 bytes |
| MAC Address Table |
16,000 entries |
| Stacking Bandwidth |
80 Gbps per device |
| Maximum Units per Stack |
9 units (324 ports maximum) |
| Stacking Cost |
1 per unit |
Layer 2 Features
| VLANs |
4,094 VLAN groups, 802.1Q VLAN tagging |
| Link Aggregation |
802.3ad LACP, up to 32 groups, 8 ports per group |
| Spanning Tree |
802.1D STP, 802.1w RSTP, 802.1s MSTP |
| Loop Protection |
Loopback Detection (LBD), Broadcast Storm Control |
| Ring Protection |
G.8032 ERPS with less than 50ms recovery time |
| Multicast |
IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping, ISM VLAN |
| Flow Control |
802.3x flow control, HOL blocking prevention |
Layer 3 Features
| Routing Protocols |
RIP v1/v2, RIPng, OSPFv2, OSPFv3 |
| Static Routing |
IPv4 and IPv6 static routes |
| IP Interfaces |
Up to 128 interfaces |
| VRRP |
Virtual Router Redundancy Protocol support |
| ARP |
ARP Proxy, static ARP entries |
| IPv6 Support |
Neighbor Discovery Protocol (ND), IPv6 routing |
Quality of Service
| QoS Queues |
8 queues per port |
| Scheduling |
Strict Priority, WRR, Deficit WRR |
| Classification |
802.1p CoS, DSCP, IP precedence |
| Traffic Shaping |
Per-port ingress/egress rate limiting |
| Bandwidth Control |
Per-flow bandwidth management |
Security Features
| Authentication |
802.1X (single/multiple hosts), RADIUS, TACACS+ |
| Access Control |
Web-based Access Control (WAC), MAC-based Access Control |
| IP-MAC-Port Binding |
IMPB with DHCP Snooping integration |
| Access Control Lists |
Multi-layer ACLs (L2/L3/L4), packet content filtering |
| Storm Control |
Broadcast, multicast, and unicast storm protection |
| DHCP Security |
DHCP Snooping, Option 82 support |
| Port Security |
MAC address learning limits per port |
| NAP Support |
Microsoft Network Access Protection |
| DoS Prevention |
D-Link Safeguard Engine protection |
| SSH/SSL |
Secure management protocols |
| Surge Protection |
6kV surge protection on all Gigabit Ethernet ports |
Management
| Web Interface |
Intuitive web-based GUI |
| Command Line |
Industry-standard CLI via console or Telnet/SSH |
| SNMP |
SNMPv1/v2c/v3 with MIB support |
| Management Utility |
D-Link Network Assistant (DNA) |
| Remote Monitoring |
RMON groups 1, 2, 3, 9 |
| Logging |
Syslog, local logging to USB storage |
| Configuration |
TFTP, HTTP, USB 2.0 |
| Firmware Upgrade |
Multiple software image support |
| NTP |
Network Time Protocol client |
Power & Environment
| Input Voltage |
100-240V AC, 50/60 Hz |
| Power Consumption |
30.69 W maximum |
| Heat Dissipation |
104.65 BTU/h |
| Redundant Power |
Optional DPS-500 external power supply |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Fan Noise |
Min: 33.5 dB / Max: 52.5 dB |
| MTBF |
900,546 hours |
Physical Specifications
| Dimensions (W x D x H) |
440 x 250 x 44 mm (17.3 x 9.8 x 1.7 inches) |
| Weight |
Approximately 3.5 kg (7.7 lbs) |
| Mounting |
19-inch rack-mount (1U), desktop with rubber feet |
| Certifications |
FCC Class A, CE, VCCI, C-Tick, NDAA Compliant |
Warranty & Support
| Warranty |
Limited Lifetime Warranty (with product registration) |
| Hardware Replacement |
Next Business Day (NBD) replacement service |
| Technical Support |
D-Link technical support for product lifetime |
Specifications are sourced from the manufacturer product page and may be updated.
