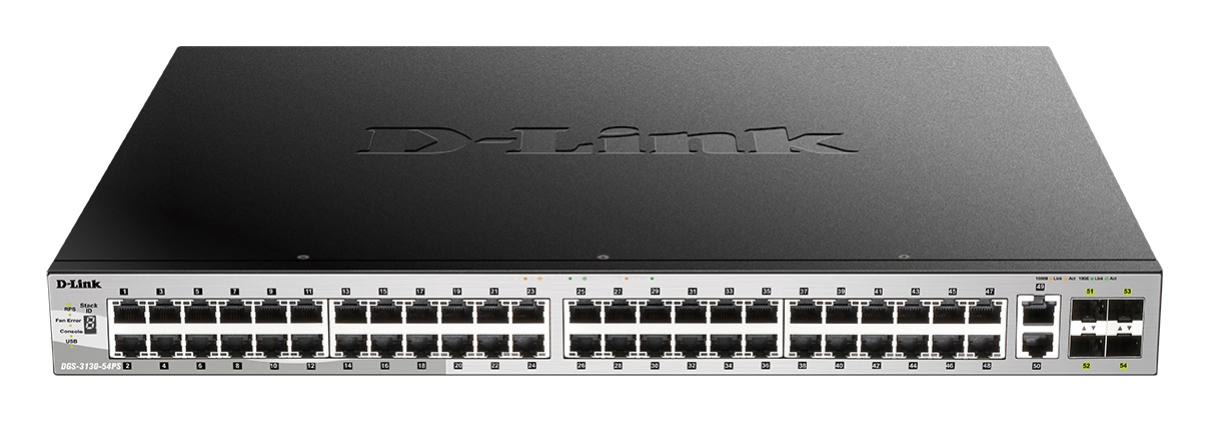

D-Link DGS-3130-54PS 54-Port Layer 3 Stackable Managed Gigabit PoE+ Switch
The D-Link DGS-3130-54PS is a powerful Lite Layer 3 stackable managed switch designed for enterprise and metro Ethernet access networks. With 48 Gigabit PoE+ ports, 2 x 10GbE copper ports, and 4 x 10G SFP+ uplinks, this switch delivers exceptional performance for high-bandwidth applications including IP surveillance, VoIP, wireless access points, and data center environments. Featuring a 370W PoE power budget (expandable to 740W with optional redundant power supply), advanced Layer 3 routing protocols, and robust security features, the DGS-3130-54PS is built to support mission-critical networks with maximum uptime and scalability.
Key Features
-
54 Total Ports: 48 Gigabit PoE+ ports, 2 x 10GBASE-T copper ports, and 4 x 10G SFP+ uplinks for flexible high-speed connectivity
-
370W PoE Power Budget: Supports up to 30W per port with IEEE 802.3af/at compliance, expandable to 740W with DPS-700 redundant power supply
-
Stackable Design: Stack up to 6 units (DGS-3130-54 series) with 80Gb stacking bandwidth for seamless network expansion
-
Layer 3 Routing: Advanced routing protocols including OSPF, RIP, static routing, and VRRP for optimized traffic management
-
6kV Surge Protection: Built-in surge protection on all Gigabit Ethernet ports protects against electrical spikes and lightning strikes
-
Enterprise-Grade Security: Multi-layer ACL, 802.1X authentication, DHCP snooping, and IP-MAC-Port binding for comprehensive network protection
High-Performance Power over Ethernet
The DGS-3130-54PS delivers Power over Ethernet Plus (PoE+) across all 48 Gigabit ports, providing up to 30W per port to power demanding devices such as PTZ IP cameras, high-performance wireless access points, VoIP phones, and digital signage. The 370W total PoE budget ensures reliable power delivery to multiple devices simultaneously, while support for the optional DPS-700 redundant power supply doubles the budget to 740W for even greater capacity. Advanced PoE features include Perpetual PoE for uninterrupted power during switch reboots and Fast PoE for rapid device startup without waiting for the operating system to fully boot.
10 Gigabit Uplink Connectivity
Equipped with 6 x 10 Gigabit ports (2 x 10GBASE-T copper and 4 x 10G SFP+ fiber), the DGS-3130-54PS provides high-speed uplink connections to core switches and servers. The combination of copper and fiber uplink options delivers maximum flexibility for network design, enabling businesses to extend their networks over long distances using fiber optic cabling while maintaining ultra-fast data transfer rates for bandwidth-intensive applications like video streaming, large file transfers, and cloud services.
Stackable Architecture for Scalability
Physical stacking allows multiple DGS-3130 switches to operate as a single logical unit, simplifying management and increasing port density. The DGS-3130-54PS supports stacking of up to 6 units with 80Gb stacking bandwidth, providing up to 324 total Gigabit ports in a single stack. Stacking delivers automatic failover, hot-swapping capability, and seamless traffic rerouting during failures, ensuring maximum network uptime and resilience for mission-critical environments.
Advanced Layer 3 Routing & Traffic Management
The DGS-3130-54PS includes comprehensive Layer 3 lite routing capabilities with support for dynamic routing protocols such as OSPFv2/v3, RIP/RIPng, and static routing. These features enable efficient inter-VLAN routing and optimized traffic flow across complex network topologies. Advanced QoS and traffic shaping ensure that latency-sensitive applications like VoIP, video conferencing, and IPTV receive priority bandwidth, while IGMP/MLD snooping optimizes multicast traffic for IPTV and multimedia streaming applications.
Enterprise Security & Network Protection
Security is paramount in the DGS-3130-54PS design. The switch incorporates multi-layer Access Control Lists (ACL), 802.1X port-based authentication, RADIUS support, and IP-MAC-Port Binding (IMPB) with DHCP snooping to prevent unauthorized access and network attacks. Additional security features include storm control, broadcast storm protection, and support for Microsoft Network Access Protection (NAP). The D-Link Safeguard Engine protects the CPU from malicious traffic attacks, ensuring stable operation even under heavy load.
High Availability & Redundancy
Built for networks that demand maximum uptime, the DGS-3130-54PS supports redundant power supply options and incorporates reliability features including 802.1D/w/s Spanning Tree protocols, G.8032 Ethernet Ring Protection Switching (ERPS) with 50ms recovery time, Loopback Detection, and 802.3ad Link Aggregation for load sharing and redundancy backup. These features work together to eliminate single points of failure and maintain continuous network operation.
Universal Connectivity
- 48 x 10/100/1000BASE-T Gigabit PoE+ ports (IEEE 802.3af/at, up to 30W per port)
- 2 x 10GBASE-T copper ports for high-speed uplinks
- 4 x 10G SFP+ fiber uplink ports for long-distance connectivity
- 1 x USB 2.0 port for configuration backup and firmware upgrades
- 1 x Console port (RJ-45) for CLI management
Flexible Management Options
The DGS-3130-54PS offers versatile management through Web-based GUI, Command Line Interface (CLI), SNMP v1/v2c/v3, and Telnet/SSH. The switch supports RMON for comprehensive network monitoring and features a Surveillance Mode user interface optimized for IP camera deployments. Optional integration with D-View network management software provides centralized control and monitoring across large-scale deployments.
What's in the Box
- D-Link DGS-3130-54PS 54-Port Managed PoE+ Switch
- Power cord
- Rack-mount brackets
- Console cable (RJ-45 to DB-9)
- Quick Installation Guide
Full Specifications
Hardware
| Total Ports |
54 ports (48 x Gigabit PoE+, 2 x 10GBASE-T, 4 x 10G SFP+) |
| Gigabit PoE+ Ports |
48 x 10/100/1000BASE-T (IEEE 802.3af/at) |
| 10GbE Copper Ports |
2 x 10GBASE-T |
| 10G SFP+ Uplink Ports |
4 x 10G SFP+ |
| PoE Standard |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| PoE Power Budget |
370W (expandable to 740W with DPS-700 RPS) |
| Max Power per Port |
30W |
| Switching Capacity |
216 Gbps |
| Forwarding Rate |
160.71 Mpps |
| Weight |
5.14 kg (11.3 lbs) |
| Dimensions (W x D x H) |
440 x 350 x 44 mm (17.3 x 13.8 x 1.7 inches) |
| Form Factor |
1U 19-inch rackmount |
Layer 3 Features
| Routing Protocols |
Static routing, RIP v1/v2, RIPng, OSPFv2, OSPFv3 |
| IP Interfaces |
Up to 128 |
| Redundancy Protocol |
VRRP (Virtual Router Redundancy Protocol) |
| Multicast Routing |
IGMP v1/v2/v3, MLD v1/v2, PIM-DM |
Layer 2 Features
| VLANs |
Up to 4094 802.1Q VLANs |
| Spanning Tree |
802.1D STP, 802.1w RSTP, 802.1s MSTP |
| Link Aggregation |
802.3ad LACP, up to 32 groups |
| IGMP Snooping |
IGMP v1/v2/v3, up to 1024 multicast groups |
| Ring Protection |
G.8032 ERPS (50ms recovery) |
| Loopback Detection |
Yes |
Security
| Access Control |
802.1X port-based authentication, RADIUS, TACACS+ |
| ACL Support |
MAC-based, IP-based, packet content filtering |
| Network Protection |
IP-MAC-Port Binding, DHCP snooping, ARP spoofing prevention |
| Storm Control |
Broadcast, multicast, unicast storm control |
| Surge Protection |
6 kV on all Gigabit Ethernet ports |
| CPU Protection |
D-Link Safeguard Engine |
Stacking & Redundancy
| Stacking Technology |
Physical stacking via 10G SFP+ ports |
| Max Stack Units |
6 units (DGS-3130-54 series) |
| Stacking Bandwidth |
80 Gbps |
| Max Ports per Stack |
324 Gigabit ports |
| Redundant Power |
DPS-700 (optional) |
Quality of Service
| QoS Support |
802.1p CoS, DSCP |
| Traffic Prioritization |
8 hardware queues per port |
| Bandwidth Control |
Per-port ingress/egress rate limiting |
| Traffic Shaping |
WRR, Strict Priority, Hybrid |
Management
| Management Interface |
Web GUI, CLI, Telnet, SSH, SNMP v1/v2c/v3 |
| Monitoring |
RMON v1/v2, sFlow, port mirroring |
| Configuration Backup |
USB 2.0 port for file storage |
| Central Management |
D-View (optional), Nuclias Connect (optional) |
| Surveillance Mode |
Yes, ONVIF-compatible |
Power & Environment
| Input Voltage |
100-240V AC, 50/60 Hz |
| Power Consumption |
Maximum 500W (without PoE load) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Cooling |
Smart fan with temperature monitoring |
Standards & Certifications
| Compliance |
FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC |
| Warranty |
Limited Lifetime Warranty (with registration) |
| NDAA Compliant |
Yes |
Specifications are sourced from the manufacturer product page and may be updated.
