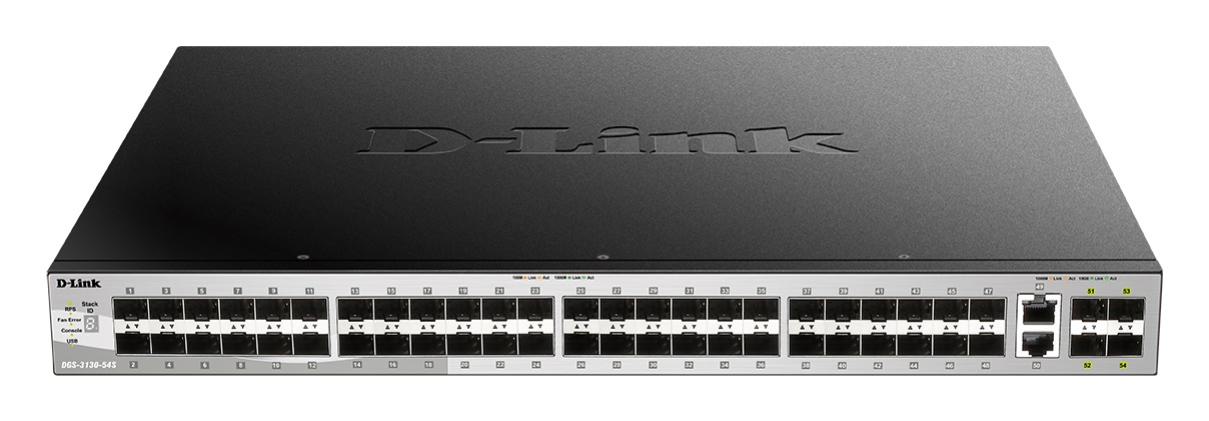

D-Link DGS-3130-54S 48-Port Gigabit SFP Managed Switch with 10GbE Uplinks
The D-Link DGS-3130-54S is a high-performance Lite Layer 3 stackable managed switch designed for secure enterprise and metro Ethernet access networks. Featuring 48 Gigabit SFP ports and 6 x 10GbE uplink ports (2 x 10GBASE-T copper and 4 x 10G SFP+), this switch delivers exceptional flexibility for fiber-based deployments with 216 Gbps switching capacity and 161 Mpps forwarding rate. Perfect for businesses requiring scalable, high-bandwidth network infrastructure with advanced Layer 3 routing capabilities.
Key Features
-
48 Gigabit SFP Ports: Fiber-based connectivity for long-distance, high-speed network connections
-
6 x 10GbE Uplink Ports: 2 x 10GBASE-T and 4 x 10G SFP+ ports for high-speed core network connectivity
-
Stackable Design: Stack up to 9 units with 80G stacking bandwidth for a maximum of 324 ports
-
Layer 3 Routing: Static routing, RIP/RIPng, and OSPFv2/v3 for advanced traffic management
-
6kV Surge Protection: Built-in protection on all Gigabit Ethernet ports
-
Redundant Power Supply Support: External RPS support for maximum uptime
Enterprise-Grade Performance
The DGS-3130-54S delivers 216 Gbps switching capacity and 161 Mpps packet forwarding rate, ensuring smooth handling of bandwidth-intensive applications. The switch features a 4 MB packet buffer to prevent packet loss during traffic bursts, making it ideal for IP surveillance, VoIP, video conferencing, and IPTV deployments.
Advanced Layer 3 Functionality
Built with powerful Layer 2 and Layer 3 features in a unified software image, the DGS-3130-54S supports dynamic routing protocols including RIP/RIPng and OSPFv2/v3, along with static routing and VRRP for network redundancy. Support for up to 128 IP interfaces enables efficient inter-VLAN routing and network segmentation.
Stackable and Scalable
Physical stacking allows up to 9 units to be stacked over fiber, creating a unified system with up to 324 Gigabit ports and 80 Gbps stacking bandwidth. The DGS-3130-54S uses a stacking cost of 2 per unit, allowing a maximum of 6 units of the 54-port models per stack (or mixed with 30-port models up to a total stacking cost of 12).
Network Reliability and Protection
Ensure maximum uptime with G.8032 Ethernet Ring Protection Switching (ERPS) for 50ms recovery times, dual power input support with external redundant power supply capability (DPS-500), and comprehensive Spanning Tree Protocol support (802.1D/w/s). Built-in 6 kV surge protection on all Gigabit Ethernet ports protects against lightning strikes and electrical surges without requiring external protection devices.
Comprehensive Security Features
Advanced security includes 802.1X authentication, Web-based Access Control (WAC), MAC-based Access Control, IP-MAC-Port Binding (IMPB) with DHCP Snooping, and support for Microsoft NAP (Network Access Protection). Multi-layer ACLs and Storm Control provide additional protection against network threats and broadcast storms.
Quality of Service (QoS)
Prioritize critical network traffic with multi-layer QoS/CoS features including Traffic Shaping, L2 Multicast support, Host-based IGMP/MLD Snooping, and ISM VLAN. These features ensure VoIP calls, video conferences, and IP surveillance streams receive the bandwidth and priority they need.
Management Options
Manage the switch using an intuitive multilingual web-based interface, industry-standard Command-Line Interface (CLI), or SNMP. The switch includes a USB 2.0 port for convenient boot image uploads, configuration file management, and syslog file storage. Support for multiple software images and configurations enables risk-free configuration testing.
What's in the Box
- D-Link DGS-3130-54S Switch
- Power Cord
- Console Cable
- Rack Mount Kit
- Quick Installation Guide
- Warranty Card
Full Specifications
Hardware
| Total Ports |
54 ports |
| Gigabit SFP Ports |
48 x 1000BASE-X SFP |
| 10G Copper Ports |
2 x 10GBASE-T |
| 10G Fiber Ports |
4 x 10G SFP+ |
| Console Port |
1 x RJ-45 |
| USB Port |
1 x USB 2.0 |
Performance
| Switching Capacity |
216 Gbps |
| Packet Forwarding Rate |
161 Mpps (64-byte packets) |
| Packet Buffer Memory |
4 MB |
| Stacking Bandwidth |
80 Gbps per device |
| Maximum Stack Units |
Up to 9 units (6 units for 54-port models) |
| Stacking Cost |
2 per unit |
Layer 2 Features
| VLAN |
4K VLANs, Port-based, 802.1Q tag-based |
| Spanning Tree |
802.1D STP, 802.1w RSTP, 802.1s MSTP |
| Link Aggregation |
802.3ad LACP |
| IGMP Snooping |
IGMPv1/v2/v3, MLD v1/v2 |
| Multicast |
L2 Multicast, ISM VLAN |
| Ring Protection |
G.8032 ERPS (50ms recovery) |
| Loopback Detection |
Yes |
| Flow Control |
802.3x |
Layer 3 Features
| IP Interfaces |
Up to 128 |
| Static Routing |
IPv4/IPv6 |
| Dynamic Routing |
RIP/RIPng, OSPFv2/v3 |
| VRRP |
Yes |
| ARP |
Static ARP, ARP Proxy |
| IPv6 |
Neighbor Discovery Protocol (ND) |
Quality of Service
| QoS Queues |
8 queues per port |
| Scheduling |
Strict Priority, WRR, Hybrid |
| Traffic Shaping |
Per-port ingress/egress rate limiting |
| Classification |
802.1p, DSCP, IP Precedence |
Security
| Authentication |
802.1X, Web-based (WAC), MAC-based |
| Access Control Lists |
IPv4/IPv6 ACL, MAC ACL |
| DHCP Security |
DHCP Snooping |
| IP-MAC-Port Binding |
Yes (IMPB) |
| Storm Control |
Broadcast, Multicast, Unicast |
| Port Security |
MAC address learning limit |
| Microsoft NAP |
Supported |
| Surge Protection |
6 kV on all Gigabit Ethernet ports |
Management
| Web Interface |
Yes (multilingual) |
| CLI |
Industry-standard Command-Line Interface |
| SNMP |
v1/v2c/v3 |
| RMON |
Groups 1, 2, 3, 9 |
| Configuration Backup |
USB 2.0, TFTP |
| Firmware Upgrade |
Multiple software images supported |
| Syslog |
Yes |
Power
| Input Voltage |
100-240 VAC, 50-60 Hz |
| Maximum Power Consumption |
131 W |
| Heat Dissipation |
446.99 BTU/h |
| Redundant Power Supply |
Optional (DPS-500A supported) |
Physical
| Dimensions (W x D x H) |
440 x 280 x 44 mm (17.3 x 11 x 1.73 inches) |
| Weight |
4.52 kg (9.96 lbs) |
| Form Factor |
1U 19-inch rack-mountable |
| Fan |
Smart fan (speed adjusts based on temperature) |
| MTBF |
520,861 hours |
Environmental
| Operating Temperature |
0° to 50°C (32° to 122°F) |
| Storage Temperature |
-40° to 70°C (-40° to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Acoustic Noise |
Maximum: 54 dB / Minimum: 37.5 dB |
Standards and Certifications
| IEEE Standards |
802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3an, 802.1D, 802.1w, 802.1s, 802.1Q, 802.1p, 802.3x, 802.3ad, 802.1X |
| Safety |
UL, cUL, CE, FCC, VCCI |
| EMI |
FCC Class A, CE Class A, VCCI Class A |
Warranty
| Warranty Period |
Limited Lifetime Warranty (registration required) |
Specifications are sourced from the manufacturer product page and may be updated.
