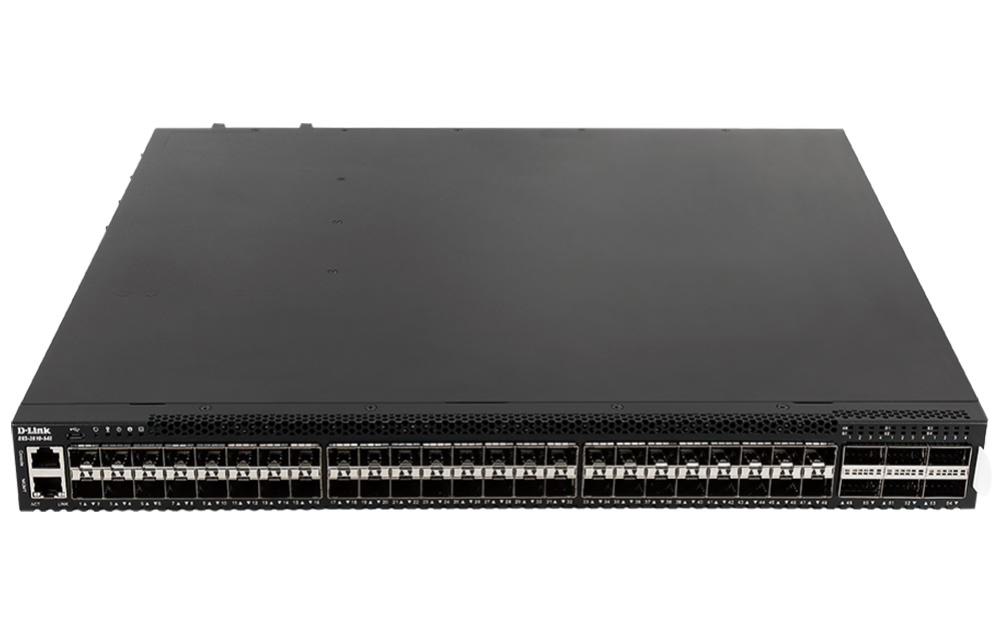

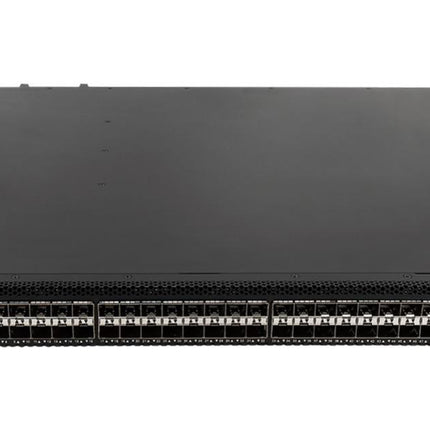

D-Link DGS-3130-54S Layer 3+ Stackable Managed Gigabit Fiber Switch
The D-Link DGS-3130-54S is a high-performance Lite Layer 3 stackable managed switch designed for enterprise networks, data centers, and metro Ethernet deployments. With 48 Gigabit SFP fiber ports, 2 x 10GBASE-T copper ports, and 4 x 10G SFP+ fiber uplink ports, this switch delivers exceptional flexibility and scalability for growing network infrastructures. Ideal for fiber-based networks requiring long-distance connectivity, advanced Layer 3 routing, and robust security features.
Why You'll Love the DGS-3130-54S
-
48 Gigabit SFP Fiber Ports: Perfect for high-speed, long-distance fiber connectivity across enterprise and metro Ethernet applications
-
6 x 10 Gigabit Uplink Ports: Includes 2 x 10GBASE-T and 4 x 10G SFP+ ports for ultra-fast uplink connections to core networks
-
Advanced Layer 3 Routing: Supports RIP, OSPFv2/v3, static routing, and VRRP for intelligent traffic management and network redundancy
-
Stackable Design: Stack up to 9 units with 80G stacking bandwidth for seamless network expansion and centralized management
-
Built-in 6kV Surge Protection: Protects all Gigabit Ethernet ports from electrical surges without external protection
-
Lifetime Warranty: D-Link's industry-leading limited lifetime warranty with Next Business Day hardware replacement (upon registration)
Fiber-Optimized Connectivity for Enterprise Networks
The DGS-3130-54S features 48 SFP Gigabit ports for flexible fiber-based connectivity, making it ideal for environments requiring long-distance, high-speed data transmission. Whether you're connecting remote buildings, deploying IP surveillance systems, or building a metro Ethernet network, this switch offers the reliability and performance you need.
The 6 x 10 Gigabit uplink ports (2 x 10GBASE-T and 4 x 10G SFP+) provide high-bandwidth connections to core switches and aggregation layers, ensuring smooth data flow even in the most demanding network environments.
Advanced Layer 3 Routing and Traffic Management
Equipped with dynamic Layer 3 routing protocols including RIP, OSPFv2/v3, static routing, and VRRP, the DGS-3130-54S enables intelligent traffic management across VLANs and network segments. This makes it ideal for enterprises that require efficient routing, load balancing, and network redundancy.
Support for up to 128 IP interfaces, IGMP filtering, and ARP proxy ensures comprehensive control over IP traffic, while multi-layer QoS/CoS prioritizes critical services such as VoIP, video conferencing, IPTV, and IP surveillance.
Scalable Stacking for Growing Networks
The DGS-3130-54S supports physical stacking of up to 9 units over fiber, with 80G stacking bandwidth. This allows you to scale your network on demand while maintaining centralized management through D-Link Single IP Management (SIM). Stackable design is perfect for network administrators who need agile expansion without sacrificing reliability.
Enterprise-Grade Reliability and Security
Built for mission-critical environments, the DGS-3130-54S includes:
-
Redundant Power Supply Support: Optional DPS-500 external redundant power supply for maximum uptime
-
G.8032 Ethernet Ring Protection Switching (ERPS): Minimizes recovery time to under 50ms in case of link failure
-
6kV Surge Protection: Built-in protection on all Gigabit Ethernet ports against lightning strikes and electrical surges
-
802.1X, WAC, and MAC-based Access Control: Multiple authentication mechanisms for strict network access control
-
IP-MAC-Port Binding: Enhanced security by binding IP addresses to specific MAC addresses and ports
Universal Connectivity
- 48 x Gigabit SFP fiber ports
- 2 x 10GBASE-T copper ports
- 4 x 10G SFP+ fiber uplink ports
- 1 x 10/100/1000BASE-T RJ-45 port for out-of-band CLI management
- 1 x 10/100/1000BASE-T RJ-45 port for out-of-band IP management
- 1 x USB 2.0 Type A port for booting images, configuration files, and syslog storage
- 1 x Console port (RJ-45)
What's in the Box
- D-Link DGS-3130-54S switch
- Power cord
- Rack-mount kit
- Console cable (RJ-45 to DB-9)
- Quick installation guide
Full Specifications
Port Configuration
| 48 x Gigabit SFP Fiber Ports |
1000BASE-X |
| 2 x 10GBASE-T Ports |
10/100/1000/10000 Mbps |
| 4 x 10G SFP+ Uplink Ports |
10G fiber |
| Total Ports |
54 |
Performance
| Switching Capacity |
216 Gbps |
| Packet Forwarding Rate |
161 Mpps (64-byte packets) |
| Packet Buffer Memory |
4 MB |
| Stacking Bandwidth |
80 Gbps |
| Maximum Units per Stack |
6 units (stacking cost = 2 per unit) |
Layer 2 Features
| VLAN Support |
Yes (802.1Q, up to 4K VLANs) |
| Link Aggregation |
IEEE 802.3ad dynamic LACP |
| Spanning Tree Protocol |
802.1D STP, 802.1w RSTP, 802.1s MSTP |
| Ethernet Ring Protection |
G.8032 ERPS (<50ms recovery) |
| IGMP Snooping |
IGMPv1/v2/v3, MLD v1/v2 |
| Loopback Detection |
Yes |
| Broadcast Storm Control |
Yes |
Layer 3 Features
| Routing Protocols |
RIP, RIPng, OSPFv2, OSPFv3, Static Routing |
| VRRP |
Virtual Router Redundancy Protocol |
| IP Interfaces |
Up to 128 |
| ARP Proxy |
Yes |
| IPv6 Support |
Neighbor Discovery (ND), DHCPv6 |
Security
| Access Control |
802.1X, Web-based Access Control (WAC), MAC-based Access Control |
| IP-MAC-Port Binding |
Yes (up to 500 entries) |
| DHCP Snooping |
Yes |
| Port Security |
Yes |
| Access Control Lists (ACL) |
Multi-layer and packet content ACLs |
| Microsoft NAP Support |
Yes |
| RADIUS & TACACS+ |
Yes |
Quality of Service (QoS)
| QoS Support |
Multi-layer QoS/CoS |
| Traffic Classification |
802.1p, DSCP-based |
| Traffic Shaping |
Yes |
| Priority Queues |
8 queues per port |
Management
| Web-based GUI |
Yes (multilingual) |
| CLI |
Industry-standard command-line interface |
| SNMP |
v1/v2c/v3 |
| D-Link Single IP Management |
Yes (SIM) |
| RMON |
4 groups |
| syslog |
Yes |
| USB Storage |
Boot images, configuration files, syslog |
Power & Environment
| Power Input |
AC 100-240V, 50/60Hz |
| Power Consumption |
131 W (max) |
| Redundant Power Supply |
DPS-500 (optional) |
| Operating Temperature |
0°C to 50°C |
| Operating Humidity |
10% to 90% (non-condensing) |
| MTBF |
520,861 hours |
| Fan Noise |
Max: 54 dB / Min: 37.5 dB |
Physical Specifications
| Dimensions (W x D x H) |
440 x 350 x 44 mm |
| Weight |
4.52 kg |
| Form Factor |
1U rack-mountable |
Certifications & Warranty
| EMI |
FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC |
| Safety |
UL, cUL, CB, CCC, BSMI |
| Warranty |
Limited Lifetime Warranty (with registration) |
Specifications are sourced from the manufacturer product page and may be updated.
