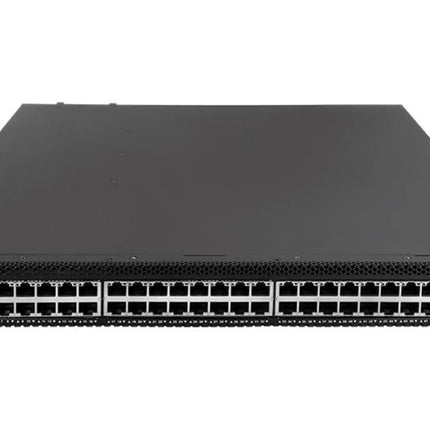

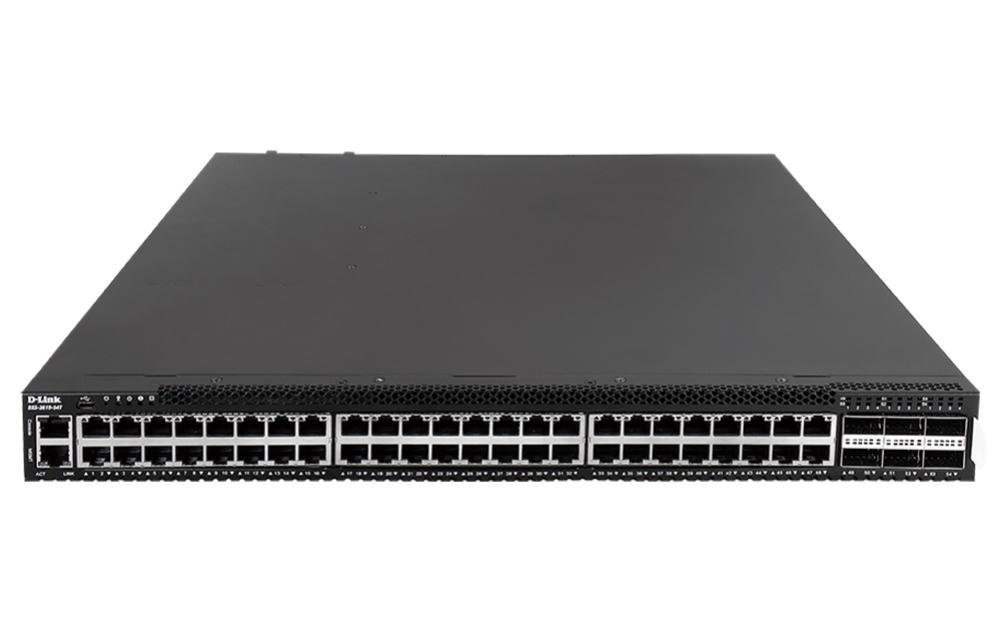

D-Link DGS-3130-54TS 54-Port Layer 3 Stackable Managed Gigabit Switch
The D-Link DGS-3130-54TS is a powerful Lite Layer 3 Stackable Managed Switch designed specifically for secure enterprise and metro Ethernet access networks. Featuring 48 Gigabit Ethernet ports, 2 x 10GBASE-T ports, and 4 x 10G SFP+ uplink ports, this switch delivers exceptional performance with 216 Gbps switching capacity and 161 Mpps packet forwarding rate. Ideal for network administrators who demand scalable, reliable, and high-performance networking solutions for business environments.
Key Features
-
54 Total Ports: 48 x 10/100/1000BASE-T Gigabit Ethernet ports plus 6 x 10G uplink ports (2 x 10GBASE-T and 4 x 10G SFP+) for versatile, high-speed connectivity
-
Advanced Layer 3 Routing: Supports RIP/RIPng, OSPFv2/v3, static routing, and VRRP for efficient traffic management and network redundancy
-
Stackable Design: Stack up to 9 units with 80 Gbps stacking bandwidth for flexible network expansion and scalability
-
Enterprise-Grade Security: Features 802.1X authentication, IP-MAC-Port Binding, DHCP Snooping, ACLs, and comprehensive access control
-
Built-in 6kV Surge Protection: Protects all Gigabit Ethernet ports against electrical surges and lightning strikes
-
High Availability: Redundant power supply support (DPS-500), G.8032 ERPS with 50ms recovery time, and multiple spanning tree protocols
Superior Performance and Scalability
With a 216 Gbps switching capacity and 161 Mpps forwarding rate, the DGS-3130-54TS handles demanding network traffic with ease. The switch supports physical stacking of up to 9 units over fiber, providing up to 324 ports in a single stack with 80 Gbps stacking bandwidth. This makes it perfect for growing enterprise networks that require agile expansion without sacrificing reliability.
Advanced Layer 3 Capabilities
The DGS-3130-54TS delivers comprehensive Layer 2 and Layer 3 features in a unified software image. Dynamic routing protocols including RIP/RIPng and OSPFv2/v3 enable intelligent traffic management, while VLAN support, QoS/CoS, and traffic shaping ensure critical applications like VoIP, video conferencing, and IP surveillance receive priority treatment. Advanced multicast features including IGMP/MLD Snooping and ISM VLAN optimize bandwidth usage for IPTV and streaming applications.
Enterprise Security and Network Protection
Security is paramount with support for 802.1X, Web-based Access Control (WAC), and MAC-based Access Control, allowing individual policies for each authenticated host. The switch features IP-MAC-Port Binding with DHCP Snooping, multi-layer ACLs, storm control, and DoS attack prevention. Built-in 6kV surge protection on all Gigabit Ethernet and RJ-45 ports safeguards against electrical damage.
Maximum Uptime and Reliability
Designed for mission-critical environments, the DGS-3130-54TS supports external redundant power supply (DPS-500) and features G.8032 Ethernet Ring Protection Switching (ERPS) with 50ms recovery time. Multiple spanning tree protocols (STP, RSTP, MSTP), loopback detection, and 802.3ad link aggregation provide comprehensive network resilience and load sharing capabilities.
10 Gigabit Uplink Connectivity
Six dedicated 10 Gigabit ports eliminate network bottlenecks and provide high-speed connections to core infrastructure. The switch includes 2 x 10GBASE-T copper ports and 4 x 10G SFP+ fiber ports, offering flexibility for both copper and fiber-based uplinks. This versatile connectivity supports long-distance fiber connections and high-speed copper links to servers and storage devices.
Flexible Management Options
Manage the DGS-3130-54TS through multiple interfaces including an intuitive multilingual web-based GUI, industry-standard CLI, SNMP, and RMON. The switch features a USB 2.0 port for convenient configuration file backup, firmware uploads, and syslog storage. Optional D-View Network Management Software enables centralized management of multiple switches across your network.
Energy-Efficient Design
Incorporating D-Link Green technology, the switch features Energy-Efficient Ethernet (IEEE 802.3az), intelligent port shut-off, and system hibernation to reduce power consumption without compromising performance. Smart fan control adjusts cooling based on temperature, extending component lifetime while maintaining quiet operation.
Quality of Service and Traffic Prioritization
A comprehensive suite of QoS/CoS features ensures bandwidth-intensive and latency-sensitive applications receive optimal treatment. Support for Auto Surveillance VLAN and Auto Voice VLAN simplifies deployment in video surveillance and VoIP environments. Traffic shaping, bandwidth control, and eight priority queues guarantee performance for mission-critical services.
What's in the Box
- D-Link DGS-3130-54TS Switch
- AC power cord
- Rack-mounting brackets and screws
- Console cable
- Quick Installation Guide
Full Specifications
Hardware
| Total Ports |
54 ports |
| Gigabit Ethernet Ports |
48 x 10/100/1000BASE-T RJ-45 ports |
| 10G Copper Ports |
2 x 10GBASE-T RJ-45 ports |
| 10G Fiber Ports |
4 x 10G SFP+ ports |
| Console Port |
RJ-45 or Mini-USB |
| USB Port |
1 x USB 2.0 Type A |
Performance
| Switching Capacity |
216 Gbps |
| Packet Forwarding Rate |
161 Mpps (64-byte packets) |
| Packet Buffer Memory |
4 MB |
| MAC Address Table |
32,000 entries |
| Jumbo Frame Support |
Up to 9,216 bytes |
Stacking
| Maximum Stack Units |
Up to 9 units (or 6 units of 54-port models) |
| Stacking Bandwidth |
80 Gbps |
| Stacking Cost |
2 per unit (54-port models) |
| Maximum Stack Ports |
324 ports (9 units) |
Layer 2 Features
| VLANs |
4,094 VLANs, 802.1Q VLAN tagging |
| Spanning Tree |
802.1D STP, 802.1w RSTP, 802.1s MSTP |
| Link Aggregation |
802.3ad LACP, up to 32 groups |
| IGMP Snooping |
v1/v2/v3, up to 2,048 multicast groups |
| Loopback Detection |
Yes |
| ERPS |
ITU-T G.8032 (50ms recovery) |
Layer 3 Features
| Static Routing |
IPv4/IPv6 |
| Dynamic Routing |
RIP v1/v2, RIPng, OSPFv2, OSPFv3 |
| IP Interfaces |
Up to 128 |
| VRRP |
IPv4/IPv6 redundancy |
| IPv6 Support |
Neighbor Discovery, IPv6 ACL, DHCPv6 |
Security
| Access Control |
802.1X, MAC-based, Web-based (WAC) |
| IP-MAC-Port Binding |
IMPB with DHCP Snooping |
| ACLs |
Layer 2/3/4, up to 6,000 rules |
| DHCP Security |
DHCP Snooping, Option 82 |
| Port Security |
MAC address limiting per port |
| Storm Control |
Broadcast, multicast, unknown unicast |
| Surge Protection |
6kV on all GE and RJ-45 ports |
Quality of Service
| Priority Queues |
8 queues per port |
| QoS Classification |
802.1p CoS, DSCP, IP precedence |
| Scheduling |
SP, WRR, Strict + WRR |
| Bandwidth Control |
Per port ingress/egress rate limiting |
| Auto VLANs |
Auto Surveillance VLAN, Auto Voice VLAN |
Management
| Management Interfaces |
Web GUI, CLI, Telnet, SSH, SNMP v1/v2c/v3 |
| Configuration |
Multiple config files, USB backup |
| Monitoring |
RMON v1/v2/v3/v9, port mirroring, sFlow |
| Firmware Upgrade |
TFTP, HTTP, USB |
| D-View Support |
Yes (optional) |
Power
| Input Voltage |
100-240V AC, 50/60 Hz |
| Maximum Power Consumption |
56.74W (typical) |
| Redundant Power Supply |
DPS-500 (optional) |
| MTBF |
478,258 hours |
Physical Specifications
| Dimensions (W x D x H) |
440 x 290 x 44 mm (17.3 x 11.4 x 1.7 inches) |
| Weight |
3.72 kg (8.20 lbs) |
| Rack Space |
1U (19-inch rack mountable) |
| Cooling |
1 x Smart fan |
Environmental
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
Certifications
| Safety & EMC |
FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC |
| Standards Compliance |
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3an |
| Warranty |
Limited Lifetime Warranty |
Specifications are sourced from the manufacturer product page and may be updated.
