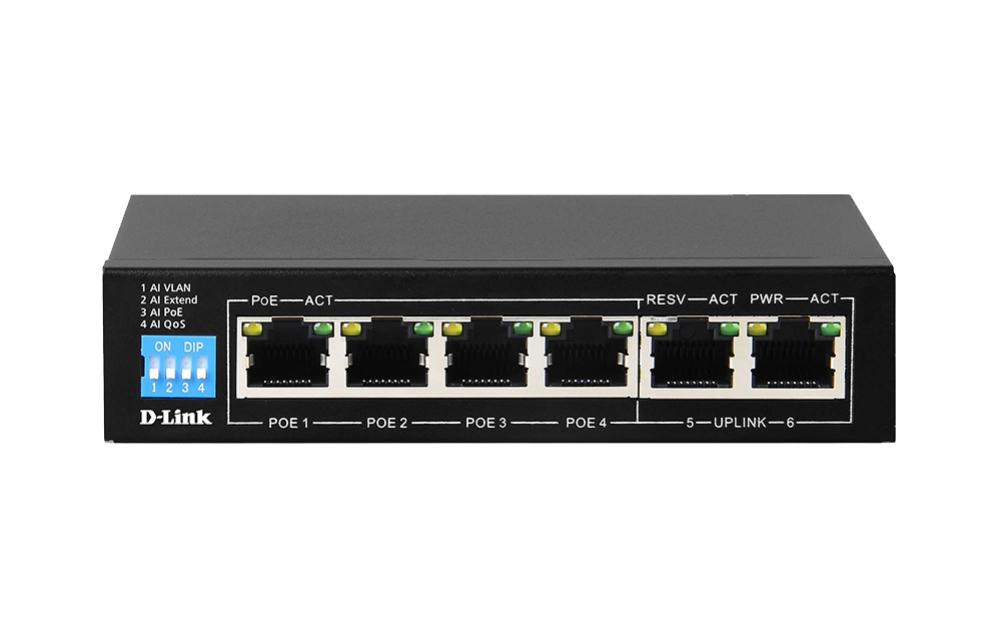

D-Link DGS-F1006P-E 6-Port Gigabit PoE+ Switch with 250m Long Reach
The D-Link DGS-F1006P-E is a powerful 6-port unmanaged Gigabit PoE+ switch designed for small businesses, home offices, and surveillance installations. Featuring 4 PoE+ ports with IEEE 802.3af/at compliance, this plug-and-play switch delivers up to 30W per port with a 60W total power budget. What sets this switch apart is its extended 250-meter PoE range, allowing you to power IP cameras, wireless access points, VoIP phones, and other PoE devices far beyond the standard 100m Ethernet limit. Built with a fanless design for silent operation and 6kV surge protection, it's ideal for both indoor and outdoor device deployments.
Key Features
-
Extended PoE Range: Innovative 250m PoE technology powers devices at distances up to 2.5 times further than standard Ethernet, perfect for remote cameras and access points
-
4 PoE+ Ports: IEEE 802.3af/at compliant ports deliver up to 30W per port with a 60W total power budget for simultaneous device powering
-
Gigabit Performance: 6 × 10/100/1000 Mbps ports (4 PoE + 2 uplink ports) ensure fast data transfer and smooth HD video streaming
-
Plug-and-Play Simplicity: Unmanaged switch requires no configuration - simply connect and power your devices instantly
-
Smart Operating Modes: DIP switch control for Extend mode (250m), VLAN mode (port isolation), QoS mode (video priority), and PoE auto-recovery
-
Rugged Protection: 6kV surge protection guards against lightning strikes and electrical surges, ideal for outdoor surveillance setups
Perfect for IP Surveillance and Business Networks
The DGS-F1006P-E excels in IP surveillance applications where cameras need to be installed at extended distances from the network infrastructure. The 250m PoE extend mode eliminates the need for additional power supplies or network extenders, dramatically reducing installation costs and complexity. For small business networks, the switch seamlessly powers wireless access points, VoIP phones, and other PoE devices while maintaining gigabit speeds for all connected equipment.
Flexible Operating Modes
Switch between four intelligent operating modes using the convenient DIP switch:
-
Extend Mode: Powers PoE devices up to 250 meters away at 10 Mbps (ports 1-4)
-
VLAN Mode: Isolates ports 1-4 from each other to suppress broadcast storms and improve network security
-
QoS Mode: Prioritizes video data packets for smoother IP camera streaming and recording
-
PoE Mode: Automatic PoE device detection with auto-recovery for unresponsive devices
Reliable and Silent Operation
Built with a fanless design, the DGS-F1006P-E operates silently, making it perfect for office environments, retail spaces, and homes. The compact metal housing ensures durability and efficient heat dissipation, while the lightweight design allows for flexible placement on desktops or wall mounting. Auto MDI/MDI-X support on all ports eliminates the need for crossover cables, and auto-negotiation intelligently adjusts port speeds for optimal compatibility.
Universal Connectivity
-
4 × 10/100/1000 Mbps Gigabit Ethernet PoE+ ports (IEEE 802.3af/at, up to 30W per port)
- 1 × 10/100/1000 Mbps Gigabit Ethernet uplink port
-
1 × SFP uplink port for fiber optic expansion
- All ports support Auto MDI/MDI-X and auto-negotiation
- Wire-speed filtering and store-and-forward switching
What's in the Box
- D-Link DGS-F1006P-E 6-Port Gigabit PoE+ Switch
- Power adapter
- Quick installation guide
Full Specifications
Hardware
| Total Ports |
6 × 10/100/1000 Mbps Gigabit Ethernet |
| PoE Ports |
4 × PoE+ ports (ports 1-4) |
| Uplink Ports |
1 × Gigabit Ethernet + 1 × SFP |
| Port Standards |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T |
Power over Ethernet
| PoE Standards |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| PoE Power Budget |
60W total |
| Power per Port |
Up to 30W per PoE port |
| Extended PoE Range |
Up to 250 meters (in Extend mode at 10 Mbps) |
Performance
| Switching Method |
Store-and-forward |
| Flow Control |
IEEE 802.3x flow control (full-duplex) |
| Auto MDI/MDI-X |
Yes, all ports |
| Auto-Negotiation |
Yes, all ports |
Smart Features
| Operating Modes |
Extend, VLAN, QoS, PoE (DIP switch selectable) |
| VLAN Function |
Port isolation (ports 1-4) to suppress network storms |
| QoS Function |
Video packet priority for smooth surveillance streaming |
| PoE Auto-Recovery |
Automatic detection and reboot of unresponsive PoE devices |
| Surge Protection |
6kV lightning and surge protection |
Physical & Environment
| Dimensions |
Compact desktop form factor |
| Weight |
0.75 kg |
| Housing |
Metal chassis |
| Cooling |
Fanless (silent operation) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
10% to 90% non-condensing |
Power
| Input |
External power adapter (included) |
| Total Power Budget |
60W for PoE + switch operation |
Specifications are sourced from the official manufacturer product page and may be updated.
