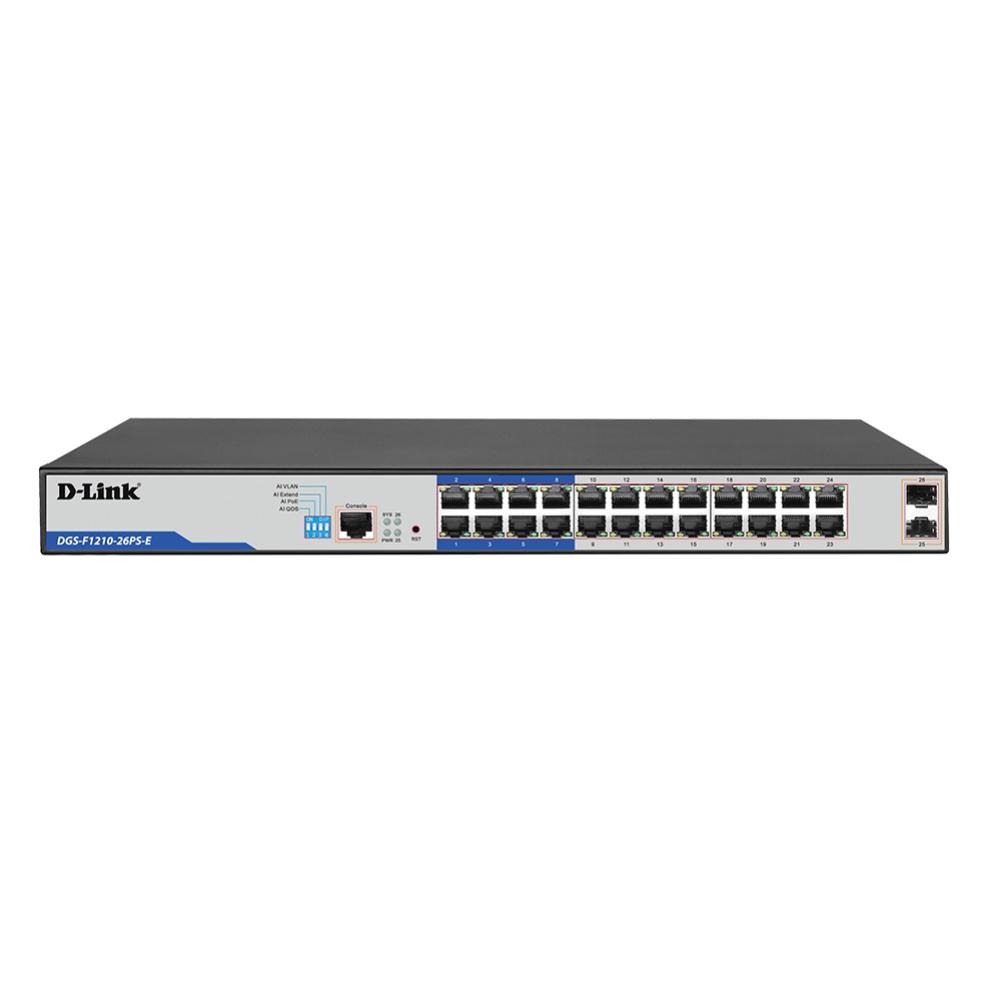

D-Link DGS-F1210-26PS-E 26-Port Gigabit PoE+ Smart Managed Switch with Long Range PoE
The D-Link DGS-F1210-26PS-E is a robust 26-port Gigabit smart managed switch designed for small to medium-sized businesses, surveillance installations, and enterprise networks. Featuring 24 10/100/1000 Mbps PoE+ ports and 2 Gigabit SFP uplink ports, this switch delivers seamless connectivity and power to PoE-enabled devices such as IP cameras, VoIP phones, wireless access points, and more. With a 250W total PoE power budget and long-range PoE support up to 250 meters, it's the ideal solution for expansive network deployments where devices are located far from traditional power sources.
Key Features
-
24 Gigabit PoE+ Ports: IEEE 802.3af/at compliant, delivering up to 30W per port for high-power devices
-
250W Total PoE Budget: Powers multiple PoE devices simultaneously without additional adapters
-
Long Range PoE Technology: Extends PoE transmission up to 250 meters on ports 1-8 using Cat5e or Cat6 cable
-
2 Gigabit SFP Ports: Flexible fiber uplink options for extended network reach
-
Advanced Layer 2 Management: VLAN support, QoS, ACLs, IGMP snooping, and static routing
-
52 Gbps Switching Capacity: High-speed backplane with 38.7 Mpps forwarding rate for lag-free performance
-
Multiple Operating Modes: DIP switches enable Extend, VLAN, QoS, and PoE watchdog modes
-
Rack-Mountable Design: Compact 1U form factor with included mounting brackets
Power Over Ethernet for Seamless Deployment
The DGS-F1210-26PS-E eliminates the need for dedicated power adapters by delivering both data and power over a single Ethernet cable. Supporting IEEE 802.3af (PoE) and 802.3at (PoE+) standards, the switch provides up to 30 watts per port with a total power budget of 250 watts. This makes it perfect for powering IP surveillance cameras, wireless access points, VoIP phones, and other network devices in locations where AC outlets are unavailable or impractical.
Long Range PoE for Extended Installations
One of the standout features of the DGS-F1210-26PS-E is its long-range PoE capability. Ports 1-8 support PoE transmission distances up to 250 meters when using Cat5e or Cat6 cable in Extend Mode, far exceeding the standard 100-meter Ethernet limit. This is especially beneficial for surveillance systems, outdoor wireless deployments, and campus networks where devices need to be installed across large areas.
Advanced Smart Managed Features
Designed for network administrators who need control without complexity, the DGS-F1210-26PS-E offers comprehensive Layer 2 management capabilities:
-
VLAN Support: Segment your network for improved security and traffic management
-
Quality of Service (QoS): Prioritize voice, video, and critical business applications
-
Access Control Lists (ACLs): Restrict access to sensitive network resources
-
IGMP Snooping: Optimize multicast traffic for video streaming and conferencing
-
Spanning Tree Protocol (STP/RSTP/MSTP): Prevent network loops and ensure redundancy
-
Link Aggregation (LACP): Combine multiple ports for increased bandwidth and failover protection
-
Port Mirroring: Monitor and troubleshoot network traffic in real-time
-
Static Routing (L2+): Enable inter-VLAN communication without a separate router
Flexible Operating Modes via DIP Switches
The DGS-F1210-26PS-E features convenient DIP switches that allow users to quickly configure the switch for specific use cases:
-
Extend Mode: Activates 250-meter long-range PoE on ports 1-8
-
VLAN Mode: Isolates ports 1-24 from each other to suppress broadcast storms and enhance performance
-
QoS Mode: Automatically prioritizes application traffic for VoIP and video
-
PoE Watchdog Mode: Detects unresponsive PoE devices and automatically power cycles them to restore connectivity
High-Performance Switching
With a 52 Gbps switching capacity and a packet forwarding rate of 38.7 Mpps, the DGS-F1210-26PS-E ensures smooth, high-speed data transfer across all ports. The switch supports IEEE 802.3x flow control to prevent data loss during periods of heavy traffic, and features auto MDI/MDIX on all ports for plug-and-play installation without crossover cables.
Reliable and Secure Design
Built with a durable metal housing and designed for continuous operation, the DGS-F1210-26PS-E includes 6kV surge protection on all ports to safeguard your network against electrical spikes and lightning strikes. The fanless design ensures silent, energy-efficient operation, making it suitable for office environments. Operating temperature ranges from 0°C to 40°C with up to 90% humidity tolerance.
Easy Management and Monitoring
The switch offers multiple management options including a web-based GUI, command-line interface (CLI) via console port, and SNMP support for integration with network management systems. LED indicators for Power, System, Link/Activity, and PoE status provide instant visual feedback on switch and port operation. The switch also supports Auto Voice VLAN and Surveillance Mode, which automatically detect and prioritize voice and video traffic.
Ideal for Surveillance and IP Camera Networks
The combination of high PoE power budget, long-range transmission, and surveillance-optimized features makes the DGS-F1210-26PS-E an excellent choice for IP camera installations. Connect up to 24 PoE cameras, prioritize video traffic with QoS, isolate camera ports with VLAN mode, and monitor system health remotely - all from a single, cost-effective switch.
Universal Connectivity
- 24 × 10/100/1000BASE-T Gigabit Ethernet ports with PoE+
- 2 × Gigabit SFP fiber uplink ports
- 1 × Console port (RJ45) for CLI management
- 1 × Reset button
What's in the Box
- DGS-F1210-26PS-E 26-Port Gigabit PoE+ Smart Managed Switch
- Power cord
- Rack-mount brackets and screws
- Console cable (RJ45 to DB9)
- Quick installation guide
Full Specifications
Hardware
| Model |
DGS-F1210-26PS-E |
| Total Ports |
26 ports |
| Gigabit Ethernet Ports |
24 × 10/100/1000BASE-T PoE+ |
| SFP Ports |
2 × Gigabit SFP (1000BASE-X) |
| Console Port |
1 × RJ45 |
| MAC Address Table |
8K entries |
| Switching Capacity |
52 Gbps |
| Packet Forwarding Rate |
38.7 Mpps |
Power over Ethernet
| PoE Standards |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| PoE Ports |
24 ports |
| Max Power per Port |
30W |
| Total PoE Power Budget |
250W |
| Long Range PoE |
Up to 250m on ports 1-8 (Extend Mode with Cat5e/Cat6) |
Management & Features
| Management Type |
Smart Managed (Layer 2+) |
| Management Interface |
Web GUI, CLI (Console/Telnet), SNMP v1/v2c/v3 |
| VLAN Support |
802.1Q VLAN, up to 256 VLANs |
| QoS |
802.1p priority queues, DSCP, rate limiting |
| Spanning Tree |
STP, RSTP, MSTP |
| Link Aggregation |
LACP (802.3ad), static trunking |
| IGMP |
IGMP v1/v2/v3 snooping |
| Security |
Access Control Lists (ACLs), 802.1X port authentication, MAC filtering |
| Static Routing |
Yes (L2+ feature) |
| DIP Switch Modes |
Extend, VLAN, QoS, PoE Watchdog |
Standards Compliance
| IEEE Standards |
802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3x flow control, 802.3af/at PoE |
| Auto-Negotiation |
Yes, all ports |
| Auto MDI/MDIX |
Yes, all ports |
Physical & Environmental
| Dimensions (W × D × H) |
440 × 180 × 44 mm (1U rack-mountable) |
| Weight |
3.2 kg |
| Power Input |
AC 100-240V, 50/60Hz |
| Power Consumption (Idle) |
18W |
| Max Power Consumption |
250W (with full PoE load) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% (non-condensing) |
| Cooling |
Fanless (passive cooling) |
| Surge Protection |
6kV on all ports |
| Mounting |
Desktop, rack-mount (1U, brackets included) |
| Housing |
Metal chassis |
LED Indicators
| Power |
Green (on), Off (no power) |
| System |
Green (normal), Amber (fault) |
| Link/Activity (per port) |
Green (link/activity), Off (no link) |
| PoE Status (per port) |
Red (PoE active), Off (no PoE) |
Specifications are sourced from the manufacturer product page and may be updated.
