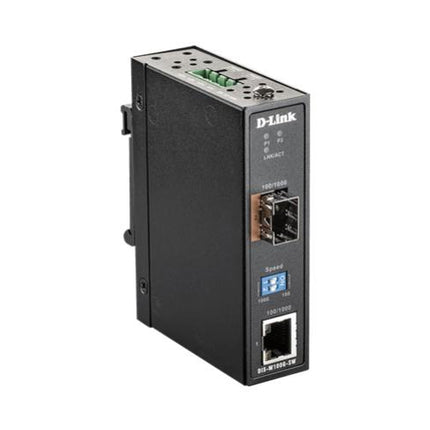

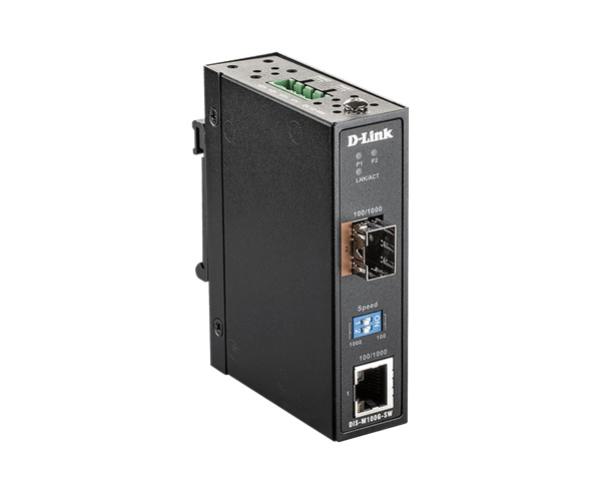

D-Link DIS-M100G-SW Industrial Gigabit Ethernet to Fiber Media Converter
The D-Link DIS-M100G-SW Industrial Media Converter transforms your 10/100/1000Base-T Ethernet connection into fiber optic connectivity, enabling ultra-fast long-distance network extensions up to 80 kilometers. Built for harsh industrial environments, this rugged converter features an IP30-rated metal housing, fanless design, and operates across an extreme temperature range from -40°C to 70°C. Perfect for industrial automation, transportation systems, outdoor surveillance networks, and telecommunications infrastructure where reliable, long-distance connectivity is critical.
Key Features
-
Gigabit Ethernet to Fiber Conversion: Converts 10/100/1000Base-T copper to 100/1000Base-X fiber via SFP port for flexible multimode or single-mode fiber deployment
-
Extreme Industrial Operating Range: Operates reliably in temperatures from -40°C to 70°C, certified for shock, freefall, and vibration resistance
-
IP30-Rated Rugged Housing: Highly-resistant metal casing protects against harsh environmental conditions and electromagnetic interference
-
Fanless Passive Cooling: Silent operation with extended lifespan and zero maintenance requirements
-
Dual Redundant Power Inputs: 12 to 48 VDC terminal block dual input ensures continuous operation during primary power supply failure
-
Flexible Mounting Options: DIN rail mountable or wall-mountable for installation in tight spaces like telecom cabinets and distribution boxes
-
Compact Space-Saving Design: Measures just 70 × 95 × 26.1 mm (0.174 liters total volume)
-
Long-Distance Fiber Support: Supports distances from 550 meters (multimode) up to 80 kilometers (single-mode) with appropriate SFP modules
Industrial-Grade Reliability
Engineered specifically for demanding industrial applications, the DIS-M100G-SW delivers unmatched reliability where commercial-grade network equipment fails. The rugged IP30 metal enclosure protects internal components from dust, moisture, vibration, and electromagnetic interference. Its fanless passive cooling design eliminates moving parts that can fail, extending operational lifespan while ensuring silent operation. The converter has been rigorously tested and certified to withstand shock, freefall, and continuous vibration according to IEC standards, making it ideal for factory automation, railway applications, intelligent transport systems, and outdoor surveillance deployments.
Flexible Fiber Connectivity
The hot-swappable SFP port provides maximum flexibility for your fiber network design. Deploy multimode fiber for shorter distances up to 2 km or single-mode fiber for extended reaches up to 80 kilometers. The converter supports both 100 Mbps Fast Ethernet and 1000 Mbps Gigabit Ethernet speeds, automatically negotiating the optimal connection rate. This flexibility allows you to adapt your network infrastructure to specific distance and bandwidth requirements without replacing hardware.
Plug-and-Play Simplicity
Despite its industrial-grade capabilities, the DIS-M100G-SW requires no complex configuration. Simply connect your Ethernet cable to the RJ45 port, insert the appropriate SFP transceiver module (sold separately), connect your fiber cable, and apply power. The converter features Auto-MDI/MDIX and Auto-Negotiation to ensure your cable connections function at the highest possible speed while maintaining full compatibility. Front panel LEDs provide instant visual status feedback for power, link, and activity monitoring.
Redundant Power for Mission-Critical Applications
The DIS-M100G-SW features dual DC power inputs (12-48 VDC) supporting redundant power supply configurations. In mission-critical applications where downtime is unacceptable, connect two independent power sources to ensure the media converter continues operating seamlessly even if the primary power supply fails. This redundancy is essential for surveillance systems, transportation networks, and industrial control systems.
Standards and Compliance
The media converter adheres to industry-standard protocols including IEEE 802.3u for 100BASE-TX and 100BASE-FX, IEEE 802.3ab for 1000BASE-T, IEEE 802.3z for 1000BASE-X, and IEEE 802.3x for flow control. It carries CE and FCC certifications, ensuring compliance with global electromagnetic compatibility and safety standards.
What's in the Box
- D-Link DIS-M100G-SW Media Converter
- Quick Installation Guide
- DIN rail mounting kit
- Wall mounting screws
Full Specifications
Hardware
| Ports |
1 × 10/100/1000BASE-T RJ45 port
1 × SFP port (100/1000Base-X) |
| Fiber Distance Support |
550 m to 80 km (depending on SFP module) |
| Max. Forwarding Rate |
2 Gbps (full-duplex) |
| LEDs |
Power, Link/Activity indicators |
| Standards Compliance |
IEEE 802.3u (100BASE-TX/FX)
IEEE 802.3ab (1000BASE-T)
IEEE 802.3z (1000BASE-X)
IEEE 802.3x (Flow Control) |
Power
| Power Input |
12 to 48 VDC terminal block (dual redundant input) |
| Power Consumption |
Max. 4 watts |
Physical & Environmental
| Dimensions |
70 × 95 × 26.1 mm (W × D × H) |
| Weight |
190 g |
| Housing |
IP30-rated metal enclosure |
| Cooling |
Fanless passive cooling |
| Operating Temperature |
-40°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Operating Humidity |
5% to 95% (non-condensing) |
| Mounting |
DIN rail or wall mount |
| Certifications |
CE, FCC
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
What's in the Box
| Package Contents |
DIS-M100G-SW Media Converter
Quick Installation Guide
DIN rail mounting kit
Wall mounting screws |
Specifications are sourced from the manufacturer product page and may be updated. SFP transceiver modules sold separately.
