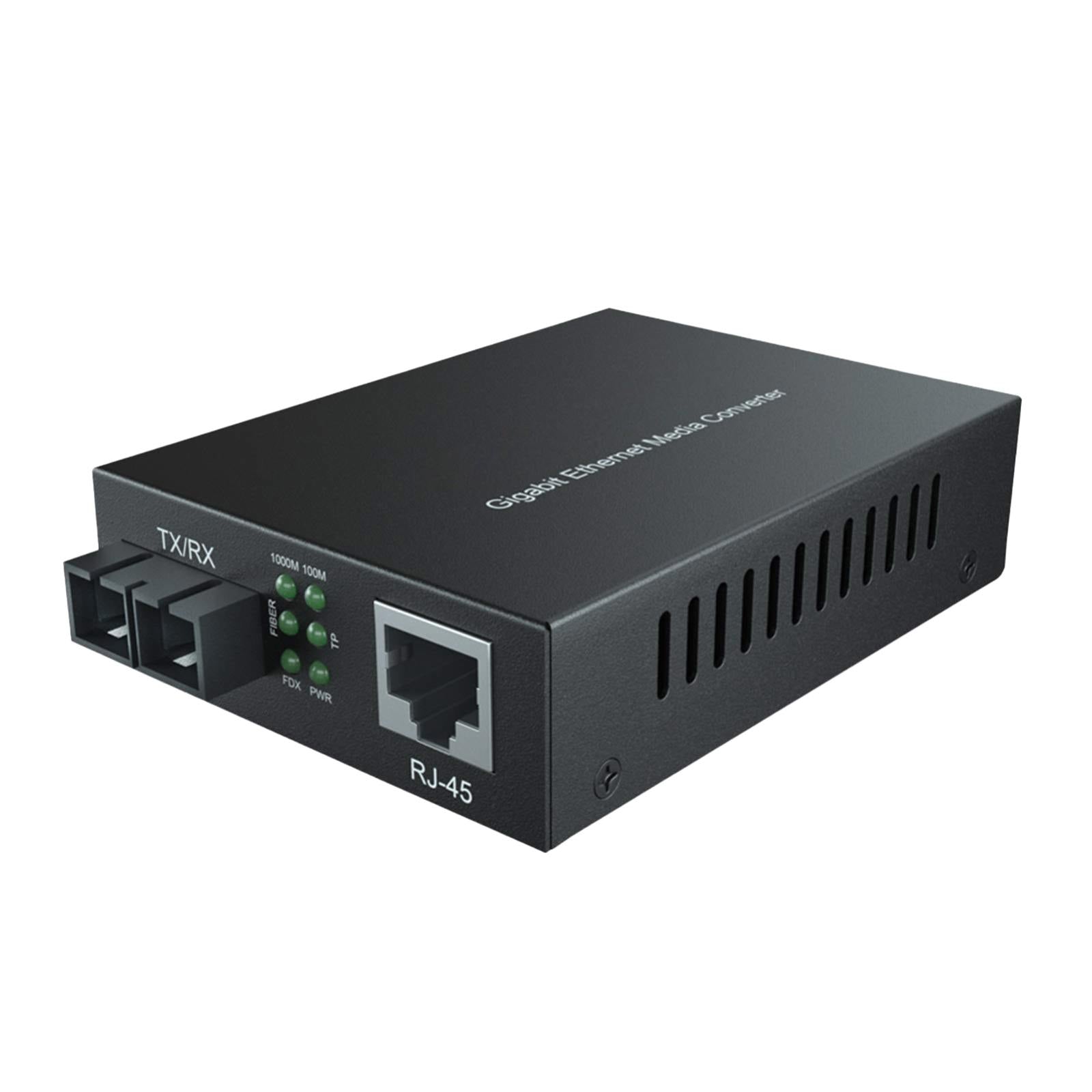

D-Link DMC-700SC Gigabit Multi-Mode Fiber Media Converter 550m SC
The D-Link DMC-700SC is a high-performance Gigabit Ethernet media converter designed to seamlessly connect 1000BASE-SX fiber to 1000BASE-T copper media or vice versa. Perfect for extending network connectivity in enterprise, campus, and data center environments, this compact standalone device converts electrical signals to optical signals over multi-mode fiber up to 550 meters, making it ideal for connecting network segments across buildings or floors where standard copper cabling falls short.
Why You'll Love the DMC-700SC
-
Extended Reach: Transmit Gigabit Ethernet signals over multi-mode fiber up to 550 meters, far exceeding the 100m copper limitation
-
Full Wire-Speed Performance: Supports 1000 Mbps data transfer rates with full-duplex mode for maximum throughput
-
Plug-and-Play Simplicity: No chassis required - works as a standalone device with included AC power adapter
-
SC Connector Compatibility: Uses industry-standard SC-type fiber connector for easy integration
-
Auto-Negotiation: Auto MDI/MDI-X on the copper port and auto duplex negotiation eliminate the need for crossover cables
-
Front Panel LED Indicators: Power and Link/Activity LEDs provide at-a-glance status monitoring
Enterprise-Grade Reliability
Built to IEEE 802.3ab and 802.3z standards, the DMC-700SC ensures seamless interoperability with your existing network infrastructure. The converter supports shortwave (SX) laser specifications at full wire-speed forwarding rate, delivering rock-solid performance for mission-critical applications. With an operating temperature range of 0°C to 40°C and compliance with FCC Class B, VCCI Class B, and CE certifications, this media converter is built to perform reliably in professional network environments.
Flexible Deployment Options
The DMC-700SC offers maximum installation flexibility. Use it as a standalone converter with its own housing and AC power supply, or install it in the optional DMC-1000 Media Converter Chassis (sold separately) for centralized rack-mount deployment. The chassis can house up to 16 media converters, allowing you to scale your network as requirements grow while simplifying cable management and power distribution.
Perfect for Australian Businesses
Whether you're connecting distant switches in a warehouse, linking buildings on a campus network, extending your network to a remote office, or upgrading legacy copper infrastructure to fiber, the D-Link DMC-700SC delivers cost-effective Gigabit performance. Its compact design and simple installation make it ideal for IT professionals seeking reliable fiber-to-copper conversion for schools, offices, hospitals, retail locations, and industrial facilities across Australia.
Technical Specifications
Network Performance
-
Standards: IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX
-
Data Transfer Rate: 1000 Mbps (1 Gigabit per second)
-
Duplex Mode: Full Duplex
-
Forwarding Rate: 1,488,000 packets per second at 1000 Mbps
Connectivity
-
Copper Port: 1 × RJ-45 (1000BASE-T) - supports Cat. 5 twisted-pair cabling up to 100m
-
Fiber Port: 1 × SC connector (1000BASE-SX) - supports 62.5/125μm multi-mode fiber up to 550m
-
Auto MDI/MDI-X: Yes (on copper port)
-
Auto-Negotiation: Duplex mode on copper port
Physical & Environmental
| Dimensions (L × W × H) |
120 × 88 × 25 mm (4.72 × 3.46 × 0.98 inches) |
| Weight |
305 g (0.305 kg / 10.75 oz) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-25°C to 70°C (-13°F to 158°F) |
| Humidity |
10% to 90% non-condensing |
| Power Input |
7.5V DC, 1.5A (via external AC power adapter) |
| Power Consumption |
5.5 Watts (maximum) |
| LED Indicators |
Power (PWR), Link/Activity (LNK/ACT) |
Certifications & Compliance
- FCC Class B
- VCCI Class B
- CE Certification Class B
What's in the Box
- DMC-700SC Media Converter
- External AC Power Adapter (7.5V 1.5A)
- User Manual
Specifications are sourced from the manufacturer product page and may be updated.
