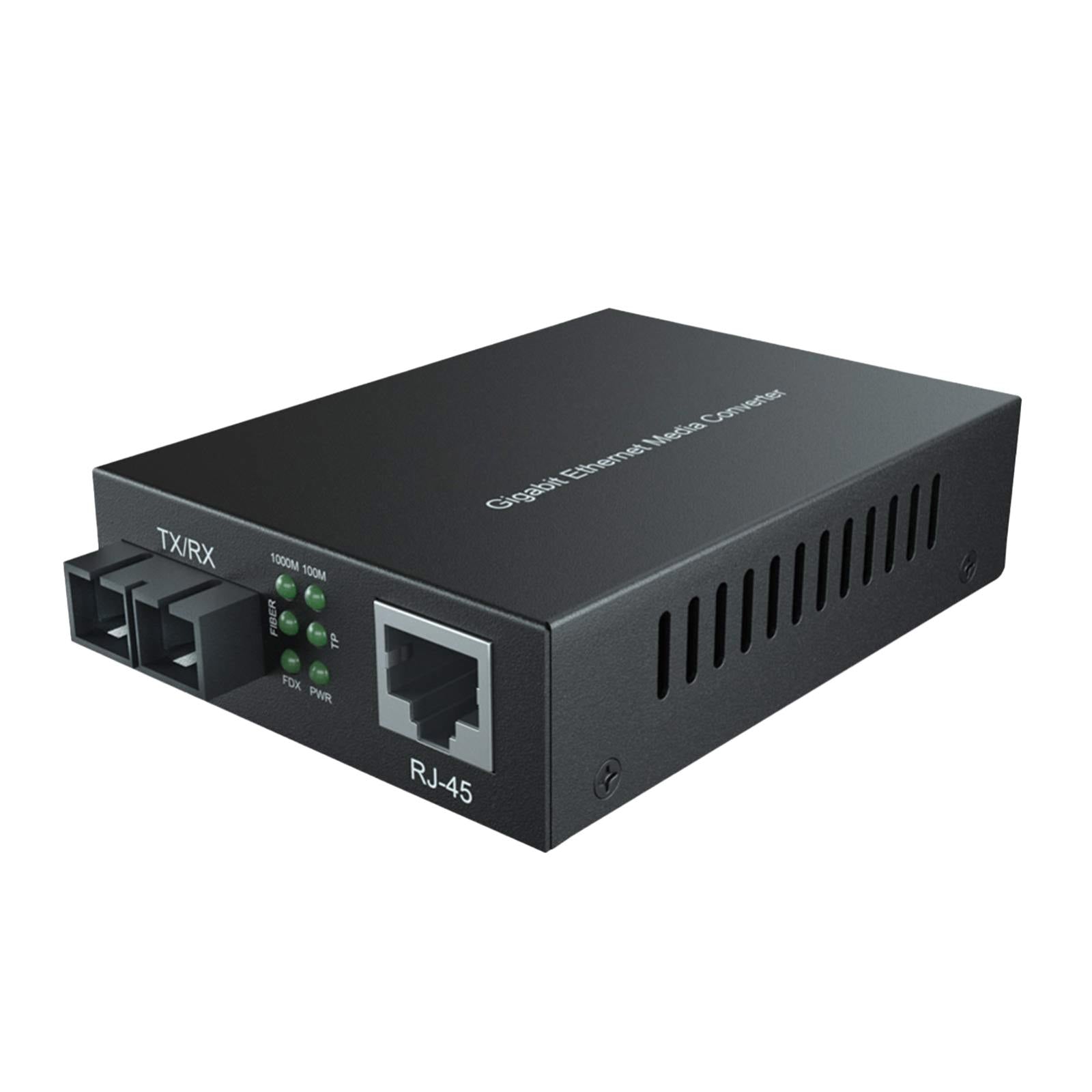

D-Link DMC-F810SC Gigabit Media Converter Single-Mode 20km SC Fibre
The D-Link DMC-F810SC is a professional Gigabit media converter designed to seamlessly convert 10/100/1000BASE-T copper Ethernet connections to 1000BASE-LX single-mode fibre connections over distances up to 20 kilometres. Perfect for extending network infrastructure across campus environments, between buildings, or in metropolitan area networks, this media converter provides reliable, high-speed connectivity where standard copper cabling falls short.
Key Features
-
Extended Range: Connect network devices up to 20km apart using single-mode fibre optic cable
-
Gigabit Performance: Full wire-speed forwarding rate supporting 10/100/1000 Mbps speeds
-
IEEE 802.3ab and 802.3z Standards: Fully compliant with industry standards for seamless integration
-
1310nm Wavelength: Longwave (LX) laser specifications for reliable long-distance transmission
-
Flexible Deployment: Use as a standalone device with included power adapter or install in DMC-1000 chassis
-
Auto-Negotiation: Automatically detects duplex mode and speed on twisted-pair port
Extend Your Network with Fibre
The DMC-F810SC converts standard RJ-45 Ethernet connections into high-speed fibre optic links, allowing you to leverage existing network equipment while extending connectivity far beyond the 100-metre limitation of copper cabling. The converter features Auto MDI/MDI-X on the twisted-pair port for hassle-free cable connections without crossover cables, and front panel status LEDs for quick visual confirmation of power, link status, and activity.
Standalone or Chassis-Based Installation
Start with a single standalone unit complete with its own metal housing and external AC power adapter. As your network grows, the DMC-F810SC can be installed into the DMC-1000 Media Converter Chassis (sold separately), which supports up to 16 media converters in a single rack-mountable unit. The housing is easily removable, allowing the converter module to slide into any chassis slot where it's powered by the chassis power supply.
Professional Network Applications
Ideal for a wide range of professional networking applications including connecting remote buildings on corporate campuses, linking network closets in large facilities, connecting security camera systems over long distances, extending backbone infrastructure in telecommunications environments, and future-proofing network installations with scalable fibre optic technology.
What's in the Box
- DMC-F810SC Media Converter
- AC to DC Power Adapter (7.5V DC / 1.5A)
- Quick Install Guide
Full Specifications
Interface
| Twisted-Pair Port |
1 × RJ-45 10/100/1000BASE-T with Auto MDI/MDI-X |
| Fibre Port |
1 × SC connector for single-mode fibre |
| Standards |
IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3z (1000BASE-LX) |
Performance
| Speed |
10/100/1000 Mbps (twisted-pair), 1000 Mbps (fibre) |
| Forwarding Rate |
Full wire-speed |
| Fibre Type |
Single-mode 9/125 µm |
| Wavelength |
1310 nm (LX laser) |
| Maximum Distance |
20 km (single-mode fibre) |
Features
| Auto-Negotiation |
Duplex mode on twisted-pair port |
| Auto MDI/MDI-X |
Yes, on twisted-pair port |
| Link Pass Through (LLCF) |
Supported |
| Front Panel LEDs |
Power, Link/Activity |
| Hot-Swappable |
Yes (when used with chassis) |
Physical & Environmental
| Dimensions (W × D × H) |
120 × 88 × 25 mm |
| Weight |
305 g (0.305 kg) |
| Power Input |
7.5V DC / 1.5A (external adapter) |
| Power Consumption |
7.2 watts (maximum) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-25°C to 70°C |
| Humidity |
10% to 90% (non-condensing) |
| Certifications |
FCC Class B, VCCI Class B, CE Class B |
Specifications are sourced from the manufacturer product page and may be updated.
