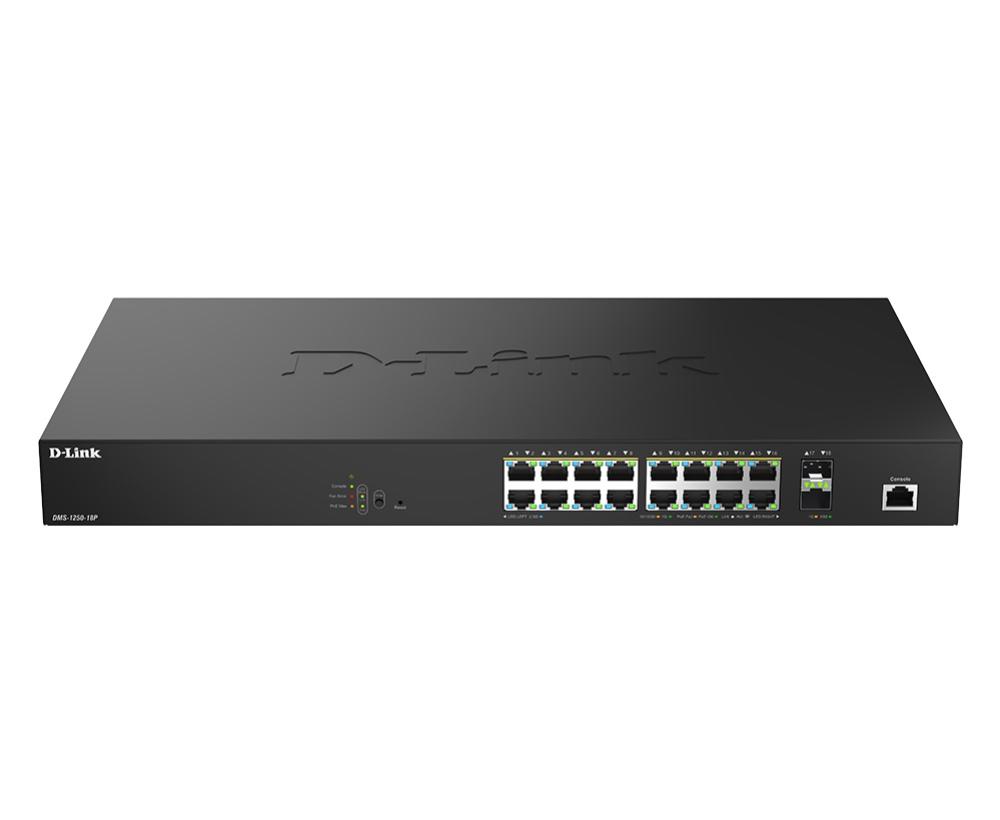

D-Link DMS-1250-18P 18-Port Multi-Gigabit Smart Managed PoE++ Switch
The D-Link DMS-1250-18P is an advanced 18-port 2.5 Gigabit smart managed switch designed for high-performance business networks. Featuring 16 × 2.5G PoE++ ports and 2 × 10G SFP+ uplinks, this switch delivers blazing-fast multi-gigabit connectivity perfect for Wi-Fi 6/6E access points, IP surveillance cameras, VoIP systems, and IoT devices. With a 370W total PoE budget supporting up to 90W per port (IEEE 802.3bt), the DMS-1250-18P powers the most demanding PoE devices while eliminating network bottlenecks caused by legacy gigabit infrastructure.
Why Choose the DMS-1250-18P?
-
2.5 Gigabit Multi-Gig Ports: All 16 downlink ports support 2.5GBASE-T for up to 2.5x the speed of standard Gigabit Ethernet, ideal for Wi-Fi 6/6E environments and high-resolution 4K/8K IP cameras
-
PoE++ (90W per port): IEEE 802.3af/at/bt compliant with 370W total budget to power high-performance access points, PTZ cameras, video conferencing systems, and digital signage
-
10G SFP+ Uplinks: Two dedicated 10 Gigabit SFP+ ports for fiber or copper uplinks to core switches, servers, or storage arrays
-
6kV Surge Protection: All 2.5G ports feature enhanced surge protection to safeguard against electrical spikes and lightning strikes
-
Layer 2+ Smart Management: Advanced features including VLANs, LACP link aggregation, static routing, QoS, IGMP/MLD snooping, STP/RSTP/MSTP, and loopback detection
-
Lifetime Warranty: Backed by D-Link's lifetime limited warranty and over 39 years of networking expertise
Perfect for Modern Wi-Fi 6/6E Deployments
The DMS-1250-18P eliminates the performance bottleneck that occurs when Wi-Fi 6 or Wi-Fi 6E access points are connected to standard 1G switches. With 2.5 Gbps ports optimized for next-generation wireless, your network can fully leverage the efficiency and throughput of modern access points, ensuring seamless 4K video streaming, large file transfers, and lag-free cloud application performance across offices, schools, hotels, and retail environments.
Enterprise-Grade Power & Perpetual PoE
With support for the latest IEEE 802.3bt PoE++ standard, the DMS-1250-18P delivers up to 90 watts per port to power demanding devices such as high-power Wi-Fi 6E APs, outdoor PTZ cameras, video phones, and interactive displays. The switch also features Perpetual PoE technology, which maintains power to connected devices even during switch reboots or firmware upgrades, ensuring zero downtime for mission-critical systems like surveillance and access control.
Centralized Management & Control
Manage single or multiple DMS-1250-18P switches with ease using D-Link Nuclias Network Controller for cloud-based centralized management, or via traditional methods including Web UI, CLI, SNMP, and D-View 8. Features like real-time monitoring, device discovery, bulk configuration, and remote firmware updates simplify deployment and ongoing administration for IT teams managing distributed networks.
Robust Security & Reliability
The DMS-1250-18P includes comprehensive security features such as 802.1X authentication, RADIUS/TACACS+ AAA support, ACLs (Access Control Lists), DHCP snooping, IP-MAC binding, and D-Link Safeguard Engine for real-time protection against malicious traffic and DDoS attacks. Combined with ERPS (Ethernet Ring Protection Switching) for sub-50ms failover and dual firmware images, this switch ensures maximum uptime and network resilience.
Smart Cooling & Energy Efficiency
The DMS-1250-18P features a 5-speed intelligent fan system that automatically adjusts cooling based on operating temperature and PoE load. Administrators can manually configure fan modes via Web UI or CLI to balance performance and acoustics. The switch also supports IEEE 802.3az Energy Efficient Ethernet (EEE) to reduce power consumption during periods of low network activity, lowering operational costs without sacrificing performance.
Universal Connectivity
- 16 × 10/100/1000/2.5GBASE-T PoE++ ports (up to 90W per port, 370W total)
- 2 × 10G SFP+ fiber uplink ports
- 1 × RJ-45 console port for CLI management
- Supports Cat 5e or higher cabling for 2.5G operation (up to 100m)
- Auto MDI/MDIX crossover support on all ports
What's in the Box
- D-Link DMS-1250-18P switch
- Power cord
- Rack-mount kit
- Quick installation guide
- Warranty card
Full Specifications
Hardware
| Total Ports |
18 (16 × 2.5G PoE++, 2 × 10G SFP+) |
| PoE Ports |
16 × 2.5GBASE-T PoE++ |
| Uplink Ports |
2 × 10G SFP+ |
| Console Port |
1 × RJ-45 |
| Port Standards |
IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3bz (2.5GBASE-T), IEEE 802.3ae (10G Ethernet), IEEE 802.3z (1000BASE-X) |
Performance
| Switching Capacity |
120 Gbps |
| Packet Forwarding Rate |
89.29 Mpps |
| Cable Type |
Cat 5e or higher for 2.5G (max 100m), Cat 6A for 10GBASE-T (max 100m) |
| Auto MDI/MDIX |
Yes |
Power over Ethernet
| PoE Standards |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++) |
| PoE Budget |
370W total |
| Max Power per Port |
90W (PoE++) |
| PoE Ports |
16 |
| Perpetual PoE |
Yes |
Layer 2 Features
| VLANs |
802.1Q tag-based, port-based, voice VLAN, Q-in-Q |
| Spanning Tree |
STP, RSTP, MSTP |
| Link Aggregation |
802.3ad LACP (up to 8 groups, 8 ports per group) |
| Multicast |
IGMP snooping v1/v2/v3, MLD snooping v1/v2 |
| QoS |
802.1p CoS, DSCP, weighted round-robin, strict priority |
| Static Routing |
IPv4/IPv6 static routes |
| Loopback Detection |
Yes |
| ERPS |
Ethernet Ring Protection Switching (sub-50ms recovery) |
Security
| Authentication |
802.1X port-based, RADIUS, TACACS+ |
| Access Control |
ACLs (IPv4/IPv6/MAC), IP-MAC binding, DHCP snooping |
| Port Security |
MAC address filtering, port isolation, storm control |
| Safeguard Engine |
Yes (DDoS and traffic overload protection) |
| Surge Protection |
6kV on all 2.5G ports |
Management
| Management Interfaces |
Web UI, CLI (Telnet/SSH), SNMP v1/v2c/v3, Nuclias Connect, D-View 8 |
| Configuration |
Console (RJ-45), Telnet, SSH, HTTP, HTTPS |
| Monitoring |
RMON, syslog, port mirroring, cable diagnostics |
| Firmware |
Dual image support |
Physical & Environmental
| Dimensions (W × D × H) |
440 × 300 × 44 mm (17.3 × 11.8 × 1.73 in) |
| Mounting |
19-inch rack-mountable (1U) |
| Cooling |
5-speed intelligent fan |
| Operating Temperature |
-5°C to 50°C (23°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Humidity |
10% to 95% non-condensing |
| Power Input |
100-240V AC, 50/60Hz |
| Max Power Consumption |
430W (with full PoE load) |
| Energy Efficiency |
IEEE 802.3az EEE |
Standards & Compliance
| Certifications |
FCC, CE, RCM |
| Warranty |
Lifetime limited warranty |
Specifications are sourced from the official manufacturer product page and may be updated. For the latest information, visit dlink.com or contact D-Link support.
