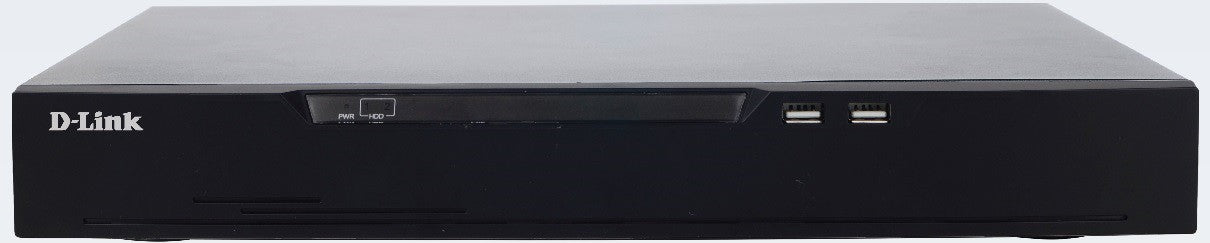

D-Link DNR-F4216-16P 16-Channel H.265 Network Video Recorder with 16 PoE Ports
The D-Link DNR-F4216-16P is a professional-grade 16-channel Network Video Recorder (NVR) designed for businesses that demand reliable, high-quality surveillance. With 16 built-in Power over Ethernet (PoE) ports, this standalone NVR simplifies camera installation by powering and connecting up to 16 network cameras through a single cable. Supporting both H.265 and H.264 video compression, it delivers exceptional storage efficiency while maintaining crystal-clear footage quality. Perfect for medium to large-scale commercial security systems, retail stores, warehouses, and office environments.
Key Features
-
16 Built-in PoE Ports: Connect and power up to 16 IP cameras with a single cable per camera, eliminating the need for separate power supplies
-
Ultra-High-Quality Recording: Supports streaming and recording of up to 12MP resolution footage – 50% more pixels than 4K video for unmatched clarity
-
Massive Storage Capacity: Two 3.5" SATA HDD bays support up to 24TB total storage (12TB per drive) for weeks or months of high-definition recordings
-
H.265 Video Compression: Advanced compression technology reduces file sizes and bandwidth requirements while preserving video quality
-
Flexible Recording Modes: Continuous, scheduled, or event-based recording with automatic overwrite functionality
-
Remote Access & Monitoring: Monitor your security system from anywhere via web browser or the D-Link mobile app
-
Advanced Search & Playback: Powerful tools make footage review effortless – rapidly locate and export the exact clips you need
-
ONVIF Compliance: Compatible with ONVIF-compliant network cameras for maximum flexibility
Professional Surveillance for Growing Businesses
As your business expands, so do your surveillance needs. The DNR-F4216-16P is engineered to scale with you, offering expandable storage and support for high-resolution cameras. Whether you're protecting a retail environment, warehouse, office complex, or multi-location business, this NVR delivers the performance and reliability you can count on. View live streams from all 16 cameras simultaneously in real time, with support for 4-channel playback and single-camera PTZ control.
Crystal-Clear 12MP Video Quality
Experience surveillance footage like never before. With support for 12-megapixel resolution, the DNR-F4216-16P captures every detail with stunning clarity. See faces, license plates, and critical details that lower-resolution systems miss. The 12MP resolution provides approximately 50% more pixels than standard 4K video, ensuring no detail is left hidden, no matter how small.
Intelligent Storage & Efficient Compression
Storage demands grow rapidly with higher-quality footage and more cameras. The DNR-F4216-16P addresses this with dual 3.5" SATA hard drive bays supporting up to 12TB each (hard drives sold separately). Combined with H.265 video compression, you can store significantly more footage without sacrificing quality. Advanced search features streamline the review process, allowing administrators to quickly single out needed footage and export it if required.
Simple Installation with Built-In PoE
Eliminate the complexity and cost of running separate power cables. With 16 integrated PoE ports, the DNR-F4216-16P powers compatible IP cameras directly through the Ethernet cable. This plug-and-play installation saves time, reduces cable clutter, and makes camera placement more flexible. Pair it with a D-Link Long Reach PoE Switch for an even more powerful surveillance solution with extended cable runs.
Remote Monitoring & Network Functionality
Stay connected to your security system from anywhere with an internet connection. The NVR supports remote access via web browser or D-Link mobile app, allowing you to view live streams, review recorded footage, and manage camera settings on the go. Features include Dynamic DNS support for systems without a fixed IP address, DHCP compatibility for easy network integration, and Network Time Protocol (NTP) synchronization to ensure accurate timestamps for legal evidence.
Advanced Event Management & Alerts
The DNR-F4216-16P centrally controls event notifications and recording triggers for all connected cameras. Configure motion detection alerts with email notifications, set up scheduled recording intervals, or trigger event-based recording. Input from camera events can be monitored, and administrators can filter external connections by IP address to enhance security. Recorded data is stored securely and can be backed up to any local PC hard disk.
Connectivity & Interfaces
-
16 × PoE Ports: IEEE 802.3af/at for IP camera power and data
-
1 × Gigabit LAN Port: 10/100/1000 Mbps auto-MDIX Ethernet connection
-
1 × HDMI Output: Supports resolutions up to 1920 × 1080 at 60Hz
-
1 × VGA Output: Supports resolutions up to 1920 × 1080 at 60Hz
-
2 × USB 2.0 Ports: For backup and firmware updates
-
Audio Input/Output: 1 × audio in, 1 × audio out
-
2 × 3.5" SATA Bays: For internal hard drive installation (SATA II/III compatible)
What's in the Box
- D-Link DNR-F4216-16P Network Video Recorder
- Power adapter
- Quick Installation Guide
- Mounting hardware
Full Specifications
Video & Recording
| Video Channels |
16 channels |
| Maximum Resolution |
12MP (4000 × 3000) |
| Video Compression |
H.265, H.264, MJPEG |
| Recording Modes |
Continuous, Scheduled, Event-based |
| Playback Channels |
4 simultaneous channels |
Storage
| Hard Drive Bays |
2 × 3.5" SATA (SATA II/III) |
| Maximum Storage Capacity |
24TB (12TB per HDD) |
| Hard Drives Included |
No (sold separately) |
Network & Power
| PoE Ports |
16 × IEEE 802.3af/at PoE |
| LAN Port |
1 × 10/100/1000 Mbps Gigabit Ethernet |
| Network Protocols |
TCP/IP, DHCP, PPPoE, DDNS, NTP |
| Standards |
IEEE 802.3/u/z, ONVIF compliant |
| Operating System |
Linux-based |
Interfaces
| Video Outputs |
1 × HDMI (1920 × 1080/60Hz), 1 × VGA (1920 × 1080/60Hz) |
| USB Ports |
2 × USB 2.0 |
| Audio |
1 × audio input, 1 × audio output |
Features
| Remote Access |
Web browser, D-Link mobile app |
| Motion Detection |
Yes, with email alerts |
| PTZ Control |
Yes (single camera at a time) |
| Backup Options |
USB, network backup |
| Automatic Overwrite |
Yes |
| Power Failure Recovery |
Yes |
Specifications are sourced from the manufacturer product page and may be updated.
