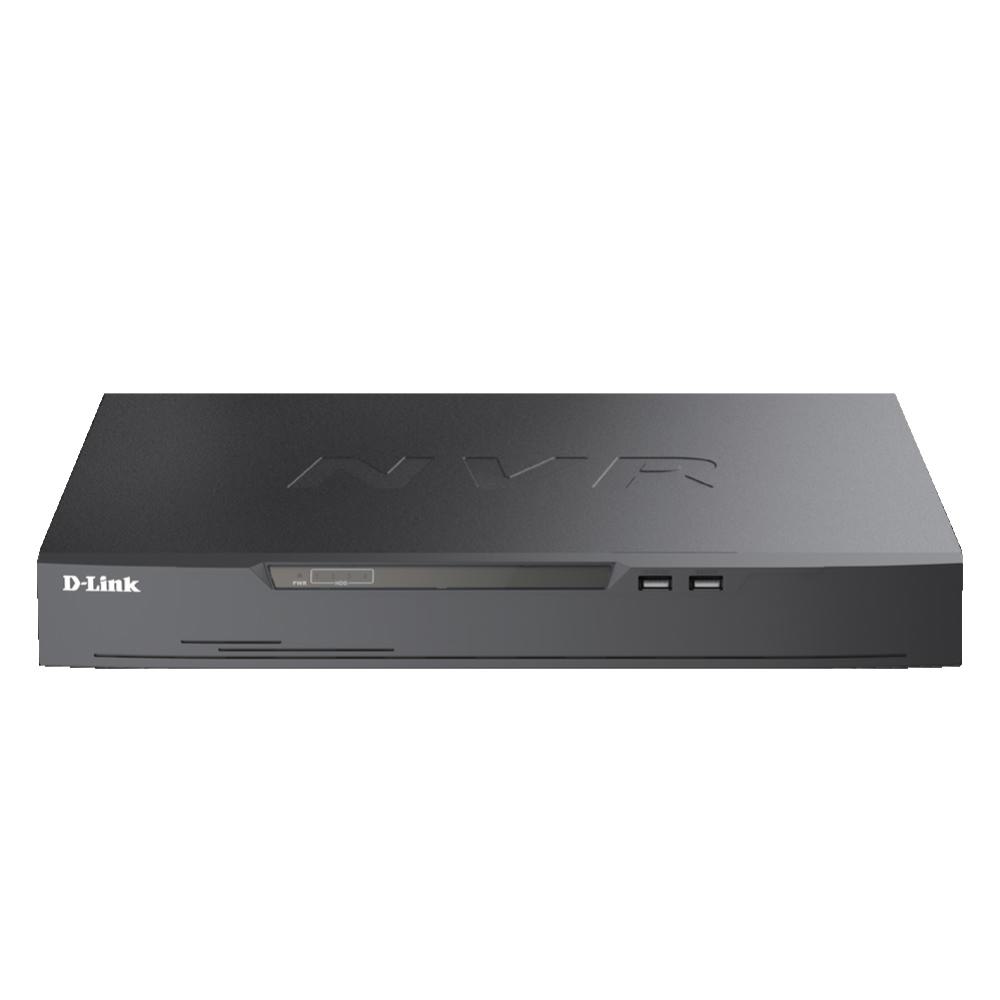

D-Link DNR-F4432-16P 32-Channel H.265 Network Video Recorder with 16 PoE Ports
The D-Link DNR-F4432-16P is a professional-grade standalone 32-channel network video recorder designed for businesses that demand reliable, high-quality surveillance. With support for H.265 and H.264 video compression, this NVR delivers exceptional recording efficiency while supporting up to 12MP ultra-high-definition footage. Featuring 16 built-in PoE ports and four HDD bays with up to 48TB total storage capacity, the DNR-F4432-16P offers a complete, scalable surveillance solution for medium to large business installations across Australia.
Key Features
-
32-Channel Support: Stream and record from up to 32 network cameras simultaneously with real-time monitoring
-
12MP Ultra-HD Recording: Capture crystal-clear footage with 12MP resolution (50% more pixels than 4K video) for exceptional detail
-
16 Built-in PoE Ports: Simplify camera installation with Power over Ethernet ports that deliver both power and data over a single cable
-
Massive Storage Capacity: Four SATA HDD bays supporting up to 12TB per drive for a total of 48TB expandable storage
-
H.265 Video Compression: Save storage space and bandwidth with advanced Ultra H.265/H.265/H.264 video encoding
-
ONVIF Compatible: Works with third-party IP cameras supporting ONVIF Profile S, G, and T standards
Professional-Grade Performance
The DNR-F4432-16P is absolutely essential for businesses requiring dependable surveillance infrastructure. View live streams from all 32 cameras in real time, with intelligent tools that make footage review efficient and camera management straightforward. The 256Mbps incoming bandwidth ensures smooth recording even with multiple high-resolution camera feeds operating simultaneously.
Intelligent Video Management
Advanced playback features include smart search functionality and accurate retrieval with instant playback. The NVR supports various recording modes including continuous, scheduled, and event-based recording triggered by motion detection. AI-based facial detection and recognition is available through D-Link's DCMS+ Comprehensive Management Software, adding an extra layer of security intelligence to your surveillance network.
Flexible Display Options
Multiple video output options ensure compatibility with your existing display infrastructure. The DNR-F4432-16P features HDMI output supporting up to 4K resolution (3840×2160) at 30Hz, plus additional resolutions including 1920×1080/60Hz and 1280×1024/60Hz. A VGA output and CVBS output provide additional connectivity, and the system supports 1-channel RCA audio input and output for two-way audio communication.
Scalable Storage Solutions
As your business grows, the DNR-F4432-16P grows with you. The four internal SATA bays accept 3.5-inch hard drives up to 12TB each, and the NVR supports RAID 0, 1, 5, 6, and 10 configurations for data redundancy and enhanced reliability. ANR (Automatic Network Replenishment) technology enhances storage reliability when network connectivity is temporarily interrupted, ensuring no footage is lost.
Power over Ethernet Convenience
Matched with a D-Link Long Reach PoE Switch, the DNR-F4432-16P creates a powerful surveillance infrastructure. The enhanced PoE budget and extended range deliver power to more cameras at greater distances, perfect for multi-location business surveillance. The system even supports 12V power output for compatible devices and features N+1 hot spare redundancy for mission-critical applications.
Remote Access & Cloud Features
Monitor your business from anywhere using the included mobile apps for iOS and Android devices. The NVR supports Google Drive and Dropbox cloud storage integration for off-site backup, plus 3G/4G and Wi-Fi connectivity options for flexible network deployment. Cloud upgrade support ensures your NVR stays current with the latest features and security patches.
Universal Connectivity
-
Network: 16× PoE ports (IEEE 802.3af/at), 1× Gigabit Ethernet WAN port
-
Video Output: 1× HDMI (up to 4K), 1× VGA, 1× CVBS
-
Audio: 1× RCA audio input, 1× RCA audio output (two-way talk)
-
Storage: 4× SATA III bays (3.5-inch HDD, up to 12TB each)
-
USB: USB ports for mouse, keyboard, and backup drives
-
Alarm: Digital I/O for alarm integration
What's in the Box
- D-Link DNR-F4432-16P Network Video Recorder
- Power adapter and power cord
- Ethernet cable
- Mounting brackets and screws
- Quick installation guide
- Software CD-ROM
Full Specifications
Video & Audio Input
| IP Video Input |
32 channels |
| Video Formats |
Ultra H.265 / H.265 / H.264 |
| Maximum Resolution |
Up to 12MP (4000×3000) |
| Recording Resolution |
12MP / 8MP / 5MP / 4MP / 3MP / 1080p / 720p / D1 / CIF / QCIF |
| Incoming Bandwidth |
256 Mbps |
| Audio Input |
1-channel RCA (two-way talk) |
| Third-Party Camera Support |
ONVIF Profile S, G, T conformant IP cameras |
Video & Audio Output
| HDMI Output |
1-channel, 4K (3840×2160)/30Hz, 1920×1080/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA Output |
1-channel, 1920×1080/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| CVBS Output |
1-channel composite video |
| Audio Output |
1-channel RCA |
Recording & Playback
| Compression |
Ultra H.265 / H.265 / H.264 |
| Bit Rate |
64 Kbps to 10 Mbps per channel |
| Recording Modes |
Continuous, scheduled, motion detection, alarm trigger |
| Playback Mode |
Smart, normal, time division, label, event, picture, log playback |
| Simultaneous Playback |
Multiple channels with smart search and analytics |
Storage
| HDD Bays |
4× SATA III (3.5-inch) |
| Maximum Capacity per Bay |
12TB |
| Total Maximum Storage |
48TB (4× 12TB) |
| RAID Support |
RAID 0, 1, 5, 6, 10 |
| ANR Technology |
Yes (Automatic Network Replenishment) |
Network & Connectivity
| PoE Ports |
16× 10/100 Mbps PoE (IEEE 802.3af/at) |
| WAN Port |
1× 10/100/1000 Mbps Gigabit Ethernet (RJ-45) |
| Network Protocols |
TCP/IP, DHCP, DNS, DDNS, NTP, SMTP, HTTP, HTTPS, UPnP, ONVIF |
| Wireless Connectivity |
Optional 3G/4G and Wi-Fi support |
| Cloud Storage |
Google Drive, Dropbox integration |
| Remote Access |
Web browser, iOS app, Android app |
Power & Physical
| Power Input |
100-240V AC, 50/60Hz |
| Power Output |
12V DC output for external devices |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Dimensions |
Rack-mountable 2U chassis |
| Certifications |
CE, FCC, RCM |
Specifications are sourced from the manufacturer product page and may be updated.
