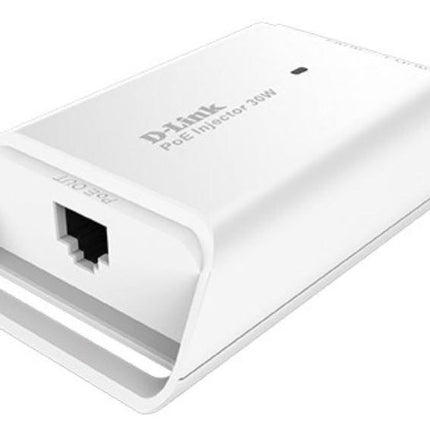

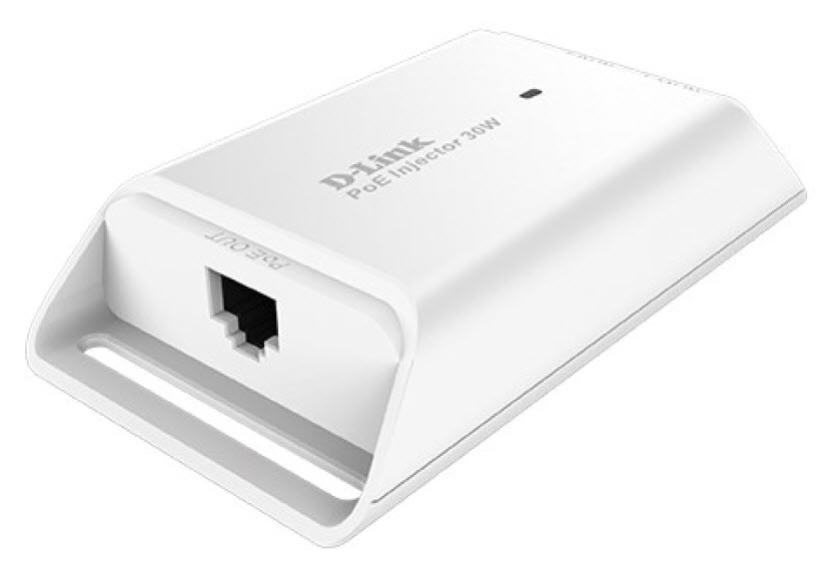

D-Link DPE-301GI Gigabit PoE+ Injector 30W IEEE 802.3af/at
The D-Link DPE-301GI Gigabit PoE+ Injector delivers both power and data over a single Ethernet cable, making it the perfect solution for powering IP cameras, wireless access points, and VoIP phones in locations where power outlets are not readily available. Compliant with IEEE 802.3at (PoE+) and 802.3af (PoE) standards, this compact injector provides up to 30 watts of power while supporting Gigabit network speeds up to 1000 Mbps for seamless high-bandwidth connectivity.
Key Features
-
30W PoE+ Power Delivery: Supports IEEE 802.3at/af standards to power high-demand devices like PTZ cameras, 802.11ac access points, and VoIP phones
-
Gigabit Connectivity: 10/100/1000 Mbps support ensures fast, reliable data transmission for demanding applications
-
Plug-and-Play Installation: No software required - simply connect and start powering your PoE devices instantly
-
Cost-Effective Solution: Eliminates the need for dedicated PoE switches or nearby electrical outlets, reducing installation costs and complexity
-
Compact & Lightweight Design: At just 70 grams, the DPE-301GI features integrated mounting slots for easy installation anywhere in your building
-
100m Cable Distance: Supports PoE power delivery over distances up to 100 metres (328 feet) from switch to end device
Flexible Deployment for Any Network
The DPE-301GI is ideal for IT professionals who need to add PoE capability to existing networks without replacing switches or running additional electrical wiring. Whether you're installing ceiling-mounted wireless access points, outdoor IP security cameras, or video conferencing systems, this injector allows you to mount devices virtually anywhere in your building, office, warehouse, or campus environment.
The injector works as a midspan PSE (Power Sourcing Equipment), connecting between your non-PoE network switch and the powered device. The LAN IN port connects to your router or switch, while the PoE OUT port delivers both power and data to your PoE-enabled device. The DPE-301GI can be positioned anywhere along the Ethernet link, offering maximum installation flexibility.
Smart Protection Features
The DPE-301GI intelligently communicates with powered devices to deliver the correct amount of power, preventing damage from over-current situations. This smart power management ensures your valuable network equipment stays protected while receiving optimal power delivery.
Perfect Pairing with D-Link Ecosystem
For even greater versatility, the DPE-301GI can be paired with the DPE-301GS PoE Splitter to create a complete PoE transport system. This combination allows you to power non-PoE devices (requiring 5V, 9V, or 12V DC input) over Ethernet, expanding your deployment options even further.
Ideal Applications
- IP surveillance cameras with PTZ motors, heaters, and blowers
- High-power 802.11ac and Wi-Fi 6 wireless access points
- VoIP phones and video conferencing endpoints
- Network door controllers and access control systems
- Digital signage displays and information kiosks
- Building automation and IoT sensors
What's in the Box
- D-Link DPE-301GI Gigabit PoE+ Injector
- 54V DC Power Adapter
- Quick Installation Guide
Full Specifications
| Model |
DPE-301GI |
| Standards Compliance |
IEEE 802.3at (PoE+), IEEE 802.3af (PoE), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3 (Ethernet) |
| PoE OUT Port |
1 × 10/100/1000BASE-T RJ-45 (PoE + Data) |
| LAN IN Port |
1 × 10/100/1000BASE-T RJ-45 (Data only) |
| Maximum Power Output |
30W (IEEE 802.3at PoE+) |
| Output Voltage |
54V DC, 0.6A |
| Maximum Power Consumption |
32.4W |
| Network Speed |
10/100/1000 Mbps (auto-negotiation) |
| Duplex Mode |
Half/full-duplex (auto-negotiation) |
| Maximum Cable Distance |
100m (328ft) |
| LED Indicators |
Blue (Power On), Green (Link On) |
| Input Power |
54V / 0.6A DC (via included power adapter) |
| Power Adapter Input |
100-240V AC, 50/60Hz |
| Dimensions (L × W × H) |
109.8 × 62.2 × 24.5 mm (4.32 × 2.45 × 0.96 inches) |
| Weight |
70 grams (2.47 ounces) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-30°C to 70°C (-22°F to 158°F) |
| Operating Humidity |
5% to 95% (non-condensing) |
| Storage Humidity |
5% to 95% (non-condensing) |
| Certifications |
CE, FCC, VCCI, RCM, RoHS, BSMI |
| Warranty |
1 Year Limited Warranty |
Specifications are sourced from the manufacturer product page and may be updated.
