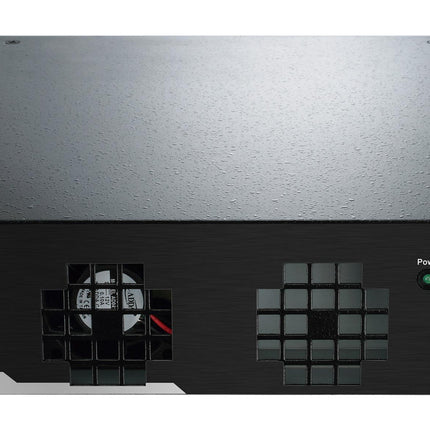

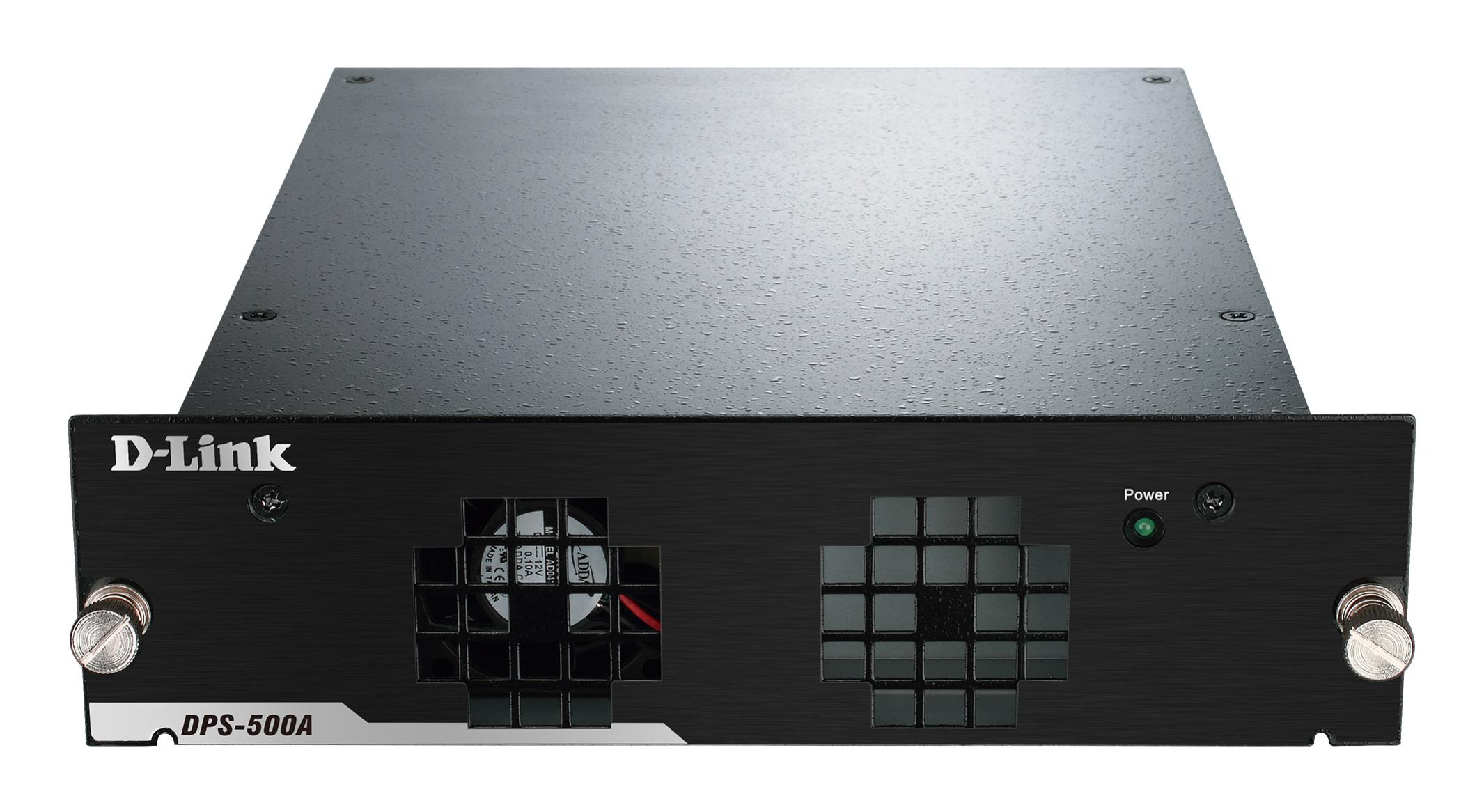

D-Link DPS-500A 140W Redundant Power Supply for Network Switches
The D-Link DPS-500A is a 140-watt redundant power supply (RPS) designed to safeguard your network infrastructure against power supply failures. Engineered for D-Link's Ethernet and Gigabit managed switches, this external RPS unit provides automatic failover protection, ensuring your critical network devices remain operational even in the event of an internal power supply failure. Housed in a solid metal case with LED status indicators, the DPS-500A delivers enterprise-grade reliability with flexible deployment options for both standalone and rack-mounted installations.
Why Choose the D-Link DPS-500A?
-
Automatic Failover Protection: Integrated detection circuit continuously monitors switch power and instantly activates backup when needed
-
140W Output Power: Provides full power support for compatible D-Link Ethernet and Gigabit switches
-
Flexible Installation: Use as standalone desktop unit or install in optional DPS-800 rack-mount chassis
-
Universal AC Input: Accepts 90-264V AC, 47-63Hz power sources worldwide
-
Hot-Swappable Design: Replace or add power supplies without network downtime when used with DPS-800 chassis
-
Built to Last: Mean time between failures (MTBF) rated at 400,000 hours for exceptional reliability
Intelligent Redundant Power Backup
The DPS-500A is equipped with an integrated detection circuit that continuously monitors your switch's internal power supply. In the event of a power interruption, the redundant power supply is immediately triggered, allowing your LAN switch and connected devices to continue providing service without interruption. This creates a more reliable network infrastructure and protects against single points of failure in critical network equipment.
Easy and Flexible Deployment
Deployment of the DPS-500A requires no changes to your network switch configuration. The unit features a universal internal power supply compatible with AC power sources from 90V to 264V AC, 47Hz to 63Hz, making it suitable for deployment anywhere in the world. The modular design allows installation as an independent desktop power supply unit, or placement inside an optional DPS-800 rack-mount chassis for clean, space-saving equipment rack installations.
Rack-Mount Chassis Compatibility
When used with the optional DPS-800 chassis, you can accommodate up to two DPS-500A modules in a standard 19-inch equipment rack. The chassis occupies just 1.25U of rack space and enables efficient cabling management. All redundant power supply units installed in the chassis connect directly to their power sources and are fully hot-swappable for maximum uptime.
Compatible D-Link Switches
The DPS-500A is compatible with a wide range of D-Link managed switches, including the DGS-3130 Series, DGS-3120 Series, DGS-3420 Series, and many other Layer 2 and Layer 3 managed switch models. Please consult D-Link compatibility documentation for your specific switch model.
What's in the Box
- DPS-500A 140W Redundant Power Supply Unit
- DC Power Cable (39 in./1m)
- AC Power Cable
- Quick Installation Guide
Full Specifications
Power
| Output Power |
140W |
| Input Voltage Range |
90 to 264V AC |
| Input Frequency |
47 to 63Hz |
| Maximum Input Current |
2A @ 100V AC, 1A @ 240V AC |
| Efficiency |
75% |
Physical
| Dimensions (W × D × H) |
172 × 257 × 43mm (6.8 × 10.1 × 1.7 in.) |
| Panel Size |
196 × 52mm (7.7 × 2.04 in.) |
| Weight |
1.51kg (3.33 lbs) |
| Housing |
Solid metal case |
Environmental
| Operating Temperature |
0 to 50°C (32 to 122°F) |
| Storage Temperature |
-45 to 85°C (-49 to 185°F) |
| Operating Humidity |
10 to 90% RH (non-condensing) |
| Storage Humidity |
10 to 95% RH (non-condensing) |
Reliability
| Mean Time Between Failures (MTBF) |
400,000 hours |
Installation
| Mounting Options |
Desktop/Rack Mountable (with optional DPS-800 chassis) |
| Rack Compatibility |
DPS-800 2-slot chassis for standard 19-inch racks |
| Hot-Swappable |
Yes (when installed in DPS-800 chassis) |
Specifications are sourced from the manufacturer product page and may be updated.
